- Page 1 O w n e r s M a n u a l N o r t h A m e r i c a...
- Page 2 Congratulations! Your choice of a Coyote Spa indicates that you are devoted to excellence. The man- agement and staff appreciate your patronage. At Coyote Spas™ we believe a good foundation is required to build a superior product, both in design and philosophy.
-
Page 3: Table Of Contents
Contents Important Safety Instructions............4 Hyperthermia ................... 7 Spa Specifications ................8 Installation Instructions ..............8 Equipment Compartment & Wiring Diagram ....... 10 Electrical Installation Instructions........... 11 Startup Procedures ................. 13 Venturi.................... 14 Jets ....................15 Topside Control Panel ..............16 Read and Follow All Instructions Spa Care &... -
Page 4: Important Safety Instructions
No. 8 AWG solid (USA) No. 6 AWG stranded (Canada) copper conductor at- installation of any tached to the wire connector on the grounding lug, inside the equipment compart- Coyote Spa. Any ment on the equipment box. modifications to the procedures outlined 6) DANGER: Risk of Electric Shock. - Page 5 8) WARNING: To Reduce the Risk of Injury: a) The water in a hot tub should never exceed 40°C (104ºF). Water temperatures between 38°C and 40°C (100 to 104°F) are considered safe for a healthy adult. Lower water temperatures are recommended for young children and when hot tub use exceeds 10 minutes. b) Since excessive water temperatures have a high potential for causing fetal damage during the early months of pregnancy, pregnant or possibly pregnant women should limit hot tub water temperatures to 38°C (100°F).
- Page 6 WARNING: DO NOT USE HOT TUBS UNLESS ALL SUCTION GUARDS ARE IN- STALLED TO PREVENT BODY AND HAIR ENTRAPMENT. AVERTISSEMENT: Ne pas utiliser la cuve de relaxation si esgrilles de prise d’aspiration ne sont pas toutes en place, pour eviter que les cheveux ou une partie du corps soient aspires. WARNING: PEOPLE WITH INFECTIOUS DISEASES SHOULD NOT USE A HOT TUB.
-
Page 7: Hyperthermia
WARNING: PROLONGED IMMERSION IN A HOT TUB MAY BE INJURIOUS TO YOUR HEALTH. AVERTISSEMENT: Rester trop longtemps dans la cuve de relaxation peut être dangereux pour la santé. WARNING: DO NOT PERMIT ELECTRIC APPLIANCES (SUCH AS LIGHT, TELEPHONE, RADIO, TELEVISION, ETC.) WITHIN 1.5M (5 FEET) OF THIS HOT TUB. AVERTISSEMENT: Ne pas placer d’appareil électrique (luminaire, Téléphone, radio, téléviseur, etc.) à... -
Page 8: Spa Specifications
Requirements Weight meter 330 Kg 240 Volt, 50 Amp Single 2646 Lbs 71”x 81” 1/2” 220 Lbs 211 gal Bandit Phase GFCI per square 5500 1200 Kg 180 cm x 206 cm 80 cm 800L 100 Kg Protected Circuts meter... -
Page 9: Installation Instructions
Spa Specification chart. This weight per square foot must not exceed the structure’s rated capacity, or serious structural damage could result. Your Coyote Spas™ Dealer can help you with local information such as zoning regulations and building codes. -

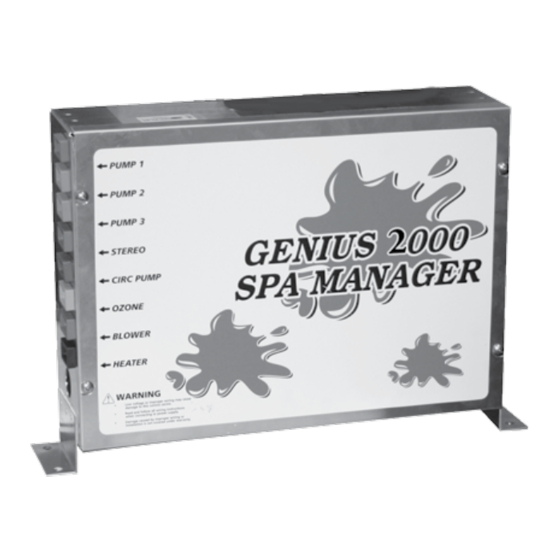

Page 10: Equipment Compartment & Wiring Diagram
All electrical hookups must be performed by a licensed electrician! Power Input Sub Panel All Coyote Spas are tested for the following: Wiring Diagram 240 VAC, 60 Hz, 50 A Example Connect the power input wires to the terminal block labeled “AC-Input”. -
Page 11: Electrical Installation Instructions
Electrical Installation Instructions COYOTE SPAS™ MUST BE WIRED IN ACCORDANCE WITH ALL APPLICA- BLE LOCAL ELECTRICAL CODES. ALL ELECTRICAL WORK SHOULD BE DONE BY AN EXPERIENCED, LICENSED ELECTRICIAN AND APPROVED BY A LOCAL BUILDING/ELECTRICAL INSPECTION AUTHORITY. WE RECOMMEND THE USE OF APPROPRIATE ELECTRICAL CONDUIT, FIT- TINGS AND WIRE FOR ALL CIRCUITS. - Page 12 WARNING: Removing or bypassing any GFCI breaker will result in an unsafe spa and will void the spa’s warranty. IMPORTANT: Should you ever find the need to move or relocate your Coyote Spas™, it is essential that you understand and apply these installation requirements. Your Coyote Spas™ has been care- fully engineered to provide maximum safety against electric shock.
-
Page 13: Startup Procedures
Startup Procedures IMPORTANT: Your Coyote Spa™ has been thoroughly tested during the manufacturing process to ensure reliability and long-term customer satisfaction. Before filling the spa, wipe the spa shell clean with a soft rag. The following instructions must be read and followed exactly to ensure a successful start-up or refill. -
Page 14: Venturi
The number of diverters you will have will depend on the model of Coyote Spas™ you have. Feel free to consult your local dealer with any questions regarding the function of this system, or just jump in and experiment for yourself. -
Page 15: Jets
Pulsing Luxury Hydromassage Jets Approximently half of the water jets in each coyote spa are pulsing. These jets provide a pulsing mas- sage feeling and are all adjustable by turning the face of each jet. -
Page 16: Topside Control Panel
Topside Control Panel IMPORTANT. Before performing any service on the spa, contact your local Factory Authorized Dealer. Make a visual inspection of the spa to get an understanding of what condition it may be in and if anything looks out of the ordinary. If any part appears to be damaged, loose or missing, do not proceed. - Page 17 The topside control panel has buttons which you press to set the temperature, initiate the filtra- tion cycle, turn the light on, and activate or deactivate the pump(s) and blower. The Topside control panel display responds to let you know you have pressed a button, and that the selected function has been performed.
- Page 18 Blower off unless the user does so manually. The LED beside the Blower logo on the display will be solid when the Blower is running. This feature is not available on the Bandit or the Outlaw models. Light Button This key is used to turn the Light Switch Off/On.
- Page 19 Overtemp During Filter Cycle In order to prevent excessive water temperatures due to long Filter cycles during warm weather, the system has a special safeguard. If the water temperature exceeds the set point by more than 2 degrees F, the system will cancel the Filter cycle and the Filter cycle icon will blink for the remainder of the filter cycle.
-
Page 20: Spa Care & Maintenance
1. Trip the RCD breaker located in the subpanel or the quick disconnect. 2. All Coyote spas have an external drain that can be attached to a typical garden hose for conve- nient draining. Simply locate the drain on the side of the floor, pull the nozzel out, remove cap, and attach your hose. - Page 21 Service Notes: 1. Iron and copper in the water can stain the spa shell if allowed to go unchecked. Your Coyote Spas™ Dealer stocks a Stain and Scale Inhibitor to use if your spa water has a high concentration of dissolved minerals.
- Page 22 The Standard Cabinet The standard cabinet on coyote spas is made with Premium Vinyl house siding. It should require no maintenance and can be hosed off if dirty. If damaged, cabinet pannels can be removed and replaced!
- Page 23 LED Light Replacement All Coyote Spas™ come equipped with a blue LED (light emitting diode) light for night-time use. The optional Peyote Light comes with a multicolour LED. Should you wish to change either light, follow these simple steps: 1. Make sure the light is turned off, by checking the topside to see if the light icon is not showing.
-
Page 24: Water Maintenance
Methods For Testing the Spa Water Accurate water testing and analysis are an important part of effectively maintaining your spa water. To follow the Coyote Spas™ recommended program, you must have the ability to test for: • Total Alkalinity (TA) •... - Page 25 The Coyote Spas™ Water Maintenance Program Following the Coyote Spas™ water maintenance program will save you time and frustration and ensure clear, clean spa water. Remove Excess Minerals Most tap water has minerals such as Calcium, Copper, Iron, Manganese and Sodium in it.
- Page 26 ® To remove these simply fill your spa with an Arctic Pure Pre-Filter. In extreme cases of source water with high minerals (such as some well water): ® 1. We recommend you add 3 1/2 tablespoons (48 grams) of Arctic Pure Best Defense per 1000 litres (265 gallons) of water while filling your spa.
-
Page 27: It Is Important To
5. It is important to check the pH on a regular basis. The pH will be affected by the bather load, the addition of new water, the addition of various chemicals, and the type of sanitizer used. 6. When the pH is within the recommended range, proceed to the final step. Calcium Hardness (CH) 1. - Page 28 Start-up: 1. Add pucks to floating dispenser and open to setting 4. ® 2. Add 2 tablespoons (28 grams) of Arctic Pure Refresh per 1000 litres (265 gallons) of water. ® 3. Add 1 tablespoon (14 grams) of Arctic Pure Boost per 1000 litres (265 gallons) of water.
-
Page 29: Common Spa Water Problems~Cause & Remedy
Common Spa Water Problems~Cause & Remedy SOLUTIONS PROBLEM POSSIBLE CAUSES ® A. Poor Filtration A. Dirty filter, clean with Arctic Pure Filter Restore (not with disposable filter). Increase Filter cycle. ® B. Suspended particles B. Add Arctic Pure Easy Clear ®... -
Page 30: Troubleshooting Spa Problems
Troubleshooting Spa Problems 1. Nothing functions: The GFCI breaker has tripped or there is a power failure. Test GFCI breaker. Turn breaker back on and see if spa powers up, if not contact your factory authorized dealer. 2. Spa does not heat: Check to see if the heat indicator is on or there are any error messages on the topside control panel. -
Page 31: Limited Warranty
Important This manual and its contents are subject to change without notice. Although Blue Falls Manufac- turing has prepared this manual as accurately and precisely as possible, Blue Falls Manufacturing will not be liable for loss, injury or damages caused by improper servicing or by use of spa (im- proper or otherwise). - Page 32 w w w . c o y o t e s p a s . c o m Thorsby, Alber ta, Canada 1-866-4-KIYOTE...
