Moto Parilla – CARBON E-BIKE
Owner Manual
for CARBON E BIKE
Updated August 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CARBON E BIKE and is the answer not in the manual?

Questions and answers

Related Manuals for Moto Parilla CARBON E BIKE

Summary of Contents for Moto Parilla CARBON E BIKE

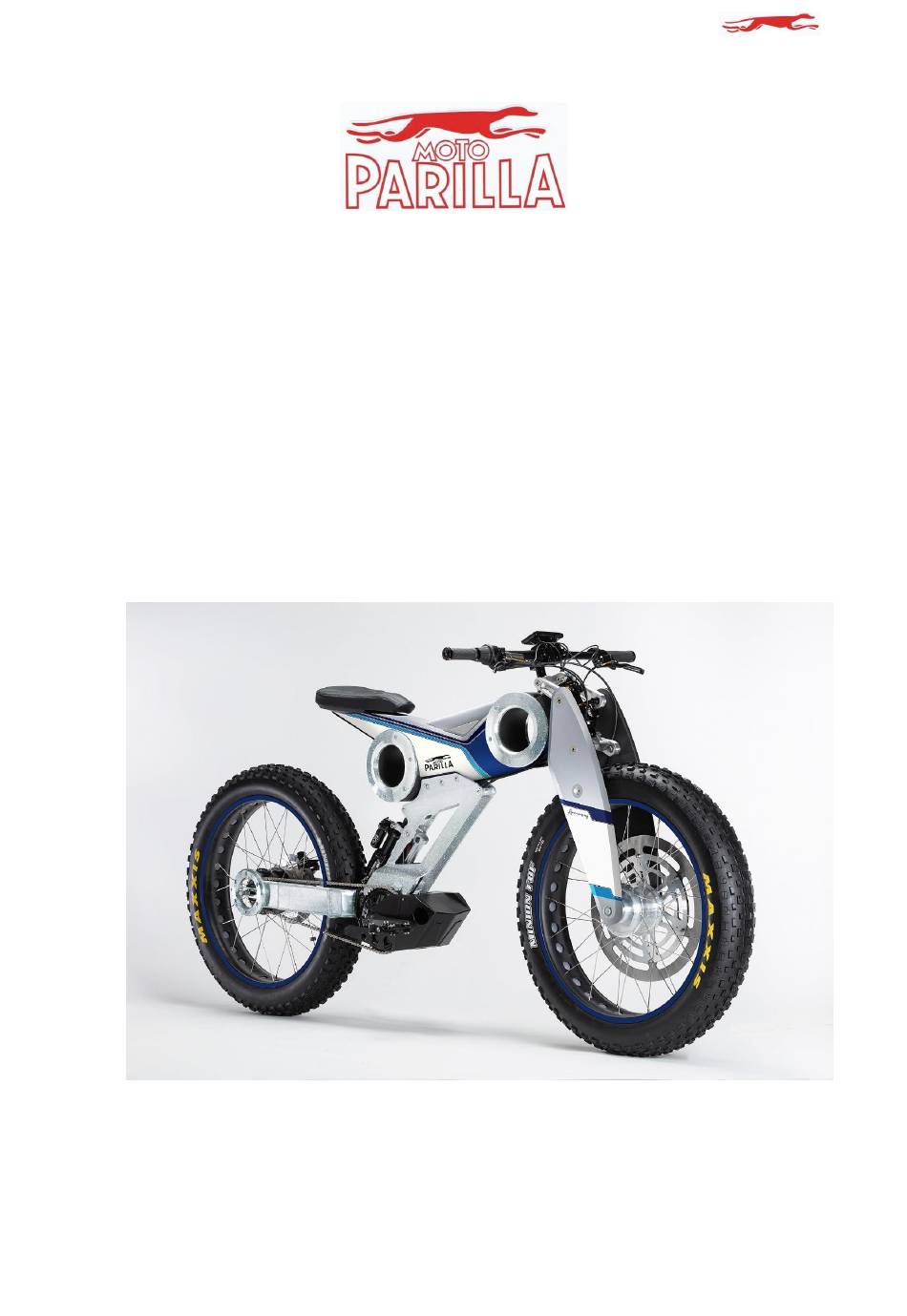

  • Page 1 Moto Parilla – CARBON E-BIKE Owner Manual for CARBON E BIKE Updated August 2019...

  • Page 2: Table Of Contents

    Moto Parilla – CARBON E-BIKE CONTENTS 1 Disclaimer, Copyrights and Trademarks Original Instructions, Translations and Updates Disclaimer Copyright Notice Trademarks Standards and Conformity 2 Safety General Warning Intended Use Customizing Maximum Design Limit Riding in Low Light Conditions Stopping the CARBON E-BIKE...
  • Page 3 Moto Parilla – CARBON E-BIKE 6 Operation 6.1 EGGRIDER Dashboard Display 6.2 Knowing the ENVIOLO Gear hub 6.3 BAFANG Dashboard Display 6.4 Riding Modes 6.5 Some suggestions how better use your CARBON E-BIKE 7 Maintenance and Adjustments 7.1 Maintenance 7.2 Service interval 7.3 Cleaning and Preventing Corrosion...

  • Page 4: Disclaimer, Copyrights And Trademarks

    MOTO PARILLA is limited to the cost of repairing or replacing the failed product or component at the discretion of MOTO PARILLA, either within or outside of warranty periods, and does not extend to any loss or damage which may be caused as a consequence of misuse or failure of the products.

  • Page 5: Standards And Conformity

    Moto Parilla – CARBON E-BIKE All trademarks and the CARBON E-BIKE pictures and logo may not be used without the prior written approval of MOTO PARILLA, a United Kingdom Registered Company Number 09668579. Standards and Conformity CARBON E-BIKE is an electric power assisted cycle developed in accordance with:...

  • Page 6: Intended Use

    Authority. Please contact local authority before to ride the CARBON E-BIKE and always conform yourself and your ride at local and general rules. Moto Parilla is disclaimed for any effect od use non in conformity with local rules...

  • Page 7: Stopping The Carbon E-Bike

    Moto Parilla – CARBON E-BIKE WARNING! Never ride a bicycle in low light conditions without appropriate front and rear lights fitted and “on” (illuminated) that meet or exceed the national standards of the country in which it is being ridden.

  • Page 8: Riding In Windy Conditions

    Moto Parilla – CARBON E-BIKE Riding in windy conditions You must consider that the dimension and the geometry of the CARBON E-BIKE is not common. It is important to become accustomed to the different feeling of ride. In windy conditions, especially lateral wind, due the great dimension of the bike, wind action can be very effective and deviate the bike from its line or induct shacking vibration.

  • Page 9: First Ride

    Moto Parilla – CARBON E-BIKE the battery, electronic controller, motor drive system or wiring. In the event of an accident and if safe to do so, put your battery into sleep mode. (see Section 5.3.4.) Check for visual damage before continuing to ride the CARBON E-BIKE. If the CARBON E-BIKE has sustained...

  • Page 10: Warranty

    WARNING! CARBON E-BIKE is a big bike. If fall down against people, especially children, it can be very dangerous. Take care of all the consequence of a not stable parking. Moto Parilla is disclaimed for any damage coming from a not stable parking.

  • Page 11: Recommended Assembly Sequence

    Moto Parilla – CARBON E-BIKE RECOMMENDED ASSEMBLY SEQUENCE IMPORTANT ASSEMBLY ADVICE! Continue reading for important assembly advice, including how to register your CARBON E-BIKE. See Section 4.8 CARBON E-BIKE Registration. 4.1 First Assembing IMPORTANT ASSEMBLING ADVICE! Before assembling the bike, be sure to have all the tools necessary, to be in an appropriate space and that the bike is stable.
  • Page 12 Moto Parilla – CARBON E-BIKE Tighten the wheel nut M10 on its axle and install the brake caliper with the hose holder. Make sure the hose does not touch the tire. Assemble the handlebar and make sure that the wire and the cable are well disposed and are not too tight.

  • Page 13: Pre-Ride Checks And Service Interval

    Moto Parilla – CARBON E-BIKE 4.2 Pre-ride Checks and Service Interval Before riding your CARBON E-BIKE you must complete the pre-ride checks. This will ensure your safety and that your CARBON E-BIKE is operating optimally. 1) Brake Test while bike is stationary (with action on brake lever the bike can’t move) 2) The handlebar stem is designed for maximum 5 cm of travel.
  • Page 14 Moto Parilla – CARBON E-BIKE 6) That screws on the front forks are well tight 7) Front and rear tire pressure 8) Front and rear shock absorber pressure 9) Chain tension...

  • Page 15: Handlebar Height Adjustment

    Moto Parilla – CARBON E-BIKE Before riding, please answer the following questions: a) Have you read and understood this manual? b) Have you followed all the assembly and control instructions in this manual? c) Have you checked that brakes are functioning properly and that you know which...

  • Page 16: Seat Height Adjustment

    . It can be very dangerous and cause injuries and damage. Also danger of explosion can be a possibility. MOTO PARILLA is disclaimed of any responsibility for use of battery not in conformity of safety instructions Please check the battery manual on https://www.motoparilla.it/italian-e-bike/service-...

  • Page 17: Carbon E-Bike Lithium Battery: Usage

    Moto Parilla – CARBON E-BIKE center or with the assistance and approval of a Moto Parilla technical support executive. o Do not short circuit, disassemble, damage or modify the battery. o Do not expose the battery to fire or high temperatures over 40°C (104°F).
  • Page 18 Moto Parilla – CARBON E-BIKE 2) Extract the battery using the handle and disconnect the cable from the motor 3) Connect the battery charger to the electric line AC/DC (220V in EU, 110V in USA) and the light on battery charger will turn green IMPORTANT ADVICE! Check that the electric AC/Dc line is equipped with all the safety devices and that the line has a neutral wire well connected in the ground.
  • Page 19 Moto Parilla – CARBON E-BIKE NOTICE: It is important that when the battery door is closed, the pin, in the rear part is well engaged in the carbon frame and there are no wires on the top of the battery case. All the wires must be stored on the back of the battery case.

  • Page 20: Carbon E-Bike Lithium Battery: Care And Maintenance

    Moto Parilla – CARBON E-BIKE NOTE: the battery will never enter OFF Mode if the charger is connected. To enter OFF Mode, disconnect the charger. 5.2.5 Automatic OFF Mode The battery will enter OFF Mode automatically if not in use for about 60 minutes. Check that the battery is in ON Mode before attempting to ride.

  • Page 21: Shipping And Handling Of Lithium Batteries

    Never attempt to transport your lithium-ion battery by air, without first seeking the prior approval of your airline. Never return your battery to Moto Parilla without first making contact with techsupport@motoparilla.it not discard any of the battery packaging materials.

  • Page 22: Knowing The Enviolo Gear Hub

    Moto Parilla – CARBON E-BIKE READ AND FOLLOW INSTRUCTION IN https://bitbucket.org/eggpower/eggriderv2/wiki/Home OR CONTACT EGGRIDER SERVICE AT https://eggbikes.com/index.php?route=information/contact Knowing the ENVIOLO GEAR HUB Your CARBON E-BIKE is equipped with ENVIOLO SP GEAR HUB. ENVIOLO is a CVT GEAR HUB. It is strongly recommended to visit the ENVIOLO web site and read carefully all the instruction and safe manuals.

  • Page 23: Riding Modes

    If your CARBON E-BIKE has more power than 250W, please control if its legal or not before using. MOTO PARILLA is disclaimed of any responsibility for the use of CARBON E-BIKE not in conformity with law of the territory.

  • Page 24: Some Suggestions How Better Use Your Carbon E-Bike

    Moto Parilla – CARBON E-BIKE To turn off the rear light, press and hold the button “+” on the selector of the left side of the handlebar if you have Bafang display. With Eggrider use the App on your cell phone or press and hold the button “-”...

  • Page 25: Maintenance And Adjustments

    Moto Parilla – CARBON E-BIKE 7. Owner manual and warranty: please follow the instructions on this manual, visit our web site www.motoparilla.it and register your bike. 8. Pre use control and service: before using your CARBON E-BIKE please follow the instructions in the present manual with extreme care.

  • Page 26: Lubrication

    The chain could have traces of grease and lubrification. Please take note in that case, the chain can dirty clothes when the rider is not wearing specific bicycling clothing. MOTO PARILLA is disclaimed of any responsibility of damage of clothing due lubrication leaks from chain.

  • Page 27: Checking Brakes Pads

    Moto Parilla – CARBON E-BIKE • Tire pressure and type • Roughness of the road • Whether or not the bicycle has been crashed or damaged • Whether or not the bicycle has been ridden over large bumps such as potholes or curbs •...

  • Page 28: Disassembling/Reassembling Rear Wheel

    WARNING! Worn pads can damage irredeemably the brake disc and make the riding of the bike very dangerous, with the possibility of being injured. MOTO PARILLA is disclaimed for the use of the CARBON E-BIKE with worn pads due to the negligence in checking the status of brakes pads.
  • Page 29 Moto Parilla – CARBON E-BIKE 4) Loosen the nuts and remove the chain tensioner and the ENVIOLO wheel axle lock on both sides. The ENVIOLO wheel axle lock have some teeth that grip on the dropout. You can use a small flat screwdriver to free it.
  • Page 30 Moto Parilla – CARBON E-BIKE 6) Remove the speed sensor inside the swing arm...
  • Page 31 Moto Parilla – CARBON E-BIKE 7) Only for Nuvinci HUB version 2018 With the help of a wrench, put the caliper holder in vertical position in order to free it from the dropout (remember, when you assemble the wheel insert it with the help of the caliper holder in the same vertical position) 8) Using a rubber hammer, move backward until the wheel gets free from its dropout.

  • Page 32: Tires

    Moto Parilla – CARBON E-BIKE 10) To reassemble follow the instruction in reverse way 11) Tighten and adjust the chain using the chain tensioner. Tires CARBON E-BIKE use fat specialized, high-performance tires. Don’t use less quality tire. We recommend the use of the following pressure...

  • Page 33: Troubleshooting

    Moto Parilla – CARBON E-BIKE The riding comfort can change from rider to rider. The values below are just indicative and settled for the intended use of the bike only. Please read the service manual at the RockShox website (https://www.servicearchive.sram.com/service/rockshox/49 ) and follow prescription: https://www.servicearchive.sram.com/sites/default/files/techdocs/95.4118.001.100_use...

  • Page 34: Bafang Error Code List

    6) If in point 4 or/and point 5 the motor does not stop, please check the connector 7) If the connector is connected, please contact techsupport@motoparilla.it 8.5 Bafang error code 9 CONTACT INFORMATION CARBON E-BIKE is a product of MOTO PARILLA. For any question check www.motoparilla.it...
