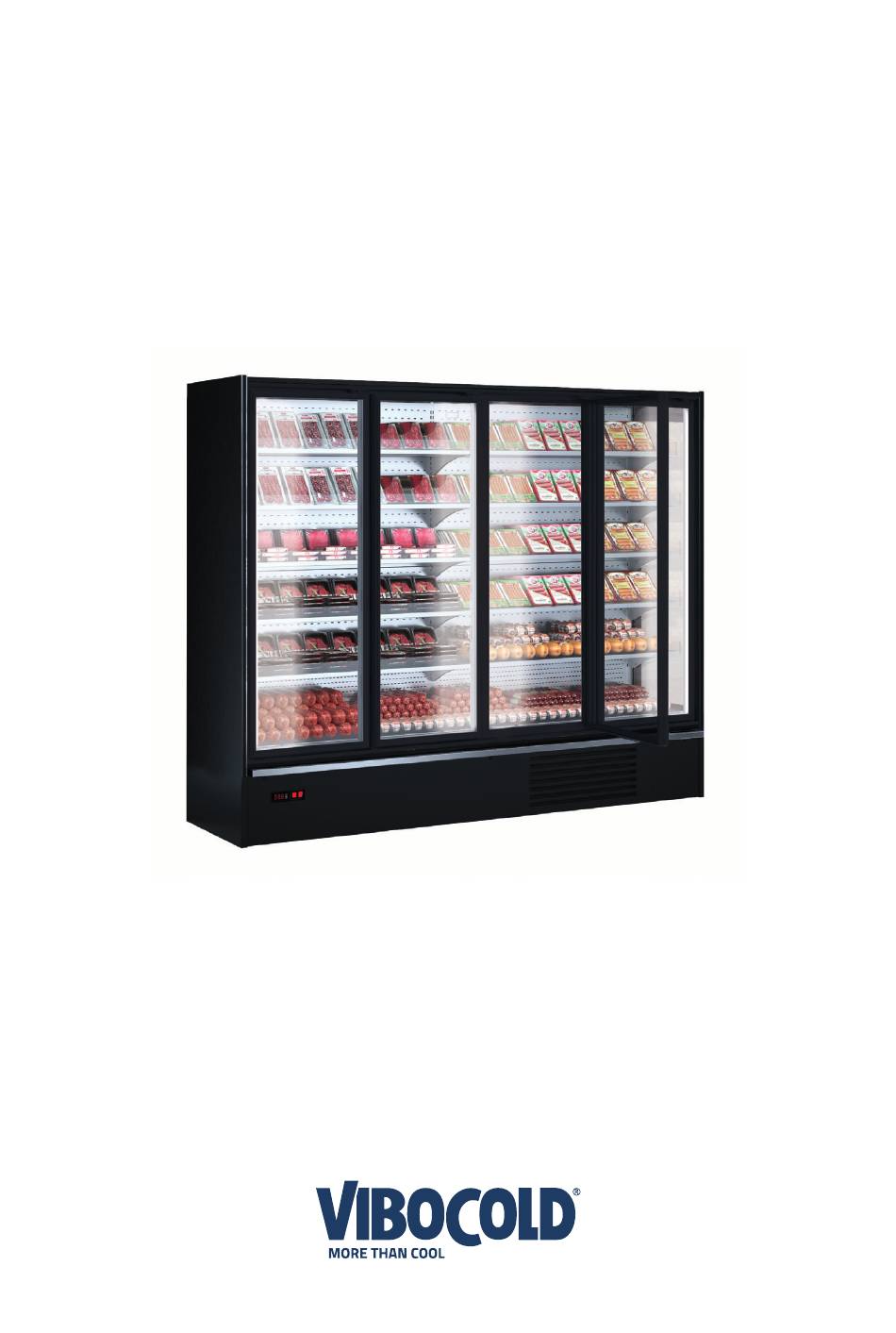

- Page 1 INDIANA MULTIDECK MANUAL Vibocold A/S / Holstebrovej 101 / DK-8800 www.vibocold.dk / T +45 8661 3411 / E salg@vibocold.dk...
- Page 2 CONGRATULATIONS WITH YOUR PURCHASE OF THIS INDIANA MULTIDECK We always strive to produce and sell the most green products which are designed and built with high quality components and with the aim of reducing energy consumption. OUR PHILOSOPHY Energy saving: •...
-
Page 3: Table Of Contents
TABEL OF CONTENTS Introduction ..................4 Safety requierments ................. 5 Operation ..................... 7 Transport and storage ..............8 Installation ..................10 Daily use ....................10 Repair and cleaning ................12 Maintenance ..................13 Replacement of lighting ..............14 Warranty .....................15 Report of 1. installation ..............16 Claims ....................17 Climate and temperature classes ..........18 EEI energy labels................19... -
Page 4: Introduction
All types of the “INDIANA” multideck cabinets model range meet the basic requirements in the field of safe- ty, health care, and protection, which are contained in the following directives and legislative acts: MD 2006/42/EC;... -
Page 5: Safety Requierments
Manual - Indiana SAFETY REQUIREMENTS To avoid risk of injury, property damage and misuse of the product, You must be sure to observe the follow- ing safety precautions. (After reading this User Manual put it in a safe place so that it is at hand.). Do not forget to hand it over to a next owner of the equipment. - Page 6 Manual - Indiana • It is forbidden to wash the Cabinet with a direct water jet • Do not install refrigerators in damp places where water splashes may occur. This can damage the insulati- on of current-carrying parts and result in electric shock •...
-
Page 7: Operation
OPERATION Multideck cabinets of the “INDIANA” model range are produced in accordance with the Technical Specifi- cations TÜV 28.2-37999261-003:2020 and are equipment that is a universal device for demonstration, temporary storage and sale, of prepacked and pre-chilled to the temperature of the refrigerated enclosure products. -
Page 8: Transport And Storage
Manual - Indiana A Multideck cabinets of the “INDIANA” model range is designed for use in indoor climatic conditions, which correspond to class 3 (+25˚C and relative humidity of 60%)ISO 23953-2:2015. In case of deviation from the operating conditions stated, the Manufacturer cannot guarantee the optimal functioning of the Article.In order to maintain optimum indoor climatic conditions the premises must be provided with a continuously working ventilation and air conditioning system. -
Page 9: Installation
Manual - Indiana • To check all components of the cabinet for integrity and completeness • In case of defects or deficiencies in the equipment, to inform the supplier immediately about any revealed violations. • After removing the packaging material, it is necessary to unscrew the shipping pallets from the product. -
Page 10: Daily Use
Manual - Indiana • Before connecting the cabinet to the power supply line, one must make sure that the technical data given in the nameplate match the electricity generating plant’s characteristics. NOTE:ALL TASKS ON THE CABINET INSTALLATION AND CONNECTION TO A POWER SOURCE SHOULD BE ENTRUSTED TO SPECIALIZED TECHNICIANS. - Page 11 Manual - Indiana Loading the cabinet is carried out under the following important rules: Food products that are placed in the cabinet must already be pre-cooled to a storage temperature for the items to be laid out (here, you need to follow the product’s storing rules specified on its packaging). At the Cabinet’s initial start-up or at start-up after performing a complete hygienic cleaning, the Cabinet should...
-
Page 12: Repair And Cleaning
Manual - Indiana Do not place products in the cabinet which have an aggressive component (salt, acid, ect. ) being set abroach. Attention! Controllers, which the appliances with integral condensing units are fitted with, have an access password that is known only to the Manufacturer’s specialists. In the public domain there are only those parameters that are guaranteed by the manufacturer and that doesn’t affect the preset operational mode of... -
Page 13: Maintenance
Manual - Indiana • All works on the repair and cleaning of the cabinet must be performing by qualified specialists who are authorized and admitted to such works. In case of finding of any deviations in the cabinet operation, before to address the Customer Service Cen- ter, it is necessary without fail checking the following: 1. -
Page 14: Replacement Of Lighting
Manual - Indiana REPLACEMENT OF LIGHTING Bulb replacement: 1. Turn off the power. 2. Disconnect the power plug from the lamp. 3. Gently bend the bracket retaining lamp. 4. Remove the lamp from the lamp holder. 5. The lamp must be replaced with an equivalent. -
Page 15: Warranty
Manual - Indiana WARRANTY Standard guarantee is 12 months; If not otherwise is pre-insured by the contract for delivery. Important! Non-compliance with the prescription of this instruction for operating. A warranty does not cover! 1. On the glass 2. In case of failure to comply with all the above paragraphs of this user manual 3. -
Page 16: Report Of 1. Installation
Manual - Indiana REPORT OF 1. INSTALLATION City Owner Name of person to start up the article The Article has been handed over to maintenance service to (Full name, Name of the Business) The address of Organization to provide maintenance service... -
Page 17: Claims
Manual - Indiana CLAIMS In the event of origin of valid claims on the cabinet’s operation quality (subject to the compliance with all regulations for the operation of refrigeration equipment), You must complete the Warranty Claim Application and submit it to the Customer Service Center at the Manufacturer. -
Page 18: Climate And Temperature Classes
Manual - Indiana CLIMATE AND TEMPERATURE CLASSES Refrigerated trade cabinets, counters and showcases. Requirements, methods and test conditions ISO 23953-2:2015 Mass content of wa- Dry bulb air Relative air humi- Dew-point ter vapor in dry air Climatic class temperature, ºC dity, % temperature, ºC... -
Page 19: Eei Energy Labels
Manual - Indiana EEI ENERGY LABELS Indiana medium.AV.085. Indiana medium.AV.085. Indiana medium.AV.085. HitLine MT.D.210-DLA-125 HitLine MT.D.210-DLA-187 HitLine MT.D.210-DLA- 250 3450 5307 5952 kWh/annum kWh/annum kWh/annum 5°C 5°C 5°C -1°C -1°C -1°C 1.84 2.79 3.75 Indiana medium.AV.085.L Indiana medium.AV.085.L T.D.210-DLA-079 HITLINE HitLine T.D.210-DLA-234... - Page 20 Vibocold A/S / Holstebrovej 101 / DK-8800 www.vibocold.dk / T +45 8661 3411 / E salg@vibocold.dk Techinical service / T +45 8750 3419 / E service@vibocold.dk...
