Page 2: Table Of Contents
Table of Contents 1. SAFETY INFORMATION 1.1 Safety Precautions …………………..…………………………………………………… . 2 1.2 Operating Safety…………………………………………………………………………..3-5 1.3 Electrical Safety …………………………………………………………………………..6-7 1.4 Masonry Saw Specific Warnings ………………………………………………………… . 7 1.5 Label Locations………………………………………………………………………………8 2. OPERATION 2.1 Application …………………………………………………………………………………… . … 9 2.2 Operating Principle…………………………………………………………………………… …. 9 2.3 Delivery Checks ……………………………………………………………………….…………... -
Page 3: Safety Precautions
SAFETY INFORMATON 1.1 Safety Precautions Read and follow all safety, operating and maintenance instructions. Failure to read and follow these instructions could result in injury or death to you or others. Failure to read and follow these instructions could also result in damage and/or reduced equipment life. -
Page 4: Operating Safety
SAFETY INFORMATON 1.2 Operating Safety In order to prevent injury, the following safety precautions and symbols should be followed at all times! Before using this equipment, ensure that the person operating this machine has read and understands all of the instructions in the manual. Precaution is the best insurance against accidents. - Page 5 SAFETY INFORMATON Do not wear loose clothing, gloves, neckties, rings, bracelets, or other jewelry that may be caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to contain long hair. Safety glasses should always be worn when working around power tools. In addition, a face, dust mask or respirator should be worn if a cutting operation is dusty.
- Page 6 SAFETY INFORMATON function. Always check moving parts for proper alignment or binding. Check for broken parts and mountings and all other conditions that may affect the operation of the power tool. A guard, or any damaged part, should be properly repaired or replaced. Always feed work into a blade or cutter against the direction of rotation.
-
Page 7: Electrical Safety
Use of under size extension cords result in low voltage to the motor that can result in motor burnout and premature failure. MASTERPAC warns that equipment returned to us showing signs of being run in a low voltage condition, through the use of undersized extension cords will be repaired or replaced totally at the customers expense. -
Page 8: Masonry Saw Specific Warnings
SAFETY INFORMATION choose the proper extension cord Locate the length of extension cord needed in TABLE 1 below. Once the proper length is found, move down the column to obtain the correct AWG size required for that length of extension cord. Extension Cord Minimum Gage for Length Volts Total Length of Cord in Feet... -
Page 9: Label Locations
SAFETY INFORMATION 1.5 Safety Label locations Safety labels are located according to Figures 1 through 4 below. The labels contain important safety information. Please read the information contained on each safety label. These labels are considered a permanent part of your saw. Item Location Description... -
Page 10: Operation

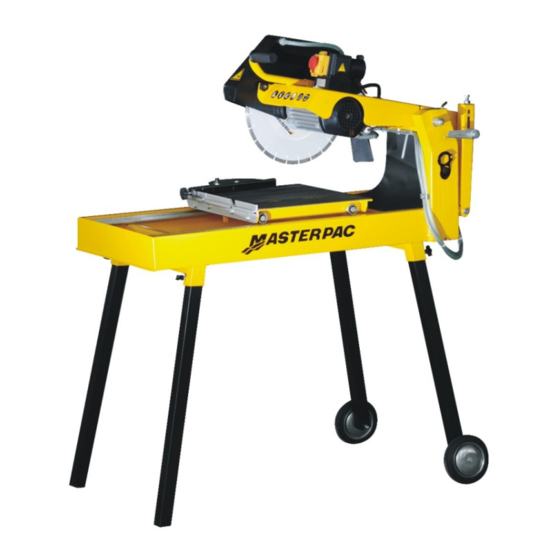

OPERATION 2.1 Application This table saw can cut brick, concrete block, stone, as well as a variety of tile types including Porcelain, Terra-cotta, Marble, Quarry and Slate or Ceramic. It is not designed to cut plastic, wood or any ferrous (metals) material. 2.2 Operating Principle The following instructions were compiled to provide you information on how to obtain long and trouble free use of the machine. -
Page 11: Assembly
OPERATION 2.4 Assembly Remove the machine from the packaging. To set up the machine for work proceed as follows: 1. Insert the leg into the fixing tube which soldered on the water pan (See PICTURE 7). PICTURE 2. Tighten the Leg Screw (see PICTURE 8). PICTURE 3. -
Page 12: Before Starting
OPERATION 2.5 Before Starting THIS MASONRY SAW IS DESIGNED TO WORK WITH WATER Before any cutting operation, make sure that the water reaches the pump. Regulate the water volume by turning the lever of Water Control Valve to the left and right. When turning the lever toward the vinyl hose attachment opening side, the water outlet will be fully opened (maximum water volume) and when turning it 90°... -
Page 13: To Start
OPERATION 2.7 To Start Connect the saw to a power supply, and put the ON/OFF switch to the ‘ON’ position. NOTE: 1. In order to avoid breaker tripping, a 20-amp circuit breaker should be used. 2. If using an extension power cord, make sure the length and wire gauge correspond to the requirements listed in TABLE 1 on page 7. -
Page 14: Operation
OPERATION PICTURE 13 PICTURE 14 THE RIP GUIDE PLACED ON THE WORKING TABLE HELPS ONLY WITH RIP CUTTING In order to make any diagonal cuts, position the stone against the rip guide as shown in PICTURE 14. 2) Cutting 45° Miters: This saw is designed with an adjustable Cutting Head for precision 45º... - Page 15 OPERATION PICTURE 17 Before any cutting, make sure that the stone to be cut is properly positioned against the Ruler Guide.
-
Page 16: Periodic Maintenance Schedule
MAINTENANCE 3 MAINTENANCE To get long use and free of trouble, it is essential to perform periodic maintenance on the machine. 3.1 Periodic Maintenance Schedule To clean the water tank remove the Drain Plug and leak dirty water from tank (see PICTURE 18). -
Page 17: Disassembly Of The Diamond Blade
MAINTENANCE 3.2 Disassembly of the Diamond Blade Loosen Starlike Nut and then lift the Blade Guard (see PICTURE 20 & PICTURE 21). Remove the Lock Nut with Multiple Wrench (provided) (see PICTURE 22). PICTURE 20 PICTURE 21 PICTURE 22 After full open of the blade guard assembly, clean the blade flanges carefully and check them for wear. - Page 18 MAINTENANCE The motor bracket is completely locked with the Lock Handle & Lock Wrench (See PICTURE 4 & PICTURE 5); The four legs are locked in proper position with the four Leg Screw (See PICTURE 6). PICTURE 1 PICTURE 2 PICTURE 3 PICTURE 4 PICTURE 5...
-
Page 19: Troubleshooting
MAINTENANCE 3.4 Troubleshooting HAVE YOUR TOOL REPAIRED BY A QUALIFIED PERSON This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user. PROBLEM POSSIBLE CAUSE SOLUTION... - Page 20 MAINTENANCE PROBLEM POSSIBLE CAUSE SOLUTION Loose electrical connection Have the the whole electric system of the Machine does work inside the electric system. machine checked by a qualified electrician. when switched on. Have the motor checked and replace if Motor defective. necesary by a qualified technician.
-
Page 21: Technical Data
TECHNICAL DATA 4. TECHNICAL DATA Model PST50 PST51 PST60 PST61 Blade mm Max. Arbor mm 25.4 25.4 25.4 25.4 Cutting Length mm Straight Cutting Depth mm Standard 230V/50HZ 2.2KW, 2800rpm 2.2KW, 2800rpm 2.2KW, 2800rpm 2.2KW, 2800rpm Motor 115V/60HZ 1-1/2HP, 3450rpm 1-1/2HP, 3450rpm 1-1/2HP, 3450rpm 1-1/2HP, 3450rpm... -
Page 22: Warranty
WARRANTY 5. WARRANTY MASTERPAC products are covered by warranty for a period of twelve (12) months from the date of purchase against defects in material or workmanship provided that: The product concerned has been operated and maintained in accordance with the operating instructions. -
Page 23: Maintenance Record
MAINTENANCE RECORD PREVENTATIVE MAINTENANCE AND ROUTINE SERVICE PLAN The machine has been assembled with care and will provide years of service. Preventative maintenance and routine service are essential to the long life of your machine. After reading through this manual thoroughly, you will find that you can do some of the regular maintenance by yourself. -
Page 24: Ec Declaration
CE-KONFORMITÄTSERKLÄUNG DECLARACIÓN DE CONFORMIDAD DE LA CE DÉCLARATION DE CONFORMITÉ C.E. MASTERPAC hereby certifies that the construction equipment specified hereunder / bescheinigt, da. das Bauger.t / certifica que la máquina de construcción / atteste que le matériel : Category / Art / Categoría / Catégorie:... - Page 25 MASTERPAC INTERNATIONAL: Add. Z.A.C du trou grillon P.O Box 38. 91280 St PIERRE DU PERRAY. FRANCE Tel. +33-6-12-70-02-63 E-mail. intlsales@masterpac.eu MASTERPAC ENGINEERING CO.,LTD Add. Weisi Road, Baohe Industrial Estate, Hefei 230051.China Tel. 86-551-4846601 Fax. 86-551-4846616 E-mail. sales@masterpac.eu www.masterpac.eu Version: 01/10/01...
