DEFINITY
Enterprise Communications Server (ECS)
Release 5

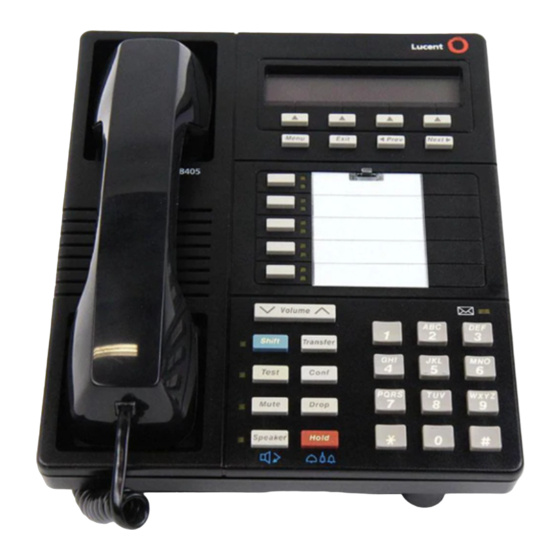

8405 Voice Terminal
Quick Reference
555-230-737
Comcode 107985533
Refer to the procedures on this card to use the
features on your 8405 voice terminal. The features
here are listed in alphabetical order. In the spaces
provided, write the feature access codes for your
system. For more information about any of these
features, see your system manager or refer to the
®
DEFINITY
Enterprise Communications Server,
Release 5 8405 Voice Terminal User's Guide ,
555-230-736.
USING THE SOFTKEYS
If your 8405 has a display, you may be able to access
up to 12 features with the softkeys. You can activate
available softkey features by pressing
the softkey below the feature abbreviation. If the
feature you want to use is not on the bottom line of the
display, press
Next
feature you wish to access. When the feature is active,
an arrow appears above the feature. (However, if the
feature requires you to dial a telephone number or
extension, such as Call Forwarding, you will
temporarily see the digits you are dialing, rather than
the arrow, above the feature name.)
ABBREVIATED DIALING (AD)
To program/reprogram an AD button
1 Pick up handset.
NOTE: For speakerphone users, press a call
appearance button or press
2 Press softkey below Prog (for display users)
or Press
Program
or Dial AD Program access code _________.
Menu
and then
or
until you see the
Prev
.
Speaker
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8405 and is the answer not in the manual?

Questions and answers

Related Manuals for Lucent Technologies 8405

Summary of Contents for Lucent Technologies 8405

  • Page 1 Release 5 8405 Voice Terminal User’s Guide , 555-230-736. USING THE SOFTKEYS If your 8405 has a display, you may be able to access up to 12 features with the softkeys. You can activate available softkey features by pressing Menu and then the softkey below the feature abbreviation.
  • Page 2 All manuals and user guides at all-guides.com 3 Press AD button to be programmed. 4 Dial outside number, extension, or feature access code you want to store (up to 24 digits). 5 Press 6 Repeat Steps 3 through 5 to program additional buttons.

  • Page 3: Call Coverage/Consult

    All manuals and user guides at all-guides.com AUTOMATIC CALLBACK AUTOMATIC CALLBACK AAUTOMATIUTOMATIC CALLBACK To automatically place another call to an extension that was busy or did not answer 1 During call attempt, press softkey below AutCB (for display users) or Press AutoCallBk 2 Hang up.

  • Page 4: Call Forwarding All Calls

    All manuals and user guides at all-guides.com CALL FORWARDING ALL CALLS To temporarily redirect all calls to an extension or outside number 1 Press softkey below CFrwd (for display users) or Press Call Fwd or Dial Call Forward access code _______. 2 Dial extension or number where calls will be sent.
  • Page 5 All manuals and user guides at all-guides.com CONFERENCE To add another party to a call (for a total of up to 6 parties) 1 Press Conf 2 Dial number of new party and wait for answer. 3 Press again. Conf 4 Repeat Steps 1 through 3 for additional conference connections.

  • Page 6: Last Number Dialed

    All manuals and user guides at all-guides.com To answer a new call while active on another 1 Press Hold 2 Press call appearance of incoming call. To return to held call 1 Press call appearance of held call. LAST NUMBER DIALED To automatically redial the last number you dialed 1 Press softkey below Last (for display users) or Press...

  • Page 7: Select Ring (And Ringer Volume)

    Ring press (and then release) to hear each new Ring pattern. NOTE: If your 8405 has a display, you can also press to cycle through the eight ringing Prev Next patterns. 3 To set your selected ringing pattern:...
  • Page 8 All manuals and user guides at all-guides.com To cancel Send All Calls 1 While on-hook, press softkey below SAC (for display users) or Press Send Calls or Dial Send All Calls cancel code _______. SPEAKER NOTE: All 8405B and 8405D sets have a one-way speaker only.
  • Page 9 All manuals and user guides at all-guides.com 3 Adjust speakerphone volume if necessary: To raise the volume, press the right half of the Vol- ume control button labeled ; to lower the vol- ume, press the left half of the Volume control button labeled To prevent the other party from hearing you 1 Press...
  • Page 10 All manuals and user guides at all-guides.com TEST To test the lights (on all 8405 voice terminals) and the display (only on the 8405D and 8405D Plus voice terminals) 1 Press and hold down Test • Green Test light goes on.
