Summary of Contents for Well REC-DVBT2-VISION-WL

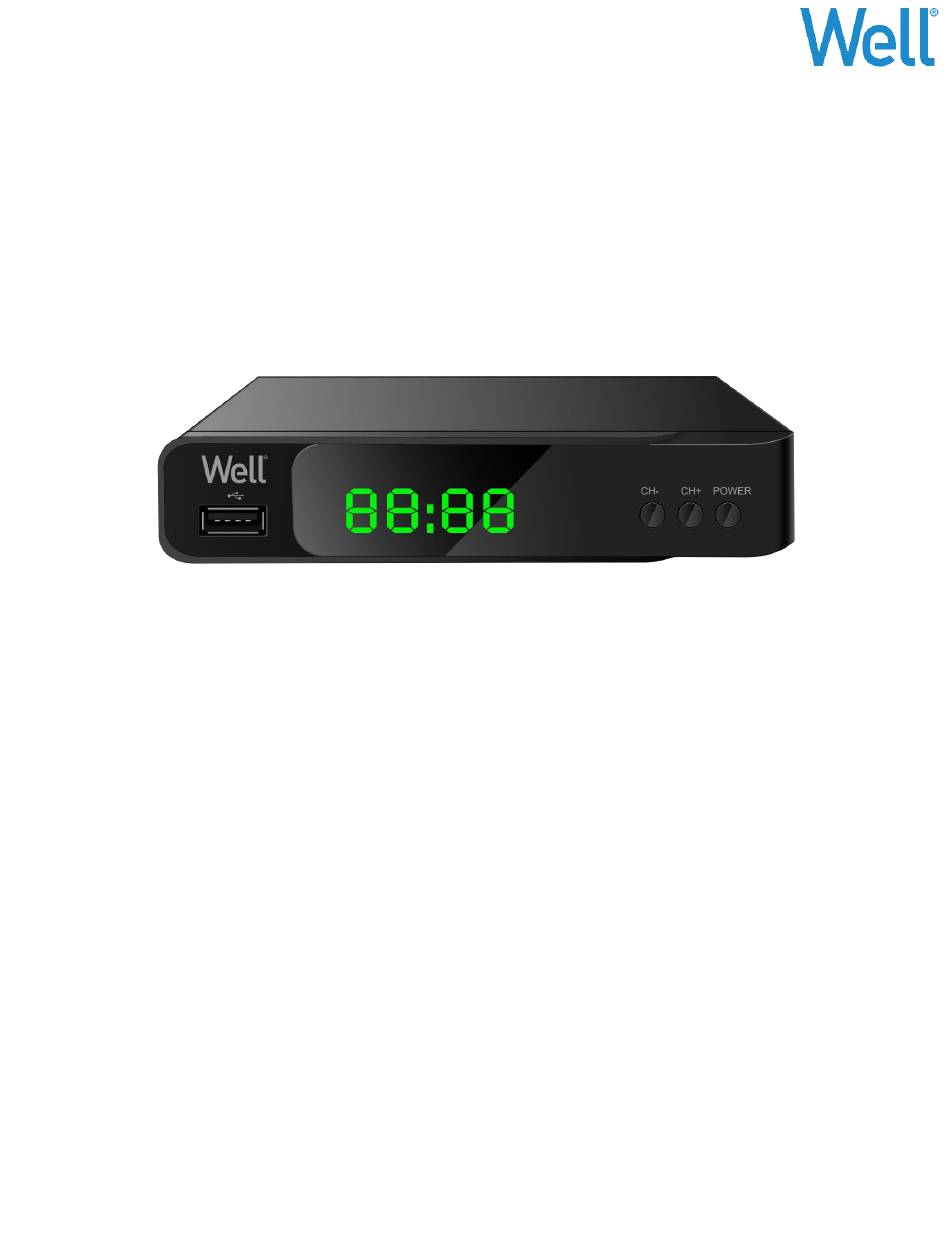

- Page 1 INSTRUCTION MANUAL DIGITAL VIDEO BROADCASTING Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: REC-DVBT2-VISION-WL...
- Page 2 MAIN MENU INSTALLATION GUIDE If you are using the receiver for-the first time or have restored the receiver to Factory Settings, the Welcome Screen will appear on your TV screen. Press OK to start scanning channels. OSD Language: Select a Language. Country: Select a Country.
- Page 3 Delete Press 1 button on the remote control and then press OK. The channel will be marked with an icon. Press the EXIT button to confirm changes and press OK to save it. Move Select a channel and press 2 button. Then press OK. The channel will be marked with an icon.
- Page 4 resolution will be 480i/480p/720p/1080i/1080p. OSD SETTING: Transparency: Set the OSD transparency from 0% to 60%. Brightness: Set the OSD transparency from 20% to 100% Chroma: Set the OSD transparency from 20% to 100% Contrast: Set the OSD transparency from 20% to 100% OSD Timeout: Select the duration of displaying Info bar, 3s,5s and 8s for optional.
- Page 5 Start Date: Set the start date to start up watching channels you scheduled. Start Time: Set when scheduled channels will be started. Channel: Choose which channel you want to watch in time. After setting well, press EXIT to save schedules. Press RED to delete schedule, Press Green button to add new schedule, Press Yellow to edit channels.
- Page 6 Auto, receiver will detect digital audio automatically. PCM, receiver will decode digital audio. Bypass, external device will decode digital audio. Media Centre: File/Video/Music/Picture Make sure the USB drive is connected to the device. PVR Media PVR Management Internet: Two network application can be used. One is for weather, to check weather of different cites. Another is for RSS reader, to check news from Yahoo and BBC.
