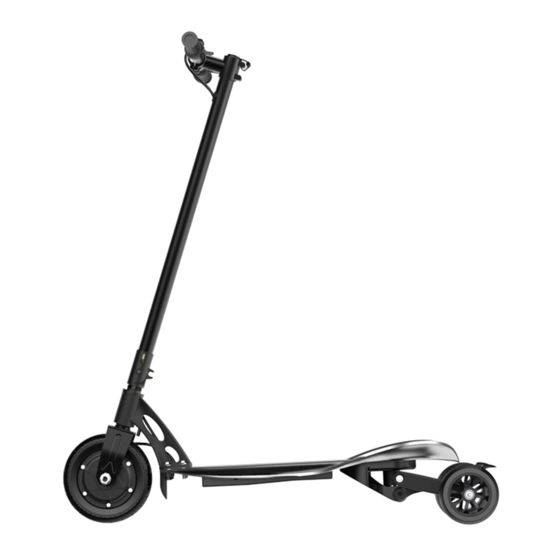

Summary of Contents for KXD LX-3L
-
Page 2: Read Me First
Read Me First Dear user, Thanks purchasing this electric scooter. This electric scooter environmentally-friendly high-tech product as well as an ideal means of electric scooter that features excellent shock absorption, streamlined appearance, portability and flexibility, good riding comfortably, high safety and reliability. For better understanding of the characteristics, technical parameters, correct use, maintenance and precautions of this scooter, see to it that you read this user manual carefully before using it. -
Page 3: Table Of Contents
Content 1. Read ME First --------------------------------------------------------------------------01 2. Content --------------------------------------------------------------------------02 3. Asssembly Diagram -------------------------------------------------------03-04 4. Proformance ----------------------------------------------------------------------------05 5. Structural Diagram ------------------------------------------------------------------------06 6. Improper Use Cases -------------------------------------------------------------------07-08 7. Legal statement -------------------------------------------------------------------------09-10 8. Dashboard Instructions ----------------------------------------------------------------11-12 9. Parameters ---------------------------------------------------------------------------------13 10. How to Use and Precautions ------------------------------------------------14-15... -
Page 4: Asssembly Diagram
Asssembly Diagram Tools： a---2.5#Allen Key 1pcs b---4#Allen Key 1pcs c---5#Allen Key 2pcs d---10-12#Open End Wrench 2pcs e---Hook Spanner Wrench 1pcs Parts： 1---Front Fender 2---Flange Bolt M8X35，2pcs 3---Flange Bolt M8X25，2pcs 4---Self-Locking Nut M8，6pcs Using Tools： 10-12#Open End Wrench 2pcs Parts： 1---Front Fender 2---Flange Bolt M8X35，2pcs 3---Flange Bolt M8X25，2pcs 4---Self-Locking Nut M8，6pcs... - Page 5 Using Tools： 5#Allen Key 2pcs Parts： 7---Folder（Up） 8---Folder（Down） 9---Folder Pin 10---Flange Bolt￠8XM6X36 Using Tools： 4#Allen Key 1pcs Parts： 11---Stem 12---Handebar 13---Bolt M5X16，4pcs 14---Display 15--- Power Off Switch...
-
Page 6: Proformance
Proformace Display With 3 Speed Power Off Switch Accelerator Easy folding. Easy Taking Dolphin Prototype Bionics Design LithiumBattery ( 36V,4.0AH) Rear Self Balance System Motor (36V,350W) Charge & Switch off Button... -
Page 7: Structural Diagram
Structural Diagram Accelerator reducer Folders Motor wheel Front fender Charging mouth Button switch Battery box Pedal Rear wheel Rear fender... -
Page 8: Improper Use Cases
Improper Use Cases... -
Page 10: Legal Statement
Legal statement As you have been acquainted with this scooter with more riding skills, please: 1. Read this user manual carefully before using it for practice. 2. Those who haven’t read is user manual carefully in advance are not allowed to use this scooter. - Page 11 expected. You many charge it for better riding experience. 16. Note terrain changes while riding, such as road and grassplot. 17. Be careful while turning! You may lose control at fast turning. 18. DO NOT risk passing the abrupt slope, uneven surface or other unfamiliar terrains. 19.
-
Page 12: Dashboard Instructions
Dashboard Instructions Before you use please read the instruction following 1. Configuration 2. The keys There has three key on the meter,, -power、 -speed up、 -slow down。 3. Operation Press the for a while to turn on the meter，battery、speed shows according to the electric vehicle running status, TRIP and ODO shows according to the different function The meter would be cut off the power automatically if the meter has no signal input within three minutes... - Page 13 P6-cruise(some without), P7-hard starting and soft starting(some without). a) When display shows P0，it’s under voltage setting, press to modify setting. b) When display shows P1， it’s wheel diameter setting， press to modify setting （mile）. c) When display shows P2，it’s number of pole pairs setting, press to modify setting.
-
Page 14: Parameters
Parameters parameter Specification(36V) Specification(36V) Maximum speed 25km/h 20km/h Maximum load 70kg 50kg Net weight 14kg 13.5kg Fold size 960mm*600mm*390mm 960mm*600mm*390mm Full size 960mm*600mm*1080mm 960mm*600mm*980mm 1060mm*340mm*200mm 960mm*340mm*200mm performance Inner box size 1080mm*360mm*425mm 980mm*360mm*425mm Carton size Handlebars adjust height Renewal 10km Brake Distance 14-40 10-16 Motor power... -
Page 15: How To Use And Precautions
How to Use and Precautions (1) Safe use 1. In the benefit of you and the others, please read this user manual carefully before using the scooter. DO NOT use it until you have adequate knowledge about its performance. DO NOT lend it to whoever is unfamiliar with the operation of this scooter. - Page 16 possible. 2. Using the dedicated charger only, otherwise battery’s service life might be undermined. Battery indication: obverse battery level while riding since the observed result in the stationary state is inaccurate. Charge the scooter timely in the event of low battery indication. 3.
