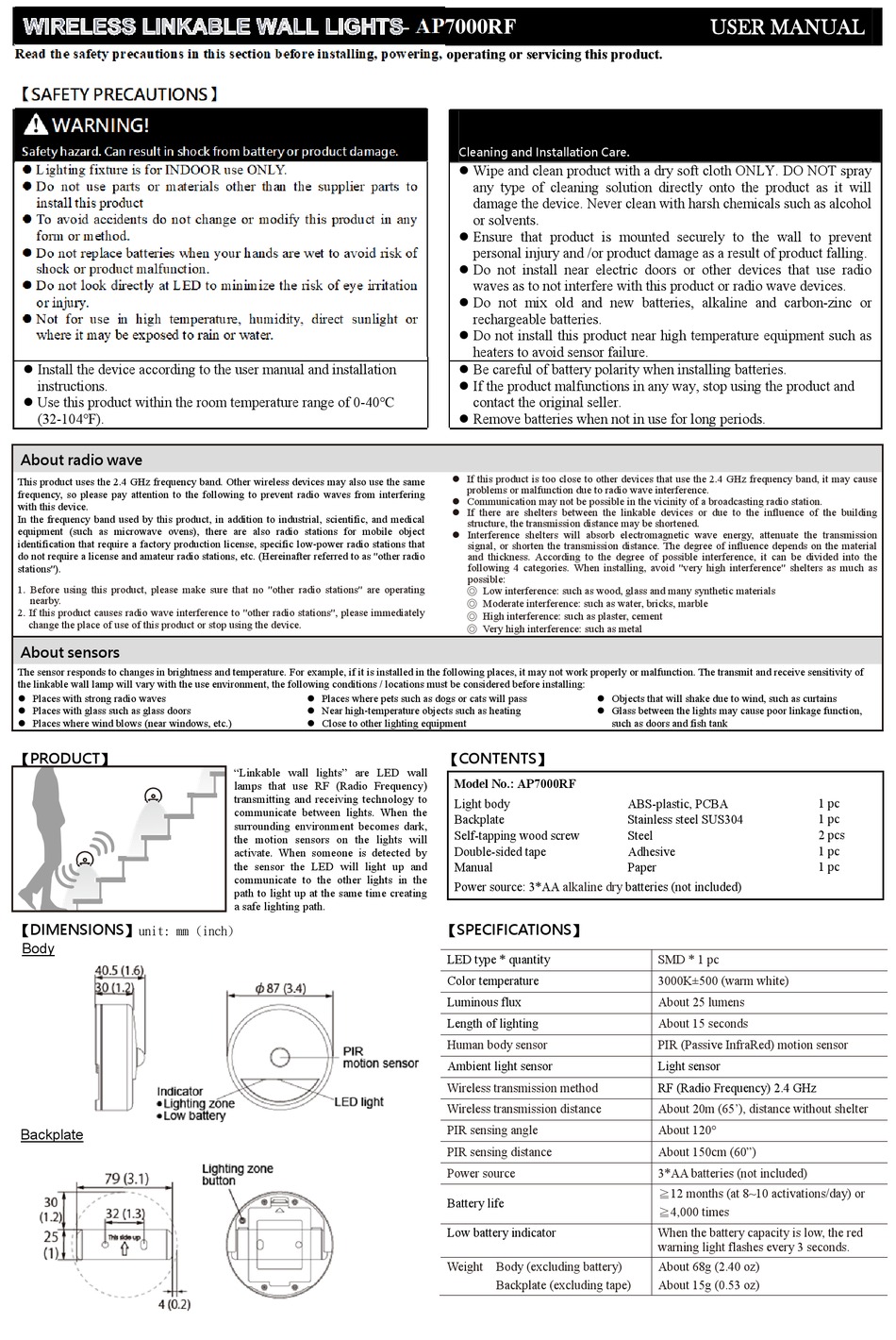

Aplus AP7000RF User Manual

Read the safety precautions in this section before installing, powering, operating or servicing this product.

【SAFETY PRECAUTIONS】

WARNING!
Safety hazard. Can result in shock from battery or product damage.
 Lighting fixture is for INDOOR use ONLY.
 Do not use parts or materials other than the supplier parts to
install this product
 To avoid accidents do not change or modify this product in any
form or method.
 Do not replace batteries when your hands are wet to avoid risk of
shock or product malfunction.
 Do not look directly at LED to minimize the risk of eye irritation
or injury.
 Not for use in high temperature, humidity, direct sunlight or
where it may be exposed to rain or water.
 Install the device according to the user manual and installation
instructions.
 Use this product within the room temperature range of 0-40℃
(32-104℉).
About radio wave
This product uses the 2.4 GHz frequency band. Other wireless devices may also use the same
frequency, so please pay attention to the following to prevent radio waves from interfering
with this device.
In the frequency band used by this product, in addition to industrial, scientific, and medical
equipment (such as microwave ovens), there are also radio stations for mobile object
identification that require a factory production license, specific low-power radio stations that
do not require a license and amateur radio stations, etc. (Hereinafter referred to as "other radio
stations").
1. Before using this product, please make sure that no "other radio stations" are operating
nearby.
2. If this product causes radio wave interference to "other radio stations", please immediately
change the place of use of this product or stop using the device.
About sensors
The sensor responds to changes in brightness and temperature. For example, if it is installed in the following places, it may not work properly or malfunction. The transmit and receive sensitivity of
the linkable wall lamp will vary with the use environment, the following conditions / locations must be considered before installing:
 Places with strong radio waves
 Places with glass such as glass doors
 Places where wind blows (near windows, etc.)
【PRODUCT】

【DIMENSIONS】

unit: mm (inch)
Body
Backplate
- AP7000RF
 Places where pets such as dogs or cats will pass
 Near high-temperature objects such as heating
 Close to other lighting equipment
"Linkable wall lights" are LED wall
lamps that use RF (Radio Frequency)
transmitting and receiving technology to
communicate between lights. When the
surrounding environment becomes dark,
the motion sensors on the lights will
activate. When someone is detected by
the sensor the LED will light up and
communicate to the other lights in the
path to light up at the same time creating
a safe lighting path.
Cleaning and Installation Care.
 Wipe and clean product with a dry soft cloth ONLY. DO NOT spray
any type of cleaning solution directly onto the product as it will
damage the device. Never clean with harsh chemicals such as alcohol
or solvents.
 Ensure that product is mounted securely to the wall to prevent
personal injury and /or product damage as a result of product falling.
 Do not install near electric doors or other devices that use radio
waves as to not interfere with this product or radio wave devices.
 Do not mix old and new batteries, alkaline and carbon-zinc or
rechargeable batteries.
 Do not install this product near high temperature equipment such as
heaters to avoid sensor failure.
 Be careful of battery polarity when installing batteries.
 If the product malfunctions in any way, stop using the product and
contact the original seller.
 Remove batteries when not in use for long periods.
 If this product is too close to other devices that use the 2.4 GHz frequency band, it may cause
problems or malfunction due to radio wave interference.
 Communication may not be possible in the vicinity of a broadcasting radio station.
 If there are shelters between the linkable devices or due to the influence of the building
structure, the transmission distance may be shortened.
 Interference shelters will absorb electromagnetic wave energy, attenuate the transmission
signal, or shorten the transmission distance. The degree of influence depends on the material
and thickness. According to the degree of possible interference, it can be divided into the
following 4 categories. When installing, avoid "very high interference" shelters as much as
possible:
◎ Low interference: such as wood, glass and many synthetic materials
◎ Moderate interference: such as water, bricks, marble
◎ High interference: such as plaster, cement
◎ Very high interference: such as metal
 Objects that will shake due to wind, such as curtains
 Glass between the lights may cause poor linkage function,
such as doors and fish tank
【CONTENTS】
Model No.: AP7000RF
Light body
Backplate
Self-tapping wood screw
Double-sided tape
Manual
Power source: 3*AA alkaline dry

【SPECIFICATIONS】

LED type * quantity
Color temperature
Luminous flux
Length of lighting
Human body sensor
Ambient light sensor
Wireless transmission method
Wireless transmission distance
PIR sensing angle
PIR sensing distance
Power source
Battery life
Low battery indicator
Weight Body (excluding battery)
Backplate (excluding tape)
USER MANUAL
ABS-plastic, PCBA
Stainless steel SUS304
Steel
Adhesive
Paper
batteries (not included)
SMD * 1 pc
3000K±500 (warm white)
About 25 lumens
About 15 seconds
PIR (Passive InfraRed) motion sensor
Light sensor
RF (Radio Frequency) 2.4 GHz
About 20m (65'), distance without shelter
About 120°
About 150cm (60")
3*AA batteries (not included)
≧12 months (at 8~10 activations/day) or
≧4,000 times
When the battery capacity is low, the red
warning light flashes every 3 seconds.
About 68g (2.40 oz)
About 15g (0.53 oz)
1 pc
1 pc
2 pcs
1 pc
1 pc
