PRODUCT FEATURE
Top quality vitreous china bowl.
Solid plastic seat and cover with slow-close feature.
Self-macerating combined, water in, water out pump.
Convenient flush operation.
Flush options - with switch box or flush panel.
Supplied with 25 to 19 or 38mm adaptors for connecting options.
SPECIFICATION
CONSUMPTION
V
A
12
18
24
9
DIMENSIONS
MODEL NO.
mm(in)
TMC-29920
360(14.2)
TMC-29930
(size 99902)
TMC-29921
365(14.4)
TMC-29932
(size 99904)
ELECTRIC TOILETS
TMC-29920、TMC-29930
TMC-29921、TMC-29932
FUSE
MAX. HEAD
A
30
15
A
B
mm(in)
445(17.5)
484(19)
INLET HOSE
M(FT)
4(13)
C
mm(in)
mm(in)
352(13.9)
269(10.6)
376(14.8)
283(11.1)
1
CE Certified
ISO 8846 MARINE (Ignition Protection)
DISCHARGE HOSE
mm(in)
25 (1")
D
E
mm(in)
150(5.9)
150(5.9)
mm(in)
25 (1")
F
mm(in)
10(0.39)
10(0.39)
Advertisement
Table of Contents
Summary of Contents for TMG TMC-29920

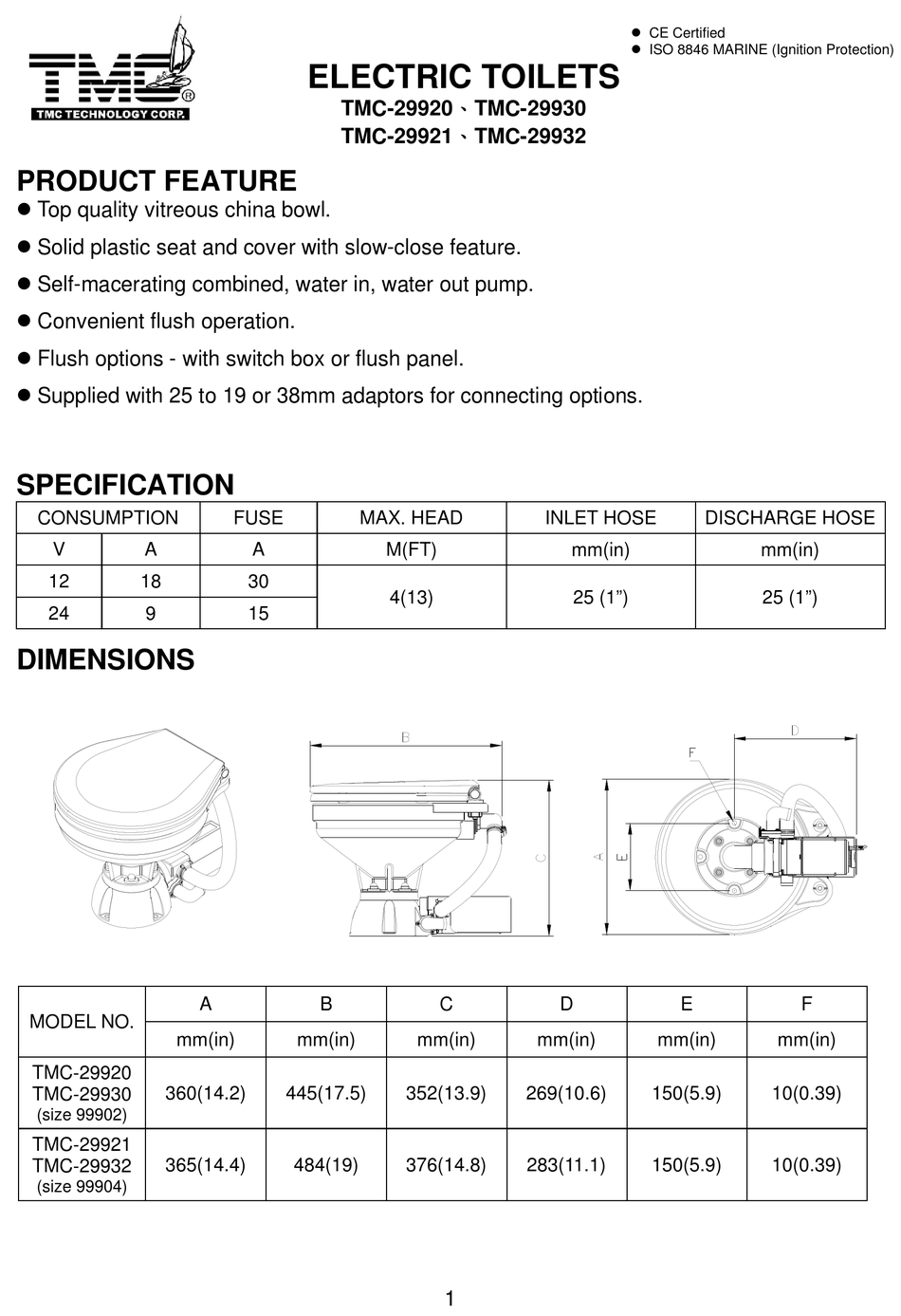

- Page 1 CE Certified ISO 8846 MARINE (Ignition Protection) ELECTRIC TOILETS TMC-29920、TMC-29930 TMC-29921、TMC-29932 PRODUCT FEATURE Top quality vitreous china bowl. Solid plastic seat and cover with slow-close feature. Self-macerating combined, water in, water out pump. Convenient flush operation.
- Page 2 INSTALLATION TMC marine toilets can be installed above or below the waterline. Inlet and outlet seacock should be easily accessible and be positive shut off valves. If seacock not be conveniently operated from toilet location, install suitable shut off valves for inlet and discharge connections.
- Page 3 PLUMBING CONNECTIONS TMC marine toilets may be installed above or below the waterline. Connect inlet hose using 25mm(1”) ID hose. Make sure all inlet connections are airtight and free of sharp bends or restrictions. Connect 25mm(1”) hose to discharge port and make suitable connection to holding tank or other discharge system.
- Page 4 VENTED LOOPS 25mm(1”) for waste outlet discharge. 25mm(1”) for macerator toilet discharge. 38mm(1-1/2") for waste pump discharge. 25mm(1”) for water inlet discharge. Vented loops are required for below waterline installations and hose connections must be double clamped.
- Page 5 TROUBLE SHOOTING 1. Waste can not be pumped out due to clogging problem a. Disconnect the pumping inlet and discharge hoses. b. Remove four screws. c. Pull out complete motor, pump and macerator assembly from base. Clean out the clogging materials. d.
