INSTRUCTION MANUAL
FOR
Combo Electrotherapy Device
Model: R-C101C
Shenzhen Roundwhale Technology Co., Ltd.
This manual is valid for the R-C101C Stimulator
Be sure to read this instruction manual before operate and
keep it where safe.
This user manual is published by Shenzhen Roundwhale
Technology Co., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TENS-EMS R-C101C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for trendmedic TENS-EMS R-C101C

Summary of Contents for trendmedic TENS-EMS R-C101C

  • Page 1 INSTRUCTION MANUAL Combo Electrotherapy Device Model: R-C101C Shenzhen Roundwhale Technology Co., Ltd. This manual is valid for the R-C101C Stimulator Be sure to read this instruction manual before operate and keep it where safe. This user manual is published by Shenzhen Roundwhale Technology Co., LTD.
  • Page 2 Shenzhen Roundwhale Technology Co., Ltd. does not guarantee its contents and reserves the right to improve and amend it at any time without prior notice. However, Amendments will be published in a new edition of this manual. All Rights Reserved. R-C101C Rev.V1.0 ©...

  • Page 3: Table Of Contents

    TABLE OF CONTENS 1. FOREWORD 2. SAFETY INFORMATION 3. GETTING TO KNOW YOUR DEVICE 4. SPECIFICATION 5. OPERATING INSTRUCTION 6. INSTRUCTIONS FOR USE 7. CLEANUNG AND MAINTENANCE 8. TROUBLESHOOTING 9. STORAGE 10. DISPOAL 11. ELECTROMAGNETIC COMPATIBILITY(EMC) TABLES 33 12. NORMALIZED SYMBOLS 13.

  • Page 4: Foreword

    1. FOREWORD Introduction The device R-C101C is a four channel output TENS and EMS stimulator. Before using, please read all the instructions in this user manual carefully and keep it safe for future use. The COMBO stimulator belongs to the group of electrical stimulation systems.
  • Page 5 necessary warning signal of trauma or malfunction in the body, nature may have gone too far in its design. Aside from its function in diagnosis, long-lasting persistent pain serves useless purpose. Pain does not occur until encoded message travels to the brain where it is decoded, analyzed, and reacted to, from the injured area along the small nerves leading to the spinal cord.

  • Page 6: Safety Information

    2. SAFETY INFORMATION 2.1 Intended use TENS mode It is used for temporary relief of pain associated with sore and aching muscles in the neck, shoulder, back, joint, hip, hand, abdomen, foot, upper extremities (arm) and lower extremities (leg) due to strain from exercise or normal household work activities.
  • Page 7 SAFETY SYMBOLS USED IN THIS MANUAL 2.2.1 Contraindication 1) Do not use this device if you are using a car- diac pacemaker, implanted defibrillator, or other implanted metallic or electronic devices. Such use could cause electric shock, burns, electrical inter- ference, or death.
  • Page 8 of your airway, difficulty in breathing, or adverse effects on heart rhythm or blood pressure. 4) Do not apply stimulation across your chest because the introduction of electrical current into the chest may cause rhythm disturbances to your heart, which could be lethal.
  • Page 9 all not on the two large pectoral muscles. There it can increase the risk of ventricular fibrillation and lead to cardiac arrest. 15) Never use it on the eye, head and face area. 16) Never use it near the genitals. 17) Never use it on the areas of the skin which lack normal sensation 18) Keep electrodes separate during treatment.
  • Page 10 tive medium (silica gel). 8) If you have suspected or diagnosed heart disease or epilepsy, you should follow precautions recommended by your physician. 9) Caution if you have a tendency to bleed internally, e.g. following an injury of fracture. 10) Consult with your physician prior to using the device after a recent surgical procedure, because stimulation may disrupt the healing process.

  • Page 11: Getting To Know Your Device

    3) If the stimulation makes you uncomfortable, reduce the stimulation Intensity to a comfortable level and contact your physician if problems continue. 3. GETTING TO KNOW YOUR DEVICE 3.1 Accessories Description The COMBO Stimulator Electrode pad （50mm×50mm ) 8PCS Electrode wires 2PCS USB cable User manual...

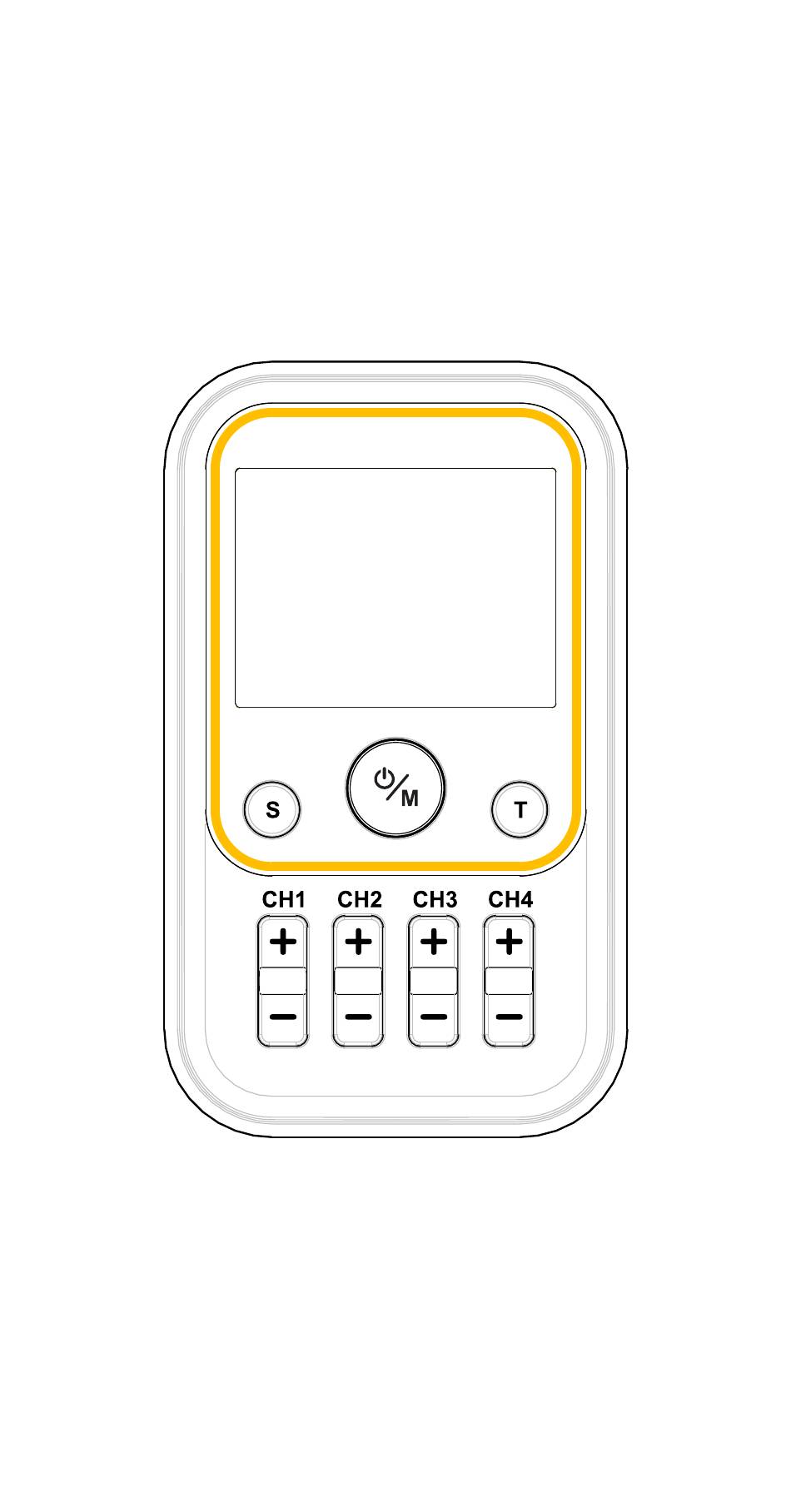

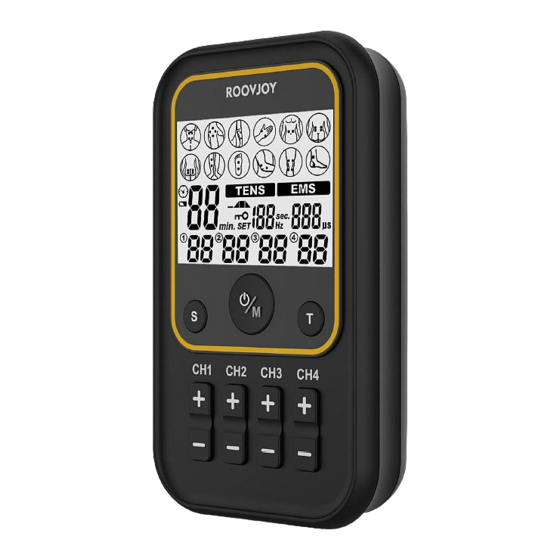

  • Page 12 3.3 Device illustration Description LCD display [ON/OFF/M] button: At power saving mode, press the [ON/OFF/M] button to turn on the device; At standby mode, press and hold the [ON/OFF/M] button to turn off the device; At treating mode, press the [ON/OFF/M] button to stop the treat- ment.

  • Page 13: Specification

    [+]/[-] button for Channel 4: At standby and treatting mode, press the button to adjust the Channel 4 output intensity. At the key locking mode, press the [-] button to unlock the keys. [T] button: At standby mode, press the [T] button to adjust the treat- ment time;...

  • Page 14: Operating Instruction

    Automatic shutoff 1 minutes Classification BF type applied part, internal power equip- ment, IP22 Size of electrodes pad 50x50mm, square Output precision ±20% error is allowed for all the output parameters 5. OPERATING INSTRUCTION 5.1 Connect electrode pads to electrode wires Insert the electrode wires connector into electrode connec- tor.
  • Page 15 ceptacle on the top of the main device. Ensure the electrode wires are inserted correctly. The de- vice has four output receptacles controlled by Channel 1, Channel 2, Channel 3 and Channel 4 at the buttom of the unit. You may choose to use one channel with one pair of electrode wires or two channels with two pairs of electrode wires or three channels with three pairs of electrode wires or four channels with four pairs of electrode wires.
  • Page 16 Caution 1. Always remove the electrodes from the skin with a mod- erate pull in order to avoid injury in the event of highly sensitive skin. 2. Before applying the self-adhesive electrodes, it is recom- mended to wash and degrease the skin, and then dry it. 3.
  • Page 17 Neck Shoulder Hand Back Abdomen...
  • Page 18 ２ Foot Knee Elbow Ankle...
  • Page 19 Position of electrode placement under EMS programs Neck Shoulder Hand Back Abdomen...

  • Page 20: Instructions For Use

    Foot 6. INSTRUCTIONS FOR USE 6.1 Turn on Press the [ON/OFF/M] button to turn on the device, the LCD will be lit. And then it goes into the standby mode as below picture shows. 6.2 Select treatment mode Press the [ON/OFF/M] button to select which treatment mode (TENS –...
  • Page 21 6.3 Select treatment program Based on your needs, press [S] button to select the current treatment program. Press each [S] button to switch pro- gram. The LCD displays as follows: 6.4 Adjust treatment time Based on your needs, press [T] button to adjust the treat- ment time.
  • Page 22 increased to a higher level after each press .The device has totally 40 levels of output intensity. Please adjust the inten- sity to the condition that you feel comfortable. The level of output intensity will be shown on the LCD: Once you have started stimulation, a lock symbol will appear on the screen after 20 seconds.
  • Page 23 Caution: If you feel or become uncomfortable, reduce the stimu- lation intensity to a more comfortable level and consult with your medical practitioner if problems insist. 6.7 Stop the treatment and turn off the device Press the [ON/OFF/M] button to stop treatment during the treating mode.
  • Page 24 2). Press the [S] button to adjust to setting the parameter. TENS mode : pulse rate -> pulse width -> treatment time PROGRAM ADJUSTABLE PARAMETER P.R.(F1) P.R.(F2) P.W.(P1) P.W.(P2) Treatment Time(t1) √ √ √ √ √ √ √ √ √ √...
  • Page 25 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ Note: the frequency can be adjusted for 2Hz- 120Hz, the pulse width can be adjusted for 50us-400us, and the treatment time can be adjusted for 5min-90min.
  • Page 26 Note: the frequency can be adjusted for 20Hz- 120Hz, the pulse width can be adjustable for 50us-400us, and the treatment time can be adjusted for 5min-90min, the ramp up time can be adjusted for 1sec - 10sec, the continous time can be adjusted for 1sec - 90sec,the ramp down time can be adjusted for 1sec - 10sec, the rest time can be adjusted for 1sec - 90sec.
  • Page 27 • It could take up to 2 hours to reach a full charge. • When charging is completed, the indicator light will be green. The life of a rechargeable battery depends on the number of recharging/rundown cycles it undergoes and how these cycles are performed.
  • Page 28 to the skin’s surface, replace them with new ones. Stick the electrode pads back onto the protective foil after use and store them in the storage bag to prevent them from drying out. This retains the adhesive force for a longer period.

  • Page 29: Cleanung And Maintenance

    3) Normally, we advise 1~2 treatments per day and one week as a period of treatment; 4) After a period of treatment, if the pain relief is not achieved or the pain gets even worse, please consult your doctor. Usage advice for EMS: 1) Place the electrodes on the body part you want to treat referring to the picture on Section 5.3.3;...
  • Page 30 7.1.5 For reasons of hygiene, each user should use his/her own set of electrodes. 7.1.6 Do not use any chemical cleaners or abrasive agents for cleaning. 7.1.7 Ensure that no water penetrates into the machine. Should this happen, use the device again only when it is completely dry.

  • Page 31: Troubleshooting

    8. TROUBLESHOOTING Should any malfunction occur while using the device, check whether the parameters are set appropriately for therapy, and adjust the control correctly. Please see the fol- lowing table: Malfunction Common reasons Countermeasure The battery is exhaust- Charge in time No display 1.

  • Page 32: Storage

    1. Do the treatment once a day and shorten the treat- ment time. 1.The treatment time 2. Check and stick the lasts too long. electrode well. 2.The electrode does 3. Wipe the electrode Rash or tickle not stick well to the with a wet cotton on the skin skin.

  • Page 33: Dispoal

    2. Do not keep in places that can be easily reached by chil- dren 10. DISPOSAL Spent batteries do not belong to the household wastes. Dispose of the battery according to the current regulations. As a consumer, you have the obligation to dispose of batteries correctly.
  • Page 34 R F e m i s s i o n s Class B CISPR11 Harmonic emis- The device is suitable for use in all es- Not appli- sions tablishments including those directly cable lEC61000-3-2 connected to the public low-voltage power supply network that supplies Voltage fluctua- to buildings power used for domestic tions/...
  • Page 35 <5% U (>95% dip in for 0.5 cycle 40% U Voltage dips, (60% dip in short interrup- not applicable tions and volt- for 5 cycles not applica- (For INTERNAL- age variations LY POWERED ME on power supply 70% U EQUIPMENT input lines (30% dip in IEC 61000-4-11...
  • Page 36 Radiated 10V/m 10V/m & Portable and mobile RF communi- & table table 9 cations equipment should be used not closer to any part of the device, 61000-4-3 including cables, than the recom- mended separation distance calcu- lated from the equation applicable to the frequency of the transmitter.
  • Page 37 a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.

  • Page 38: Normalized Symbols

    Bluetooth, Pulse WLAN, 2400- modu- 2450 802.11 b/g/ 2570 lation n, RFID 2450, 217Hz LTE Band 7 Pulse 5240 5100- WLAN 802.11 modu- 5500 5800 lation 5785 217Hz NOTE If it is necessary to achieve the IMMUNITY TEST LEVEL, the distance between the transmitting antenna and the ME EQUIPMENT or ME SYSTEM may be reduced to 1 m.The 1 m test distance is permitted by IEC 61000-4-3.

  • Page 39: Warranty

    The first number 2: Protect against solid for- eign objects of 12,5 mm Ф and greater. The second number: Protect against vertically IP22 falling water drops when enclosure titled up to 15º. Vertically falling drops shall have no harm- ful effects when the enclosure is titled at any angle up to 15º, on either side of the vertical.
  • Page 40 3. The following cases are excluded under the warranty • All damages that arise due to improper operation, e.g. nonobservance of the user instruction. • All damages due to repairs or tampering by the cus- tomer or unauthorized third parities. •...
  • Page 44 Shenzhen Roundwhale Technology Co., Ltd. Add: 202, 2/F, Building 27,Dafa Industrial Park，longxi community, longgang street, longgang district, Shenzhen, China. Tel: +86-755-23212776 Fax: +86-755-23212776 Email: info@roovjoy.com Shanghai International Holding Corp. GmbH(Europe) Address: Eiffestrasse 80,20537 Hamburg, Germany...
