Summary of Contents for High Tech Gio-Bella HTH 888

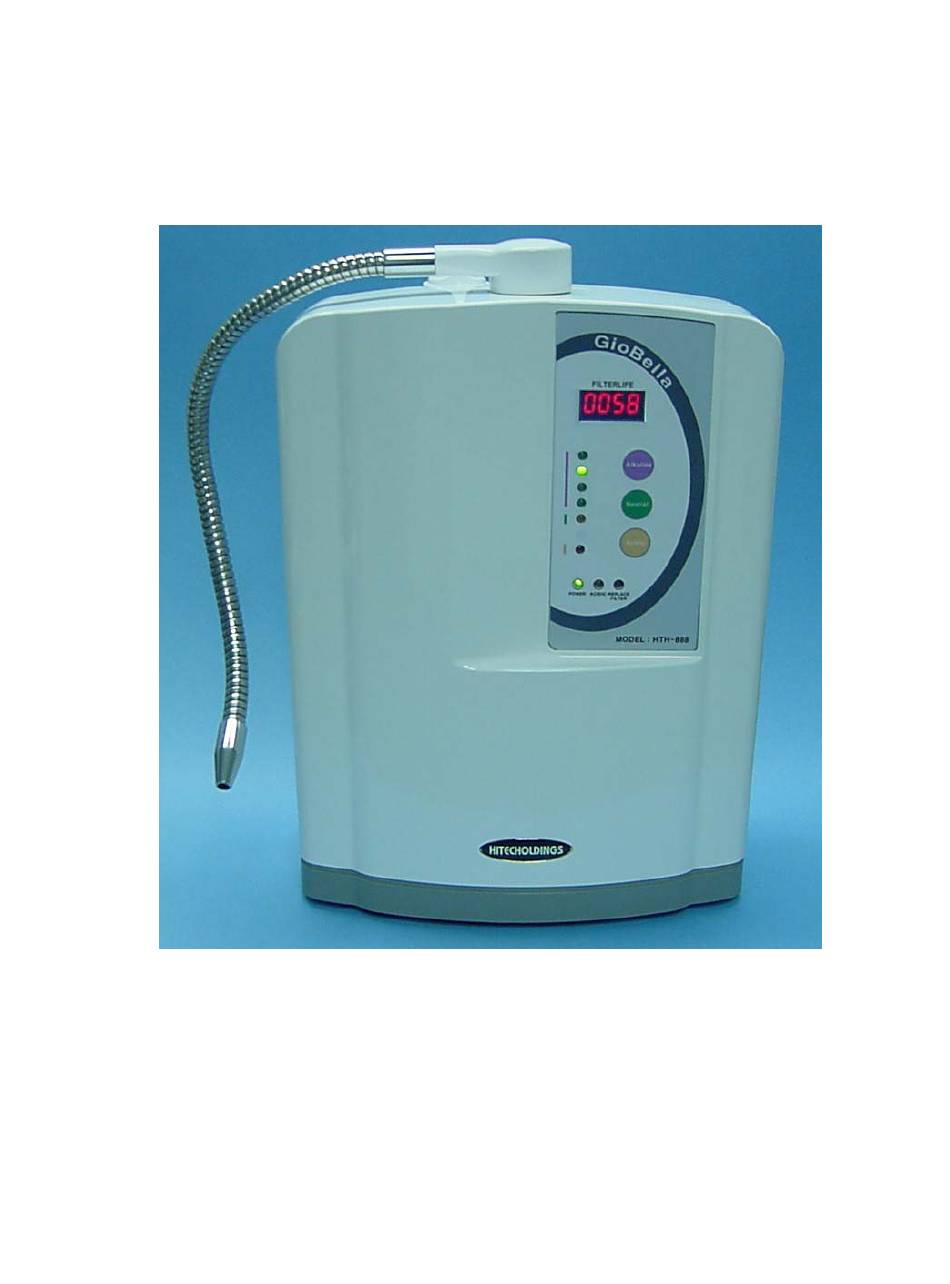

- Page 1 GETTING TO KNOW YOUR NEW Gio – Bella POINT OF USE RESIDENTIAL WATER ALKALIZER FOR DRINKING AND COOKING HTH MODEL 888...
- Page 2 Your Gio-Bella water alkalizer represents the very latest that High Tech Holdings has to offer. Remember, High Tech Holdings is an ISO9001/9002 company, which means they have achieved exemplary quality control methods in the design and execution of the Gio-Bella.
- Page 3 • Follow manufacturer’s suggested uses for pH levels. The consumption of water that is too alkaline may cause diarrhea or other symptoms. • No medical claims have been made nor implied by the manufacturer. Always see your physician at the first sign of illness.
- Page 4 INSTALLATION, OPERATION, AND MAINTENANCE 1. Unpacking – Remove all contents from shipping box. Save shipping box and packing materials in the event your Gio-Bella would ever need reshipped. You should have the following items included with your Gio-Bella: Hose kit with clamps •...
- Page 5 determined by convenience and easy access to both an electrical outlet and water. Remove original faucet aerator. This is usually done • without tools by rotating counter-clockwise. Put the original aerator in a safe place and • install the diverter valve assembly in its place. Note that if your faucet has threads on the inside, there are 2 adapters included that can be used.
- Page 6 o Carbon Block o Combo carbon and scale inhibiter o Fluoride/arsenic cut the hose at the location where the filter is to be placed and fasten hose from diverter onto to the filter end marked “in”, or “input from faucet.” Once again, secure hose with a clamp.
- Page 7 3. Before First Usage – There are a number of items to check prior to turning on the water: Plug power cord into a 3-pronged 110 VAC outlet. There • will be a momentary illumination of all the user panel LED’s. Open the filter door and verify that the filter •...
- Page 8 Allow water to run for several minutes. You may notice • that the water has a black tint, which is nothing more than carbon particles washing out of the filter. This will disappear after several seconds. After this initial system flush, the Gio-Bella will be able to produce drinking water instantly.
- Page 9 drops to sample. CAUTION – pH TEST SOLUTION IS TOXIC, DO NOT DRINK. KEEP TEST SOLUTION OUT OF CHILDRENS REACH Gently mix sample until water turns a consistent color • and compare resultant hue to the reference color chart. This should help you determine the pH closely enough to determine the best setting to use.
- Page 10 Acid water may also be obtained from the acid discharge hose while the Gio-Bella is producing alkaline water from the dispensing hose. The acidity of the discharge water will be determined by the alkaline setting in use. 8. Cleaning Cycle – The Gio-Bella has an automatic cleaning cycle.
- Page 11 Placing two fingers at the top of filter cartridge, press • down until the filter top clears the nylon top fitting. Pull filter back and lift out of filter compartment. • Note that there is a removable filter base • that will be reused with the new filter.
- Page 12 Replace filter door. Reorder new filter cartridge so that • you will have it when you need it. Calcium Additive – Your Gio-Bella has a small percolator basket to which a slow dissolving calcium compound can be added. After tap water runs through the filter, it flows through this percolator basket, picking up small amounts of calcium in doing so.
- Page 13 Alkaline level #1 to #4 presets – enables user to • change the pH value for each of the 4 alkaline settings by adjusting the power on the desired level. To access these special functions, use the following buttons: = Access Special Programming Neutral Acidic = to display current value and enter new value...
- Page 14 strongest acid and 1 for the weakest. Using [alkaline] to increase and [acidic] to decrease, select the desired value and press [neutral] + [alkaline] to enter. c) Alkaline level preset adjustments: i. [neutral] + [acidic], press [alkaline] or [acidic] to access level 1 (display 0005), level 2 (display 0006), level 3 (display 0007), and level 4 (display 0008).
- Page 15 water authority. Calcium cartridge is depleted. There is a problem with water supply. Water leaks out of Gio-Bella. Filter is not correctly installed. Verify that filter is fully seated There is a loose connection. inside filter compartment. Check all water connections. Verify that Gio-Bella has not been dropped or otherwise damaged.
-
Page 16: Very Important
VERY IMPORTANT YOUR WATER IONIZER IS NOT SUITABLE AS A WATER PURIFIER AND IS NOT TO BE USED ON UNTREATED WATER THAT IS MICROBIOLOGICALLY UNSAFE. Contact YOUR LOCAL GIO-BELLA RESELLER IS: Record point of purchase contact information for your Ion Farm here: Nature’sAlternatives.com 7111 W.
