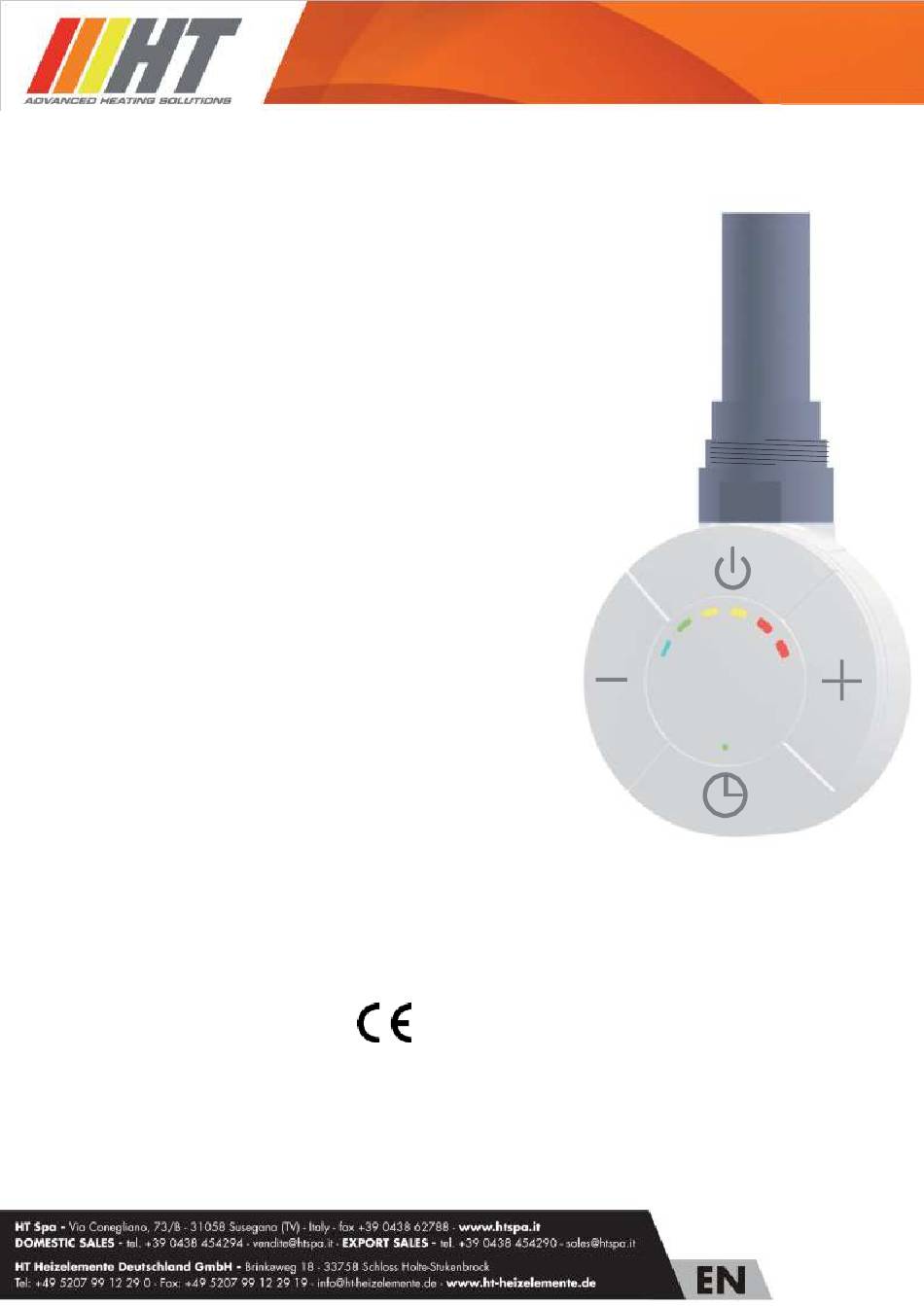

HT SMART Plus Quick Start Manual

Electronic control for towel radiators
SMART Plus is an electronic thermostat for the automatic control of electric
towel radiators. By means of an external sensor it is capable of keeping the
ambient temperature to a desired value.
Ten different electric resistances are available in a range between 100W and
1000W.
Operative modes: Comfort, Boost, Standby/Antifreeze, Timer12
and Timer24.
• "Comfort" mode: The thermostat keeps the room
temperature at the value set by the user.
•
"Boost" mode: In "Boost" mode the heating element is
activated for a period of 2 hours independently of the
configured temperature. The temperature is however
automatically controlled in order not to exceed 29°C. At the
end of the 2 hours period, the device returns to "Comfort"
mode.
•
"Timer"mode: The control system enters into "Boost" mode
for 2 hours; after that it returns into "Comfort" mode for 22 or
10 hours (period configurable by the user) and then it enters
again into "Boost" mode for 2 hours. This sequence is
repeated endlessly.
•
"Stand-by" mode: In this mode the device goes in standby and the heating element is powered off.
SMART is a certified product:
SMART is compliant with the following standards:
-Eco-design Directive for Energy-using Products, 2005/32/EC (<0,5W).
-EN 60335-1:2012 -EN 60335-2-30:2011 -EN 60335-2-43:2005
-EN 61000-3-2:2004 -EN61000-3-3:1995 -EN 50366:2003
-EN 55014-1:2008 -EN 55014-2:1998
"SMART Plus"
Available colors: - White(RAL 9003).
- Crome.
Rev.3 agosto 2020
