Summary of Contents for Quantum Broadway

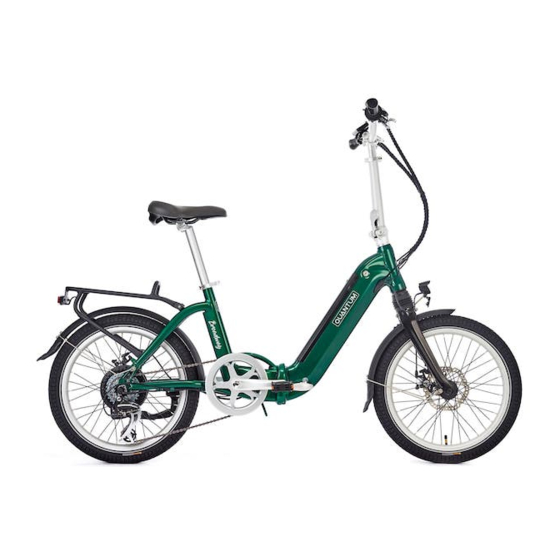

- Page 1 Quantum Broadway Bike User’s Guide eBikes...
- Page 2 About us Quantum is a proudly Canadian company founded in Montreal, Quebec. Since 2015, we’ve prided ourselves in our expertise contemporary technologies, while simultaneously developing products which hold up in future market trends. Our expertise lies in the design & manufacture of high quality eBikes, as our team works meticulously to develop an intuitive &...
- Page 3 PURCHASING A BROADWAY ELECTRIC BIKE! Day after day, your new Quantum Broadway will provide hours of pleasure riding country roads or city streets. Your Quantum bike has been designed to be practical and easy to use. The frame and most of the components are manufactured from lightweight, corrosion resistant aluminum.
- Page 4 Cleaning Instructions • Refrain from using a high pressure washer to clean your bike. This can drive grease or lubricant from the components, accelerating wear. Due to the high pressure, the water could penetrate into the electrical components and introduce corrosion which will warrant replacing the affected components.
-
Page 5: Table Of Contents
Contents 1. Spec Sheet 5. Adjustments 17-18 Battery 2. Components Handlebars 3. Information on Operation and Saddle Maintenance 4-13 3.1 Positioning & Quick Release 6. On-board computer Systems 6.1 Dimensions 3.2 Cockpit Maintenance 6.2 Summary of LCD Functions 3.3 Lighting 6.3 Data Reset 3.4 Brakes 6.4 Walk Assist... -
Page 6: Spec Sheet
1. Spec Sheet PRODUCT DESCRIPTION: One size fit all SADDLE: Ventilated with Integrated Handle foldable e-bike SEATPOST: Aluminum, Adjustable though AVAILABLE COLORS: Pearl White, Gunmetal 0-280mm (Radius of 33.9mm) Grey, Rainforest Green, Red Gloss CRANKSET: Aluminum, 46 teeth, with Chain WEIGHT: 20,41 kg (45 lb) without battery and Guard 22,45 kg (49,5 lb) with battery... -
Page 7: Components
2. Components Saddle 11. Front mudguard 2. Luggage rack 12. Front wheel 3. Rear light 13. Front light 4. Rear fender 14. Control cables 5. Rear wheel 15. Handlebars 6. Derailleur 16. Stem 7. Chain 17. Folding jib crane quick release 8. - Page 8 21. Rear wheel electric motor 29. Brake lever 22. Kickstand 30. Shift lever 23. Transmission 31. Bell 24. Tire inflation 32. On-board computer 25. Bracket to hold folded bike 33. Handle 26. Disc brake caliper 34. Stem quick release 27. Disc brake 35.
-
Page 9: Information On Operation And Maintenance
A shorter extension will create pains in your knees, and a longer extension will hyperextend ligaments in your ankle. Quantum Broadway bikes are equipped with Quick Release Lever adjustments on the handlebars and seat post, allowing you to fine tune your riding fit without the need for tools or a technician. -
Page 10: Cockpit Maintenance
When cycling, it is necessary to be visible by other users of the road. The front and rear of the Broadway are equipped with LED lights to ensure 360 degree visibility. The lights can be activated by pressing & holding the “+”... -
Page 11: Brakes
Your Quantum Broadway is equipped with mechanical disc brake calipers and 160mm rotors. After ~1000 km, have the pads inspected by your Quantum dealer, as the pads may need to be replaced or cleaned. The left lever operates the front brake and the right lever operates the rear brake. -
Page 12: Chain
Quantum Dealer. Rotate the chain several times. Remove excess lubricant with a dry cloth. Broadway chains can be checked with a wear indicator at your Quantum dealer. When a chain measures 0.75 on a wear indicator, it is advisable... -
Page 13: Wheelset
3.7 Wheelset Components of the Wheel 1. Tire 2. Rim 3. Inner tube valve (inner tube is in the tire) 4. Spokes 5. Hub... - Page 14 Quantum Technician. Tires Broadway tires should be inflated between 45 psi and 65 psi. Closer to 65 psi will provide a faster & firmer ride. Closer to 45 psi, you will lose some efficiency for additional comfort, as shock is absorbed in the softer tire.
-
Page 15: Aesthetic Maintenance
3.9 Battery Information The Quantum Broadway uses a lithium ion battery complying with ISO13849, IEC62133 and UN38.3 certifications & regulations. To learn the battery charge level, refer to the on-board display, or press the... - Page 16 Charging the battery Your bike is delivered with a charger for the 36V battery. To charge a battery, first plug the charger into any 120V wall outlet, then plug the plug into the battery. On the left side of the frame is a rubber plug that opens to show a window where the charger connects.
- Page 17 Battery Safety Notes • It must be recycled or disposed of properly. • Do not throw it into a fire or short-circuit it directly. • Never disassemble. • Do not drop the battery or subject it to excessive shock. • Do not place the battery in an environment above 60 degrees Celsius.
-
Page 18: Theft Prevention
A unique serial number is assigned to each bike. You will find this number on the bike and on the purchase receipt sent to you by your Quantum dealer. The battery lock mechanism also has a unique key with a serial number. -
Page 19: Handlebars
4.1 Folding / Handlebars To fold the stem, press the button on the quick release and simultaneously pull the lever down. (figure 1 & 2). The stem is no longer fixed and you can fold it downwards (figure 3). Note: When you reposition the stem to the vertical, make sure the quick release is fully open before closing the mechanism (figure 2). -
Page 20: Folding
4.2 Folding Pedals Press the inside of the pedal outwards (figure 1), and lower the pedal simultaneously (figure 2). Note: Make sure that the positioning of the pedals does not interfere with the folding of the bicycle frame! WARNING Make sure the pedals are not folded up when riding! Be cautious of your fingers as the pedals have a spring to help with the folding mechanism. -
Page 21: Frame
4.3 Folding Frame Push the button while pulling the quick release outward (figure 1 & 2). Fold the bike in half, and rest it on the metal bar (below the pedals) to keep the bike in a stationary position (figure 3 & 4). WARNING Beware of accidents: ensure that the frame safety closure is always closed before riding! -
Page 22: Adjustments
5.1 Adjustments Battery Pull the side ends of the battery and turn the simultaneously extract battery (figure 1 & 2). To reinstall the battery : insert the bottom part of the battery first and push the battery inside the frame with the key in «open» position (if the key is in the «closed»... -
Page 23: Handlebars
5.2 Adjustments Handlebars & Saddle Handlebars Open the quick release located under the handlebars (figure 1). Pull the handlebars up or down in order to adjust the Height. Do not forget to close the quick release (figure 2). WARNING For your security it is recommended that the MAX safety mark on the post is not visible ! If it is visible, the handlebars could become loose causing the rider to lose control of the bike. -
Page 24: On-Board Computer
6. On-board computer (C300S-LCD model) -
Page 25: Dimensions
6.1 Dimensions *(Unit: mm) -
Page 26: Summary Of Lcd Functions
6.2 Summary of LCD Functions Tactile Functions • (+) Assistance Increase. Hold for 3 sec to turn lights on / off. • (M) Mode button. Cycles the electrical system on / off when held; selects the different displays when quickly pressed. •... -
Page 27: Data Reset
6.3 Data Reset To reset trip time, distance traveled and speed maximum follow the steps below: a. Hold “+” and “-” for 2 seconds at the same time to enter the setting mode. b. Click “-” to erase the distance traveled, the duration of the trip and the Maximum speed. -
Page 28: Walk Assist
6.4 Walk Assist Press and hold “-” for 2 seconds to activate the walk assist mode. The electric bike will run at 6km / h. *Walking assistance display 6.5 Auto Shutoff When the driving speed is less than 2 km / h for 5 minutes, the system will automatically go to standby. -
Page 29: Error Codes
6.6 Error Codes * Example: Error code 9 If you see one or more of these errors, please contact your Quantum Dealer ASAP. Error code Error information (21) Electric current fault (22) Throttle fault (23) Motor phase fault (24) Engine signal fault... -
Page 30: Warranty
& safely, under a rigorous quality control environment. During the production, various quality verifications have been made. If, despite all efforts, your Broadway bike is defective in material and/or ride quality (under normal use described in the manual), Quantum will honor the warranty of applicable service or part replacement. -
Page 31: Responsability
A claim honored by Quantum under these warranty conditions does not constitute an acknowledgment of liability on the part of Quantum for any loss or damage suffered by the owner or by third parties. Any liability on the part of Quantum for consequential damages is excluded. -
Page 32: Legal Notice
9. Legal Notice Distribution Bike City Inc. (Quantum) info@Quantumebikes.com Telephone: +1 (514) 274 7096 https://www.Quantumebikes.com/ © Reproduction, translation or any use of this document cannot be done without prior written authorization (even for simple extracts in printed form or electronic).
