elepho eClear Full User Manual

Advanced nasal aspirator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Full User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eClear and is the answer not in the manual?

Questions and answers

Summary of Contents for elepho eClear

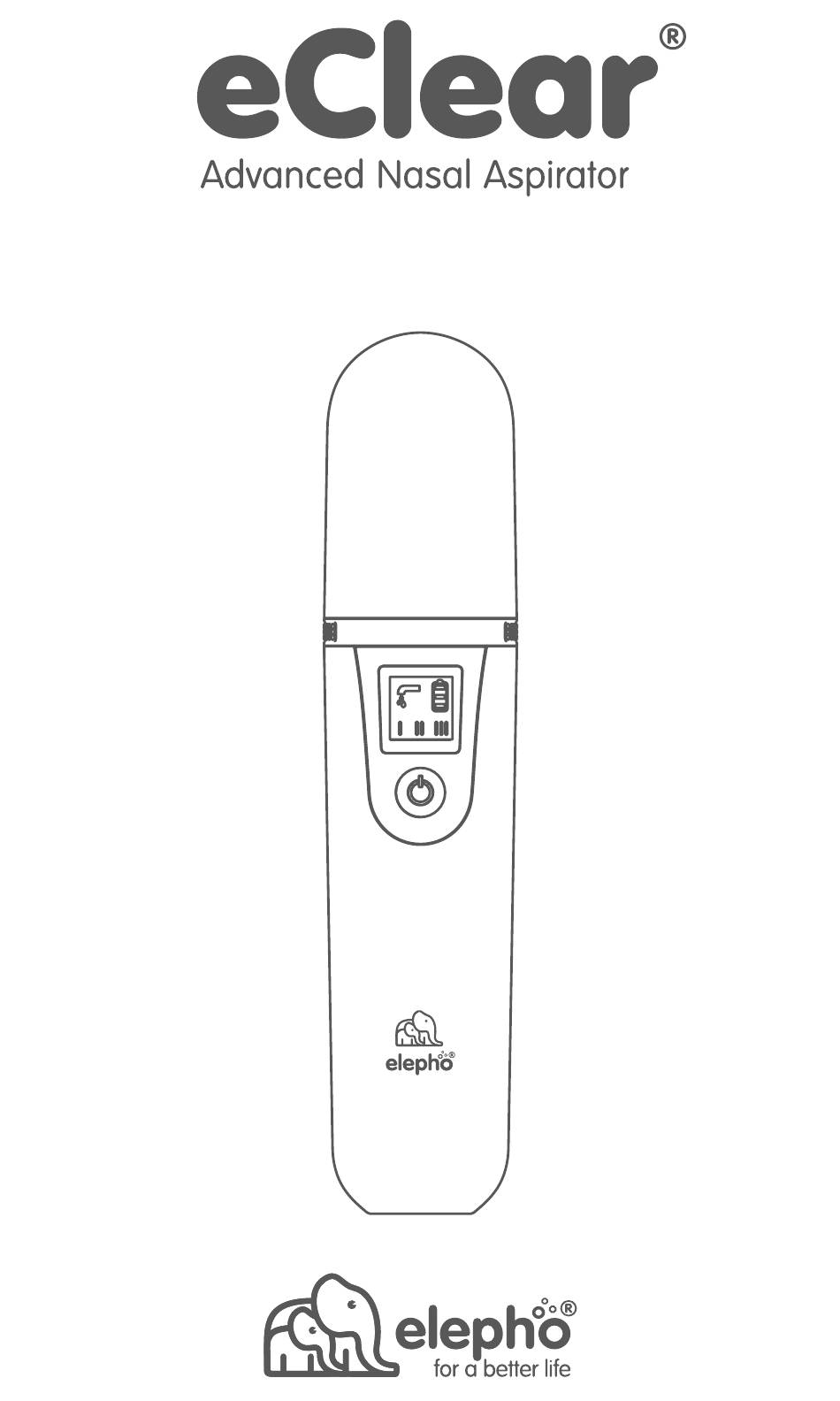

  • Page 1 Full User Manual...

  • Page 2: Table Of Contents

    Index Foreward Declaration of conformity Product type Important safety information Technical data Parts identification Parts Display Installation and operation instructions Installation parts description How to install Notice before use Using the optional USB power 7.5. Using the internal battery Operating instructions Troubleshooting Care and maintenance Warranty and service...

  • Page 3: Foreward

    1. Foreward Thank you for choosing the eClear from Elepho Inc. This product is used to clean a baby’s nose from mucus which is difficult to extract natually. This product is for consumer use; it is made up of precise components; please keep it away from high temperature, humid environments, sunlight and dust.

  • Page 4: Important Safety Information

    4. Important safety information The warning symbols mentioned in this user manual give guidance of safety and correct method of use to avoid any harm to your body. The warning symbols are as follow: Warning symbol Meaning It may cause harm to body or article. The device and accessories and the This device compiles with Part 15 of FCC packaging have to be disposed of...
  • Page 5 During storage, please pay attention to the influence of dirt, dust, light (including sunlight); regularly use a damp rag to wipe the external surface of the product, and avoid direct sunlight during storage. During storage, please keep the product away from pets and children to avoid damaging the product or swallowing.

  • Page 6: Technical Data

    5. Technical Data Name Nasal Aspirator (eClear) Model HTD2601US Display Ambient temperature: 41˚F - 113˚F (5˚C - 45˚C) Operating conditions Relative humidity (RH): ≤85% Atmospheric pressure: 700 hPa-1060 hPa Ambient temperature: - 4˚F - 131˚F (-20˚C - 55˚C) Transport and storage Relative humidity (RH): ≤93%...

  • Page 7: Installation And Operation Instructions

    7. Installation and operation instructions 7.1 Installation parts description Suction nozzle Transparent cover (thick, to clean deep nasal cavity) Suction nozzle Collecting cup (thin, to clean nostril ) Seal ring Silica gel cover 7.2 How to install 7.2.1 - Before installation, please check whether the product appearance is good and complete. If there is any defect, please contact the supplier or manufacturer.

  • Page 8: Notice Before Use

    c. Screw the transparent cover on the body. d. Install the suction nozzle on the transparent cover. Note: during installation, fingers should be kept away from the tip of the suction nozzle to avoid bacteria pollution. 7.3 Notice before use a.

  • Page 9: Using The Optional Usb Power

    7.6 Operating instructions 7.6.1 - Start up a. In standby mode, press the power button to turn the eClear on at which point all symbols will be briefly displayed on the screen. By default level one operation will be selected.
  • Page 10 7.6.2 - Aspirating the mucus Please keep the product display screen facing up and gently insert the suction nozzle into the nose for suction. Notes: 1. The suction nozzle should be in full contact with the mucus, and the angle between the suction nozzle and the nostril should be about 20-30 degrees;...
  • Page 11 7.6.5. - Cleaning It is recommended to clean the unit and the collection cup after each use to prevent any build-up of bacteria over time. During cleaning process do not use or connect the device to the power supply. a. Cleaning of suction nozzle, transparent cover and collecting cup - Remove the transparent cover and collecting cup from the host machine, and then remove the suction nozzle when cleaning the transparent cover.

  • Page 12: Troubleshooting

    8. Troubleshooting Problem Possible Cause Proposed Solution No display when you press the power button The battery may have been Please use USB power supply depleted if not used for a to recharge the lithium battery long time before using. Humidify the dry mucus with Mucus is dry.

  • Page 13: Warranty And Service

    1 Quick User Guide WARNING: The use of accessories NOT supplied with the purchase of the device is forbidden and will void the warranty. Manufactured for Elepho Inc by Hetaida Technology Co., Ltd. Dongguan City, Guangdong Province, P.R. China Manufactured 12. Disposal At the end of the product life, the device should not be disposed of in household garbage.

  • Page 14: Emc Guidance

    13. EMC Guidance Warning: Don’t use near active HF surgical equipment and the RF shielded room of an ME system for magnetic resonance imaging, where the intensity of EM disturbances is high. Warning: Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation.
  • Page 15 Warranty The warranty period for device is one year from date of delivery. In case of a warranty claim, the date of delivery has to be proven by means of the sales receipt or invoice. Repairs under warranty do not extend after the warranty period. The following cases are excluded under the warranty: •...
  • Page 16 Made in China Hetaida Technology Company, Ltd, Guangdong Province, P.R. China. Manufactured for: Elepho Inc., 466 Central Ave (2nd floor), Cedarhurst, New York 11516, USA Item/Device #: HTD2601US Product/model name: eClear E-mail support: customercare@elepho.com Telephone support via Elepho Consumer Relations at: 1-833-435-3746 (1-833-4-ELEPHO)
