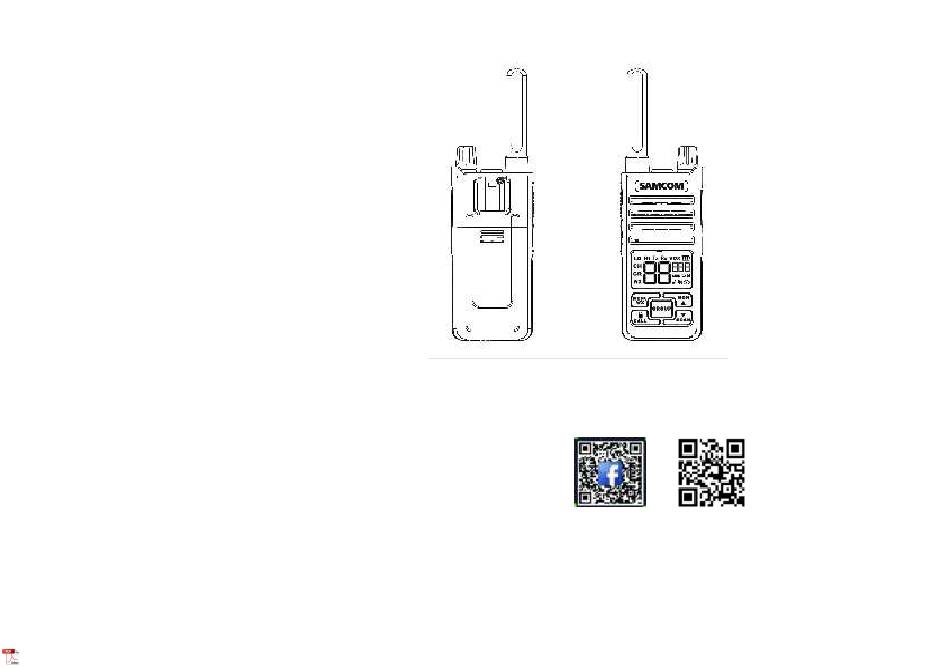

Instruction Manual

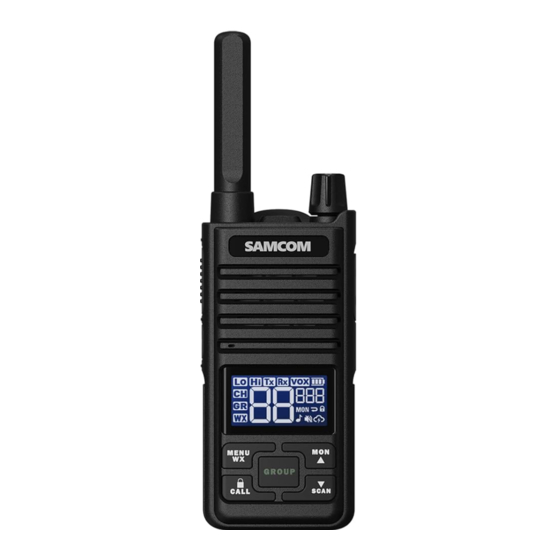

GMRS Two-way Radio
SAMCOM T2
Main Features
● Frequency:
462.5500~462.7250MHz,462.5625~462.7125MHz
467.5500~467.7250MHz,467.5625~467.7125MHz
● High/Low TX Power (2W/0.5W) Selectable
● 30 channels
● 121 codes (38 CTCSS & 83 CDCSS)
● 1-5 KM optimal range
● Group function (Dual Receiving and Dual Transmiting )
● 3 VOX levels
● 10 Call tones
● Monitor
● Scan
● Key lock function
● 1100mAh Li Polymer Battery
● Flashlight
● NOAA & Weather Alert
Facebook
SAMCOM INC.
Advertisement
Table of Contents
Related Manuals for SAMCOM T2
Summary of Contents for SAMCOM T2
- Page 1 Instruction Manual GMRS Two-way Radio SAMCOM T2 Main Features ● Frequency: 462.5500~462.7250MHz,462.5625~462.7125MHz 467.5500~467.7250MHz,467.5625~467.7125MHz ● High/Low TX Power (2W/0.5W) Selectable ● 30 channels ● 121 codes (38 CTCSS & 83 CDCSS) ● 1-5 KM optimal range ● Group function (Dual Receiving and Dual Transmiting ) ●...
- Page 2 Overview LCD display Earphone & Charger Jack Push-To-Talk (PTT) key Up / Monitor key Down / Scan key Power / Volume Knob Group key Menu / WX key Call Tone /Key-Lock key Microphone Speaker Antenna Flashlight LED Flashlight key ● GROUP Button – A dual-receiving and dual-transmitting function which enable radio to monitor two channals at the same time.
- Page 3 : Monitor : Sound off Press the MENU key 1 time, enter into the menu selecting mode. Press key choice the menu function. Press and hold the WX key for 3s, enter into the WX mode. Press key choice the menu function. Press the CALL key, call function will open.
-
Page 4: General Operations
GENERAL OPERATIONS Install / Removing Belt Clip Installing Belt Clip ● Slide the Belt clip into the slot A “click” sound indicates the Belt Clip is locked into position. Removing Belt Clip ● Push the latch of belt clip in ●... - Page 5 Notes: ℃ ℃ 1. When charging, the temperature should be between 5 ,otherwise it may cause the leakage or even damage the battery. 2. Please shut down the transceiver with battery loaded before charging it. The use of the transceiver while charging is ongoing will affect the normal battery charging.
-
Page 6: Charging Batteries
CHARGING BATTERIES When the “Battery level is low, that is the icon you need to charge the battery with the enclosed type-C Y-cable. Charging with AC/DC adaptor ● Plug one end of the cable into the type-C socket on the right side of the radio and other end into an adaptor then plug into the socket. -
Page 7: Transmitting Range
GENERAL OPERATIONS TRANSMITTING RANGE ● The talk range depends on the environmental and terrain. It will reach (up to about 5km) in wide open spaces, without obstructions such as hills or buildings. Don’t try to use two units which are less than 1.5m (5feet) apart. If you do, you may experience interference. -
Page 8: Scanning Channels
● When you press the PTT key, you can’t listen to other radios. Make sure you do not press PTT key for listening. ● Adjust volume control if necessary. GROUP FUNCTION ( Dual Receiving and Dual Transmiting) The unit has Dual Receiving and Dual Transmiting function. It can monitor two channels at the same time, which are the Main (foreground) and Group (Background) channels, i.e., it can detect signal on either channel. - Page 9 ● To unlock, press and hold key for 3 seconds again. 12. MICROPHONE / EARPHONE JACK The unit is equipped with a microphone / Earphone jack located at the right side. You can use an optional earphone (included) for handsfree function. 13.
- Page 10 ● Press to select new CTCSS or CDCSS code ● Press the GROUP or PTT key to confirm and revert back to the main screen, or the key to confirm and continue next function setting. 3. SELECT GROUP MAIN CHANNEL This function enable the radio to dual-receiving and dual-transmitting.
-
Page 11: Roger Beep
● Press to scroll between 1 to 10 and choose the call tone you like. ● Press the GROUP or PTT key to confirm and revert back to the main screen, or the key to confirm and continue next function setting. 7. - Page 12 WEATHER RECEIVER (WX) FUCNTION The radio has the capability to tune in to broadcasts by the United States National Oceanic and Atmospheric Administration (NOAA) Weather Radio and Environment Canada Weather Radio. You can listen to a weather channel or set your radio to alert you to emergency weather broadcasts that interrupt routine broadcasts.
- Page 13 GMRS Channel Configuration Chart CH. No. Frequency Default Associated Code TX Power CH. No. Frequency Default TX Power Option (MHz) Option (MHz) Associated Code 462.5500 Fixed to Hi 467.5500 Fixed to Hi 462.5750 Fixed to Hi 467.5750 Fixed to Hi 462.6000 Fixed to Hi 467.6000...
-
Page 14: Safety And General Information
82.5 103.5 131.8 167.9 218.1 85.4 107.2 136.5 173.8 225.7 CDCSS Octal Code Chart Code Code Code Code Code Code Code Code Code Code Code Code Code Code Code Code SAFETY AND GENERAL INFORMATION Compliance with RF Exposure Standards Your GMRS Two-way radio generates RF electromagnetic energy during transmit mode. This two-way radio is designed, manufactured and tested to comply with all applicable national and international regulations for human exposure to radio frequency electromagnetic energy. - Page 15 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful intererence, and (2) this device must accept any interference received, including interfence that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 16 FCC RF exposure limits of this radio. The SAMCOM T2 is FCC Part95E type accepted for use on the GMRS. The T2 operates on General Mobile Radio Service(GMRS) frequencies according to the Federal Communications Commission(FCC) Rules in the United States.
- Page 17 Electromagnetic Interference/Compatibility During transmissions, your SAMCOM radio generates RF energy that can possibly cause inference with other devices or systems. To avoid such interference. Turn off the radio in area where signs are posted to do so. DO NOT operate the...
