Model # PB6HEX-ADA Instructions Sheet
HEXAGONAL PICNIC TABLE ADA

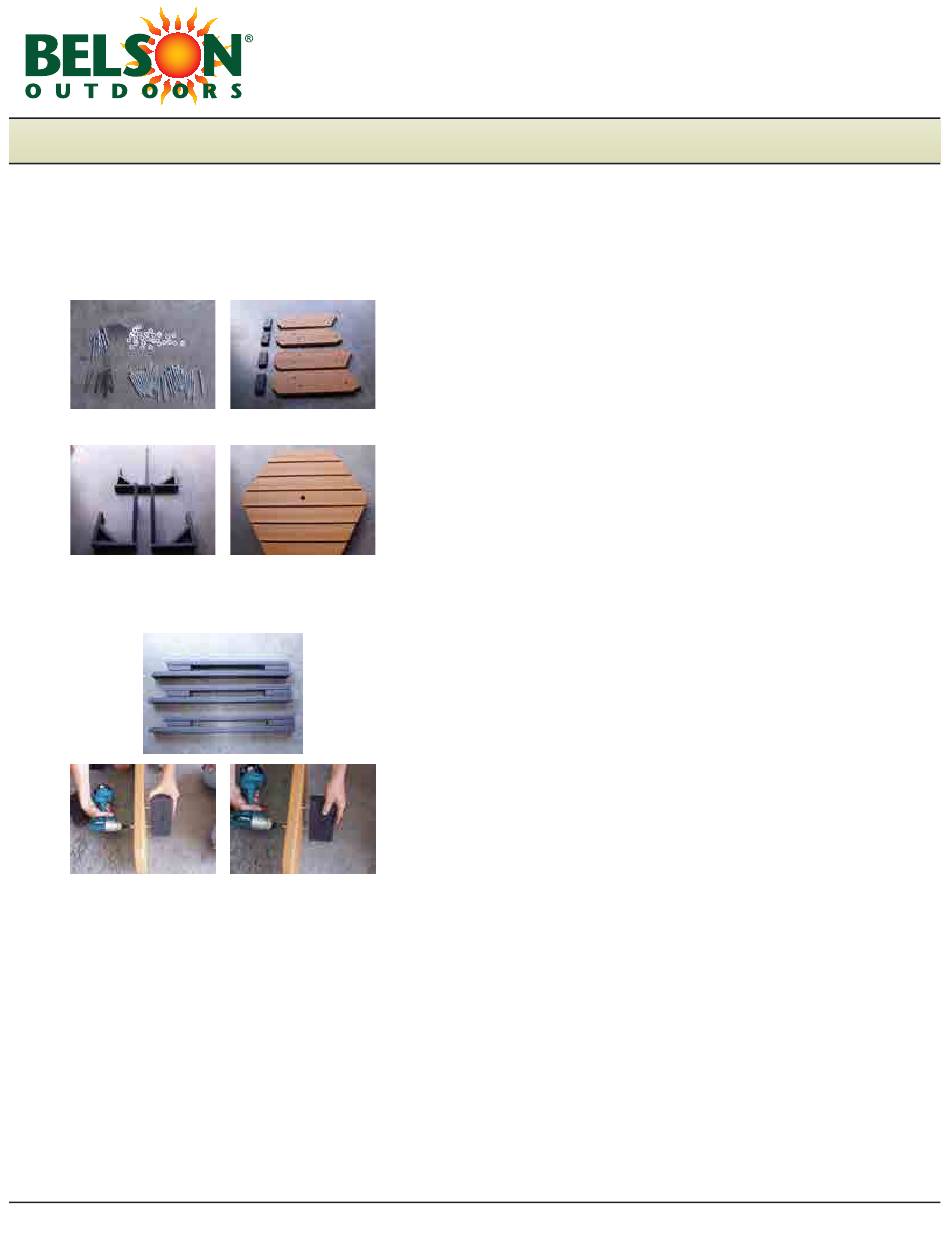

PARTS LIST:

26 - 3 1/2" ZINC PLATED LAG SCREWS
12 - 2 1/2" DECK SCREWS
6 - 2 1/2" LAG SCREWS
1 - #2 PHILLIPS HEAD DRIVER BIT
HEX TABLE HARDWARE SEAT AND ANCHOR BOARDS

TOOLS NEEDED FOR INSTALLATION:

VARIABLE SPEED DRILL OR SCREW GUN
7/16 SOCKET OR IMPACT WRENCH
HAMMER OR RUBBER MALLET
HEX TABLE LEGS HEX TABLE TOP ASSEMBLY

INSTALLATION INSTRUCTIONS:

1. CHECK PARTS LIST AND VERIFY ALL PARTS AND HARD -
WARE.
2. ATTACH SEAT/LEG ANCHOR BLOCK TO BOTTOM OF SEAT
SUPPORT USING 3 1/2" LAG SCREWS WITH WASHERS. NEXT
USING 3 1/2" LAG SCREWS WITH WASHERS ATTACH SEAT TO
CENTER SUPPORT MAKING SURE YOU ANCHOR INTO
PRE-DRILLED DIVETS.
3. ON A FLAT SURFACE AND USING 12 1/2" DECK SCREWS
START THE SEAT ASSEMBLY. IT IS IMPORTANT THAT THE
SEATS BE ASSEMBLED IN THE ORDER DETAILED BELOW.
ALIGN THE SEATS AS SHOWN IN DIAGRAM. AFTER ALIGN -
MENT, SCREW
( 2 ) 2 1/2" DECK SCREWS INTO EACH POSITION LABELED A
ON THE DIAGRAM. PUT ALL SCREWS INTO POSITIONS A.
THEN SCREW ( 2 ) 2 1/2" DECK SCREWS INTO EACH POSI -
TION LABELED B ON THE DIAGRAM. DO NOT SCREW INTO
POSITION B FIRST. IF POSITION B IS SCREWED INI FIRST, A
