- Page 1 ® EFIX FC2 Controller User Guide Revision 1.0 Feb 22nd, 2022 surveyors , surveyors...
-
Page 2: Table Of Contents
4.3 Log in 4G ...................... 15 4.4 Check the IMEI Number of the Controller ........... 16 4.5 Restore Factory Setting ................17 4.6 Upgrading the Operation System ..............18 Faults and solutions ..................19 Specifications ....................20 EFIX FC2 USER GUIDE | 2022-02... -
Page 3: Preface
Preface Copyright Copyright 2020-2022 EFIX Geomatcis Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. Trademarks All product and brand names mentioned in this publication are trademarks of their respective holders. Safety Warnings The Global Positioning System (GPS) is operated by the U.S. Government, which is solely responsible for the accuracy and maintenance of the GPS network. -
Page 4: Use And Care
An absence of specific alerts does not mean that there are no safety risks involved. CE Interference Statement Declaration of Conformity: Hereby, EFIX Geomatcis Co., Ltd. declares that this FC2 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. -
Page 5: Technical Assistance
Technical Assistance If you have a problem and cannot find the information you need in the product documentation, contact your local dealer from which you purchased the FC2. Alternatively, please request technical support using EFIX technical support email (support@efix-geo.com). Your Comments Your feedback about this Getting Started Guide will help us to improve it in a future revision. -
Page 6: Introduction

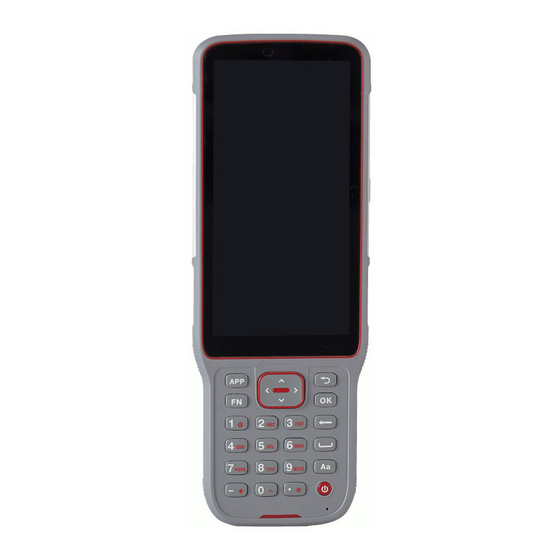

1 Introduction FC2 is a high-performance smart data controller developed by EFIX. FC2 integrates powerful navigation functions with better sensitivity, helping to achieve more accurate and faster positioning services. This user Guide will provide useful information about your controller. It will also guide you through your first steps of using FC2 in the field. -
Page 7: Installation Guide
Install SIM card: This controller does not support hot swap function, you need to shut down the controller and disconnect the charger to install and take out the SIM card and TF card. These are the steps: EFIX FC2 USER GUIDE | 2022-02... -
Page 8: Charging
4. Install the S1M card and TF card in the designated location. 2.3 Charging Please using the adapter we suggested to charge the battery, do not use other brand adapters to charge the controller. 2.4 Keypad and instruction EFIX FC2 USER GUIDE | 2022-02... - Page 9 Keypad Instruction Side button 1.Survey button On right side of controller, used for efield survey Hotkey. 2.Power button Turn on/off controller Main keypad 3.Main keypad Standard function keypads 4.APP button Quickly open customized app EFIX FC2 USER GUIDE | 2022-02...
-
Page 10: Quick Tour
Swipe down from the event notification bar with your finger, and all prompt messages will be displayed. Tap each prompt message to view the details. 3.4 Application menu 1. Tap the application icon to open it on the home page. EFIX FC2 USER GUIDE | 2022-02... -
Page 11: Backup And Restore
You can set single card or dual card mode, main card. WLAN WiFi settings: Turn WiFi function on or off. Network notifications: Set the controller to notify when open WIFI are available. Add Wi-Fi Network: Manually add a WiFi access point. Bluetooth EFIX FC2 USER GUIDE | 2022-02... - Page 12 Location information access You can manage the permission to access to your location. Safety You can set security setting through this interface, such as screen lock, SIM card lock, owner information, and password settings. EFIX FC2 USER GUIDE | 2022-02...
-
Page 13: Basic Operations
You can view status information, battery usage, and controller model through the interface. 4 Basic operations 4.1 Language & input Click [Settings] – [System] – [Language & input] – [Languages] to select language. If EFIX FC2 USER GUIDE | 2022-02... -
Page 14: Set Date & Time
[Add a lauguage] to find the target lauguage. 4.2 Set Date & Time Click [Settings] – [System] – [Date & time] and enter [Date & time] interface. EFIX FC2 USER GUIDE | 2022-02... -
Page 15: Log In 4G
After inserting your SIM card, click [Settings] – [Network & Internet] – [Mobile Networks] – [Preferred network type] and select corresponding network type of your SIM card. Then turn on [Network & Internet] and click [Data usage] to check data usage. EFIX FC2 USER GUIDE | 2022-02... -
Page 16: Check The Imei Number Of The Controller
4.4 Check the IMEI Number of the Controller Click [Settings] – [About phone] – [Status] – [IMEI information], then the IMEI numbers show up automatically. EFIX FC2 USER GUIDE | 2022-02... -
Page 17: Restore Factory Setting
Enter the [Settings] – [System] – [Reset options] – [Erase all data] Press [Erase all data] – [RESET PHONE], data controller will automatically shut down and restart. Note: After choosing [RESET PHONE], the memory data in data controller will be cleared! EFIX FC2 USER GUIDE | 2022-02... -
Page 18: Upgrading The Operation System
Then tap [Wireless upgrade], then click [Check for updates] to start. The controller will restart automatically after upgrading, return to the mobile status interface to see the core version and check if the upgrade is successful. EFIX FC2 USER GUIDE | 2022-02... -
Page 19: Faults And Solutions
(1) The signal is too weak, or there is interference around network (2) Reinstall the SIM card (3) Replace the SIM card The standby time (1) Check the mobile signal (2) Replace the battery becomes shorter EFIX FC2 USER GUIDE | 2022-02... -
Page 20: Specifications
Brightness 500 cd/㎡ Touch screen Support multi-touch, support glove or wet hand operation Performance MTK6762 2.0GHz Octa-core Operation system Android™ 8.1 USB2.0 Type-C, OTG Flash Memory 64GB Operating environment Operating temperature -20℃ ~ 50℃ EFIX FC2 USER GUIDE | 2022-02... - Page 21 Survives 1.5 m (4 ft) fall on concrete Dust proof and IP67 waterproof CLASS 4 Static Protection Air：±15KV Contact：±8KV Wireless connection LTE FDD：B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28AB LTE TDD：B34/B38/B39/B40/B41 WCDMA：B1/B2/B4/B5/B8 WWAN TDSCDMA：B34/B39 CDMA EVDO：BC0 GSM：850/900/1800/1900 WLAN IEEE802.11 a/b/g/n/ac, (2.4G/5G) Bluetooth Bluetooth v2.1+EDR,3.0+HS, v4.1+HS Support EFIX FC2 USER GUIDE | 2022-02...
- Page 22 EFIX Geomatics 1st Floor, No. 258 Pingyang Rd., Minhang District, Shanghai, 201102, CHINA Tel: +86 15021007664 Email: sales@ efix-geo.com |support@ efix-geo.com Skype: support@efix-geo.com Website: www.efix-geo.com EFIX FC2 USER GUIDE | 2022-02...
- Page 23 1) FCC 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2）FCC 15.21 Warning: Changes or modifications to this unit not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.
- Page 24 The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: Smart handheld terminal (FCC ID: 2A3MU-FC2) has also been tested against this SAR limit. During product certification, the maximum SAR value reported according to this standard is less than 1.6W/kg when correctly worn on the body.
