- Page 1 User Manual VSB-600AF Video Conferencing Soundbar with AEC and Auto-Framing All Rights Reserved Version: VSB-600AF_2022V1.1...
- Page 2 Video Conferencing Soundbar with AEC and Auto-Framing Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance. The functions described in this version were updated by January, 2022.
- Page 3 Video Conferencing Soundbar with AEC and Auto-Framing How to use To prevent damage to this product or any product connected to it, this product can only be used within the specified range. 1.1. Do not expose the product to rain or moisture. 1.2.
-
Page 4: Table Of Contents
Video Conferencing Soundbar with AEC and Auto-Framing Table of Contents 1. Quick Installation Instructions ............................- 4 - 1.1 Product Interface ..............................- 4 - 1.2 Product Use ................................ - 4 - 1.3 Customer Service..............................- 4 - 2. Product Overview ................................. - 5 - 2.1 Product Introduction ............................ -
Page 5: Quick Installation Instructions
1) Installation: Fix the device to the wall, over the display screen or directly put it on the desktop. Or use the optional TV mount accessory to mount the VSB-600AF securely below or above a flat-panel display (part number 670-00077). -
Page 6: Product Overview

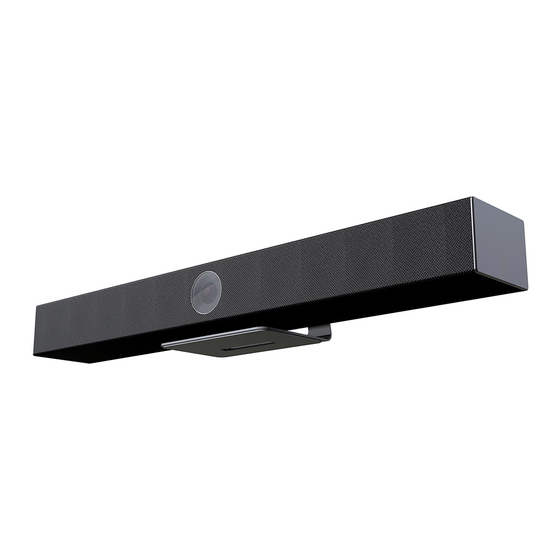

1 x User Manual 2.2 Product Features VSB-600AF is an all-in-one video conferencing soundbar with compact design, crystal clear audio and excellent video quality, it uses advanced AI intelligent algorithms, integrates multiple AI intelligent framing technologies such as facial detection, sound positioning, and voice tracking. It can automatically frame the meeting participants and adjust focus area to present the best view. -
Page 7: Specification
1x USB3.0 (Type-B), compatible with USB2.0 Audio Port 1x 3.5mm line input Physical Power Interfaces HEC3800 power socket (DC12V) Connector Wall Bracket Standard wall mount bracket VSB-TVM, Part number: 670-00077 Optional TV Mount Accessory Bracket TV Mount Bracket for VSB-600AF - 6 -... -
Page 8: Product Use
Video Conferencing Soundbar with AEC and Auto-Framing 3. Product Use 3.1 Remote Instructions 3.2 Menu Settings 3.2.1 Main Menu Press [MENU] button in MJPG, YUY2, NV12 or H264 compression encoding formats. MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Language English （Setup） （Exposure） （Color） （Image） （Noise Reduction） （Verion）... - Page 9 Video Conferencing Soundbar with AEC and Auto-Framing Setup Move the pointer to (Setup) in the main menu, press [HOME] to get into the exposure page as shown below. Setup ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Image Style Default Auto Framing Close Max Framing Auto Framing Sen Medium Voice Location Close...
- Page 10 Video Conferencing Soundbar with AEC and Auto-Framing Exposure In the main menu, move the pointer to (Exposure), and press [HOME] to enter the exposure page, as shown below. EXPOSURE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Mode Auto EV Level Flicker 50Hz G.Limit [↑↓]Select [← →]Change Value [↑↓]Select [←...
- Page 11 Video Conferencing Soundbar with AEC and Auto-Framing WB Mode: Auto, Manual, Onepush, VAR Saturation: 0-50 AWB Sensitivity: high, medium, low (valid only in automatic Chroma(Hue): 0～8 mode) BG Tuning：0-36 RG Tuning: 0-36 Image Move the pointer to (Image) in the main menu, and press [HOME] to get into the image page, as shown below. IMAGE ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝...
-
Page 12: Maintenance And Troubleshooting
Video Conferencing Soundbar with AEC and Auto-Framing Version Move the pointer to (version) in the main menu. VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Camera Version 1.0.3 2022-1-18 [↑↓]Select [← →]Change Value Restore Default [↑↓]选择 [← →]修改 Move the pointer to (Reset) in the main menu, press [HOME] to get into the reset page, as shown below. RESTORE DEFAULT ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝... -
Page 13: Copyright Statement
Video Conferencing Soundbar with AEC and Auto-Framing 2) Flickering or intermittent issues with no camera image Solution: a. Check whether the USB cable of the device is properly connected b. Check whether the USB cable is performing as intended, try another USB cable to see if that solves the issue. 5.
