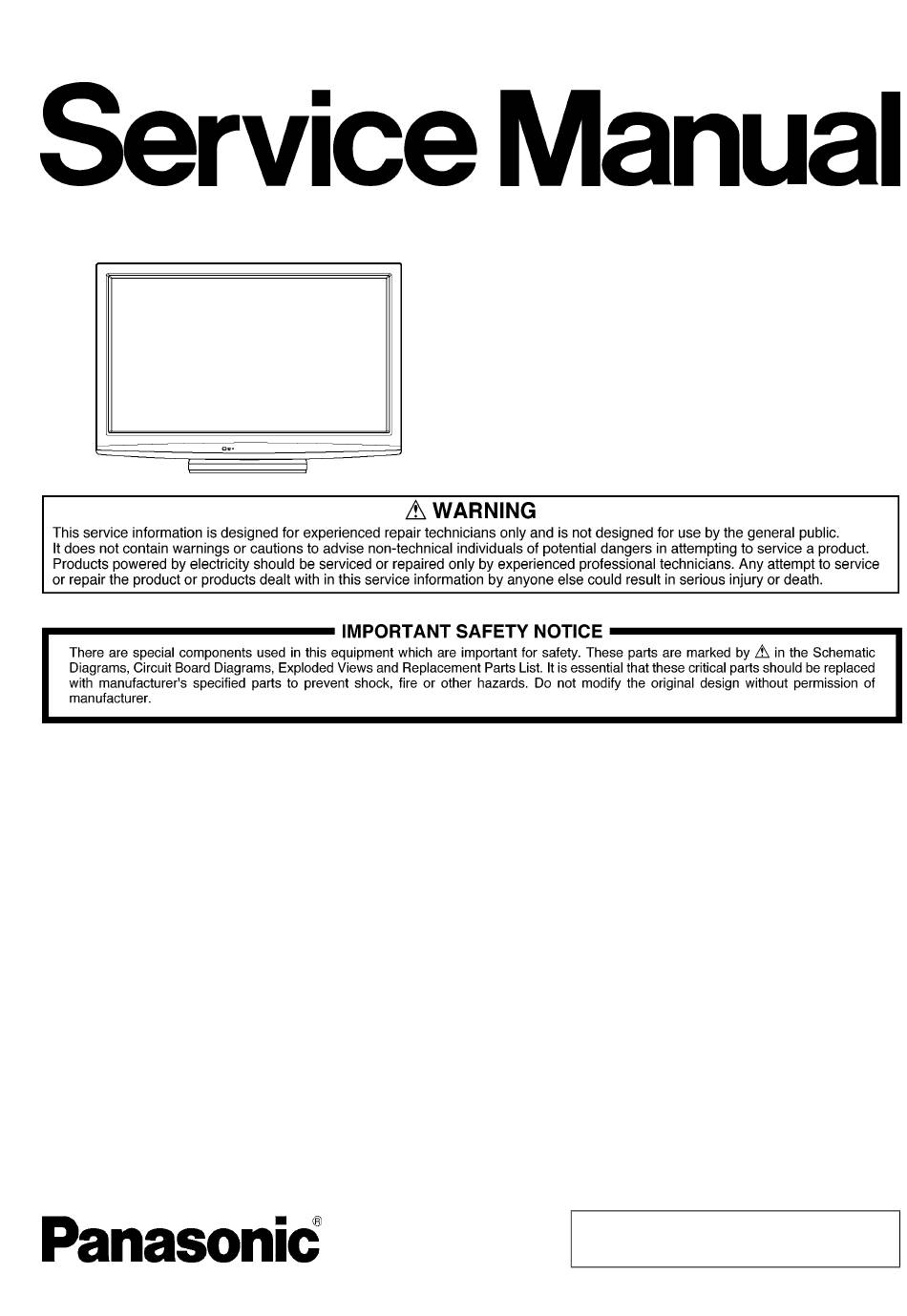

  • Page 1 ORDER NO.PSG1004065CE Plasma Television TH-P46X20K Model No. TH-P46X20M TH-P46X20P TH-P46X20V GPH13DA Chassis © Panasonic Corporation 2010. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE PAGE 1 Safety Precautions -----------------------------------------------3 11.1. Schematic Diagram Note ------------------------------ 41 1.1. General Guidelines ----------------------------------------3 11.2. P-Board (1/4) Schematic Diagram ------------------ 42 1.2. Touch-Current Check--------------------------------------3 11.3. P-Board (2/4) Schematic Diagram ------------------ 43 2 Warning --------------------------------------------------------------4 11.4. P-Board (3/4) Schematic Diagram ------------------ 44 2.1.

  • Page 3: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units.

  • Page 4: Warning

    2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.

  • Page 5: About Lead Free Solder (Pbf)

    2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 6: Service Navigation

    3 Service Navigation 3.1. PCB Layout Board Name Function Board Name Function Power Supply Remote receiver, Power LED, C.A.T.S. sensor Non serviceable. Data Driver (Lower Right) P-Board should be exchanged for service. Data Driver (Lower Left) DC-DC Converter, Tuner Scan Drive Speaker out, AV Terminal, HDMI in, SD Card Sustain Drive Digital Signal Processor, Nile-TCON...

  • Page 7: Applicable Signals

    3.2. Applicable signals COMPONENT (Y, P ), HDMI * Mark: Applicable input signal Signal name COMPONENT HDMI 525 (480) / 60i 525 (480) / 60p 625 (576) / 50i 625 (576) / 50p 750 (720) / 60p 750 (720) / 50p 1,125 (1,080) / 60i 1,125 (1,080) / 50i 1,125 (1,080) / 60p...

  • Page 8: Specifications

    4 Specifications Power Source AC 220-240 V, 50 / 60 Hz (K/M/V) AC 110-240 V, 50 / 60 Hz (P) Power Consumption Average use : 250 W Standby condition : 0.45 W Display panel Aspect Ratio 16:9 Visible screen size 117 cm (diagonal) 1,019 mm (W) ×...
  • Page 9 Card slot Dimensions (W × H × D) 1,132 mm × 767 mm × 401 mm (With Pedestal) TH-P46X20K / TH-P46X20V 1,132 mm × 722 mm × 93 mm (TV only) 1,132 mm × 771 mm × 357 mm (With Pedestal) TH-P46X20M / TH-P46X20P 1,132 mm ×...

  • Page 10: Service Mode

    5 Service Mode 5.1. How to enter into Service Mode While pressing [VOLUME ( - )] button of the main unit, press [RECALL] button of the remote control three times within 2 seconds. 5.1.1. Key command [1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction...
  • Page 11 5.1.2. Contents of adjustment mode • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. 5.1.3. How to exit Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.

  • Page 12: Option - Mirror

    5.2. Option - Mirror Picture can be reversed left and right or up and down. 00 : Default (Normal picture is displayed) 01 : Picture is reversed left and right. 02 : Picture is reversed up and down. Hint : If the defective symptom (e.g. Vertical bar or Horizontal bar) is moved by selection of this mirror, the possible cause is in A-board.

  • Page 13: Hotel Mode

    5.4. Hotel mode 1. Purpose Restrict a function for hotels. item Function 2. Access command to the Hotel mode setup menu Hotel Mode Select hotel mode ON/OFF In order to display the Hotel mode setup menu, please Initial INPUT Select input signal modes. enter the following command (within 2 second).

  • Page 14: Data Copy By Sd Card

    5.5. Data Copy by SD Card 5.5.1. Purpose (a) Board replacement (Copy the data when exchanging A-board): When exchanging A-board, the data in original A-board can be copied to SD card and then copy to new A-board. (b) Hotel (Copy the data when installing a number of units in hotel or any facility): When installing a number of units in hotel or any facility, the data in master TV can be copied to SD card and then copy to other TVs.
  • Page 15 5.5.3. Data copy from TV set to SD Card 1. Turn on the TV set. 2. Insert SD card with a startup file (pwd file) to SD slot. On-screen Display will be appeared according to the startup file automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2770 (b) For Hotel : 4850 Data will be copied from TV set to SD card.
  • Page 16 5.5.4. Data copy from to SD Card to TV set 1. Turn on the TV set. 2. Insert SD card with Data to SD slot. On-screen Display will be appeared according to the Data folder automatically. 3. Input a following password for (a) or (b) by using remote control. (a) For Board replacement : 2771 (b) For Hotel : 4851 Data will be copied from SD card to TV set.

  • Page 17: Troubleshooting Guide

    6 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 6.1. Check of the IIC bus lines 6.1.1. How to access Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 18: Power Led Blinking Timing Chart

    6.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.

  • Page 19: No Power

    6.3. No Power First check point There are following 3 states of No Power indication by power LED. 1. No lit 2. Green is lit then turns red blinking a few seconds later. (See 6.2.) 3. Only red is lit.

  • Page 20: No Picture

    6.4. No Picture...

  • Page 21: Local Screen Failure

    6.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 22: Disassembly And Assembly Instructions

    7 Disassembly and Assembly Instructions 7.1. Remove the Rear cover 7.4. Remove Side terminal cover and the Side shield metal 1. See PCB Layout (Section 3) 7.2. Remove the AC inlet , ×1 , ×1 1. Remove the screws (×2 2.

  • Page 23: Remove The Tuner Unit

    7.5. Remove the Tuner unit 7.7. Remove the Speakers 1. Remove the Side terminal cover and the Side shield 1. Unlock the cable clampers to free the cable. metal. (See section 7.4.) 2. Disconnect the Speaker terminal. 2. Unlock the cable clampers to free the cable. 3.

  • Page 24: Remove The Ss-Board

    7.9. Remove the SS-Board 7.10. Remove the Hanger metals and the Stand brackets 1. Remove the Tuner unit. (See section 7.5.) 2. Unlock the cable clampers to free the cable. 1. Remove the Plasma panel section from the servicing 3. Disconnect the connectors (SS3, SS11 and SS23). stand and lay on a flat surface such as a table (covered 4.

  • Page 25: Remove The C1-Board

    7.11. Remove the C1-Board 7.13. Remove the Plasma panel sec- tion from the Cabinet assy 1. Remove the Hanger metal R and the Stand bracket R. (See section 7.10.) (glass) 2. Remove the flexible cable holder fastening screws (×8 1. Remove the plasma panel fastening screws (×3 ) and 3.

  • Page 26: Remove The Glass Holders

    7.14. Remove the Glass holders 7.16. Replace the plasma panel 1. Remove the Cabinet assy. (See section 7.13.) Caution: A new plasma panel itself without Hanger metals is 2. Remove the screws (×4 fragile. 3. Remove the Glass holder side (L, R). To avoid the damage to new plasma panel, carry a new 4.

  • Page 27: Measurements And Adjustments

    8 Measurements and Adjustments 8.1. Adjustment 8.1.1. Vsus selection Caution: When Plasma panel or A-board is replaced, Vsus should be set to LOW or HIGH. Procedure 1. Go into main item [VSUS] in Service Mode. LOW or HIGH will be displayed. 2.
  • Page 28 8.1.2. Sub-Contrast adjustment Name of measuring instrument Connection Remarks RF generator Base Band signal generator HD signal generator Steps Remarks Adjustment of TV (RF system) Note: Sub-contrast adjustment is unadjusted 1. Receive a RF PAL 100% Full White or Split Colour bar shown as below. for AV/ HD input.
  • Page 29 Steps Remarks Another procedure Adjustment of AV system 1. PAL 100% Full White or Split Colour bar receive AV1(or AV2), shown as below. 2. Goes into service mode. 3. Push [ 1 ] or [ 2 ] key, and goes into adjustment mode for [ Contrast ]. Adjustment 1.
  • Page 30 8.1.3. White balance adjustment Name of measuring instrument Connection Remarks W/ B pattern Panel surface Color analyzer (Minolta CA-100 or equivalent) Steps Remarks • Make sure the front panel to be used on the final set is fitted. Picture menu : Dynamic •...

  • Page 31: Block Diagram

    9 Block Diagram 9.1. Main Block Diagram DIGITAL SIGNAL PROCESSOR TMDS DATA HDMI1 TMDS DATA HDMI I/F HDMI3 TMDS DATA RECEIVER SD CARD DATA SD CARD SD CARD DATA HDMI2 SLOT Nile-TCON SIF I/F SIF I/F DDR2 TUNER EEPROM V/Y/PB/PR EEPROM V/Y/C STB3.3V...

  • Page 32: Block (1/4) Diagram

    9.2. Block (1/4) Diagram SPEAKER_L SPEAKER_R JK4502 JK8502 JK4500 JK4501 HDMI IN 3 TU8301 SD CARD ANT IN HDMI IN 1 HDMI IN 2 (SIDE) DIGITAL SIGNAL PROCESSOR TUNER IIC0 3.3V IC5613 SUB5V IC2106 AUDIO AMP SUB5V SUB3.3V SUB3.3V 3.3V SOUND15V IC5607 3.3V...

  • Page 33: Block (2/4) Diagram

    9.3. Block (2/4) Diagram DIGITAL SIGNAL PROCESSOR IC9300 VIDEO DATA PLASMA AI VIDEO DATA LVDS DATA CPG with SS H/V Sync Control VIDEO DATA Sub Filed Processor P+3.3V IC9304 P3V_ P+3.3V ADDR/DATA FLASH IIC2 FLASH I/F MEMORY CONTROL DATA P_S0 P_S0 P_S1 DISCHARGE CONTROL...

  • Page 34: Block (3/4) Diagram

    9.4. Block (3/4) Diagram POWER SUPPLY COLD COLD IC902 5A 250V CONTROL D108 Q300-Q303 PR101 D109 T301 IC901 T100 RESONANCE IC903 D701 T900 ERROR DET PHOTO COUPLER DRIVE Q901 Q103 Q104 CONTROL DISCHARGE DRIVE CONTROL D702 4A 250V PR900 Vsus D703 Vsus D903...

  • Page 35: Block (4/4) Diagram

    9.5. Block (4/4) Diagram SCAN DRIVE TPVSUS TP59,TP60 TP61,TP62 Vsus F16V IC16661 Q16661 IC16771 SUSTAIN DRIVE D16618 Q16607 Vad+5V PC16603 COMPARATOR CERS TPVSUS PHOTO COUPLER D16316 PC16461 Vsus PC16684 IPD CIRCUIT CPH1 PHOTO Q16672 P+15V PHOTO COUPLER CRC1 COUPLER Q16601 IC16131 Q16001 IC16304...

  • Page 37: Wiring Connection Diagram

    10 Wiring Connection Diagram 10.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull. 10.2. Wiring (1)

  • Page 38: Wiring (2)

    10.3. Wiring (2) 10.4. Wiring (3)

  • Page 39: Wiring (4)

    10.5. Wiring (4)

  • Page 41: Schematic Diagram

    11 Schematic Diagram 11.1. Schematic Diagram Note...

  • Page 42: P-Board (1/4) Schematic Diagram

    11.2. P-Board (1/4) Schematic Diagram P-BOARD LSEP1287LTHB (1/4) COLD COLD AC CORD C0DBZYY00361 COLD P-BOARD (3/4)

  • Page 43: P-Board (2/4) Schematic Diagram

    11.3. P-Board (2/4) Schematic Diagram P-BOARD LSEP1287LTHB (2/4) C2-BOARD (C25) COLD C0DBZYY00360 CONTROL B3PBA0000459 PHOTO COUPLER C0DBZMC00006 ERROR DET C0DBZMC00006 ERROR DET SN-BOARD (SN2) SS-BOARD (SS11) LSSK0087 MULTI CONTROL C0DBZMC00006 Vsus ERROR DET COLD P-BOARD BL BM (4/4)

  • Page 44: P-Board (3/4) Schematic Diagram

    11.4. P-Board (3/4) Schematic Diagram P-BOARD (1/4) COLD P-BOARD LSEP1287LTHB (3/4) COLD MIP2K20MSSCF CONTROL C0DBZMC00006 AC DET B3PBA0000459 PHOTO COUPLER C0DBZMC00006 COLD ERROR DET B3PBA0000459 PHOTO COUPLER COLD B3PBA0000459 PHOTO COUPLER PHOTO COUPLER *********...

  • Page 45: P-Board (4/4) Schematic Diagram

    11.5. P-Board (4/4) Schematic Diagram COLD P-BOARD (2/4) A-BOARD MIP418AMDS (A6) CONTROL B3PBA0000459 PHOTO COUPLER C0DBZMC00006 F+15V ERROR DET COLD A-BOARD (A7) C2ABDB000129 POWER MICOM P-BOARD LSEP1287LTHB (4/4) C0EBH0000447 RESET...

  • Page 46: A-Board (1/13) Schematic Diagram

    11.6. A-Board (1/13) Schematic Diagram A-BOARD (1/13) IC8001 C1AB00003250 Nile-TCON DVSS/AVSS GPIO/IRQ_MCU STB3.3V SUB1.2V IC8001 IC8001 AC19 STB1.2V DDR_VCC_POST IC8001 IC8001 R8032 C8012 IC8001 IC8001 AD18 IC8001 VDD12MCU IC8001 VDDC IC8001 AC10 VDD18DDR IC8001 IC8001 AE19 0.1u L8011 C8033 C8064 C8030 IC8001 VDDC...

  • Page 47: A-Board (2/13) Schematic Diagram

    11.7. A-Board (2/13) Schematic Diagram A-BOARD (2/13) IC8001 IC8002 C1AB00003250 C3ABSY000043 Nile-TCON DDR2 #0 84FBGA DDR2 800Mz x 16bit DDR2IF SUB1.8V DDR_VCC_POST L8000 J0JHC0000045 CH0DM0 DDRDM0 AD10 IC8001 IC8002 CH0DM1 DDRDM1 AD13 IC8001 IC8002 C8097 IC8002 CH0DQS0_N IC8002 VDDQ DDRDQSN0 IC8001 IC8002 UDQS...

  • Page 48: A-Board (3/13) Schematic Diagram

    11.8. A-Board (3/13) Schematic Diagram SUB3.3V_SD SD/IC_CARD R8539 SD_CARD EXB2HV680JV AE_SDDAT0 A-BOARD (3/13) SDDAT0 AE_SDCD SDCD AE_SDDAT1 R8543 SDDAT1 EXB2HV103JV AE_SDDAT2 TO 1/13 SDDAT2 AE_SDDAT3 SDDAT3 AE_SDCLK SDCLK AE_SDCMD SDCMD AE_SDWP SDWP C8520 0.1u R8530 L8501 EXB2HV330JV J0JHC0000045 TP8509 SUB3.3V C8503 0.1u R8538...

  • Page 49: A-Board (4/13) Schematic Diagram

    11.9. A-Board (4/13) Schematic Diagram A-BOARD (4/13) STB5V Q5602 TPS0S B1ADCE000022 R5607 1.5k AG_SOS TO 7/13 C5522 SUB5V R5608 2.2k SUB3.3V R5605 0.1u TP5603 D5670 B0JCCE000008 F15V R5606 R5610 TP5607 SUB6V VOUT *C5701 *C5700 SUB1.2V 6.3V 6.3V C5521 4.7u 4.7u ON/OFF F15V R5695...

  • Page 50: A-Board (5/13) Schematic Diagram

    11.10. A-Board (5/13) Schematic Diagram A-BOARD (5/13) PC MODEL SUB5V FL2102 R2117 C2107 J0HABB000004 PC_R_TERMINAL VR3IN *L2135 R2114 J0JHC0000075 VIDEO OUT 1 PS *C2299 *C2300 *C2301 FL2104 R2118 *R2376 J0HABB000004 C2108 100u 100u 0.1u 2 OUT PC_B_TERMINAL VB3IN TO 1/13 TO 7/13 U_NONUSE/A_VOUT__TERMINAL R2116...

  • Page 51: A-Board (6/13) Schematic Diagram

    11.11. A-Board (6/13) Schematic Diagram A-BOARD (6/13) R2393 C2103 R2307 TO 9/13 RF_V VCVS1IN TO 1/13 U_TU_V/A_TU_V US AV1_S *L2122 C2304 J0JCC0000287 R2304 AS AV2_S VY1IN U_AV1_S_Y/A_AV2_S_Y *D2129 R2308 EZJP0V080GA *L2124 C2303 J0JCC0000287 R2305 0.1u VC1IN TO 1/13 U_AV1_S_C/A_AV2_S_C *D2130 R2306 EZJP0V080GA C2311...

  • Page 52: A-Board (7/13) Schematic Diagram

    11.12. A-Board (7/13) Schematic Diagram A-BOARD (7/13) STB3.3V SUB1.2V STB3.3V SUB1.8V STB3.3V SUB5V ANALOG-ASIC R4809 R4821 R4830 R4748 R4831 STB3.3V STB1.2V STB5V 100k 100k IC4700 U_AV1_V/A_AV2_V__TERMINAL R4753 Q4704 C1ZBZ0004161 Q4703 Q4702 R4810 U_AV1_L/A_AV2_L__TERMINAL TO 6/13 DSC2001S0L DSC2001S0L DSC2001S0L A_AV2 R4752 SC_OHZ C4779 U_AV1_R/A_AV2_R__TERMINAL...

  • Page 53: A-Board (8/13) Schematic Diagram

    11.13. A-Board (8/13) Schematic Diagram A-BOARD (8/13) *R4519 *R4515 R4520 HPD1 HPLUG_A HPLUG_B HPLUG_C R4565 *R4566 *R4504 *R4567 *R4506 DDC5V_A DDC5V_B DDC5V_C R4507 C4541 *C4540 *C4539 R4525 *R4526 R4505 4.7k 4.7k *R4502 *R4527 *R4503 TO 1/13 TO 1/13 4.7k L4511 *L4504 *L4506 TO 1/13...

  • Page 54: A-Board (9/13) Schematic Diagram

    11.14. A-Board (9/13) Schematic Diagram A-BOARD (9/13) SUB5V R8335 R8307 AG_RF_AFT RF_AFT TO 1/13 SUB5V C8370 C8313 0.1u R8330 R8337 2.2k C8315 L8306 0.1u TP8302 J0JHC0000045 R8302 1000p RF_V TO 6/13 RF_V SIFIN TO 1/13 C8312 R8339 R8341 R8332 R8336 180p TU_SIF Q8306...

  • Page 55: A-Board (10/13) And K-Board Schematic Diagram

    11.15. A-Board (10/13) and K-Board Schematic Diagram SUB5V STB5V C4768 C4770 C4728 C4730 C4732 C4734 C4751 C4753 C4740 1000p 1000p 0.1u 1000p 1000p 1000p 0.1u 0.1u 0.1u A-BOARD (10/13) C4750 C4767 C4769 C4727 C4729 C4731 C4733 C4735 C4741 C4752 C4754 1000p 0.1u 1000p...

  • Page 56: A-Board (11/13) Schematic Diagram

    11.16. A-Board (11/13) Schematic Diagram TO 1/13 A-BOARD (11/13) SUB3.3V R9999 P15V 4.7k TCON_GDATA1 D9000 B0JCCE000008 R9984 R9880 4.7k PANEL_TEST_ON/VDD25_EN Q9800 R9884 B1ABCF000231 R9881 P15V R9985 4.7k P_ON/OFF TO 1/13 PANEL_AGW/AVDD_ENB Q9802 OHZ1 B1ABCF000231 R9958 R9882 STB_D3.3V 4.7k D9808 C9812 C9813 IC9801 INVERTER_SOS...

  • Page 57: A-Board (12/13) Schematic Diagram

    11.17. A-Board (12/13) Schematic Diagram A-BOARD (12/13) IC9300 C1AB00003259 P_S0 IC9300 DCCOP40 P_S1 P3.3V IC9300 DCCOP41 R9323 IC9300 CKMO TP9300 IC9300 DCCIPORT0 IC9300 SFLATCHI IC9300 P3.3V TP9111 IC9300 SFRST C9301 TP9301 *IC9304 TP9112 IC9300 SFVRST IC9300 SPIHZ C9300 TVRR579 IC9300 FPCLK 0.1u R9321...

  • Page 58: A-Board (13/13) Schematic Diagram

    11.18. A-Board (13/13) Schematic Diagram A-BOARD (13/13) IC9300 C1AB00003259 P3.3V P1.2V P2.5V L9302 J0JHC0000117 IC9300 LRX_V12C_2 VJ9303 IC9300 IC9300 AK20 IC9300 IC9300 IC9300 AA26 SCS_ANA_40 IC9300 SCS_ANA_7 IC9300 LRX_V12C_3 IC9300 VDDC IC9300 AF13 SCS_VDD18 IC9300 VDD33 IC9300 AA28 MLVDS_VDD C1AB00003259 IC9300 IC9300 AK28...

  • Page 59: C1-Board Schematic Diagram

    11.19. C1-Board Schematic Diagram C1-BOARD TXNC11LPUM A-BOARD TERM (A33) C1_P3.3V R17130 C1_P3.3V C17104 C17109 100V 0.33u C2-BOARD (C20) C1_P3.3V R17128 3.3V_DET 3.3V_DET PANEL DATA P3.3V DRIVER P3.3V C1_P3.3V R17126 R17127 EXB38V681JV C17105 C17110 R17124 AB_LED1 100V 0.33u R17131 AA_LED1 R17125 EXB38V470JV AB_ODED1 AA_ODED1...

  • Page 60: C2-Board Schematic Diagram

    11.20. C2-Board Schematic Diagram ZA17202 K4CD01000013 C2-BOARD TXNC21LPUM ZA17204 K4CD01000013 ZA17203 K4CD01000013 ZA17201 A-BOARD K4CD01000013 TERM (A34) SS_5V C2_P3.3V R17219 C2_P3.3V 3.3V_DET P3.3V P3.3V SS_5V C17214 0.1u R17217 SS_5V C2_P3.3V EXB38V681JV C17210 AA_UEH R17232 0.1u AA_CLRD2 AB_UEH AA_UML AA_PCD4 AB_CLRD2 P-BOARD SS-BOARD AB_UML...

  • Page 61: Sn-Board (1/9) Schematic Diagram

    11.21. SN-Board (1/9) Schematic Diagram SN-BOARD TXNSN1LPUM (1/9) TP105 TP106 TP107 TP108 TP109 TP110 TP111 TP112 TP113 TP114 TP115 TP116 TP117 TP118 P-BOARD (P2) TPVSUS VSUS Vsus C16412 VSCN R16774 250V 1.5u D16871 TP125 DZ2J330M0L R16751 R16752 150k 4.7k D16821 SOS7_SC2 DZ2J330M0L D16820...

  • Page 62: Sn-Board (2/9) Schematic Diagram

    11.22. SN-Board (2/9) Schematic Diagram IC16771 SN-BOARD TXNSN1LPUM (2/9) C0CBADC00072 Vad+5V 16V_F VSUS Vad+5V VOUT *D16401 C16771 C16796 DA3DF50ACSLW R16534 470u D16534 D16536 B0ECHR000001 B0ECHR000001 R16503 Q16501 *Q16401 B1HFPFA00001 B1JAEQ000010 R16504 R16401 C16401 630V C16503 C16502 C16504 5600p R16510 PC16461 4.7u 470u 4.7u...

  • Page 63: Sn-Board (3/9) Schematic Diagram

    11.23. SN-Board (3/9) Schematic Diagram SN-BOARD TXNSN1LPUM (3/9) PC16603 R16604 Q16607 B3PBA0000223 AA_CERS B1CBGD000001 VSUS C16602 R16765 R16633 C16603 C16604 630V 630V R16609 D16618 1000p 1000p B0ECKP000055 VSUS *C16414 220V D16497 300u B0ECKP000055 R16601 PC16684 R16631 B3PBA0000496 D16765 Q16606 B0ECKP000055 D16604 AA_CPH1 B0ADCJ000100...

  • Page 64: Sn-Board (4/9) Schematic Diagram

    11.24. SN-Board (4/9) Schematic Diagram SN-BOARD TXNSN1LPUM (4/9) T16471 G4DYA0000201 Q16931 C16794 10 P1 B1ABCN000007 16V_F 8 PT Q16885 R16932 TP57 TP58 R16930 B1CFNG000001 R16931 D16728 VSUS 6 P2 B0ECKP000055 Q16930 DSC2001Q0L R16933 R16827 Q16932 2.2k C16795 DSC2001Q0L R16936 470u C16793 2.2k 220u...

  • Page 65: Sn-Board (5/9) Schematic Diagram

    11.25. SN-Board (5/9) Schematic Diagram SN-BOARD TXNSN1LPUM (5/9) SN11 SN12 PANEL SCAN PANEL SCAN ELECTRODE ELECTRODE AB_711 AB_730 AC_615 AC_634 AB_710 AB_731 AC_614 AC_635 AB_709 AB_732 AC_613 AC_636 AB_708 AB_733 AC_612 AC_637 OUT61 OUT36 OUT61 OUT36 OUT55 OUT42 OUT55 OUT42 AB_707 AB_734 AC_611...

  • Page 66: Sn-Board (6/9) Schematic Diagram

    11.26. SN-Board (6/9) Schematic Diagram SN-BOARD TXNSN1LPUM (6/9) SN14 SN13 PANEL SCAN PANEL SCAN ELECTRODE ELECTRODE AD_519 AD_538 AE_423 AE_442 AD_518 AD_539 AE_422 AE_443 AD_517 AD_540 AE_421 AE_444 AD_516 AD_541 AE_420 AE_445 OUT61 OUT36 OUT61 OUT36 OUT55 OUT42 OUT55 OUT42 AD_515 AD_542 AE_419...

  • Page 67: Sn-Board (7/9) Schematic Diagram

    11.27. SN-Board (7/9) Schematic Diagram SN-BOARD TXNSN1LPUM (7/9) SN16 SN15 PANEL SCAN PANEL SCAN ELECTRODE ELECTRODE AB_327 AB_346 AC_231 AC_250 AB_326 AB_347 AC_230 AC_251 AB_325 AB_348 AC_229 AC_252 AB_324 AB_349 OUT61 OUT36 AC_228 AC_253 OUT55 OUT42 AB_323 AB_350 OUT61 OUT36 OUT55 OUT42 OUT62...

  • Page 68: Sn-Board (8/9) Schematic Diagram

    11.28. SN-Board (8/9) Schematic Diagram SN-BOARD TXNSN1LPUM (8/9) SN17 SN18 PANEL SCAN PANEL SCAN ELECTRODE ELECTRODE AE_39 AE_58 AD_135 AD_154 AE_38 AE_59 AD_134 AD_155 AE_37 AE_60 AD_133 AD_156 AE_36 AE_61 AD_132 AD_157 OUT61 OUT36 OUT55 OUT42 OUT61 OUT36 AE_35 AE_62 OUT55 OUT42 AD_131...

  • Page 69: Sn-Board (9/9) Schematic Diagram

    11.29. SN-Board (9/9) Schematic Diagram SN-BOARD TXNSN1LPUM (9/9) R14960 EXB38V470JV AA_CLKU1 AA_CLKU2 AA_LATU1 AA_LATU2 AB_SIU R14958 AA_OC1U1 AA_OC1U2 AA_OC2U1 IC14961 AA_OC2U2 PC14951 C0JBAB000916 B3PBA0000457 R14956 R14961 EXB38V470JV INVERTER AA_OC1 5V_F AA_CLK C14987 R14962 0.1u C14992 R14977 EXB38V222JV PC14952 B3PBA0000457 R14963 AA_SIU 5V_F R14975...

  • Page 70: Ss-Board (1/2) Schematic Diagram

    11.30. SS-Board (1/2) Schematic Diagram SS-BOARD TXNSS1LPUM (1/2) SN-BOARD (SN3) P-BOARD (P11) SS11 VSUS C16018 TPVSUS *C16011 220V 250V 1.5u 300u TP61 TP60 Q16001 B1JBEN000002 C16001 630V R16001 1000p C16105 C16106 TP63 TP62 630V 630V 220p 220p TP68 TP69 TP70 TP71 TP65 TP64...

  • Page 71: Ss-Board (2/2) Schematic Diagram

    11.31. SS-Board (2/2) Schematic Diagram SS-BOARD TXNSS1LPUM (2/2) ZA001 K4CD01000011 *SS52 FPC protector D16285 TP54 B0ADEJ000035 R16289 C16286 R16281 330k TP36 0.1u R16284 Q16280 220k AA_SOS8 TP56 B1ABCF000231 D16280 D16282 DZ2J068M0L B0ACCJ000048 R16290 R16282 330k C16287 PANEL R16285 R16283 0.1u EXB38V623JV SUSTAIN ELECTRODE...

  • Page 72: Printed Circuit Board

    12 Printed Circuit Board 12.1. P-Board P-BOARD (FOIL SIDE) LSEP1287LTHB...
  • Page 73 Parts Location Parts Location P-BOARD (FOIL SIDE) P-BOARD (COMPONENT SIDE) TRANSISTOR VOLUME TRANSISTOR VOLUME IC100 Q100 R141 IC201 Q103 R141 IC200 Q101 R923 IC400 Q104 R923 IC201 Q103 VR251 Q302 VR251 IC202 Q104 Q303 TEST POINT TEST POINT IC400 Q200 Q901 IC401 Q300...
  • Page 74 P-BOARD (COMPONENT SIDE) LSEP1287LTHB...

  • Page 75: K-Board

    12.2. K-Board K-BOARD (FOIL SIDE) TXN/K1LLUM T P 5 0 8 T P 5 0 1 TP2502 TP2501 T P 5 0 2 TP2508 TP2506 TP2504 T P 5 0 4 T P 5 0 3 RM2510 R M 5 1 0 T P 5 0 6 TP2503 TP2505...

  • Page 76: A-Board

    12.3. A-Board A-BOARD (FOIL SIDE) TZTNP01LPUM(K/M/V) TZTNP01LTUP(P) TP9163 TP9176 TP9082 TP9084 TP9086 TP9088 TP9090 TP9092 TP9094 TP9096 TP9136 TP9142 TP9104 TP9193 TP9194 TP9081 TP9083 TP9085 TP9087 TP9089 TP9091 TP9093 TP9095 R9402 TP9158 TP9160 TP9164 TP9170 TP9173 TP9103 TP9146 TP9152 TD9360 TD9366 TP9195 TP9197...
  • Page 77 A-BOARD (COMPONENT SIDE) TZTNP01LPUM(K/M/V) TZTNP01LTUP(P) TP4742 VJ9902 R9126 C4763 C4747 A 1 1 L9802 C9102 I C 2 1 0 8 R2332 FL9900 C4721 C2251 C9103 TD9102 C2260 C2261 C2262 C2263 D9805 R4817 C4718 R4816 R9019 C9069 L2131 C9834 C2243 C2300 C9900 R9906...

  • Page 78: C1-Board

    12.4. C1-Board C1-BOARD (FOIL SIDE) TXNC11LPUM TNPA5077 1 C1 P b F S E E R E V E R S E F O R O R D E R N O . 1 2 3 C1-BOARD (COMPONENT SIDE) TXNC11LPUM R 1 2 4 I C 1 0 1 R 1 3 1...

  • Page 79: C2-Board

    12.5. C2-Board C2-BOARD (FOIL SIDE) TXNC21LPUM P b F TNPA5078 1 C2 1 2 3 S E E R E V E R S E F O R O R D E R N O . C2-BOARD (COMPONENT SIDE) TXNC21LPUM R 2 0 4 R 2 1 0 I C 2 0 2...

  • Page 80: Sn-Board

    12.6. SN-Board SN-BOARD (FOIL SIDE) TXNSN1LPUM S N M M 1 CRNo.14 S N M M 2 T P 1 2 2 T P 7 9 L 8 5 1 T P 1 2 1 Q 6 2 1 Q 4 2 1 D 4 2 1 Q 6 0 1 D 6 4 2...
  • Page 81 SN-BOARD (COMPONENT SIDE) TXNSN1LPUM A 4 8 A 4 8 A 4 8 A 4 8 A 4 8 A 4 8 A 4 8 A 4 8 A 4 8 A 4 8 A 4 8 A 4 8 A 4 8 A 4 8 A 4 8...

  • Page 82: Ss-Board

    12.7. SS-Board SS-BOARD (FOIL SIDE) TXNSS1LPUM C 2 4 1 C 1 9 3 L 0 1 4 L 0 1 3 L 0 1 2 L 3 0 3 L 0 1 1 C R N o . 1 6 L 1 0 3 T P 6 6 T N P A 5 0 7 2...
  • Page 83 SS-BOARD (COMPONENT SIDE) TXNSS1LPUM C 2 4 4 R 1 3 1 R 1 3 5 C 1 0 6 C 1 0 5 R 1 3 6 C 2 4 2 R 1 9 1 C 1 0 4 D 1 3 1 C 1 0 3 C 3 2 8...

  • Page 85: Exploded View And Replacement Parts List

    13 Exploded View and Replacement Parts List 13.1. Exploded View and Mechanical Replacement Parts List 13.1.1. Exploded View 1...
  • Page 86 13.1.2. Exploded View 2...
  • Page 87 13.1.3. Packing 1...
  • Page 88 13.1.4. Packing 2...
  • Page 89 13.1.5. Mechanical Replacement Parts List...
  • Page 90 TBL3EX0010 PEDESTAL STAND 1 PAVCSG K/V TBLA3679 STAND POLE R TBLA3680 STAND POLE L TBLX0135 PEDESTAL STAND 1 PAVCSG M/P TBM4GA005 PANASONIC BADGE 1 PAVCSG TBX3EA00401 POWER BUTTON THEJ0339 SCREW(BC-TUNER:1 SIDE_COVER:4) THEL052Z SCREW (BC TOP:4) THEL080N PF SCREW(5x30) THTD020J SCREW(A-PRINT:4)
  • Page 91 Ref. Safety Part No. Part Name & Description Q'ty Remarks TPD3EA0027 BOTTOM CUSHION 1 PAVCSG TPE3EB001 BAG (PEDESTAL STAND) 1 PAVCSG K/V TPE3EP002 BAG FOR AC CORD 1 PAVCSG TPE3EP003 BAG (INSTRUCTION BOOK) 1 PAVCSG TPEB340 BAG (STAND ACCESSORY) TPEB424 BAG (PEDESTAL STAND) 1 PAVCSG M/P TPEH419...

  • Page 92: Electrical Replacement Parts List

    13.2. Electrical Replacement Parts List 13.2.1. Replacement Parts List Notes...
  • Page 93 13.2.2. Electrical Replacement Parts List Safety Ref. No. Part No. Part Name & Pcs Remarks Description Safety Ref. No. Part No. Part Name & Pcs Remarks C2205 F1J1A106A087 C 0.010UF, K, Description C2206 F1H0J475A041 C 4.7UF, K, 16V TZTNP01LPUM CIRCUIT BOARD A (RTL)PA C2207 F1H1A225A051 C 22UF, 50V...
  • Page 94 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C2277 F1H1C105A145 C 0.01UF, K, 16V C4750 F1G1C104A116 C 0.10UF, K, 16V C2279 F1G1C104A116 C 0.10UF, K, 16V C4751 F1G1C104A116 C 0.10UF, K, 16V C2281...
  • Page 95 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C8003 F1G1C104A116 C 0.10UF, K, 16V C8075 F1G1C104A116 C 0.10UF, K, 16V C8004 F1G1C104A116 C 0.10UF, K, 16V C8078 F1G1A105A047 C 1UF, K, 10V C8005...
  • Page 96 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C8519 F1G1A105A047 C 1UF, K, 10V C9372 F1J1A106A087 C 0.010UF, K, C8520 F1G1C104A116 C 0.10UF, K, 16V C9373 F1J1A106A087 C 0.010UF, K, C9033 F1G1C104A116 C 0.10UF, K, 16V...
  • Page 97 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C14984 F1L2E224A028 E 2200UF, 25V C16565 F1H1H103A970 C 0.001UF, K, C14987 F1H1H104A970 C 0.1UF, K, 50V C16566 F1H1H103A970 C 0.001UF, K, C14988 F1H1H104A970 C 0.1UF, K, 50V C14989...
  • Page 98 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C17218 F1L2A334A031 E 3300UF, 100V D16317 B0ECKP000055 DIODE D16401 DA3DF50ACSLW ZENER DIODE K1MY55B00002 55P CONNECTOR D16407 B0JCME000093 DIODE K1MY55B00002 55P CONNECTOR D16411 B0ACCJ000048 DIODE...
  • Page 99 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description FL4704 J0HAAB000036 LC FILTER JK2108 K1FY315A0008 CONNECTOR PAVCSG FL4706 J0HAAB000036 LC FILTER JK2111 K2HA917A0001 JACK PAVCSG JK4500 K1FY119D0011 CONNECTOR PAVCSG IC2106 C1AB00003069 IC...
  • Page 100 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description L9300 J0JHC0000117 CHIP INDUCTOR Q8309 DSC2001S0L TRANSISTOR L9301 J0JHC0000117 CHIP INDUCTOR Q8310 DSC2001S0L TRANSISTOR L9302 J0JHC0000117 CHIP INDUCTOR Q8311 DSA2001S0L TRANSISTOR...
  • Page 101 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R2117 D0GA470JA015 M 47 OHM, R2288 D0GA153JA015 M 15K OHM J J,0.063W 0.063W R2118 D0GA470JA015 M 47 OHM, R2289 D0GAR00Z0001 C 0 OHM, 0.063W J,0.063W...
  • Page 102 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R2512 D0GB224JA041 M 2.2KOHM,J,1/ R4729 ERJ2GEJ103 M 10KOHM, J,0.063W R2513 ERJ3GEYJ223 M 22KOHM,J,1/16W R4730 ERJ2GEJ103 M 10KOHM, J,0.063W R2514 D0GB103JA057 M 10K OHM J 1/ R4731...
  • Page 103 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R5670 D0GA223JA015 M 22K OHM J R8049 D0GA101JA015 M 100 OHM, 0.063W J,0.063W R5671 D0GA683JA015 M 68KOHM, R8050 D0GA101JA015 M 100 OHM, J,0.063W J,0.063W...
  • Page 104 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8323 D0GA333JA015 M R9023 D0GA272JA015 M 2.7KOHM, 33KOHM,J,0.063W J,0.063W R8324 D0GA101JA015 M 100 OHM, R9026 D0GAR00Z0001 C 0 OHM, 0.063W J,0.063W R9027 D0GAR00Z0001 C 0 OHM, 0.063W...
  • Page 105 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9203 D0GA223JA015 M 22K OHM J R9907 D0GA101JA015 M 100 OHM, 0.063W J,0.063W R9205 D0GA333JA015 M R9914 ERJ6GEY0R00V M 0 OHM J 1/10W 33KOHM,J,0.063W R9916 ERJ6GEY0R00V M 0 OHM J 1/10W...
  • Page 106 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16116 D0GB473JA057 M 47KOHM,J,1/10W R16491 ERJ6RED114 M 110KOHM, 1/10W R16131 ERJ6GEYJ101V M 100 OHM,J,1/ R16492 ERJ6RED124 M 120KOHM, 1/10W R16493 ERJ6RBD6981 M69.8 OHM,F,1/...
  • Page 107 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16658 ERJ3RBD9761 M9.76K OHM, 1/ PAVCSG R16826 ERJ6GEYJ103V M 10K OHM J 1/ R16661 D0GB122JA041 N 1.2KOHM J 1/ R16827 D0GB222JA041 M 2.2KOHM,J,1/ R16663...
  • Page 108 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R17109 D0GB101JA041 M 100 OHM,J,1/ SN17 K1MY96BA0342 96P CONNECTOR PAVCSG SN18 K1MY96BA0342 96P CONNECTOR PAVCSG R17110 D0GB201JA041 M 200 OHM,J,1/ PAVCSG SN20 K1MY30BA0345 30P CONNECTOR...
  • Page 109 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C301 ECKD3A101KBP C 100PF, K, 1KV C909 F1J1H273A571 C 0.027UF, 50V C302 F1BAF221A131 C 220UF, 250V D100 B0FBBT000008 DIODE C314 ECWH8153HAB P 0.015PF, J,...
  • Page 110 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description IC904 C0DBZMC00006 IC R118 ERJ6GEYJ183V M 18KOHM,J,1/10W R119 D0GB103JA057 M 10K OHM J 1/ L100 G0B123Y00002 CHOKE COIL R121 ERJ3GEYJ333 M 33KOHM,J,1/16W...
  • Page 111 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R412 ERJ6GEYJ102V M 1K OHM J 1/10W R653 ERJ6GEYG392 M 3.9KOHM,J,1/ R413 ERJ3GEYJ104 M 100KOHM,J,1/ R654 ERJ6GEYG392 M 3.9KOHM,J,1/ R414 D0GB105JA057 M 1M OHM F 1/10W R655...
  • Page 112 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R776 ERJ6GEYJ103V M 10K OHM J 1/ R942 ERJ6GEYJ222V M 2.2K OHM J 1/ R777 ERJ6GEYJ104V M 100KOHM,J,1/ R943 ERJ6GEYJ223 M 22KOHM,J,1/10W...
