Instruction Manual
OSCI -MOTION
Please read this instruction manual carefully
before operatingto avoid damage.

Preface

First we want to thank you for buying a quality product from
AMA / Ecosystem.
We have developed OSCI~MOTION for professional usage
in aquariums. The components comply to industry standards
and promise high durability. The plastic parts were milled on
CNC-machines to ensure stability.
With OSCI~MOTION you're getting a high quality product
"Made in Germany "
We want to wish you a good start with the following instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMA OSCI-MOTION and is the answer not in the manual?

Questions and answers

Related Manuals for EcoSystem Aquarium AMA OSCI-MOTION

Summary of Contents for EcoSystem Aquarium AMA OSCI-MOTION

  • Page 1 Instruction Manual OSCI -MOTION Please read this instruction manual carefully before operatingto avoid damage. Preface First we want to thank you for buying a quality product from AMA / Ecosystem. We have developed OSCI~MOTION for professional usage in aquariums. The components comply to industry standards and promise high durability.
  • Page 2 1. Transformator Important OSCI~MOTION may only be used with a 24 Volt safety transformer 2. Speed Change The speed can not be changed with the operating voltage. If you want to change the speed , you will need to exchange the transmission.
  • Page 3 Parts 1-9 are already assembled by the manufacturer. Fasten the mounting with the enclosed screws (M5 x 50 mm) on your OSCI-MOTION. Put the drive shaft ( ) and the pump mounting ( )in the hole of the trick shaft ( ) and fasten it with the screw ( The adjustment of the base direction and depth can also be changed later.

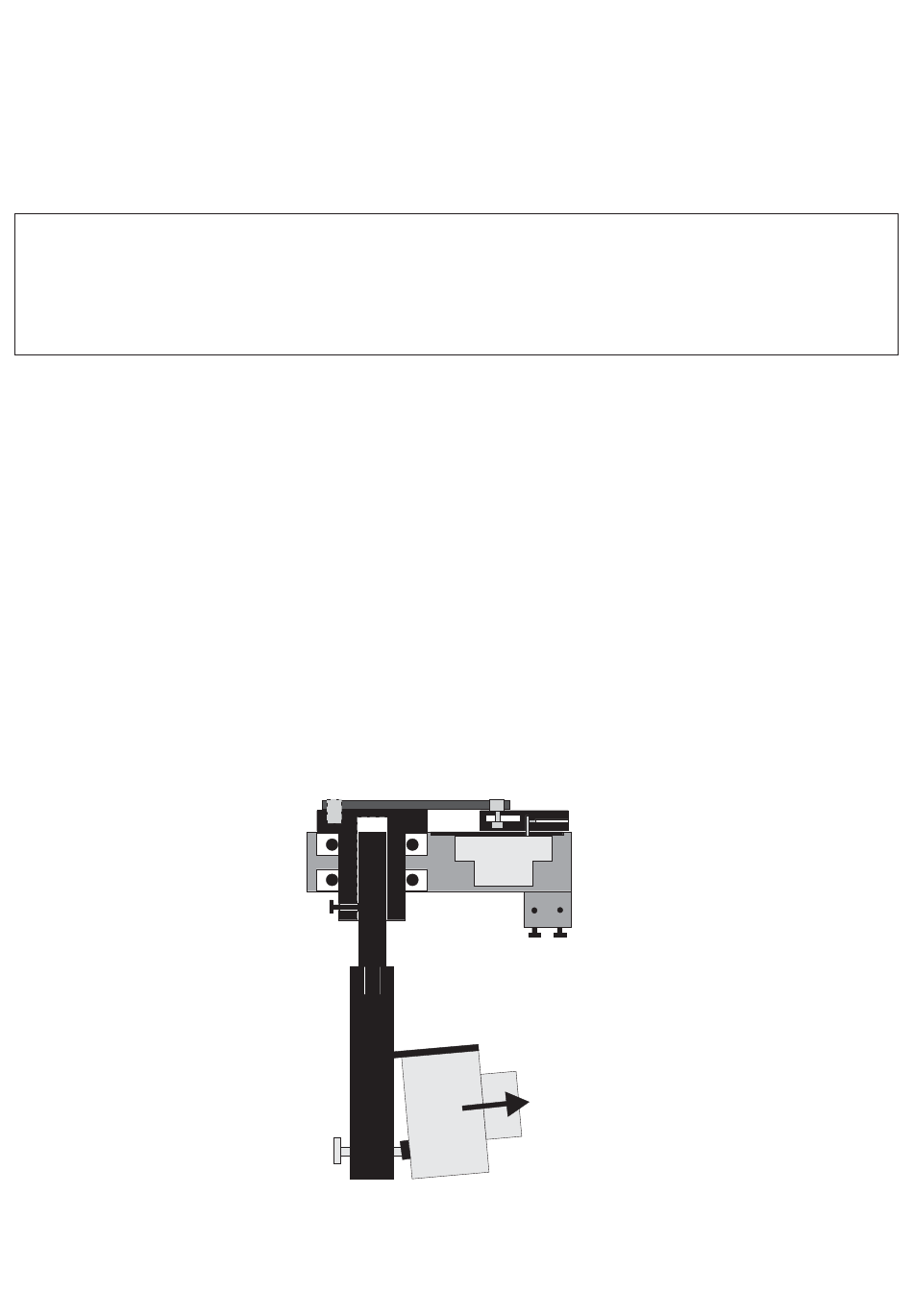

  • Page 4 4 Settings Position the eccentric screw (8) without the push bar/rod (10) pointing forward by switching on the motor. (See Fig 1 or 2) By unfastening the screw you can adjust the eccentric. In the beginning don’t adjust a too large turn. Try to find out your desired move in small steps.
  • Page 5 5 Dual Mode If you’re using a second OSCI~MOTION you’ll have a synergistic effect. This means that two OSCI~MOTIONs increase the effect by factor four. When you do this the turning movements are never absolutely synchronized (see Fig.1and 2).This results that the backflow is also accelerated and this will reduce sedimentation.
  • Page 6 Fig. 3 Fig. 4 shows some possible points where swirls will be produced, depending on the timing where and when the flows will hit each other Fig. 2...
  • Page 7 6 Maintenance Through ist robust construction OSCI-MOTION is designed for low maintenance operation. Nevertheless the glass ball bearingsshould be checked if it’s turning easily. If you’re doing this take off the push bar and turn the drive shaft manually. If the bearing has to be cleaned , take it out and wash it with fresh water.
