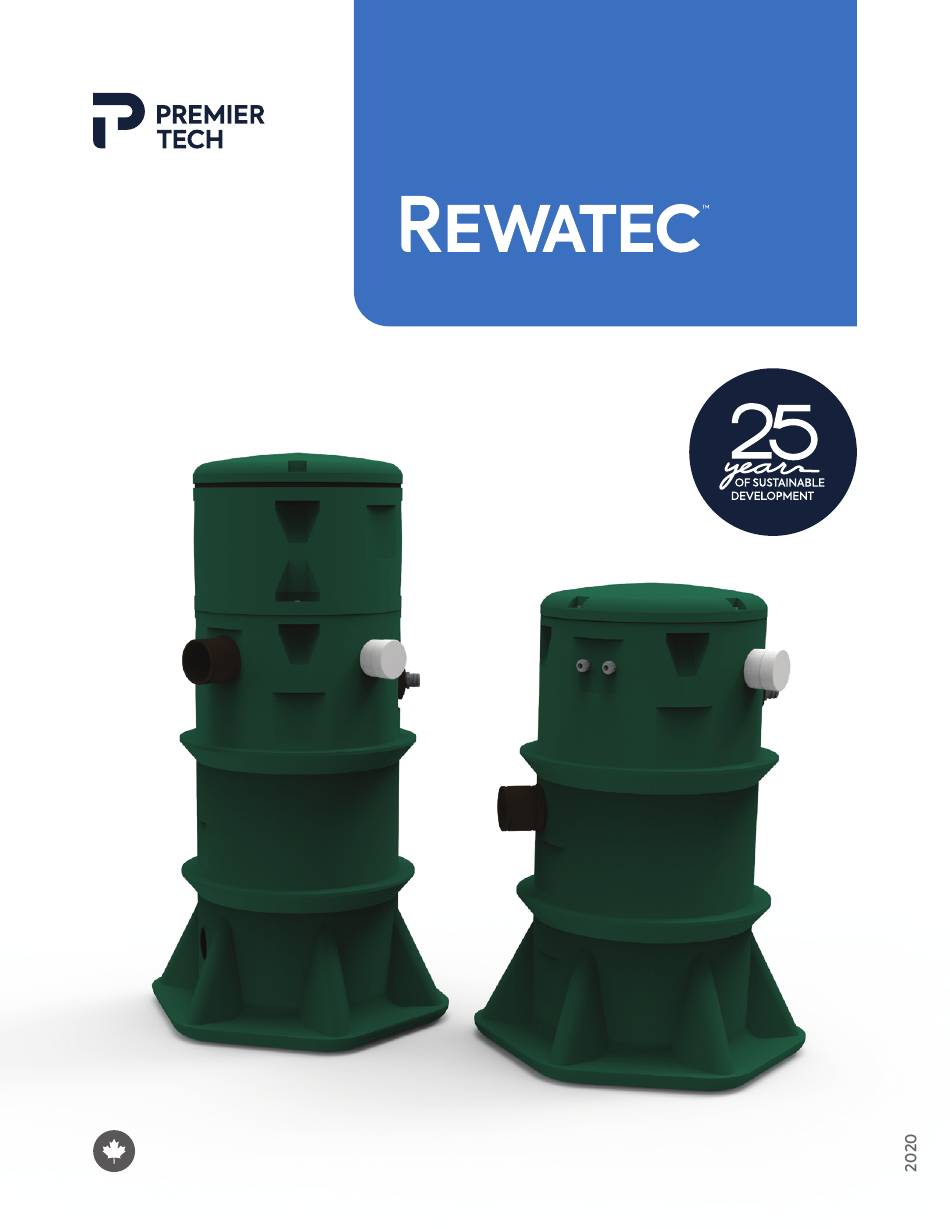

- Page 1 OWNER’S MANUAL AND INSTALLATION GUIDE Pumping stations Made in Canada...
-
Page 2: Technical Data

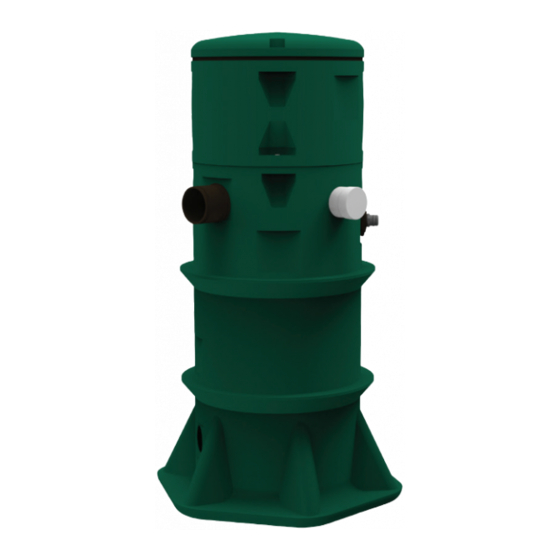

Pumping stations PSA-240/H This guide provides information regarding the installation, operation, maintenance and warranty of the PSA-240 and PSA-240H Pumping Stations from Premier Tech. For additional information, contact our customer service at 1-800-632-6356. Technical data PSA-240: The effective volume of the pumping station’s reservoir is of 150 L (40 US gallons, 33 Imperial gallons). The pumping station can therefore be used for a treatment system with up to three Ecoflo ®... - Page 3 Dimensions, description and location Dimensions Barbed coupling for water outlet pipe Ø 38 mm (1½") nominal Flexible coupling for water inlet pipe Ø 100 mm (4") nominal PLAN VIEW PSA-240/L/H pumping station base PSA-240 pumping station 622 mm (24 ½") 510 mm (20") 355 mm (14")
-
Page 4: Component Location
Description The pumping stations are pre-assembled and include the following components: Ball valve Cam coupler Float tree G. Alarm box C. Alarm float H. Electrical junction box with waterproof screw-thread wire D. On/Off float connectors (not assembled) (1 for the PSA-240/L and 2 for the PSA-240H) Ecoflo biofilter inlet coupling and 100 mm –... - Page 5 (PSA-240L) to minimise the depth at which it must be installed. • A maximum of two (2) PSR-140 (355 mm, 14") Premier Tech risers can be installed on the PSA pumping stations. The maximum allowable riser height is of 710 mm (28"). IMPORTANT: take note that the PSA-240H pumping station is already equipped with one (1) PSR-140 riser, therefore, it is only possible to install one (1) additional PSR-140 riser.
-
Page 6: Installation Steps
4. Installation steps STEP 1 – Excavating, bedding preparation and placing of the pumping station • Excavate the required area by respecting the minimum distances shown on the adjacent illustration. • Level and compact the bedding material (H2) which consists of Ø 0-20 mm (0-¾") gravel or sand. - Page 7 A red indicator lights up when the water level in the Ecoflo biofilter is unusually high. If an alarm is activated, contact Premier Tech's After-Sales Service Department because the incident has to be checked. To silence the alarm, press the “SILENCE” button.
- Page 8 Note that these curves were obtained with clear water, the pumps might not perform as well with wastewater. If you have questions about the interpretation of these curves, please do not hesitate to contact Premier Tech. 6. Pumping station start-up and adjustment 6.1 For all the pumping stations...
-
Page 9: Maintenance
6.2 PSA-240 Pumping station The following table specifies the cable’s recommended length (L) of the On/Off 75 mm (3") float for a maximum distance of 48 m (160') between the pumping station and Alarm the treatment system. It presents different values for 1 and 2 Ecoflo biofilters float **See note (or a dose of approximately 50 L and 100 L for other treatment systems). - Page 10 8. What to do in case of... 8.1 An activated alarm If an alarm is activated in your pumping station, unrelated to a power failure, contact Premier Tech’s After-Sales Service Department so the problem can be identified and corrected. 8.2 A prolonged power failure If a power failure that occurs during winter is prolonged, protect the components of your septic system against freezing.
- Page 11 For the purposes of this warranty, "Customer" shall mean the person who has 3 of this warranty and before Premier Tech has visited the site, within a reasonable acquired a Pumping Station (hereinafter called "Initial Purchaser") as well as any time following receipt of said notice, in order to acknowledge the situation.
