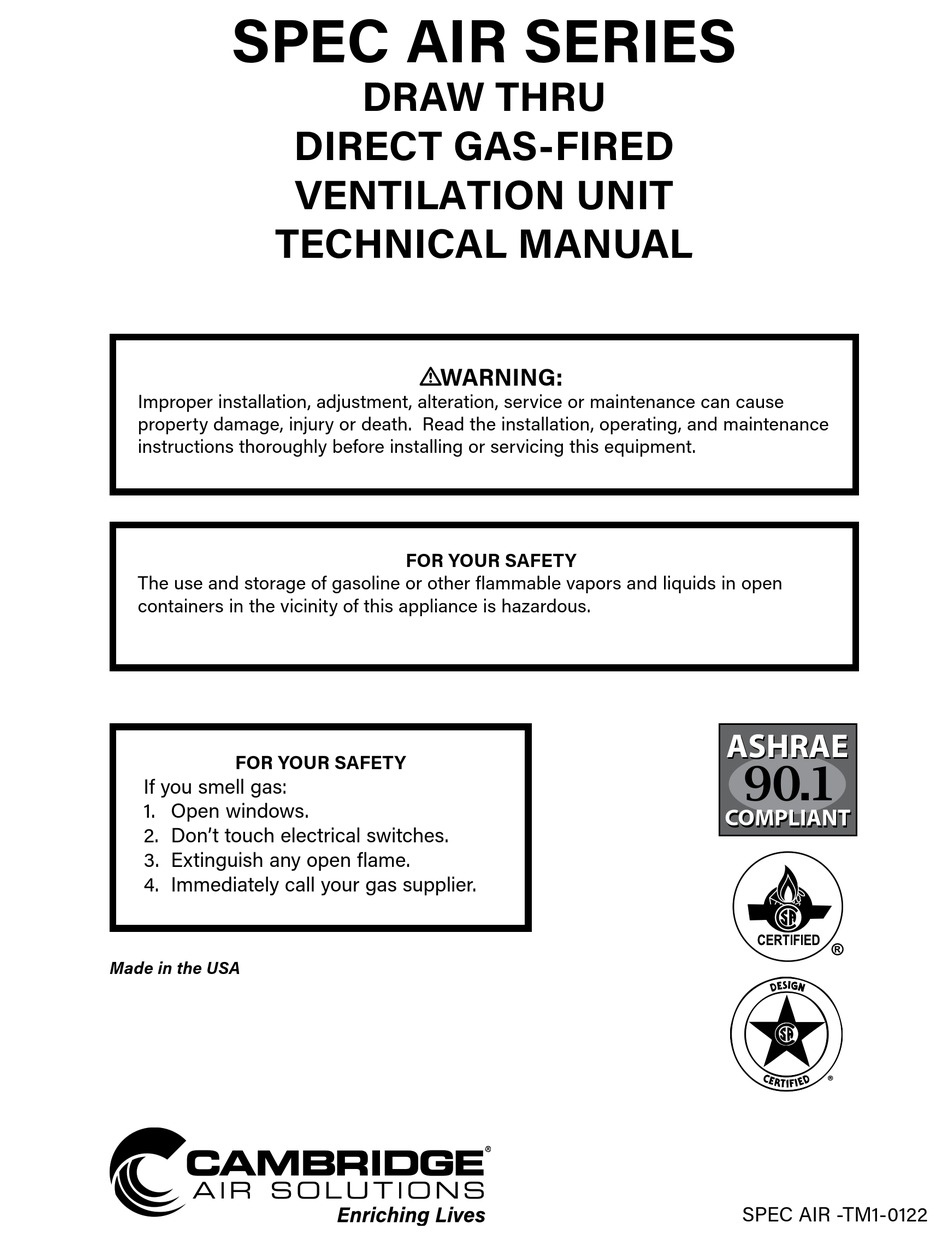

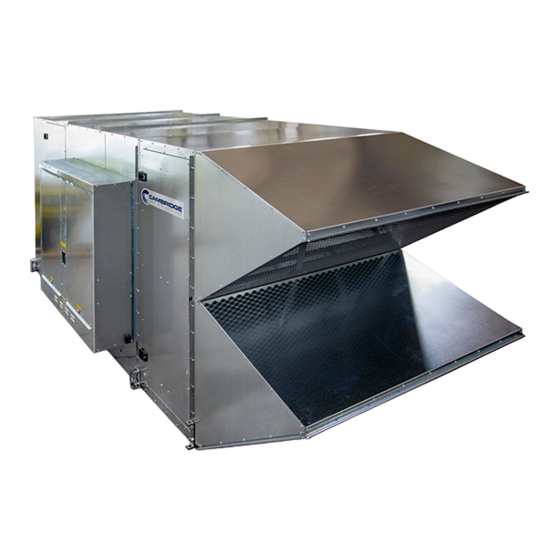

SPEC AIR SERIES
TECHNICAL MANUAL
Improper installation, adjustment, alteration, service or maintenance can cause
property damage, injury or death. Read the installation, operating, and maintenance
instructions thoroughly before installing or servicing this equipment.
The use and storage of gasoline or other flammable vapors and liquids in open
containers in the vicinity of this appliance is hazardous.
FOR YOUR SAFETY
If you smell gas:
1. Open windows.
2. Don't touch electrical switches.
3. Extinguish any open flame.
4. Immediately call your gas supplier.
Made in the USA
DRAW THRU
DIRECT GAS-FIRED
VENTILATION UNIT
WARNING:
FOR YOUR SAFETY
ASHRAE
ASHRAE
90.1
COMPLIANT
COMPLIANT
®
SPEC AIR -TM1-0122
