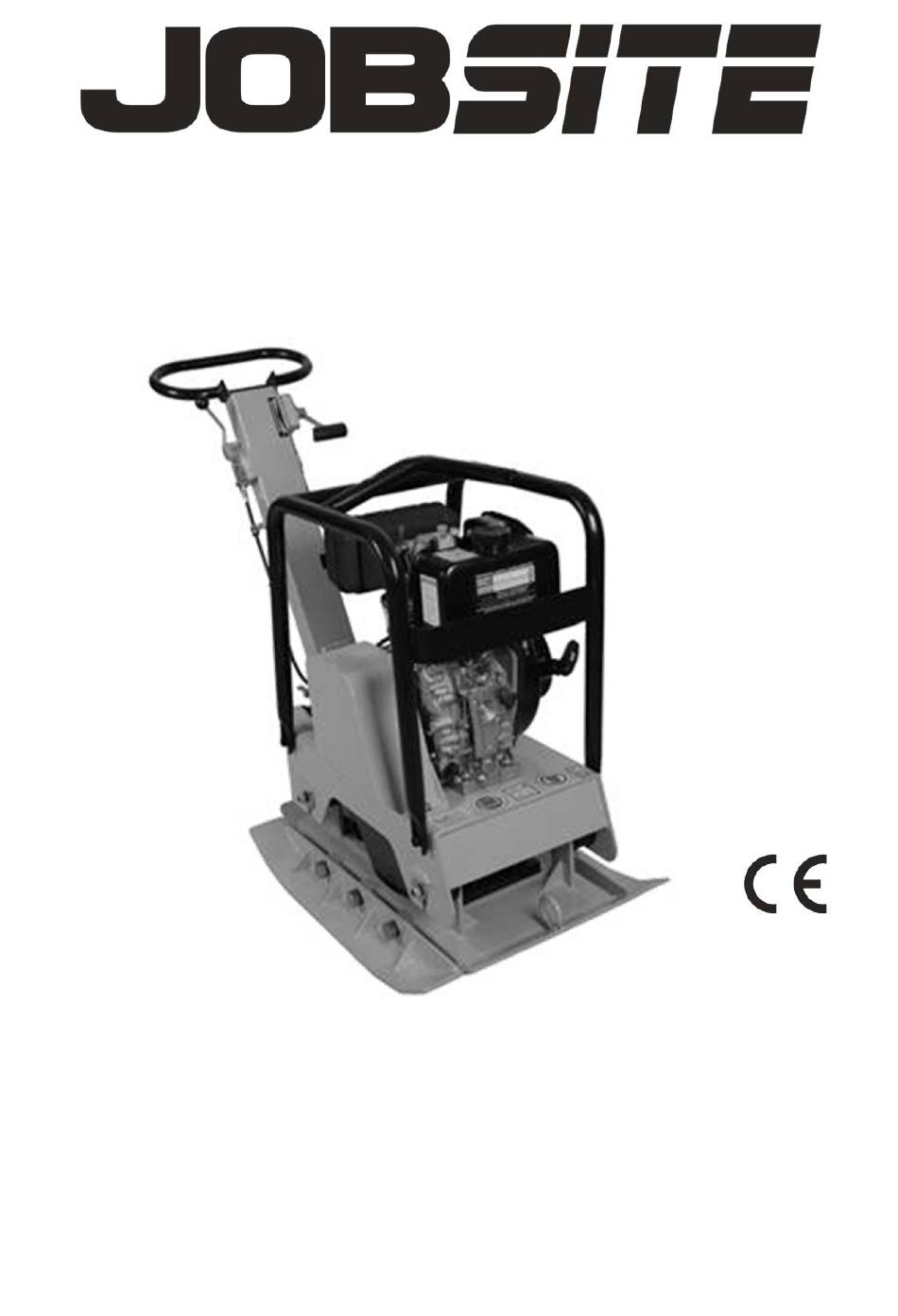

6HP DIESEL REVERSIBLE PLATE COMPACTOR
CT0567
INSTRUCTION MANUAL
IMPORTANT:
These instructions accompanying the product are the original instructions. This document is
part of the product, keep it for the life of the product passing it on to any subsequent holder of
the product. Read all these instructions before assembling, operating or maintaining this
product.
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT0567 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jobsite CT0567

  • Page 1 6HP DIESEL REVERSIBLE PLATE COMPACTOR CT0567 INSTRUCTION MANUAL IMPORTANT: These instructions accompanying the product are the original instructions. This document is part of the product, keep it for the life of the product passing it on to any subsequent holder of the product.

  • Page 2: Ec Declaration Of Conformity

    In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity. Product description: 6HP DIESEL REVERSIBLE PLATE COMPACTOR Model: CT0567 Applicable EC Directives: EC Machinery Directive 2006/42/EC Harmonized standards EN ISO 12100:2010, EN 500-1:2006+A1:2009, EN 500-4:2011 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

  • Page 3: Specification

    1. SPECIFICATION Power: 6Hp (4.4KW) Operation Mass: 168kg Frequency: 4000vpm Centrifugal Force: 30.5kn Compaction Depth: 500mm Travel Speed: 25cm/s Efficiency: 570 m Plate Size: 730 X 500mm(includes Extension Plate) Governed speed: 3200r/min Engine type：KAMA 178, 4 stroke diesel engine Sound specification Measured sound Power level : 105dB(A) Guaranteed sound power level :108dB(A) Uncertainty:3dB(A)
  • Page 4 All possible hazards cannot be covered here, but we have tried to highlight some of the important items, individuals should look for and obey caution, warning and danger signs placed on equipment, and displayed in the workplace. Operators should read and follow safety instruction packed with each product.
  • Page 5 repetitive work actions may be harmful to hands and arms. NEVER stand on the unit while it is operating. ● DO NOT increase the governed no-load motor speed above 3200 r/min ● Any increase may result in personal injury and damage to the machine. ●...

  • Page 6: Unpacking And Checking

    Additional Hazards Slip/Trip/Fall is a major cause of serious injury or death. Beware of ● uneven or slippery work surfaces. Exercise care when working in the vicinity of unprotected holes or ● excavations. 3. UNPACKING AND CHECKING Carefully remove the product from the packaging and examine it for any ●...
  • Page 7 2. Check the engine oil level and top up as necessary. 3. Check the engine fuel level and top up as necessary. 4. Check for fuel and oil leaks. Start And Stop Procedure Diesel Engine 1. Open the fuel cock. 2.
  • Page 8 11. Set the fuel cock the “OFF” position. 12. Pull the recoil starter handles slowly, until you feel resistance. (At this point, the decompression just begins and intake/exhaust valves are both closed, thus the cylinder can be prevented from rust.) 13.

  • Page 9: Care And Preventive Maintenance

    6. CARE AND PREVENTIVE MAINTENANCE Check the oil level in the motor crankcase daily. Inspect the rubber anti vibration mounts for wear or deterioration. If the optional water tank is fitted inspect the water hose and its connections to ensure that they do not leak. Clean the underside of the plate regularly to prevent a build up of material.
  • Page 10 TABLE 3. TIGHTENING TORQUE (in. kg/cm) Diameter Material 10mm 12mm 14mm 16mm 18mm 20mm 1100 1400 2000 6-8T 1300 2000 2700 3800 1200 2000 2900 4200 5600 100 (6mm) 300-350 (8mm) 650-700 (10mm) *(In case counter-part is of aluminium) (Threads in use with this machine are all right handed) Material and quality of material is marked on each bolt, and screw.
  • Page 11 of the air filter is desired blow through the air filter cartridge from the inside, moving a jet of dry compressed air up and down until all dust is removed. CAUTION: NEVER attempt to check the V-belt with the engine running. Severe injury can occur if your hand gets caught between the V-belt and the clutch.
  • Page 12 ● Replacing the V-belt Remove the upper and lower belt covers. Engage an offset wrench (13mm) or the like to vibrator pulley (lower) fastening bolt. Engage waste cloth or the like at midway of V-belt on the left side and while pulling it back strongly, rotate the offset wrench clockwise so that the V-belt will come off.

  • Page 13: Engine Troubleshooting

    8. TROUBLE SHOOTING SYMPTOM POSSIBLE CAUSES SOLUTION Engine speed too low? Set engine speed to correct RPM. Clutch slips? Check or replace clutch. V-belt slips? Adjust or replace V-belt. Travel speed too low, Excessive oil in vibration? Drain excess oil and fill to proper level. and vibration is weak.

  • Page 14: Explanation Of Symbols

    9. EXPLANATION OF SYMBOLS DANGER! Engines emit carbon monoxide; operate only in well-ventilated area.Read the Operation Manual for machine information. No sparks, flames, or burning objects near the machine. Shut off the engine before refueling. Use only clean, filtered unleaded Diesel. CAUTION ! Lifting point.
  • Page 15 Guaranteed sound power level in dB(A). Forward and backward...
  • Page 16 10. EXPANDED VIEW AND PART LISTS Part 1...

  • Page 17: Engine Mounting Plate

    ITEM NO PART NO DESCRIPTION 3001000-2 BASE PLATE 3002000 VIBRATION BOX 0700018-45 BOLT M18 x 45-GB70 0970018 WASHER 18-GB97 0930018 SPRING WAHSER18-GB93 3003000-A ENGINE MOUNTING PLATE 3004000 ADJUSTING PLATE 0410012 NUT12-GB41 0970012 WASHER 12-GB97.1 0930012 SPRING WAHSER 12-GB93 3005000 FRAME ASSEMBLY 0700012 BOLT M12 x 20-GB70 0930012...
  • Page 18 PART 2 ITEM NO PART NO DESCRIPTION 3001001-1 BASE PLATE 3001002 VIBRATION DAMPER 0970012 WASHER12-GB97 0617012 NUT M12-GB6170 3001003 EXTENSION PLATE 0970020 WASHER-GB97 0930020 SPRING WASHER-GB93 0578020 BOLT M20X45-GB5783...
  • Page 19 PART 3...
  • Page 20 ITEM NO PART NO DESCRIPTION 3002001 EXCITER BOX 3002002 BOX COVER 0700008-25 BOLT M8 x 25-GB70 0930008 SPRING WASHER8-GB93 0119008 PIN BOLT8-GB119 0283006 BEARING32206-GB283 0987752 OIL SEAL φ52 x φ28 x 7-GB9877.1 3002003 BEARING COVER 0700008-20 BOLT M8 x 20-GB70 3002004 PULLEY 3002005...
  • Page 21 3002019 BASE COVER 0345226 O RING 25.8 X 2.65-GB3452.1 0578308 BOLT M8 X 25-GB5783 3002020 BOARD COVER 3002021 GASKET COVER 0700006 BOLT M6 X 18-GB70 0930006 SPRING WASHER6-GB93 0700008-30 BOLT M8 X 30-GB70 0578614 BOLT M14 X 1.5 X 20-GB5786 3002022 SPRING WASHER 0894042...
  • Page 22 PART 4...
  • Page 23 ITEM NO PART NO DESCRIPTION 0578012-70 NUT M12 X 70 - GB5780 0950012 WASHER 12 -GB95 3006010 COLLAR 3006012 NYLON COLLAR 3006400 VIBRATION DAMPER 0578008-30 NUT M8 X 30 - GB5780 0950008 WASHER 8 - GB95 3006200 VIBRATION DAMPER 0617320 BOLT M20 X 1.5 - GB6173 3006004 3006005...
  • Page 24 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
