Regent Lighting Solutions Olympia Pro Installation Instructions

Regent Lighting Solutions Olympia Pro Installation Instructions

Advertisement

Quick Links

Save These Instructions for Future Reference
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Electronic Control Device

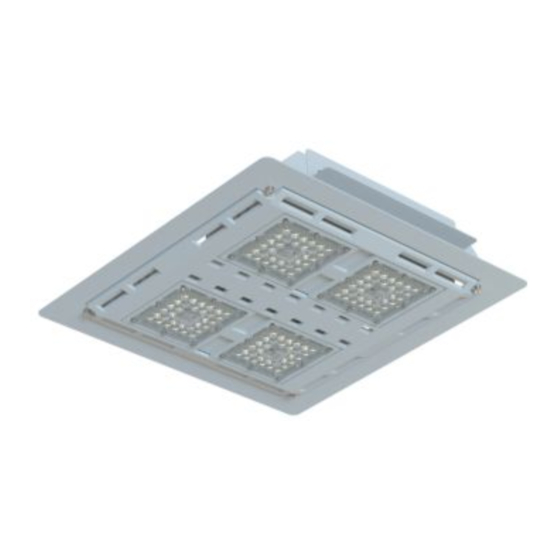

Olympia pro
Save These Instructions for Future Reference
Electrical products can cause death, injury, or damage to property.
Installation of this product must be carried out by a qualified electrician, in
compliance with SANS 10142 or corresponding regulations of the country of
installation. On completion of installation, the Certificate of Compliance must
For non user replaceable light source: The light source contained in this luminaire
shall only be replacedby the manufacturer or his/her service
agent or a similar qualied person
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specifications modify designs and discontinue items without
incurring obligation and whilst every effort is made to ensure that descriptions, specifications and other
information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be
liable for any error therein.
www.regentlight.co.za
REGENT LIGHTING A DIVISION
OF WAHL INDUSTRIES.
www.regentlight.co.za
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
be updated.
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171
June 2021

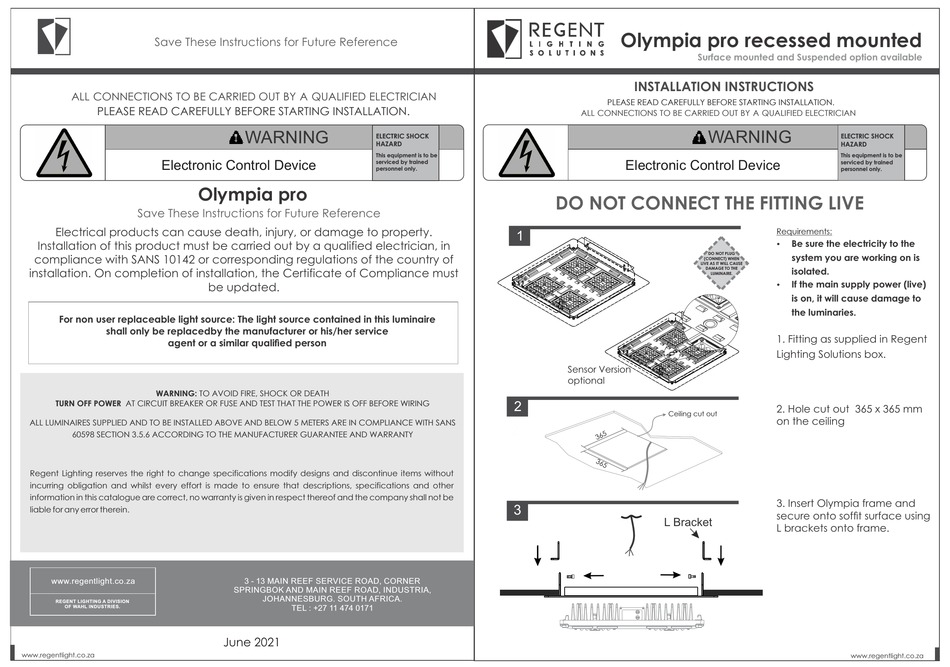

Olympia pro recessed mounted
INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Electronic Control Device
DO NOT CONNECT THE FITTING LIVE
1
1
1
Sensor Version
optional
2
Ceiling cut out
2
3
L Bracket
Surface mounted and Suspended option available
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Requirements:
Be sure the electricity to the
Ÿ
DO NOT PLUG
system you are working on is
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
isolated.
LUMINAIRE.
If the main supply power (live)
Ÿ
is on, it will cause damage to
the luminaries.
1. Fitting as supplied in Regent
Lighting Solutions box.
2. Hole cut out 365 x 365 mm
on the ceiling
3. Insert Olympia frame and
secure onto soft surface using
L brackets onto frame.
www.regentlight.co.za

Advertisement

loading
Need help?

Need help?

Do you have a question about the Olympia Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Regent Lighting Solutions Olympia Pro

  • Page 1 Olympia pro recessed mounted Save These Instructions for Future Reference Surface mounted and Suspended option available INSTALLATION INSTRUCTIONS ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION. PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
  • Page 2 (E) Green/Yellow (N) Blue Neutral loop Black or Blue 6.Insert olympia pro tting 8. Switch on power supply. d i a g o n a l l y t h r o u g h mounted frame. NB : Ensure there is no pinch or trapped insulation as tting is placed.
