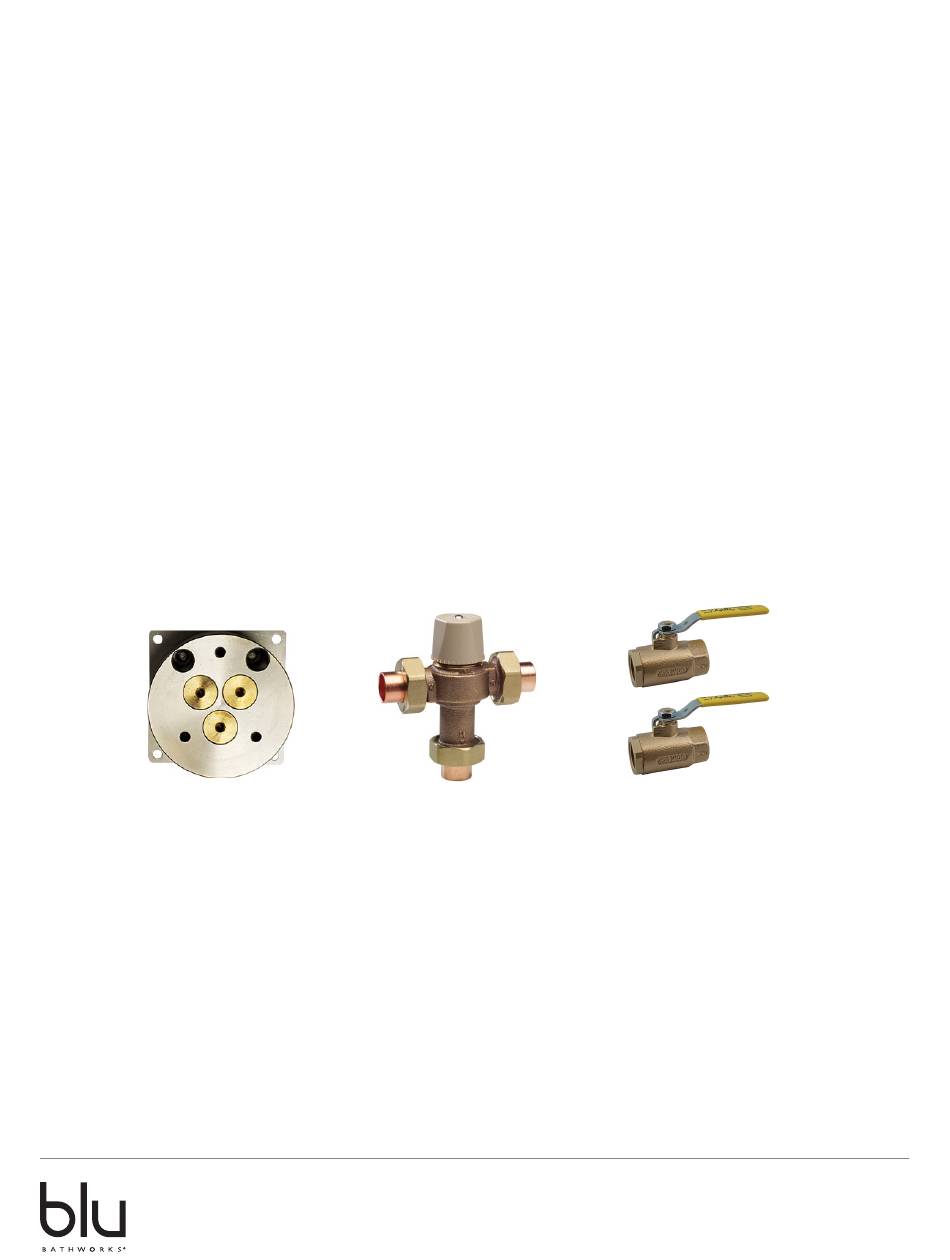

- Page 1 INOX wall-mount shower rough-in valve kit Installation Guide QRI-0030 QRI-0001 QRI-0910 QRI-0103 x2 Pages 4-8 Pages 9-15 Page 16 2021-11 1 866 907 0122 blubathworks.com...
-
Page 2: Operation Conditions
4. Remove the unit from its packaging. Before disposing of it, inspect the unit to make sure its in good shape. Should inspection reveal any installed. Blu Bathworks’ responsibility for shipping damages ceases upon delivery of the product in good order to the carrier. -
Page 3: Installation Notes
If further assistance is required, please contact: Product Support at 1.866.907.0122 (09:00 – 17:00hrs PST) or email technical@blubathworks.com North America Blu Bathworks Inc. 7388 Hedley Avenue, Burnaby, BC Canada V5E 2P9 T +1.604.299.0122 F +1.604.299.0125 Please refer to blubathworks.com for warranty, terms & conditions under warranty & procedure for warranty service. - Page 4 Component Diagram for QRI-0030 rough-in valve kit 1. QRI-0001: single handle hydroprogressive wall rough-in valve 2. QRI-0910: thermostatic mixing valve 3. QRI-0103 x 2 qty: shut offs with integral check valve mixed hot water inlet cold water inlet cold water in hot water from water tank 2021-11 1 866 907 0122...
- Page 5 QRI-0001 rough-in valve Attention: Min/Max depth in wall 2021-11 1 866 907 0122 blubathworks.com...
- Page 6 QRI-0001 rough-in valve Attention: Placement in wall 2021-11 1 866 907 0122 blubathworks.com...
- Page 7 QRI-0001 rough-in valve Position Application on plasterboard or counterframe Finish the coating close to the edge of the plastic protective cover 2021-11 1 866 907 0122 blubathworks.com...
- Page 8 QRI-0001 rough-in valve Installation: wall-mount single handle with spout configuration VALVE.02, MODO, STERO SERIES Universal Position 2021-11 1 866 907 0122 blubathworks.com...
- Page 9 QRI-0001 2021-11 1 866 907 0122 blubathworks.com...
- Page 10 QRI-0910 Thermostatic Mixing Valve Attention — Before Installation FAILURE TO COMPLY WITH PROPER INSTALLATION AND MAINTENANCE INSTRUCTIONS COULD CONTRIBUTE TO THE VALVE FAILURE, RESULTING IN INJURY AND/OR DEATH. TO ENSURE THE ACCURATE AND RELIABLE OPERATION OF THIS PRODUCT, IT IS ESSENTIAL TO: •...
-
Page 11: Installation
QRI-0910 Thermostatic Mixing Valve Installation Valve should be installed and adjusted by a licensed contractor in accordance with local codes and ordinances. Further, this valve should be installed in a location where it is accessible for cleaning, service or adjustment. 1. - Page 12 QRI-0910 Thermostatic Mixing Valve 2021-11 1 866 907 0122 blubathworks.com...
- Page 13 QRI-0910 Thermostatic Mixing Valve 1. Let water flow for at least two minutes to allow supply temperature to stabilize. 2. Calibrate the mixed water outlet temperature by placing a thermometer in the mixed water stream. 3. To adjust the setting of the valve, loosen locking cap screw with hex wrench (refer to Figure 3) Cap must be lifted 1/4”...
- Page 14 QRI-0910 Thermostatic Mixing Valve QUICK CONNECT INSTALLATION 2021-11 1 866 907 0122 blubathworks.com...
- Page 15 QRI-0910 Thermostatic Mixing Valve 2021-11 1 866 907 0122 blubathworks.com...
- Page 16 QRI-0910 2021-11 1 866 907 0122 blubathworks.com...
- Page 17 QRI-0103 Shut-Off Valve 1. Body 8. Lever nut 2. Retainer 9. O-ring 3. Ball 10. Seat (2) 4. Check valve insert 12. Stem packing 5. Stem 13. Stem bearing 6. Gland nut 7. Lever and grip 2021-11 1 866 907 0122 blubathworks.com...
- Page 18 Shower Configuration Examples TWO OUTLET 1. QRI-0001 x2 qty: single handle hydroprogressive wall rough-in valve 2. QRI-0910: thermostatic mixing valve 3. QRI-0103 x 2 qty: shut offs with integral check valve mixed hot water inlet cold water inlet cold water in hot water from water tank 2021-11 1 866 907 0122...
- Page 19 THREE OUTLET 1. QRI-0001 x3 qty: single handle hydroprogressive wall rough-in valve 2. QRI-0910: thermostatic mixing valve 3. QRI-0103 x 2 qty: shut offs with integral check valve mixed hot water inlet cold water inlet cold water in hot water from water tank 2021-11 1 866 907 0122 blubathworks.com...
- Page 20 FOUR OUTLET 1. QRI-0001 x4 qty: single handle hydroprogressive wall rough-in valve 2. QRI-0910: thermostatic mixing valve 3. QRI-0103 x 2 qty: shut offs with integral check valve mixed hot water inlet cold water inlet cold water in hot water from water tank 2021-11 1 866 907 0122 blubathworks.com...
- Page 21 How to clean Stainless Steel Stainless steels are inherently corrosion resistant materials that do not need additional surface protection to enhance their appearance and durability. Some routine maintenance and cleaning is needed to keep stainless steel surfaces in good conditions so that the aesthetics appearance and corrosion resistance are not compromised. In this respects, stainless steel are no different from other construction materials such as glass, plastic and coated steels, which are never maintenance free throughout the life of a building.
