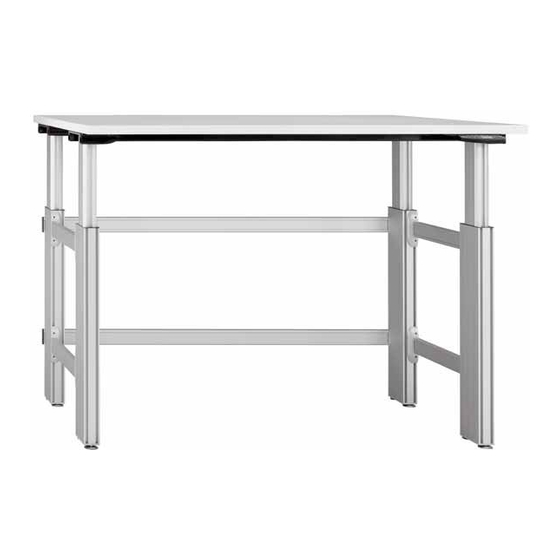

Summary of Contents for A&E Trading TM262

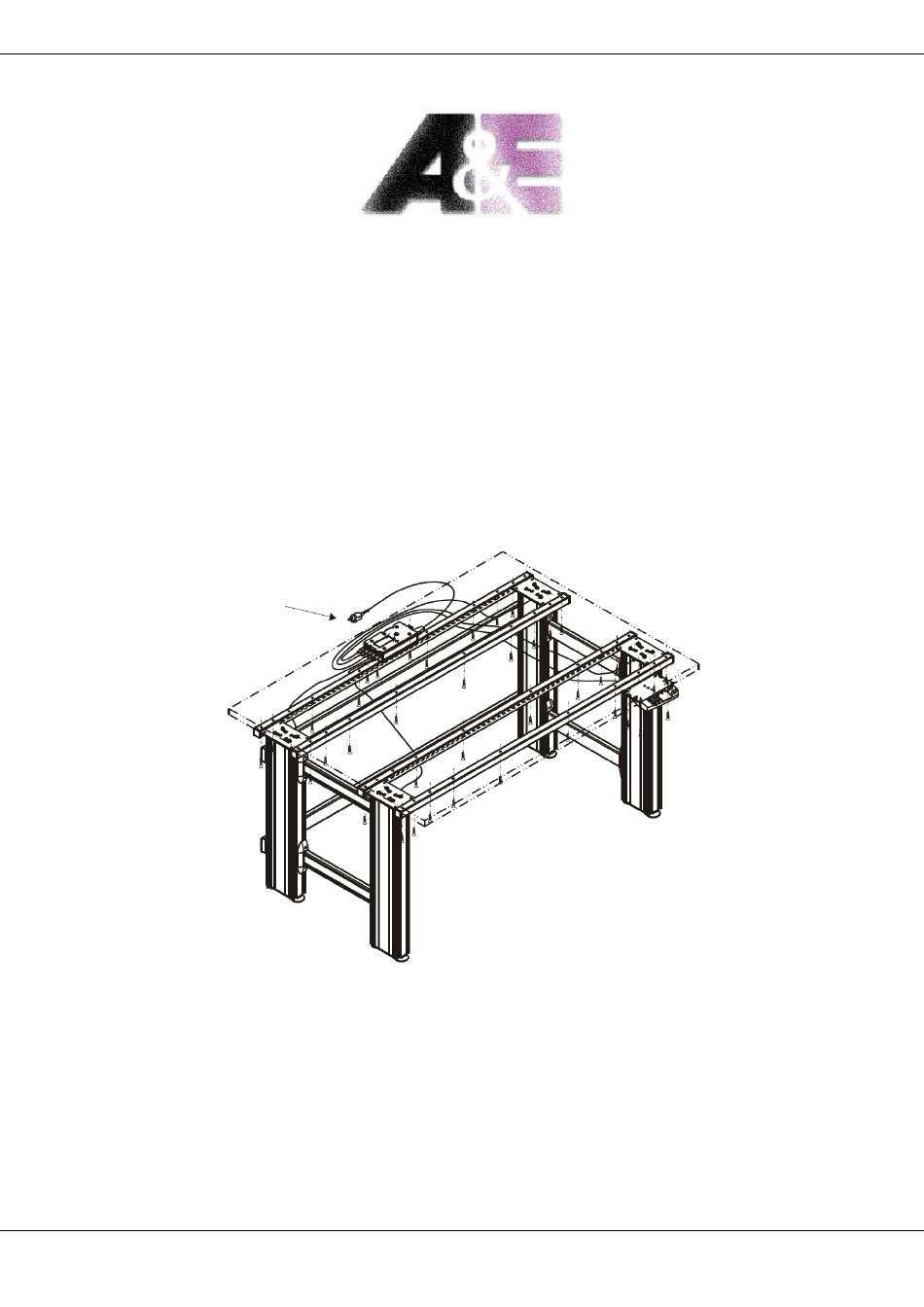

- Page 1 A&E Trading b.v. Mounting Instructions TM262...
- Page 2 Special dry guiding do not grease or clean with solvents. Attention: maximum weight 400 kg incl. construction above the columns (top support frame, table etc.). Alteration of the system in any form is not permitted. A&E Trading b.v. | Mounting Instructions TM262...
- Page 3 10. Please pay attention to further notices in the manual “control units, control box, operator controls” Provided the above guidelines are adhered to, you will enjoy many years of satisfaction from your TM 262. For any further enquiries please do not hesitate to contact us. A&E Trading b.v. | Mounting Instructions TM262...
- Page 4 Screw tight! Screw plate against bracket (don’t screw tight) Screw plate against bracket (don’t screw tight) Screw tight! A&E Trading b.v. | Mounting Instructions TM262...
- Page 5 Finally plug in the power cord into the plug. A&E Trading b.v. | Mounting Instructions TM262...
- Page 6 Attention: Special dry guiding do not grease or clean with solvents. A&E Trading b.v. | Mounting Instructions TM262...
- Page 7 - Then press M1, M2 of M3 within ± 5 seconds to save the chosen height. - The controlbox ‘beeps’ as a signal to confirm saving is completed. Calling a stored position - Press M1, M2 or M3 until the stored position is reached. A&E Trading b.v. | Mounting Instructions TM262...
- Page 8 The drives were operated longer than permitted. In order to protect the controlbox from overheating operation is blocked fort he next few minutes. After this time the drives can be moved again. Overheat Motor(s) overheat A&E Trading b.v. | Mounting Instructions TM262...
- Page 9 Contact A&E Trading b.v. Lorentzpark 13 9351 VJ Leek T 0594 58 11 58 F 0594 58 11 68 www.aetrading.nl sales@aetrading.nl BTW NL808938605 B01 KvK Groningen 02070188 A&E Trading b.v. | Mounting Instructions TM262...
