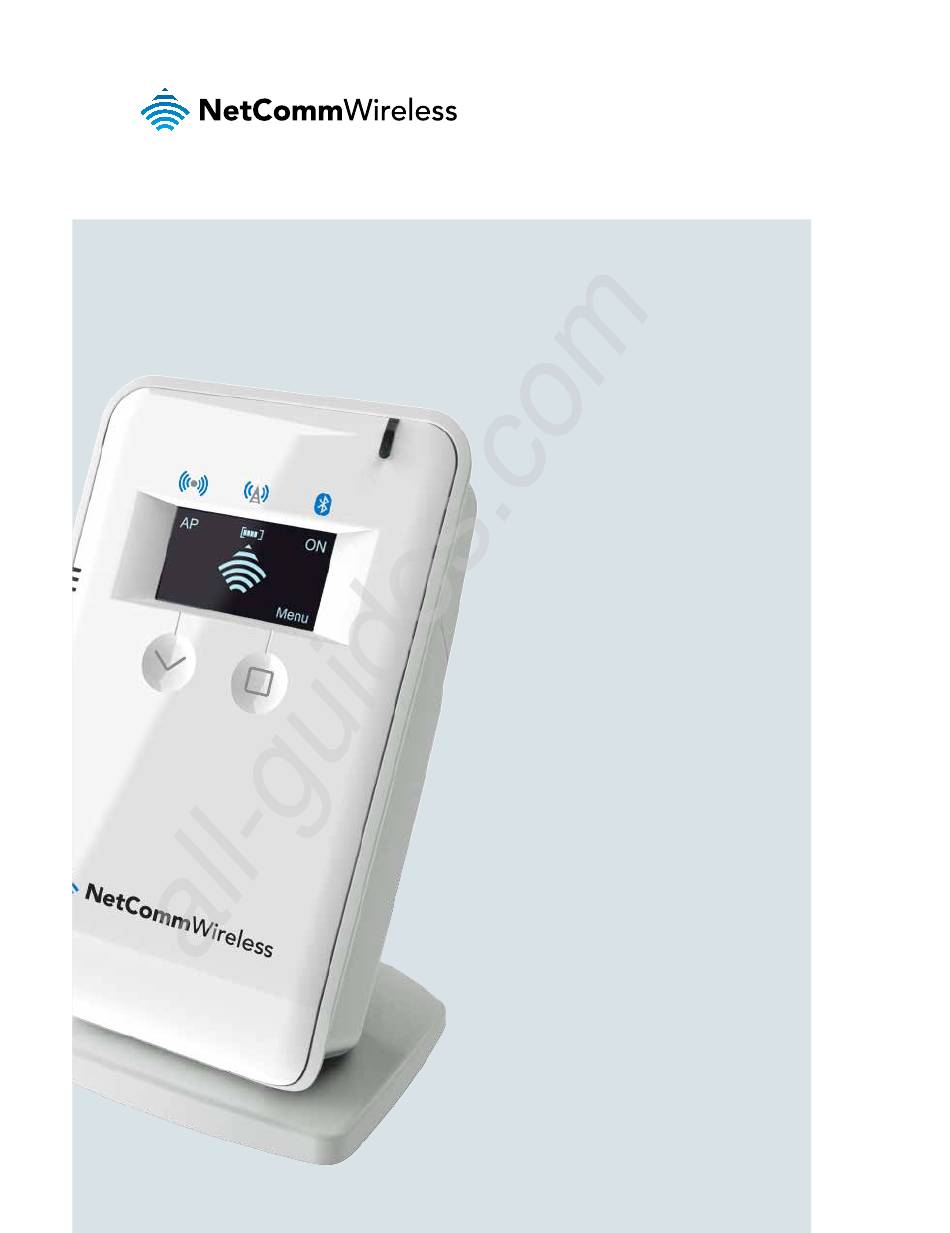

  • Page 1 All manuals and user guides at all-guides.com Quick Start Guide n-Hub NTC-20...

  • Page 2: Package Contents

    Quick start guide This quick start guide is designed to get you up and running quickly with your new NetComm Wireless n-Hub. More advanced set up instructions are provided in the user guide which can be opened by clicking on the Help tab on the Web-UI, or can be downloaded from http://www.netcommwireless.com/product/m2m/ntc-20...
  • Page 3 All manuals and user guides at all-guides.com NTC-20 - n-Hub NetCommWireless Wireless Security Card Keep this card in a secure place for easy access to your NetComm Wireless M2M device Wireless Network Name (SSID): XXXX XXXX Wireless Security Key: XXXXXXXXXX...

  • Page 4: Device Overview

    All manuals and user guides at all-guides.com Device overview ITEM DESCRIPTION Indicates the overall status of the n-Hub. See LED Indicator the LED indicator table for a list of statuses and their meanings. OLED Display OLED display with 128x64 pixel resolution. This button is generally used to move the highlighted option down each time it is pressed, but can have other functions based on the...
  • Page 5 All manuals and user guides at all-guides.com NTC-20 - n-Hub...
  • Page 6 All manuals and user guides at all-guides.com LED indicators COLOUR STATE DESCRIPTION Device is on and working normally. Hardware error. Flash twice Message displayed on screen. Flashes as every 5 sec long as message is on screen. Flashing Powering up. Flash twice Powered on with screen switched off.

  • Page 7: Getting Started

    All manuals and user guides at all-guides.com NTC-20 - n-Hub Getting started Inserting the SIM card Hold the n-Hub with the back panel facing you. Use both thumbs to slide the top of the panel upwards to reveal the SIM card holder.
  • Page 8 All manuals and user guides at all-guides.com Slide the locking mechanism to the left so that the hinged SIM tray can be moved. Pull the SIM tray up and to the left, then insert the SIM card with the gold side facing down in the orientation as shown below.
  • Page 9 All manuals and user guides at all-guides.com NTC-20 - n-Hub Lower the SIM card tray, then slide the SIM tray locking mechanism to the right so that it is locked. Replace the top panel that you removed in step 1 by sliding it down until it clicks into place.

  • Page 10: Powering And Mounting The N-Hub

    All manuals and user guides at all-guides.com Powering and mounting the n-Hub The n-Hub can be attached directly to a wall socket or mounted on a table top.
  • Page 11 Wait approximately 2 minutes for your n-Hub to start up. The LCD screen displays the NetComm Wireless logo and the word “Menu” at the bottom right side of the...
  • Page 12 All manuals and user guides at all-guides.com Using the figure 8 cable To mount the n-Hub on a table top, thread the figure 8 end of the power cable through the hole in the stand up base. Connect the figure 8 power cable to the power port of the n-Hub.
  • Page 13 All manuals and user guides at all-guides.com NTC-20 - n-Hub Slide the cover for the power port into place and push it until it locks in place.
  • Page 14 All manuals and user guides at all-guides.com Attach the stand up base to the bottom of the n-Hub as shown below.
  • Page 15 Connect the power cable to a wall socket and turn on the power. Wait approximately 2 minutes for your n-Hub to start up. The LCD screen displays the NetComm Wireless logo and the word “Menu” at the bottom right side of the...

  • Page 16: Connecting Wifi Devices

    Wireless Security Card included in the box. NetCommWireless Wireless Security Card Keep this card in a secure place for easy access to your NetComm Wireless M2M device NetCommWireless Wireless Network Name (SSID): XXXX XXXX Wireless Security Key:...

  • Page 17: Connecting Bluetooth Devices

    All manuals and user guides at all-guides.com NTC-20 - n-Hub Connecting Bluetooth devices To pair a Bluetooth device: Press the button on the front of the n-Hub to wake the screen up. Press the button once to bring up the Main Menu. button to scroll down to Bluetooth, Press the then press the...
  • Page 18 All manuals and user guides at all-guides.com Press the button to scroll down to Start discover. Press the button. The n-Hub begins scanning for Bluetooth devices* within range that are ready to be paired. example device * The other device should be made discoverable just before starting the Bluetooth process with the NTC-20.
  • Page 19 All manuals and user guides at all-guides.com NTC-20 - n-Hub Set your Bluetooth device to be discoverable. When it has been found by the n-Hub, it appears in the list. Press the button to scroll down to the device in the list, then press the button to select it.
  • Page 20 Safety and product care Please refer to the user guide for safety and product care information. NETCOMM WIRELESS LIMITED ABN 85 002 490 486 Head Office, 18-20 Orion Road Lane Cove, Sydney, NSW 2066, Australia p: +61 2 8205 3888 f: +61 2 9424 2010 e: m2msales@netcommwireless.com...
