Summary of Contents for AKWARIOM Kontrol 3

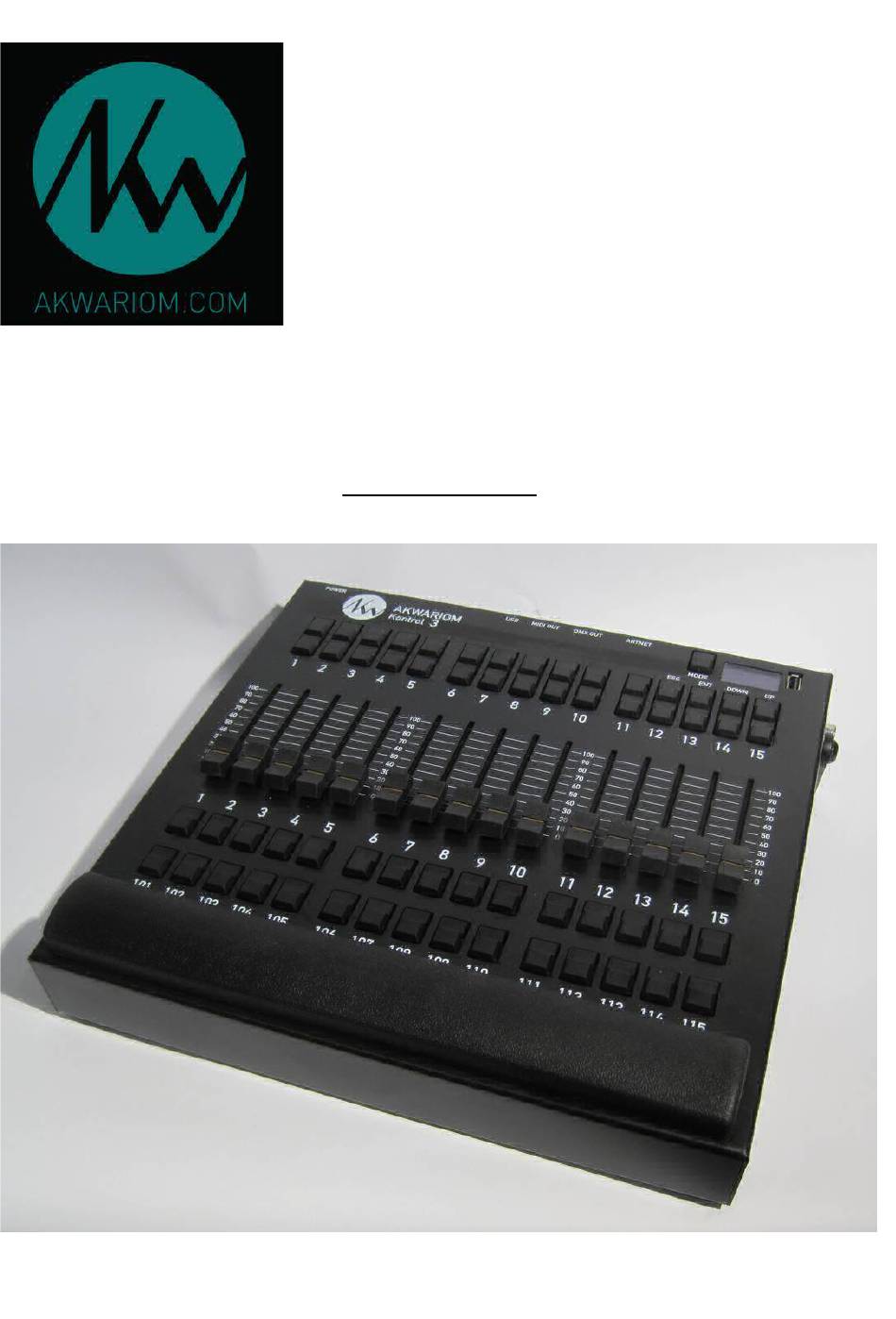

- Page 1 Kontrol Control Surface User Manual...
-
Page 2: Table Of Contents
Table of Contents Presentation :..............................3 Connectors..............................4 Rear Panel :..............................4 Usage :................................4 Running mode :............................4 Configuration :............................5 MIDI and DMX channels mapping ......................8 Technical characteristics..........................9 Configuration Examples / Grand MA 2 :......................10 Warranty :..............................11 Contacts :..............................11... -
Page 3: Presentation
Presentation : The Kontrol3 initial design goal is to allow a faders extension for « Grand-MA 2 and 3 Ma Lighting » desks, but it can be used with any software accepting Midi, Dmx or ArtNet commands (lighting, video, DAW, etc..) It has: - 15 faders, each with 3 buttons - 15 extra buttons... -
Page 4: Connectors
Connectors Every connector is on the rear panel of the Kontrol 3, except a USB-A connector on top of the interface allowing to connect a USB littlite. Rear Panel : XLR5 F DIN 5 USB-B PowerCon True DMX Output USB A Socket LCD screen Config. -
Page 5: Configuration
DMX-512 (through the XLR5 ) and MIDI (through both the DIN and USB sockets) signals. « Artnet » Mode: In this Mode,the Kontrol 3 communicates using the ArtNet protocol through the RJ45 socket. See below for IP and ArtNet configuration. - Page 6 - Artnet : 3 parameters are adjustable: - Start Adress : the first DMX channel used - Net, Subnet, Univers : The desired ArtNet config. - Output mode : Selection between Broadcast (ArtNet is sent to every connected device) and Unicast (ArtNet is sent to a specific device). In Unicast Mode, you must enter the IP Address of the destination peripheral.
- Page 7 General Menu Pages Tree Start Page, 3 sec. Normal run pages Configuration Menus MIDI and DMX channels mapping...
-
Page 8: Midi And Dmx Channels Mapping
DMX Channels and MIDI notes/controllers corresponding to buttons and faders have a fixed organization. An offset can be applied, but their order follows the logic below : Default mapping, using a 0 offset. -
Page 9: Technical Characteristics
Technical characteristics Dimensions : 34 / 31,5 / 6,5cm Weight without cable : 3,8Kg Included cables : Power cable, MIDI DIN cable, USB A-B Cable. Supported Power Supply: 85 to 265VAC, 47 to 63Hz, Max 4VA Cables pinout DMX : standard DMX 512 A Pin 1 : Ground Pin 2 : Data -... -
Page 10: Configuration Examples / Grand Ma 2
Configuration Examples / Grand MA 2 : Example 1 : Select « Add multiple », and add several lines. In this example, the Kontrol3 is configured to control the « Active » page of the desk. Example 2 : In this example, the top buttons are used as direct desk shortcuts. -
Page 11: Warranty
Warranty : All our products are guaranteed for one year from date of purchase. This warranty covers all design issues. Contacts : For any question or technical info, contact us on our e-mail ; contact@akwariom.com www.akwariom.com...
