AXESS ELECTRONICS HS2 User Manual

Connections

INPUT: Using a high
INSTRUMENT cable, connect a guitar
or the output of a pedal to this jack.
TO INs: Using high
INSTRUMENT cables, connect these
jacks to the instrument level input jack
of the amplifiers to be switched.
FROM OUTs: Using high quality
SPEAKER cables,
jacks to the speaker output jack of the
amplifiers to be switched.
SPKR: Using a high quality UNshielded
SPEAKER cable, connect this jack to
the speaker cabinet.
FTSW: Connect the supplied footswitch to this
jack using a ¼" tip-ring-sleeve cable
(for the dual-color LED to work on the
footswitch) or a standard ¼" tip-sleeve
cable (for just the green color of the
footswitch LED to work).
POWER: See the Power Requirements section.
STATUS LED: Green = AMP #1 & Red = AMP #2

Basic Operation

HAVE YOU READ THE HEAD SWITCHER SAFETY &
WARNING DISCLAIMER ? WELL READ IT AGAIN !!!
Connect a guitar/pedal, the amplifiers, the speaker
cabinet and the footswitch to the HS2 Remote Head
Switcher as described in the Connections section
(above). It is strongly recommended that the switcher
be positioned near the heads and cabinet to minimize
the chance of a cable being accidentally disconnected.
Make sure that ALL connections to and from the HS2
Remote Head Switcher are complete and correct.
ALWAYS apply power to the HS2 Remote Head
Switcher first and verify both the front panel LED and
footswitch LED change color and that you can hear the
relays switching whenever you stomp on the footswitch
(if not, DON'T use the switcher and contact Axess for
support). Now power-up the rest of your gear and let it
rip, simply stomp on the footswitch to switch between
heads !!!

Power Requirements

quality shielded
+
quality shielded

Warranty

UNshielded
This product is warranted against failures due to defective
connect these
parts or faulty workmanship for a period of one year after
delivery to the original owner. During this one year period,
Axess Electronics will make any necessary repairs without
charge for parts and labor. However, shipping charges to
and from the repair location must be paid by the owner.
This warranty applies only to the original owner and is not
transferable.
This warranty does not cover damage to the product as a
result from accident or misuse.
This warranty will be canceled at the sole discretion of
Axess Electronics if the product has:
1. Any signs of tampering, unauthorized service, or
modifications.
2. Any damage resulting from physical abuse or failure to
follow the operating instructions.
Axess Electronics' liability to the owner and under this
warranty is limited only to the repair or replacement of the
defective product. Call or write to Axess Electronics prior to
shipping the product for repair.
Axess Electronics reserves the right to make any changes
and/or improvements to the design of this product without
any obligation to include those changes in any previously
manufactured units.
How To Reach Axess Electronics
Mail:
Tel.:
E-mail:
Website:
200mA@9.6VDC
-
Use Boss PSA Adapter Only
5.5mm/2.1mm Barrel Connector
Axess Electronics
251 Queen Street South #278
Mississauga, Ontario L5M1L7
Canada
http://www.axess-electronics.com
http://www.axess-electronics.com
http://www.axess-electronics.com

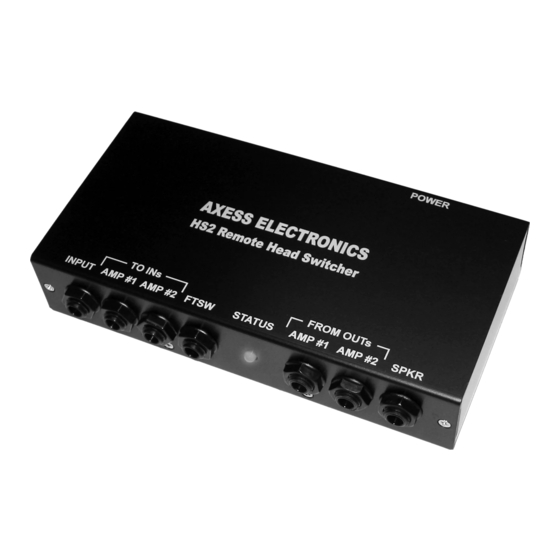

HS2
Head Switcher
•
The HS2 Head Switcher allows instant
switching between two different tube amp
heads and the same speaker cabinet.
•
The head switcher is remote controlled by a
single latching footswitch (included) using a
¼" tip-ring-sleeve cable (for the dual-color
LED to work on the footswitch) or a standard
¼" tip-sleeve cable (for just the green color of
the footswitch LED to work).
•
The footswitch is housed in a .094" thick
black anodized aluminum enclosure (4.40" x
2.40" x 1.30") and along with the dual-color
LED it has a long-lasting, heavy-duty Carling
(the real thing) stomp switch which has a
positive tactile feel.
•
Switching between the two amps is dead
quiet and immediate - no loud clicks, pops or
drop-outs.
•
A proprietary circuit allows only one amp on
at a time, protects the amplifier that is not
selected and protects both amps and the HS2
relays when switching.
•
Proper circuit design and isolation of the
amplifiers ensures no Ground Loop Hum or
Noise, signal/tone coloration or degradation.
•
Powered by a 9VDC Adapter (like those from
Boss) with a 5.5mm/2.1mm barrel connector.
•
Housed in a compact (7.50" x 3.75" x 1.50")
and rugged .064" thick aluminum enclosure
for years of reliable use and performance.
•
Brushed finish with black anodize coating and
laser-engraved printing.
