Summary of Contents for Silhouet-Tone ML100
- Page 1 Instructions Table de service ML100 Work station ML100 Code 413215...
- Page 2 BOULON / BOLT M6 * 50mm SUPPORT DE LOUPE / LAMP SUPPORT NOIX EN NYLON M6 / NYLON LOCK NUT M6 Quincaillerie fournie ANNEAU RETENU / EXTERNAL RING ROULETTES / WHEELS CLÉ / ALLEN / KEY 4mm (CASTERS) Provided hardware CAPUCHON A PRESSION / PLUG HOLE VIS A CAVITÉ...
- Page 3 NUT to position the SHELVES in the order (1, 2, 3) . Ensure before tightening the bolt that the shelf with the Silhouet-Tone identification is on top. DO NOT TIGHTEN BEFORE POSITIONNING THE 12 BOLT M6 X 50 mm TO TIGHTEN THE ASSEMBLY USE THE OPEN WRENCHE Repeat the step 2 to assembly the other TABLE SIDE.
- Page 4 4. Installer les INSERT ROULETTE & ROULETTE à chaque patte de la table de service. 4. Install the SOCKET WHEELS & WHEELS at each work station leg. 5. Déposer le SUPPORT DE LOUPE dans les trous des COTES TABLE. Utiliser l’ANNEAU DE RETENUE pour qu’il reste en place.

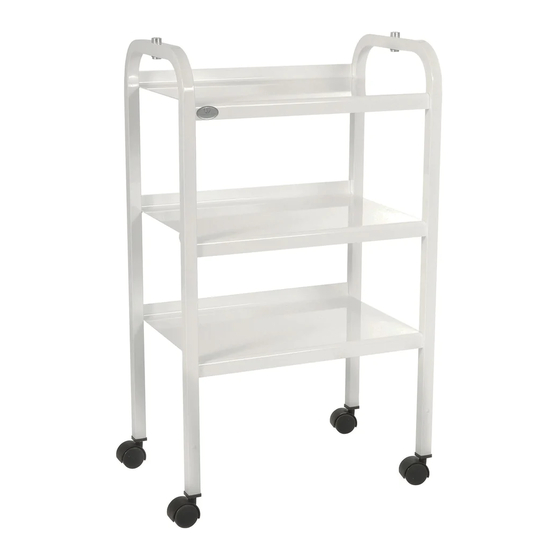

- Page 5 6. Voici le résultat final. Vous pouvez maintenant installer vos options choisis lors de votre commande. 6. Here is the final result. You can now install the options selected at the purchase of the work station.
- Page 6 Table de service ML100 Work station ML100 Code 413215 Corporation Silhouet-Tone 2185, Michelin Laval (Québec) H7L 5B8 Canada Tél. /Tel. : 450 687-9456 1 866 340-9456 export@silhouettone.com Somak Distribution 1985, Monterey Laval (Québec) H7L 3T6 Canada Tél. /Tel. : 450 688-0123 1 800 361-3004 infoca@silhouettone.com...
