Summary of Contents for Axema VAKA-CALL Master 4G

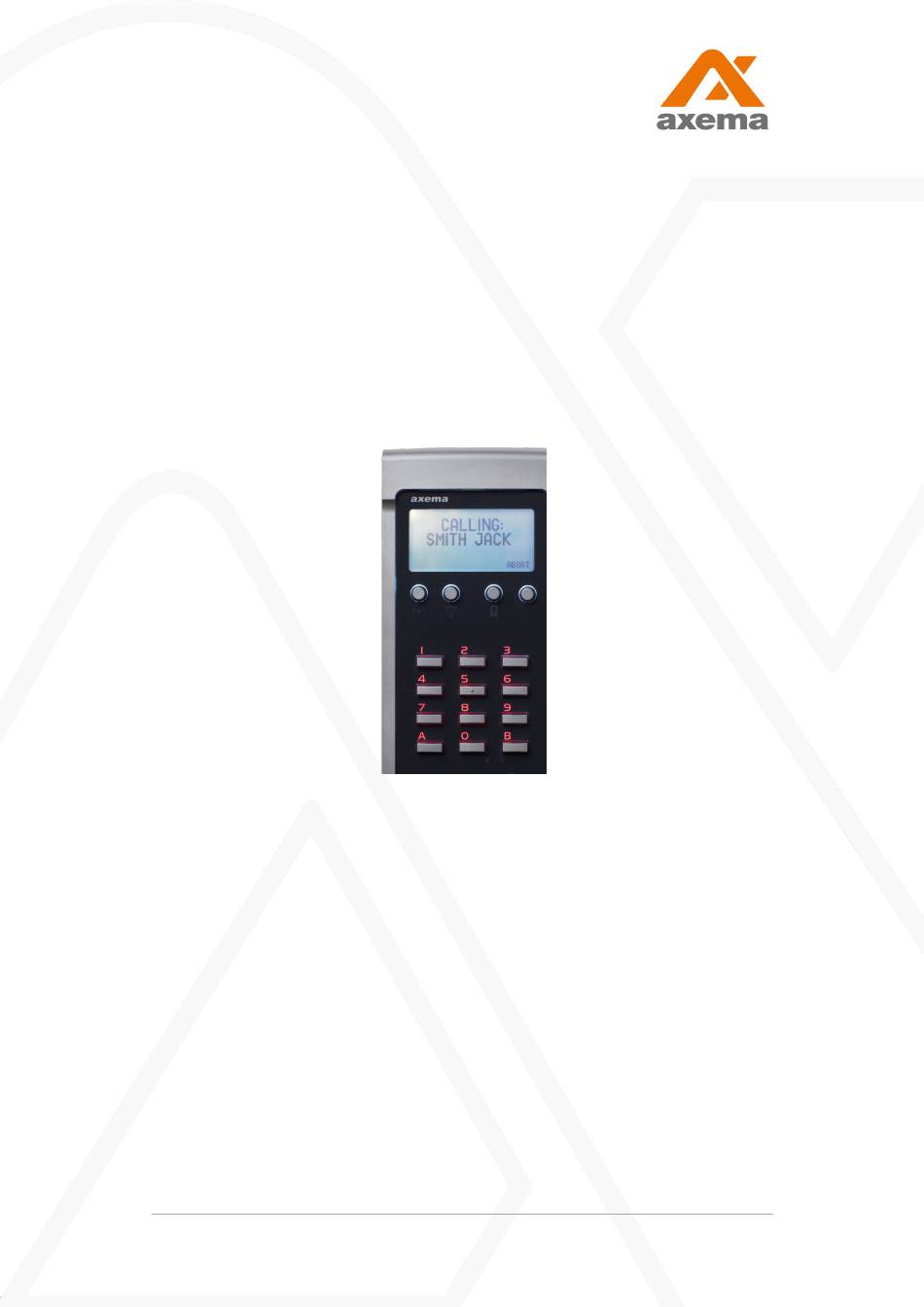

- Page 1 Manual (En) Updated 2018-11-17 VAKA-CALL Master 4G Axema Access Control AB | Box 90215 | 120 23 Stockholm, Sweden | 08-722 34 40 | info@axema.se | www.axema.se...
-
Page 2: Table Of Contents
Network and connection settings Entry phone network settings Line types VoIP settings User account Advanced Connecting one door Connection multiple doors VAKA administration Add tags and phone numbers Always show name list in the entry phone 2 (9) Manual (En) VAKA-CALL Master 4G... -
Page 3: Ip Telephony And 4G Subscriptions
IP telephony and 4G subscriptions IP-telephony and 4G subscriptions can be made at https://registrering.axema.se/. Installation and configuration 1. The C10 is supplied with a cable and two connectors, one should be connected below the module and the other in the TCP/IP2 connector. The C10 can be mounted on any door controller in the system with intercom. -
Page 4: General Settings
Phone number When this function is activated it's possible to use the phone number of the receiv- ers, including a leading zero. Quick dial numbers Select the length of the quick dial numbers 4 (9) Manual (En) VAKA-CALL Master 4G... -
Page 5: Network And Connection Settings
Google DNS is a public service and is free to use. DNS server 1, 8.8.8.8 DNS server 2, 8.8.4.4 Line types External SIP server Is used for IP-telephony for public telephone networks to call fixed- and/or cell phones 5 (9) Manual (En) VAKA-CALL Master 4G... -
Page 6: Voip Settings
Supplied by the IP telapony provider Advanced Normally no configuration of advanced settings are required. User Agent (advanced settings) Configuration when using a STUN serve Information is supplied by the IP telephony provider. 6 (9) Manual (En) VAKA-CALL Master 4G... -
Page 7: Connecting One Door
Additional doors can be connected to the switch in the same way and be supplied with a C11. If a PoE switch is not used, the door controllers have to be powered locally 7 (9) Manual (En) VAKA-CALL Master 4G... -
Page 8: Vaka Administration
9. Repeat point 4 to 8 for all persons. 10. Go to the Access groups tab and double click on Full access 11. Select Time schedule Always next to Time schedule: and check Time group 8 (9) Manual (En) VAKA-CALL Master 4G... -
Page 9: Always Show Name List In The Entry Phone
2. Double click on the door in the left field 3. Select the Terminals tab and click on A66 4. Select Name list (Entry phone) next to Standard view: 5. Click on OK and then Save 9 (9) Manual (En) VAKA-CALL Master 4G...
