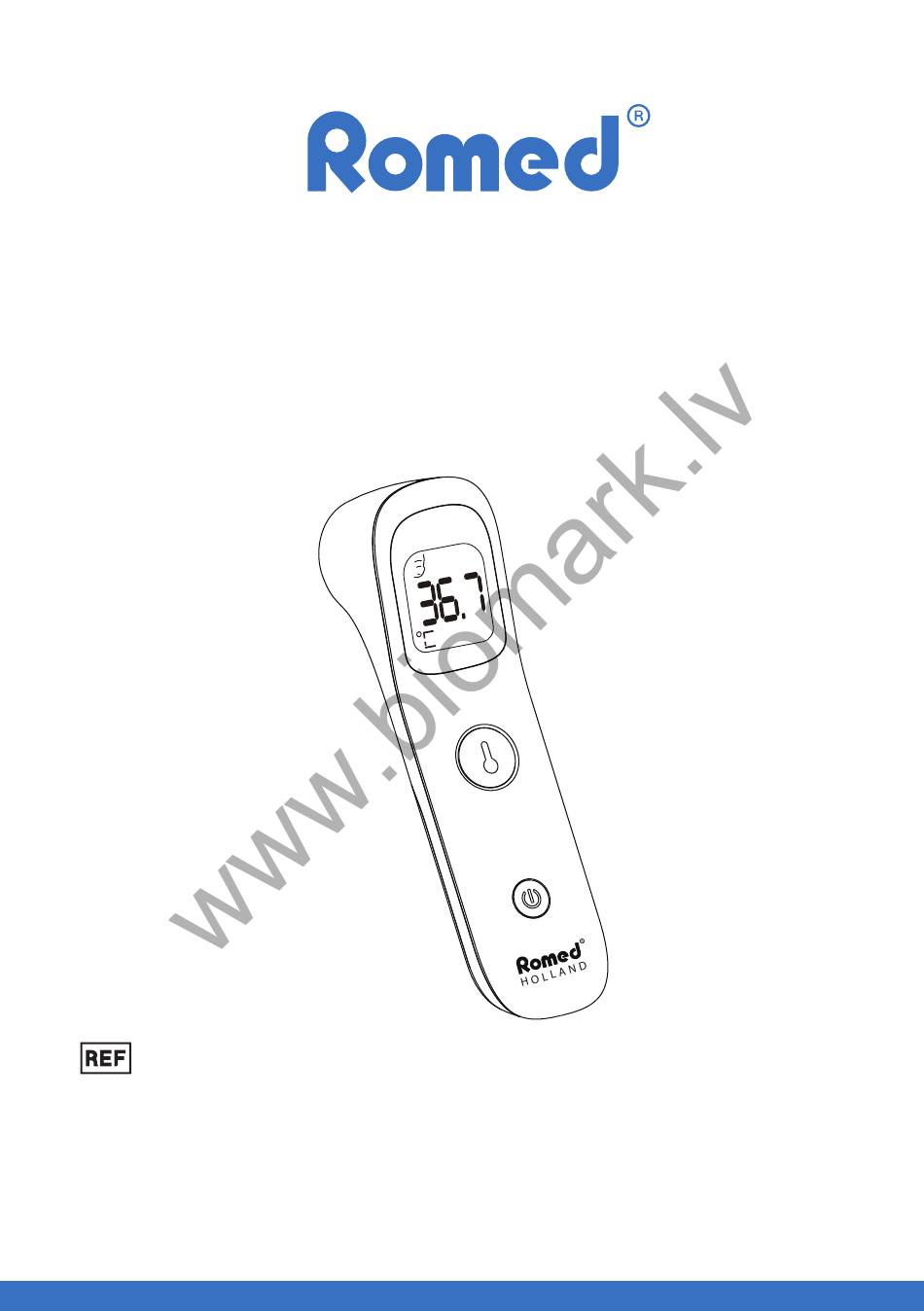

H O L L A N D
USER MANUAL
INFRARED FOREHEAD THERMOMETER
: THERM-IR
Thank you for purchasing the Romed Infrared Forehead Thermometer.
Be sure to read this Instruction Manual before using the unit in order to use it safely it safely and
correctly. The instruction manual should be well kept for your reference at any time.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THERM-IR and is the answer not in the manual?

Questions and answers

Related Manuals for Romed-Holland THERM-IR

Summary of Contents for Romed-Holland THERM-IR

  • Page 1 H O L L A N D USER MANUAL INFRARED FOREHEAD THERMOMETER : THERM-IR Thank you for purchasing the Romed Infrared Forehead Thermometer. Be sure to read this Instruction Manual before using the unit in order to use it safely it safely and...

  • Page 2: Table Of Contents

    There are no contraindications  You should stop using the device and should consult with your physicians if you experience  adverse reactions caused by the device the device. This device can be applied to all people. No special training is needed, but the user shoul ...

  • Page 3: Foreword

    1 FOREWORD WARNINGS ● This unit is used for temperature measurement and not for disease diagnosis; it cannot be used for emergency and continuous measurement in surgery. The patients cannot diagnose the disease and get treatment by themselves on the basis of the measurement results, they must follow the instruction of doctors.

  • Page 4: Device Description

    2 DEVICE DESCRIPTION PRODUCT INSTRUCTION The Romed Infrared Forehead Thermometer is intended to measure human body temperature by measuring at the forehead. It is suitable for displaying the body temperature by measuring the heat radiation from the forehead. Probe: Type BF Applied part Serial number Batch code Catalogue number.
  • Page 5 COMPONENTS/ACCESSORIES LCD Display Temperature / Memory Button Power / Mode Button Thermosensor Distance Sensor Battery Cover Body Mode Indicator Object Mode Indicator Temperature reading / distance indicator °C / °F / CM Memory Indicator Memory Times / Remaining time Battery Charge Measure Distance Batteries...

  • Page 6: Instructions For Use

    3 INSTRUCTIONS FOR USE 1. Press the battery cover and it will bounce open automatically. Prepare 2 pieces of 1.5V AAA batteries, install them into the battery chamber according to correct positive and negative poles and close the cover. 2. Press and release the power button once. Backlight will come on and the start-up sequence will begin.
  • Page 7 5. Read the temperature. If the temperature fever guidance range is < 32°C or > 43°C, you can hear a single short beep. For normal (green backlight) and low 5 sec. interval High fever fever (yellow backlight) temperature range, you will hear a single long beep for 1 second.
  • Page 8 VIEW MEMORY STORAGE In OFF status, press the temperature button, the screen will display 30 groups of measurement in reverse order. Switch the display value by pressing the temperature button. Thermometer stores body temperature only, no object temperature. It will turn off automatically without operating for approx.

  • Page 9: Specifications

    4 SPECIFICATIONS Product Name Infrared Forehead Thermometer Model THERM-IR Power Consumption Max. 50 mW in measurement mode Rating 2×1.5V AAA alkaline batteries Battery Life More than 1000 Times of continuous operation Auto Power-off Approx 30 seconds Dimension 149(L) x 34(W) x 52(H) mm...

  • Page 10: Cleaning And Disinfection

    5 CLEANING AND DISINFECTION ● For the thermosensor (probe): if there is dust or other dirt in the mirror or tunnel of the sensor, clean the probe with a cotton swab dipped in anhydrous alcohol. Don't place the product directly under the faucet to wash. ●...

  • Page 11: Disposal

    This message displays when the Re-measure the temperature carefully measured temperature is lower following the instructions in “Instructions than 32 °C (89.6 °F) in the body for use” section. mode. This message displays when the measured temperature is higher than 43 °C (109.4 °F) in the body mode.
  • Page 12 MANUFACTURER’S DECLARATION - ELECTROMAGNETIC EMISSIONS The Romed Infrared Forehead Thermometer is intended for use in the electromagnetic environments specified below. The customer or the user of the Romed Infrared Forehead Thermometer should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment-guidance...
  • Page 13 MANUFACTURER’S DECLARATION – ELECTROMAGNETIC The Romed Infrared Forehead Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of The Romed Infrared Forehead Thermometer should assure that it is used in such an environment. Immunity IEC 60601 Electromagnetic environment...
  • Page 14 NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. +40°C +60°C VAN OOSTVEEN MEDICAL B.V. +15°C -25°C ROMED - HOLLAND Working Storage and HERENWEG 269 Environment Transport Environment 3648 CH WILNIS THE NETHERLANDS WWW.ROMED.NL : THERM-IR V001,2020-10...
