Summary of Contents for Korea Hoist KA1S Series

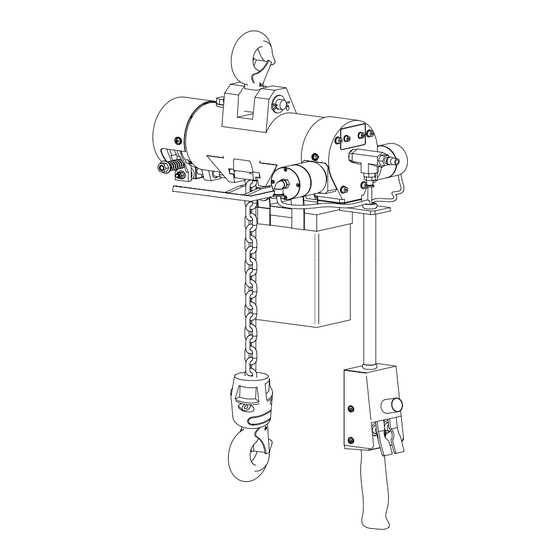

- Page 1 EDITION NO. : KA1S20201702R3 USER'S MANUAL AIR CHAIN HOIST KA1S-SERIES · INSTALLATION · OPERATION · MAINTENANCE · PART IDENTIFICATION WARNING · NEVER USE THE HOIST FOR LIFTING OR LOWERING PEOPLE. · READ THIS MANUAL BEFORE INSTALLATION, OPERATION OR MAINTENANCE. · KEEP THIS MANUAL AVAILABLE. 고려호이스트...
-
Page 2: Table Of Contents
EDITION NO. : KA1S20201702R3 고려호이스트 KA1S - SERIES CONTENTS 1. Safety instructions before completing installation ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1.1 General safety information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1.2 Air supply and lubrication ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 1.3 Safety instructions for operators ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 2. Specifications ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3. Inspection regulations before completing installation ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙... -
Page 3: Safety Instructions Before Completing Installation
EDITION NO. : KA1S20201702R3 고려호이스트 고려호이스트 KA1S - SERIES 1. Safety instructions before completing installation Air chain hoists are only intended for lifting and moving loads and may be used as stationary or traveling units. Air chain hoists may only be operated when in perfect working order by trained personnel in accordance with the relevant safety and accident prevention regulations. -
Page 4: Inspection Regulations Before Completing Installation
EDITION NO. : KA1S20201702R3 고려호이스트 고려호이스트 고려호이스트 KA1S - SERIES 3. Inspection regulations before completing installation 3.1 Inspection - Do not accept them until the freight or express agent makes an appropriate notation on your freight bill or express receipt if any of the goods called for on the bill of lading or express receipt are damaged or the quantity is short. -
Page 5: Test-Run
EDITION NO. : KA1S20201702R3 고려호이스트 KA1S - SERIES 5. Test-run 5.1 Operation in unloads - The indicated digit of the regulator should be 4kgf/㎠ or over. - The lifting speed should be faster than the lowering one. - Before fitting, before lifting a test load and commissioned and during normal operation, the proper oil should be supplied to air motor. -
Page 6: Maintenance
EDITION NO. : KA1S20201702R3 고려호이스트 KA1S - SERIES - Gearbox(or Reducer section) • The gearbox(or reduction section) in the hoist body is lubricated with grease, and the grease should be changed at least one year. • Do use the grease or its equivalent of Korea Dowcorning BR-2 •... -
Page 7: Brake Adjustment
EDITION NO. : KA1S20201702R3 고려호이스트 KA1S - SERIES - Brake adjustment ACCESSORY NAME NAME NAME Brake Adjust Bolt Brake Shoe Brake Setting Nut Brake Adjust Rock Nut Brake Adjust Plate Brake Pad Brake Cam Brake Wheel • As air hoist operaties (as compressed air is supplied); Brake cam(4) connected with the control valve of valve case rotates and pushes the brake adjust plate(3). -
Page 8: Storage Of Hoist
EDITION NO. : KA1S20201702R3 고려호이스트 고려호이스트 고려호이스트 KA1S - SERIES 6.3 Storage of hoist - Storage for considerable term, requires firstly lubrication by the vaporized anti-corrosion oil to the inlet port, and operation for a few seconds under the low air pressure. - Air chain hoist should be kept in a dry place. -
Page 9: Air Hoist Part Indentification
EDITION NO. : KA1S20207102R3 고려호이스트 고려호이스트 고려호이스트 고려호이스트 고려호이스트 고려호이스트 고려호이스트 고려호이스트 KA1S - SERIES 7. Air Hoist Part Indentification 7 1 Main Body Assembly (0100) 7.1 Main Body Assembly (0100) Part No. Description Q'ty Remark Part No. Description Q'ty Remark KAH1-0101 Main Body... - Page 10 EDITION NO. : KA1S20207102R3 고려호이스트 KA1S - SERIES 7.2 Valve Body Assembly (KAH1-0300) Part No. Description Part No. Description Q'ty Remark Q'ty Remark KAH1-0301 Valve Body KAH1-0324 Bolt-Valve Lever KAH1-0302 Valve Cylinder KAH1-0325 Spring Washer-Valve Lever KAH1-0303 Control Valve KAH1-0326 Bolt-Valve End Cover KAH1-0304 Control Valve Lever...
- Page 11 EDITION NO. : KA1S20207102R3 고려호이스트 KA1S - SERIES 7.3 Hoisting Motor Assembly (KAH1-0200) Part No. Description Part No. Description Q'ty Remark Q'ty Remark KAH1-0201 Cylinder KAH1-0208 Bolt KAH1-0202 Rotor KAH1-0209 Star Washer KAH1-0203 Side Plate_V KAH1-0210 Washer Side Plate_S KAH1-0204 KAH1-0211 Washer KAH1-0205...
- Page 12 EDITION NO. : KA1S20207102R3 고려호이스트 KA1S - SERIES 7.5 KA1-Bottom Hook Assembly (1000Kg) Part No. Description Part No. Description Q'ty Remark Q'ty Remark KAH1-0501 Hook Block (1000Kg) KAH1-0509 KAH1-0502 Hook KAH1-0510 Bolt KAH1-0503 Load Chain KAH1-0512 KAH1-0504 Safety Clip KAH1-0514 Idle Sheave Pin KAH1-0505 Safety Clip Spring...
- Page 13 EDITION NO. : KA1S20207102R3 고려호이스트 KA1S - SERIES 7.6 Push Button Assembly (KA-PB-G2P-000) Part No Part No. Description Description Part No Part No. Description Description Q'ty Q'ty Remark Remark Q'ty Q'ty Remark Remark KA-PB-G2P-001 Push Botton Block KA-PB-G2P-P01 O-Ring KA-PB-G2P-002 Handle KA-PB-G2P-P02 O-Ring...
- Page 14 EDITION NO. : KA1S20207102R3 고려호이스트 KA1S - SERIES 7.7 Chain Box Assembly (KAH1-0700) Part No. Description Part No. Description Q'ty Remark Q'ty Remark KAH1-0701 Chain Box KAH1-0705 Washer KAH1-0703 Bolt KAH1-0706 Lock Nut KAH1-0704 Bolt 7.8 Pull Type Controller Assembly (KAH1-0800) Part No.
- Page 15 EDITION NO. : KA1S20207102R3 고려호이스트 고려호이스트 고려호이스트 KA1S - SERIES 7.9 Over Load Protect Assembly (OLP-1T-0100) Part No. Description Part No. Description Q'ty Remark Q'ty Remark OLP_1T_0101 Hook Ass'y OLP_1T_0107 Hook Nut OLP_1T_0102 OLP_1T_P01 Steel Ball OLP_1T_0103 Washer-1 OLP_1T_P02 OLP_1T_0104 Washer-2 OLP_1T_P03 Coned Disc Spring...
-
Page 16: Air Circuit Diagram For Air Hoist
EDITION NO. : KA1S20207102R3 고려호이스트 KA1S - SERIES 8. Air circuit diagram for air hoist 8 1 Normal type (Standard) 8.1 Normal type (Standard) -
Page 17: Pull Type Control (Option)
EDITION NO. : KA1S20207102R3 고려호이스트 KA1S - SERIES 8.2 Pull type controller (Option) -
Page 18: Safety Valve Type (Option)
EDITION NO. : KA1S20207102R3 고려호이스트 KA1S - SERIES 8.3 Safety valve type (Option) -
Page 19: Overload Protector Type (Option)
EDITION NO. : KA1S20207102R3 고려호이스트 KA1S - SERIES 8.4 Overload protector type (Option) - Page 20 EDITION NO. : KA1S20207102R3 Head Office & Factory 42, MTV 4-ro, Danwon-gu, Ansan-Si, Gyeonggi-do, Korea TEL : (82)31-431-6030 Fax : (82)31-499-3630 A/S Center : (82)31-8033-3214 WEB SITE : http://www.koreahoist.co.kr E-mail : koreahoist@koreahoist.co.kr 고려호이스트 고려호이스트...
