Care Call CCC4A-2212-EU Quick Start Manual

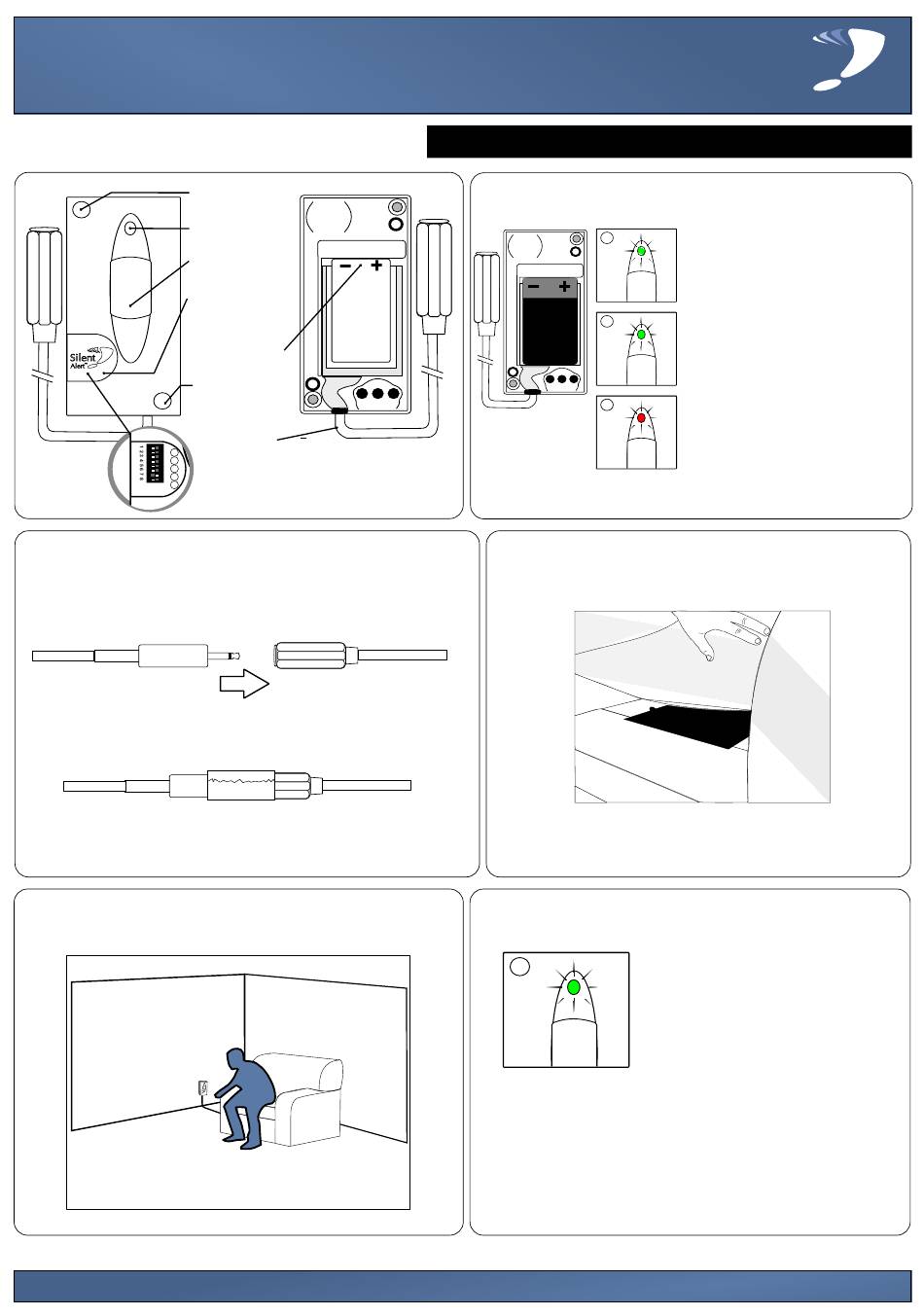

Quick start guide CCC4A-2212-EU
Care Call Mini Chair Leaving Monitor
Chair leaving monitor
PUSH
CCM3A-2216-EU-PIR-MKX
MOVEMENT MONITOR 11/12/13
USE MAINS POWER SUPPLY
PS3A-2207-UK ONLY
SILENT ALERT SA3000 SYSTEM
WWW.SILENTALERT.IE Silent Alert International
TEL +353 (0)1 247 9007
PUSH
2.
The monitor is activated using an under carpet
pressure pad (PM5).
Connect the PM5 plug into the socket on the monitor.
The connection can be taped for added security
The monitor may transmit the first time the connection is
made, this is normal.
4.
As the user stands up the monitor will send a
signal to the Pager or SignWave.
Silent Alert International
Screw cap
Status light
Test button
CCD4A-2220-EU
Configuration CARE CALL
MINI MAGNETIC
DOOR MONITOR
USE ALKALINE PP3
9 V BATTERY ONLY
switch Cover
Batch 06/01/14
www.silentalert.ie
Silent Alert International, Ireland
Tel: +353 (0)1 247 9007
Keys 1-4 System
PP3 battery
Channel
Key 5=10 Sec Delay
Key 6=20 Sec Delay
Keys 5+6=30 Sec Delay
contacts
Key 7 Leave ON
Key 8 Not Used
USE WITH MAGNET SUPPLIED
Screw cap
1
2
3
4
5
6
Pressure pad
7
8
9
10
11
12
13
socket
14
15
16
Configuration switches shown with
cover removed. Do not alter these
without referring to page 2
if required.
Any questions? Call us on +353 (0)1 247 9007
1.
Install a 9 volt PP3 alkaline or lithium battery
making sure to observe the correct polarity.
CCD4A-2220-EU
CARE CALL
MINI MAGNETIC
DOOR MONITOR
USE ALKALINE PP3
9 V BATTERY ONLY
Batch 06/01/14
PP3 Battery www.silentalert.ie
Silent Alert International, Ireland
Tel: +353 (0)1 247 9007
Keys 1-4 System
Channel
Key 5=10 Sec Delay
Key 6=20 Sec Delay
Keys 5+6=30 Sec Delay
Key 7 Leave ON
Key 8 Not Used
USE WITH MAGNET SUPPLIED
To repeat the battery check remove the battery, press the test
button then re-insert the battery to start the sequence again.
3.
Place the Pad under the chair cushion ensuring
When installing the pad make sure the cable can't
5.
Fidget delay
PUSH
After 3 - 4 seconds the monitor will trigger.
However, if the person sits back down the light will
switch off and the monitor will not transmit.
www.silentalert.ie
Care
Call
When a battery is first fitted the
indicator light will flash red then
green a few times then light
solid green & pause briefly.
PUSH
The light will then will flash
green several times to show the
battery voltage.
9 flashes = 9Volts in the battery.
PUSH
If the light flashes red at this
point the battery is flat
and will need to be replaced.
PUSH
the pad is not folded.
cause a trip hazard.
To prevent the unit triggering
when the user changes position in
their seat the monitor has a
'fidget' delay.
If the person releases the
pressure from the pad a timer will
start, this is indicated by the green
light flashing on the monitor.
+353 (0)1 247 9007
