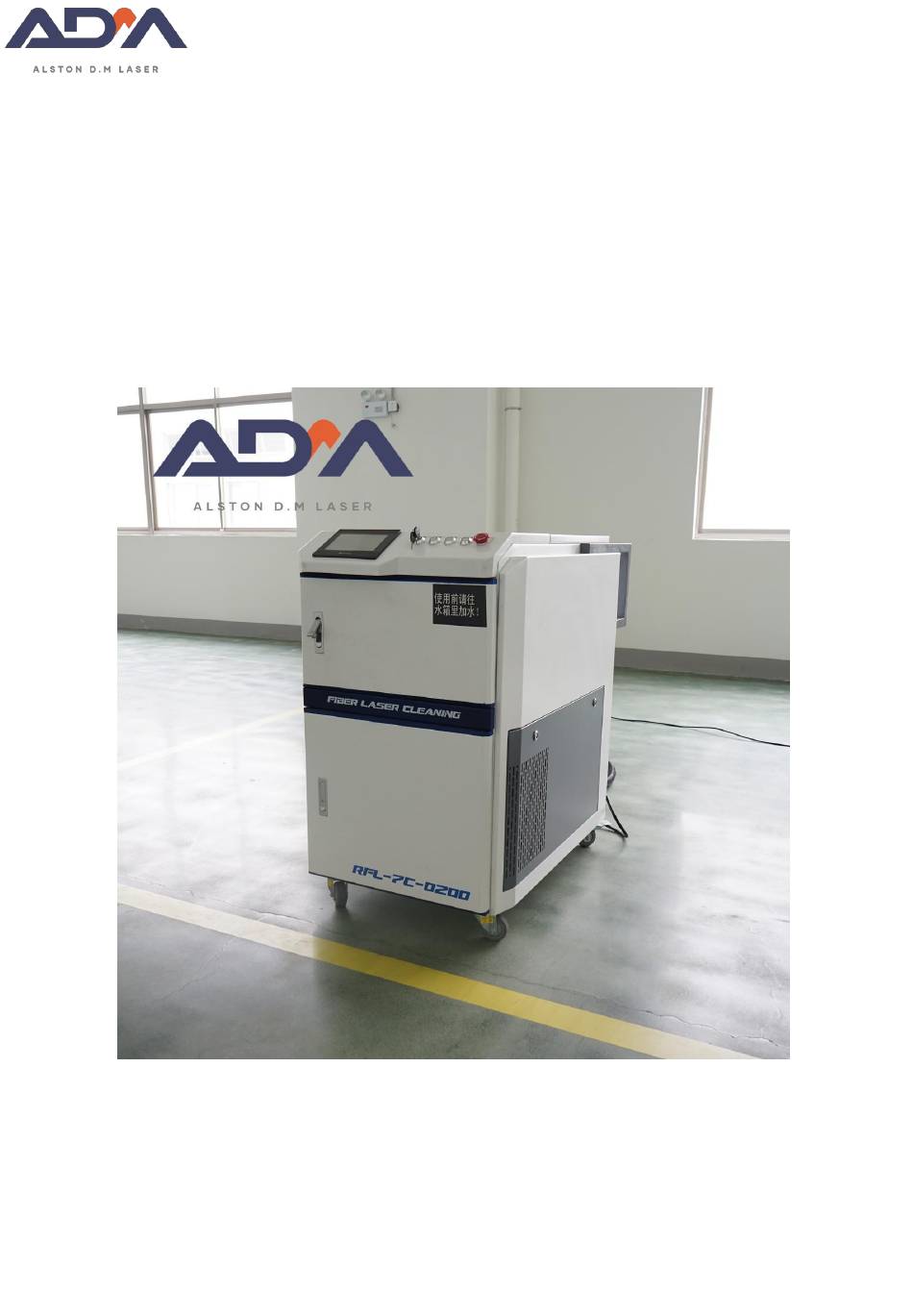

- Page 1 Suzhou Alston D.M Laser Technology Co., Ltd DemonMao RFL-7C-0200 Hand-held Laser Cleaner User Manual...
-
Page 2: Product Description
It has a wide range of applications, including ships, auto repair, rubber molds, high-end machine tools, rails, and environmental protection. Before using the RFL-7C-0200 handheld laser cleaner, please read the user manual carefully. In the course of use, if you have any difficult questions, please contact us in time, we will definitely give you a satisfactory answer as soon as possible. - Page 3 Suzhou Alston D.M Laser Technology Co., Ltd DemonMao 1.2.2. Overall dimensions 1.2.3Product features: ◎Non-contact cleaning, without damaging the part matrix. ◎Precise cleaning can realize selective cleaning with precise position and precise size. ◎No chemical cleaning fluid, no consumables, safety and environmental protection. ◎Easy to operate, just power on, and it can be hand-held or matched with a manipulator to realize automatic cleaning.
- Page 4 Hand held 1.4 Main purpose and scope of application The RFL-7C-0200 hand-held laser cleaner produced by our company adopts high-power fiber laser. The photoelectric system is integrated with the hand-held design. The digital control panel outputs the laser. It has the characteristics of high precision, high efficiency and high cost performance.
-
Page 5: Safety Information And Precautions
Suzhou Alston D.M Laser Technology Co., Ltd DemonMao 2.Safety information and precautions 2.1 Summary Thank you for choosing Raycus fiber laser. This user manual provides you with important safety, operation, maintenance and other information. Therefore, please read this user manual carefully before using this product. -
Page 6: Laser Safety Notice
Suzhou Alston D.M Laser Technology Co., Ltd DemonMao 2.4 Laser safety notice The main hazards of laser to human body are eyes and skin. Laser irradiation can cause burns to any part of the human body. Especially the long-term observation of fiber laser will seriously harm the eye retina! All operators must strictly wear 1064nm laser protective glasses! It is forbidden to operate and observe without wearing glasses! Avoid placing any part of the body in the flight light path of the laser device to avoid injury caused by misoperation. -
Page 7: Use And Operation
3. Use and operation 3.1 Operation summary and operation guide The operation panel of the RFL-7C-0200 handheld laser cleaner is mainly composed of a touch screen and a host control main operation panel. The operation interface is mainly switched by two different states: manual mode and linkage mode. - Page 8 Suzhou Alston D.M Laser Technology Co., Ltd DemonMao 3.3.2 Use steps: Step 1: Button operation, as shown in Figure 3. 1) Reset the "Emergency Stop" button; 2) 2) Turn the "Power" key switch to the right, turn on the power of the control system, and the green "Indicator"...
- Page 9 Suzhou Alston D.M Laser Technology Co., Ltd DemonMao and other highly reflective materials). Step 4: Display control operation (manual mode and linkage mode). Manual mode 1) The startup page is shown in Figure 6; 2) Click the manual mode to enter the parameter setting page, where you can set the power and frequency, as shown in Figure 7;...
- Page 10 Suzhou Alston D.M Laser Technology Co., Ltd DemonMao Step 5: Press the "control signal" button in the picture (note: for safety, this button should be turned off immediately after use). Step 6: Turn the cleaning head toward the surface of the workpiece to be cleaned, and press the button on the handle of the cleaning head to start cleaning.
- Page 11 5. It is forbidden to use the light outlet at a right angle of 90 degrees to the cleaned surface during use, so as not to affect the life of the equipment using RFL-7C-0200 User Manual. 6. Please add deionized water or purified water to the water tank for the first use, and replace the water in the water tank within 3-6 months.
-
Page 12: Maintenance
4. Maintenance 4.1 Summary In order to ensure the normal use of the RFL-7C-0200 handheld laser cleaner, the equipment must be maintained and maintained daily. As the whole machine is composed of high-precision components, you must be extra careful during daily maintenance, strictly follow the operating procedures of each part, and must be maintained by dedicated personnel. - Page 13 Suzhou Alston D.M Laser Technology Co., Ltd DemonMao and do not directly touch the coating surface of the lens. 2) When assembling the lens, do not blow into the lens with your mouth; the lens should be placed on a clean table stably with a few pieces of lens paper underneath. When taking the lens, you should be careful to prevent bumps and falls, and do not apply any force on the coating surface of the lens;...
- Page 14 Suzhou Alston D.M Laser Technology Co., Ltd DemonMao environment, otherwise the lens will be easily damaged by condensation and frost when taken out; the storage environment temperature should not exceed 30℃, otherwise it will affect the coating on the lens surface. 3) Keep the lens in the box.
