Summary of Contents for Tubbutec LPZW 6m0d6

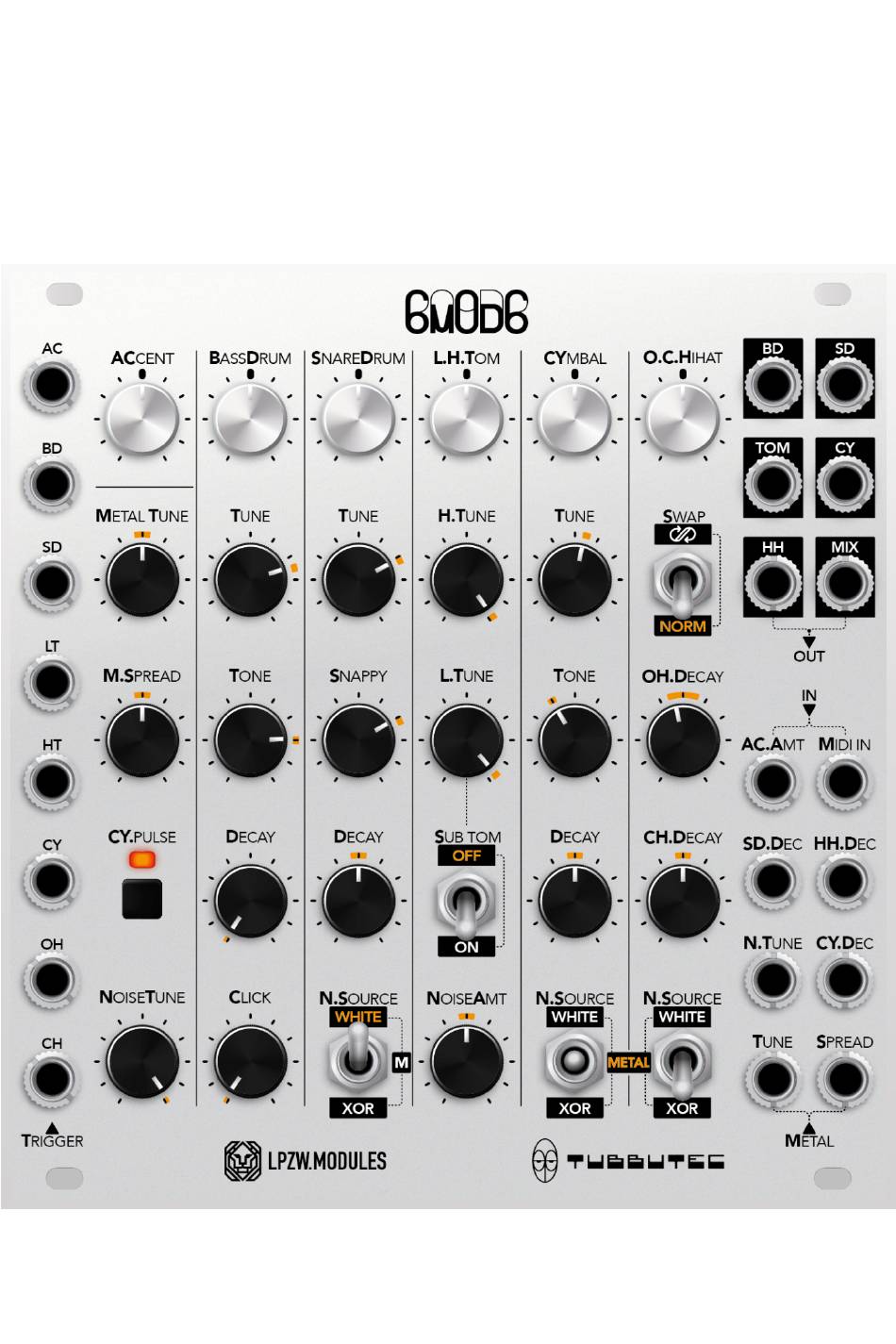

- Page 1 6m0d6 by LPZW & Tubbutec User manual Find the latest version of this manual on tubbutec.de/6m0d6...
-
Page 2: Table Of Contents
Index Introduction Feature List Triggers, Accent and Volume Noise and Metal Trigger lengths Outputs and Mixer Bass Drum Snare Drum Low Tom and High Tom Cymbal Open and Closed Hihat CV-inputs LINK input and 6equencer MIDI Input Trigger drum sounds Play the metal sound CC control Config Menu... -
Page 3: Introduction
Introduction 6m0md6 is based on the famous TR-606 and indeed can sound like one, but it is so much more. With the turn of a knob you can explore completely new soundscapes ranging from organic retro drum sounds to industrial sound effects – while still maintaining that ‘606’ feel. -
Page 4: Feature List
Advanced metal and noise sound control • Multiple outputs and mix output • CV control for multiple parameters • MIDI input for drum trigger and sound control • Compatible with Tubbutec 6equencer via LINK • Eurorack, 3U, 24HP, 25mm depth, weight: 350g... -
Page 5: Triggers, Accent And Volume
Triggers, Accent and Volume 6m0d6 instruments are triggered via the 7 trigger inputs. Additionally an Accent Gate input, An Accent CV input and an Accent Amount pot are available. Combined, multiple Trigger, Accent and Volume control modes are possible. 0V..5V Accent Volume Accent Gate... - Page 6 6m0d6 includes many ways to dynamically control instrument volumes allowing rich, natural drum patterns. These are determined by the trigger input volume, The Accent Amount knob, Accent switch input and Accent CV input. a) Normal volume control If nothing is plugged into the Accent Amount and Accent Gate sockets, accent is continuously turned on with a level adjustable with the Accent Volume knob.
-
Page 7: Noise And Metal
Trigger lengths Incoming triggers will be internally shortened to 1.2ms to ensure proper sounding instruments. Amplitude and shape of the triggers are maintained, however. For the cymbal, this pulse shaper can be disabled, allowing complete control of the Cymbal sound. Shorter pulses also sound interesting and are worth a try. -
Page 8: Outputs And Mixer
Outputs and Mixer 6m0d6 includes volume pots for each instrument with individual outputs and a mix output. Instruments are available at the mix outputs as long as nothing is plugged into the individual outputs. Plugging into an individual output will remove said instrument from the mix output. -
Page 9: Low Tom And High Tom
Low Tom and High Tom The Toms are damped oscillators with a low-passed noise decay part that simulates reverb. • HT Tune: Adjusts the pitch of the High Tom • LT Tune: Adjusts the pitch of the Low Tom • Sub Tom: Halves the pitch of the Low Tom and creates a sub-bass or second bass drum. -
Page 10: Open And Closed Hihat
Open and Closed Hihat The 606 hihats are created from a decaying, filtered metal sound. Open and closed hihats use different envelopes, but the same sound generation. The closed hihat cuts off the open hihat. In the original 606, the open hihat decay is tempo dependent. -
Page 11: Cv-Inputs
• Metal Spread: Controls the Metal Spread parameter LINK input and 6equencer 6m0d6 has a Tubbutec LINK interface on the back and can be directly connected to the Tubbutec 6equencer. When using the LINK interface, the 6equencer can trigger the instruments and Accent, without needing to patch the connections manually. -
Page 12: Midi Input
MIDI Input MIDI input is provided by TRS MIDI. Both A and B types are supported automatically. Midi can be used to trigger drum sounds, adjust parameters via MIDI CC and even play the metal sound like an instrument. Trigger drum sounds On MIDI channel 10, the drum sounds and accent can be triggered. -
Page 13: Play The Metal Sound
Play the metal sound Sending notes on MIDI channel 1 allows you to play the six metal oscillators directly. This effectively turns the oscillators – and with them the Cymbal, Hihats and Snare Drum into a paraphonic six-voice synthesizer. Metal tune and Spread still work. With Spread set to 0, all oscillators are in tune;... -
Page 14: Config Menu
The CCs for Decay, Pitch, Spread and Tune are bipolar with a center of 63 == no change and work in addition to the knobs anc CV-inputs of the module. The pulse shaper CC control can be used to turn shortening of external trigger pulses on or off, identical to the CY.Pulse button on the module. -
Page 15: Firmware Update
Firmware Update Firmware updates with more features and bugfixes are possible via midi. In case there are any updates, you can find the latest version on tubbutec.de Specifications Eurorack, 3U, 24HP Depth 25mm Weight: 350g Power consumption: +12V: 130mA, -12V: 30mA Manual version 1.0...
