Summary of Contents for CAVE-TEK K20

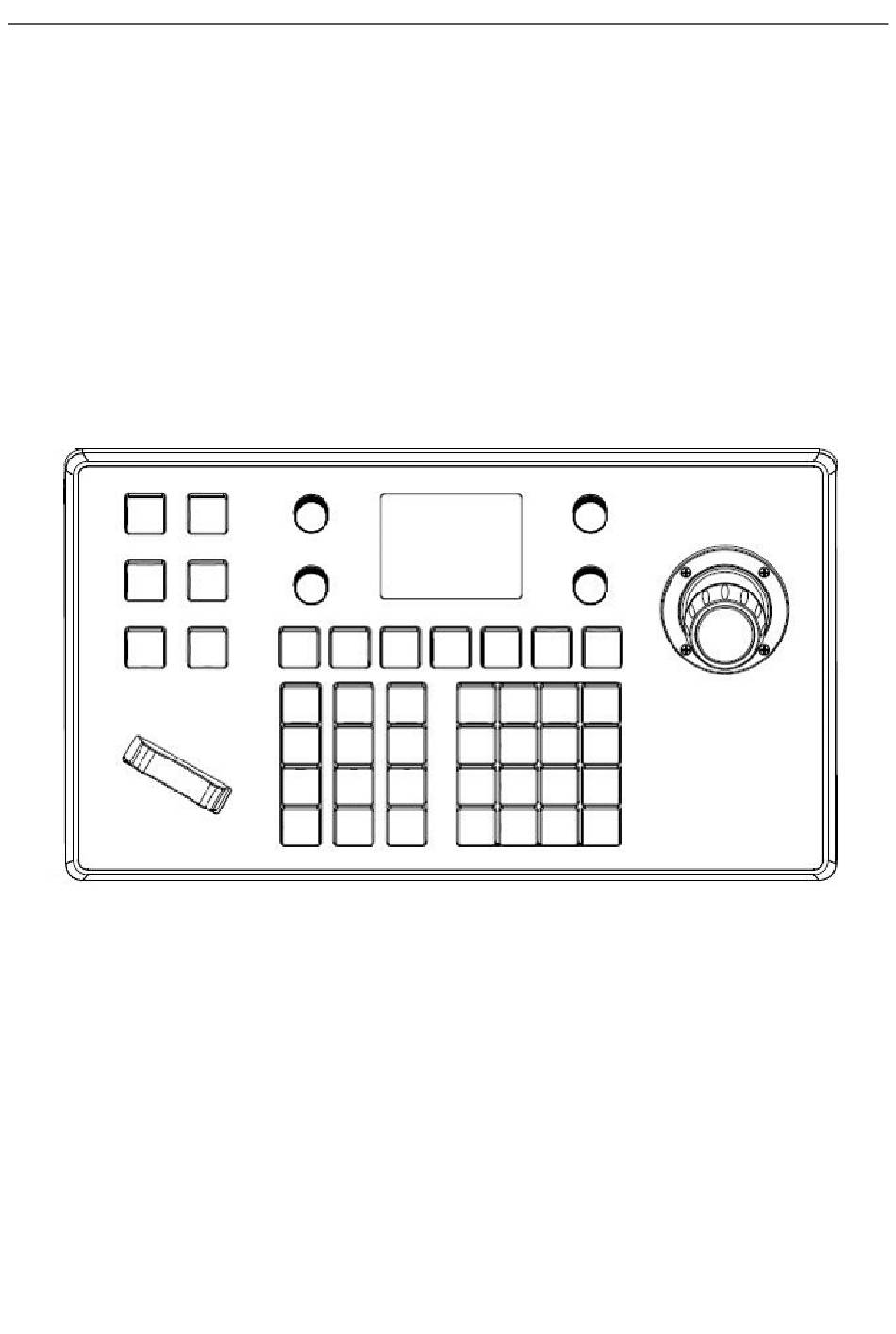

- Page 1 CAVE-TEK K20 Keyboard User Guide CAVE-TEK K20 Keyboard User Guide English (V1.0)
-
Page 2: Table Of Contents
CAVE-TEK K20 Keyboard User Guide Table of content Packing List About K20 Interfaces and Buttons Dimension Keyboard RS-232 Interface RS-422/RS-485 Interface Network Interface GUI Settings Operation Setup MENU Add Network Device Add Analog Device Device List Network Language Button tone RESTORE FACTORY 3.10... -
Page 3: Packing List
CAVE-TEK K20 Keyboard User Guide Packing List Open the box, you will find below items: Name Quantity K20 Keyboard AC Power Adaptor Quick Installation Guide... -
Page 4: About K20
CAVE-TEK K20 Keyboard User Guide About K20 2.1 Interfaces and Buttons Item Name RS-232 Interface RS-422 / RS-485 Interface Ethernet Interface USB Interface (Firmware Upgrade) Power (12V/2A) Power switch 2.2 Dimension 2.3 Keyboard... - Page 5 CAVE-TEK K20 Keyboard User Guide Item Name Description WHITE BALANCE CYCLE Change white balance profile AUTO WHITE BALANCE Enable auto white balance EXPOSURE Change exposure profile AUTO EXPOSURE Enable auto exposure BRIGHT UP / DOWN Brightness level up / down...
-
Page 6: Rs-232 Interface
CAVE-TEK K20 Keyboard User Guide 2.4 RS-232 Interface Keyboard RS-232 Camera (RS-232) 2(RXD) 3(TXD) 5(GND) 2.5 RS-422/RS-485 Interface Keyboard RS-485 Camera Keyboard RS-422 Camera (RS-485) (RS-422) 485+ RX - 485- RX + TX - TX + ● RS232 Communication Control CAVE camera can be controlled via RS232. -
Page 7: Gui Settings
CAVE-TEK K20 Keyboard User Guide GUI Settings 3.1 Operation SWITCH MODE: Long press the button on the top of joystick to switch the mode into analog mode. SET PRESET: Long press the number button to save the current position to the preset. -
Page 8: Add Analog Device
CAVE-TEK K20 Keyboard User Guide Camera: No1-7 Protocol: VISCA, PELCO-D, PELCO-P, ONVIF IP Add: IP address of the camera. //If using network Port: Port number User Name: User name to login camera Password: Password to login camera 3.4 Add Analog Device Move the main menu cursor to [2], and press [Enter] key enter the add the analog device page, as shown in the following figure. -
Page 9: Network
CAVE-TEK K20 Keyboard User Guide 3.6 Network Move the main menu cursor to [4], and press [Enter] key enter the network setup page. Mode: DHCP, Static IP Address: setup the IP address of the keyboard. 3.7 Language Move the main menu cursor to [5], and press [Enter] key enter the Language setup page. -
Page 10: Web Setup
WEB Setup Page Function 4.1 Login Connect the keyboard and computer to the same network, enter the K20 keyboard IP address to the browser. The login page shows follows: Default u s e r name: admin; password: empty 4.2 Device Management... -
Page 11: Settings
Password: Password to login camera Analog: Camera: No1-7 Protocol: VISCA, PELCO-D, PELCO-P, Baudrate: 2400/4800/9600/38400 bit/s; Address: 1/2/3/4 4.3 Settings 4.3.1 Network Change the network settings of K20 keyboard. Network Type: DHCP, Static IP Address: Sub-mask: Gateway: DNS: 4.3.2 Upgrade Select... -
Page 12: Reset
CAVE-TEK K20 Keyboard User Guide 4.3.3 Reset Reset all the device settings to default value. 4.3.4 Restart Restart K20 keyboard. 4.3.5 Import / Export Import/Export the K20 keyboard config file. 4.3.6 Version Display the system software and hardware information. V1.0_20210908...
