Summary of Contents for Star Cooperation FlexSwitch 1000BASE-T1

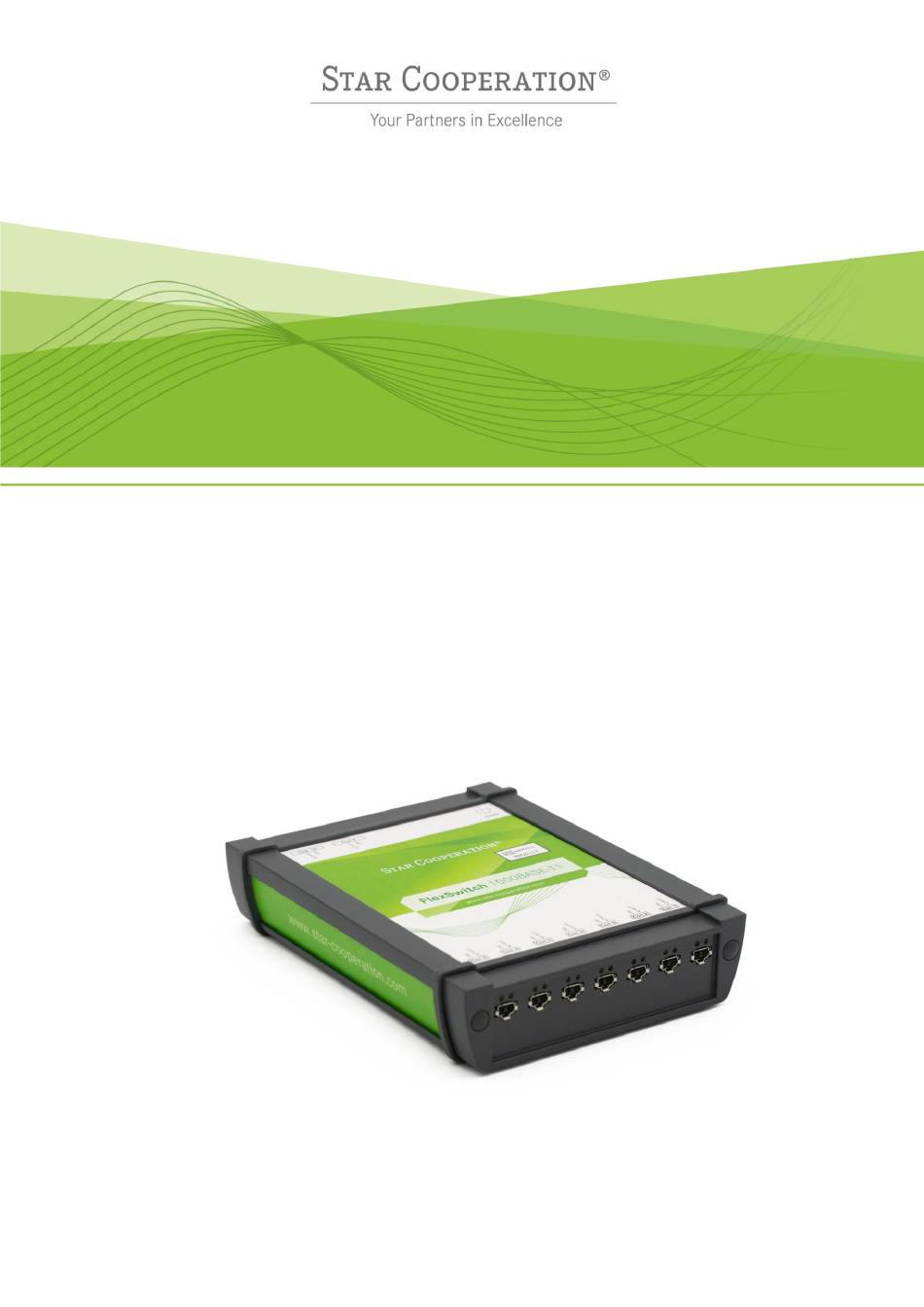

- Page 1 FlexSwitch 1000BASE-T1 Instructions for Use...
- Page 2 Contact Information STAR ELECTRONICS GmbH & Co. KG A Company of the STAR COOPERATION Group Jahnstraße 86 73037 Göppingen Phone: +49 (0)7031 6288-5656 Phone: +49 (0)7031 6288-5330 (Support) Sales: sales-ee@star-cooperation.com Support: support-ee@star-cooperation.com www.star-cooperation.com/ee-solutions Company Data STAR ELECTRONICS GmbH & Co. KG, registered office: Göppingen, register court Ulm, HRA 721096 Partner liable to unlimited extent: STAR ELECTRONICS Verwaltungs-GmbH, registered office: Göppingen, register...
- Page 3 The safety and handling instructions in this document must be followed strictly. EC Conformity The FlexSwitch 1000BASE-T1 complies with the essential requirements of the following applicable European Community Directive(s) including current amendments, and carries the CE marking accordingly: Richtlinie zur Harmonisierung der Rechtsvorschriften der Mitgliedstaaten über die elektromagnetische Verträglichkeit...
- Page 4 Description D1V0-5 23.03.2021 Preliminary Release D1V0-F 21.10.2021 First Release Related Hardware / Software Versions Product Reference No. Version Remarks FlexSwitch 1000BASE-T1 3-0103-0A01 Created by STAR ELECTRONICS GmbH & Co. KG Date created 2021-10-21 Date modified 2021-11-24 Page 4 of 20...
-
Page 5: Table Of Contents
Used Pictograms ..........................7 Safety and Handling Instructions ......................7 Meaning of Text Styles ......................... 8 Product Description ..........................9 FlexSwitch 1000BASE-T1 at a glance ....................9 Accessory Parts ........................... 9 Technical Data ............................ 10 Electrical Characteristics ........................10 Physical Characteristics ........................10 Environmental Conditions ........................ -
Page 6: General
General Intended User Group This document is written for expert technicians and/or engineers who are familiar with electronic components and systems. Each person involved with setup or operation of the product must be a qualified technician or engineer strictly adhere to this manual ... -
Page 7: Used Pictograms
NOTICE The device is not a calibrated measurement device. STAR ELECTRONICS GmbH & Co. KG accepts no liability whatsoever for the correctness of any measurement results. WARNING The FlexSwitch1000BASE-T1 is NOT designed, intended, or authorized and may NOT be used for or in connection with the following purposes and/or devices: - use as part of medical systems - life support applications - aviation, space, nuclear, or military applications... -
Page 8: Meaning Of Text Styles
STAR ELECTRONICS GmbH & Co. KG is not liable for any damages arising from non-observance of the product information. Follow the a) specific safety and handling instructions placed at dedicated document positions b) general safety and handling instructions below: NOTICE To prevent damage to the FlexSwitch1000BASE-T1, or consequential damages: Do not connect any other signals to the interfaces as described in the chapter 3.4 Interfaces. -
Page 9: Product Description
Product Description FlexSwitch 1000BASE-T1 at a glance The FlexSwitch 1000BASE-T1 is a Ethernet switch with 7 x 100/1000BASE-T1 ports and 2 x SFP(+) 1000/10GBASE-T port. With the FlexSwitch 1000BASE-T1, it is possible to connect an automotive Ethernet network to a standard PC for testing or diagnostic purposes. It supports up to 1000 MBit/s in full duplex mode on both sides. -
Page 10: Technical Data
Relative Humidity 0% – 90% r. H., non-condensing Table 3: Environmental conditions Interfaces The FlexSwitch 1000BASE-T1 has a Binder series 711 power connector, two SFP(+) connectors for the 1000/10GBASE-T (Ethernet), see the following figure. Con 9 Con 10 Figure 1: Side with Power and two SFP(+) Ethernet (10G/1000BASE-T) Created by STAR ELECTRONICS GmbH &... -
Page 11: Power Connector (Binder) And Led
Figure 2: Side with 1000BASE-T1 3.4.1 Power connector (Binder) and LED The valid range of the power supply for the FlexSwitch 1000BASE-T1 is within 8 - 48 V DC. The power supply input of the FlexSwitch 1000BASE-T1 is reverse protected. -
Page 12: Ethernet Con 1 - 7 (Spe T1 Iec 63171-6) And Leds
3.4.2 Ethernet Con 1 – 7 (SPE T1 IEC 63171-6) and LEDs The FlexSwitch 1000BASE-T1 supports seven 1000BASE-T1 SPE connectors marked Con 1 to Con 7. These connectors support 100/1000MBit/s in full-duplex mode. The 1000BASE-T1 connectors supports both A0 (legacy) and A2 (IEEE-compliant) mode. -
Page 13: Ethernet Con 9 And 10 (Sfp+ Module)
The standard SFP(+) connector assignment is used. 3.4.4 RMU Port (Remote Management Unit) The FlexSwitch 1000BASE-T1 can be configured with the RMU. The port which is selected during hardware is port 9. The software running on 88Q6113 in the FlexSwitch 1000BASE-T1 allows configuration over all ports which are not down. -
Page 14: Getting Started
Ensure to grasp the plug and not the cable when disconnecting the FlexSwitch 1000BASE-T1. Configuration and Operation Use the power connector of the FlexSwitch 1000BASE-T1 to connect with a power-supply within the correct voltage range. Connect the 1000BASE-T1 and Ethernet (1000BASE-T) with their networks. Check the pinouts. -
Page 15: Shipping, Maintenance And Disposal
Shipping, Maintenance and Disposal Dispose off properly per regulations of the country where end-of-life occurs. Created by STAR ELECTRONICS GmbH & Co. KG Date created 2021-10-21 Date modified 2021-11-24 Page 15 of 20... -
Page 16: Troubleshooting
Troubleshooting This chapter contains some frequently asked questions about the FlexSwitch 1000BASE-T1. Effect Solution Effect Solution Created by STAR ELECTRONICS GmbH & Co. KG Date created 2021-10-21 Date modified 2021-11-24 Page 16 of 20... -
Page 17: Ordering Information
STAR COOPERATION Please contact Customer specific switch configuration STAR COOPERATION Related Documents Document Description document number [1] UserManual FlexSwitch User manual for FlexSwitch 1000BASE-T1 3-0103-0A01-D12 1000BASE-T1 Created by STAR ELECTRONICS GmbH & Co. KG Date created 2021-10-21 Date modified 2021-11-24... -
Page 18: Appendix
Appendix Appendix A: Guideline for handling ESD sensitive Products Any tester, equipment, or tool used at any production step or for any manipulation of semi- conductor devices must have its shield connected to ground. The product itself and the carrier system of the product respectively must be placed on a conductive table top or covered by an antistatic surface (superficial resistivity equal to or higher than 0.5MΩ/cm ), grounded through a ground cable (conductive cable from protected equipment to... -
Page 19: List Of Figures
8.2.3 List of Figures Figure 1: Side with Power and Ethernet (10G/1000BASE-TX) ................10 Figure 2: Side with 1000BASE-T1........................11 Figure 3: Power connector Binder 2pol with LED ....................11 Figure 4: 1000BASE-T1 SPE connector side with LEDs ..................12 Figure 5: SPE-T1 Ethernet connectors Con 1 to Con 7 with yellow and green LED .......... - Page 20 STAR ELECTRONICS GmbH & Co. KG A Company of the STAR COOPERATION Group Jahnstraße 86 73037 Göppingen Germany Phone: +49 (0) 7031 6288-5656 info@star-cooperation.com www.star-cooperation.com/ee-solutions Created by STAR ELECTRONICS GmbH & Co. KG Date created 2021-10-21 Date modified 2021-11-24 Page 20 of 20...
