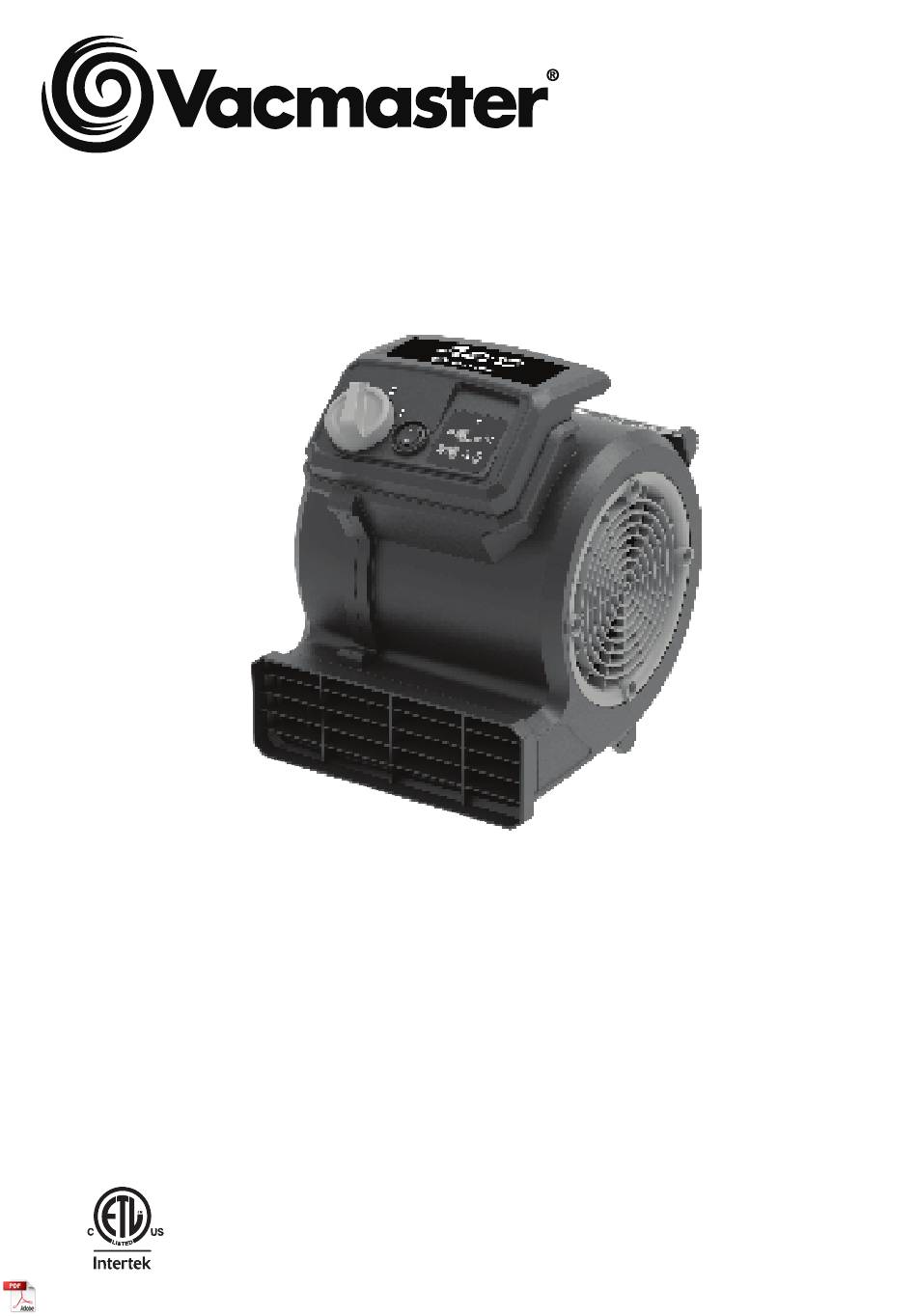

Vacmaster AM201R Operator's Manual

Portable air mover

Hide thumbs

Table Of Contents

Portable Air Mover

Operator's Manual

Portable Air Mover with Remote Control

Model No.

AM201R

FOR YOUR SAFETY

Read and understand this manual before use.

Keep this manual for future reference.

Suzhou Cleva Electric Appliance Co., Ltd.

NO.8 Ting Rong Street 215122 Suzhou, China

Table of Contents

Need help?

Do you have a question about the AM201R and is the answer not in the manual?

Questions and answers

Summary of Contents for Vacmaster AM201R

Page 1 Portable Air Mover Operator’s Manual Portable Air Mover with Remote Control Model No. AM201R FOR YOUR SAFETY Read and understand this manual before use. Keep this manual for future reference. Suzhou Cleva Electric Appliance Co., Ltd. NO.8 Ting Rong Street 215122 Suzhou, China...
Page 2: Table Of Contents
FOR YOUR SAFETY: CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS. WARRANTY ® We take pride in producing a high-quality, durable product. This Vacmaster product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use.
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS AIR MOVER. Read and understand this operator’s manual and all labels on the air mover before operating. Safety is a combination of common sense, staying alert, and knowing how the air mover works.
Page 4 CAUTION: • For dusty jobs, wear a dust mask. • Do not move or carry the air mover while it is operating. • Only operate on a level, stable surface to prevent the air mover from falling and potentially causing injury or damage to the unit or property. FCC COMPLIANCE This device complies with Part 15 of the FCC Rules.
Page 5: Grounding Instructions
GROUNDING INSTRUCTIONS This air mover must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The plug must be inserted into an appropriate GFCI outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Page 6: Know Your Product - Portable Air Mover
KNOW YOUR PRODUCT - PORTABLE AIR MOVER Handle/Cord Wrap Power Cord Status Indicator Speed Control Light Knob On/Off Switch Intake Grill (Left) Peg for Stacking on Side (X4) Air Discharge Grill Remote Control Receiver for Stacking Peg (X4) Intake Grill Remote Control (Right) Strap...
Page 7: Operation
OPERATION GENERAL USE INSTRUCTIONS WARNING : BE SURE TO READ, UNDERSTAND, AND APPLY ALL THE INFORMATION IN THE IMPORTANT SAFETY INSTRUCTIONS SECTION AT THE BEGINNING OF THIS OPERATOR'S MANUAL. DO NOT OPERATE IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO: LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASED PAINTS, GASOLINE, ALCOHOL, OR AEROSOL SPRAYS.
Page 8 WARNING: Do not stack air movers vertically during operation. To reduce risk of overheating or overload, ensure area around intake grills are clear to allow for unobstructed air flow. REMOTE CONTROL MODE NOTE: The remote control supplied with your air mover is already pre-set and does not require pairing upon first use.
Page 9: Maintenance
MAINTENANCE ① WARNING: DO NOT STORE OUTDOORS. STORE IN A DRY ENVIRONMENT, AWAY FROM HAZARDOUS MATERIALS, SUCH AS TOXIC, CARCINOGENIC, FLAMMABLE, OR EXPLOSIVE SUBSTANCES. CAUTION: TO PREVENT DAMAGE TO AIR MOVER, PROPERTY DAMAGE, OR PERSONAL INJURY: DO NOT STACK MORE THAN THREE UNITS HIGH. STACK ONLY ON A STABLE, LEVEL, EVEN SURFACE.
Page 10 REPLACING THE REMOTE CONTROL BATTERY NOTE: The remote control contains small parts. Be careful when replacing the battery and ensure all maintenance is completed on a flat and stable surface. 1. Locate the 3 screws on the rear of the remote control. Carefully remove these screws and keep them in a safe place.
Page 11: Troubleshooting
TROUBLESHOOTING WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK, UNPLUG BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION Check the power supply, cord, No power supply. breakers, and fuses. Unplug and check the power cord. If damaged, have it repaired by Faulty power cord.
Page 12: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST Part Drawing Number Description Quantity Rubber Foot 251002118 Intake Grill (Left) Power Cord Cord Grommet Speed Control Knob ON/OFF Switch 251002117 Air Discharge Grill Intake Grill (Right) Remote Control Holder 251012112 Remote Control 251012113...
