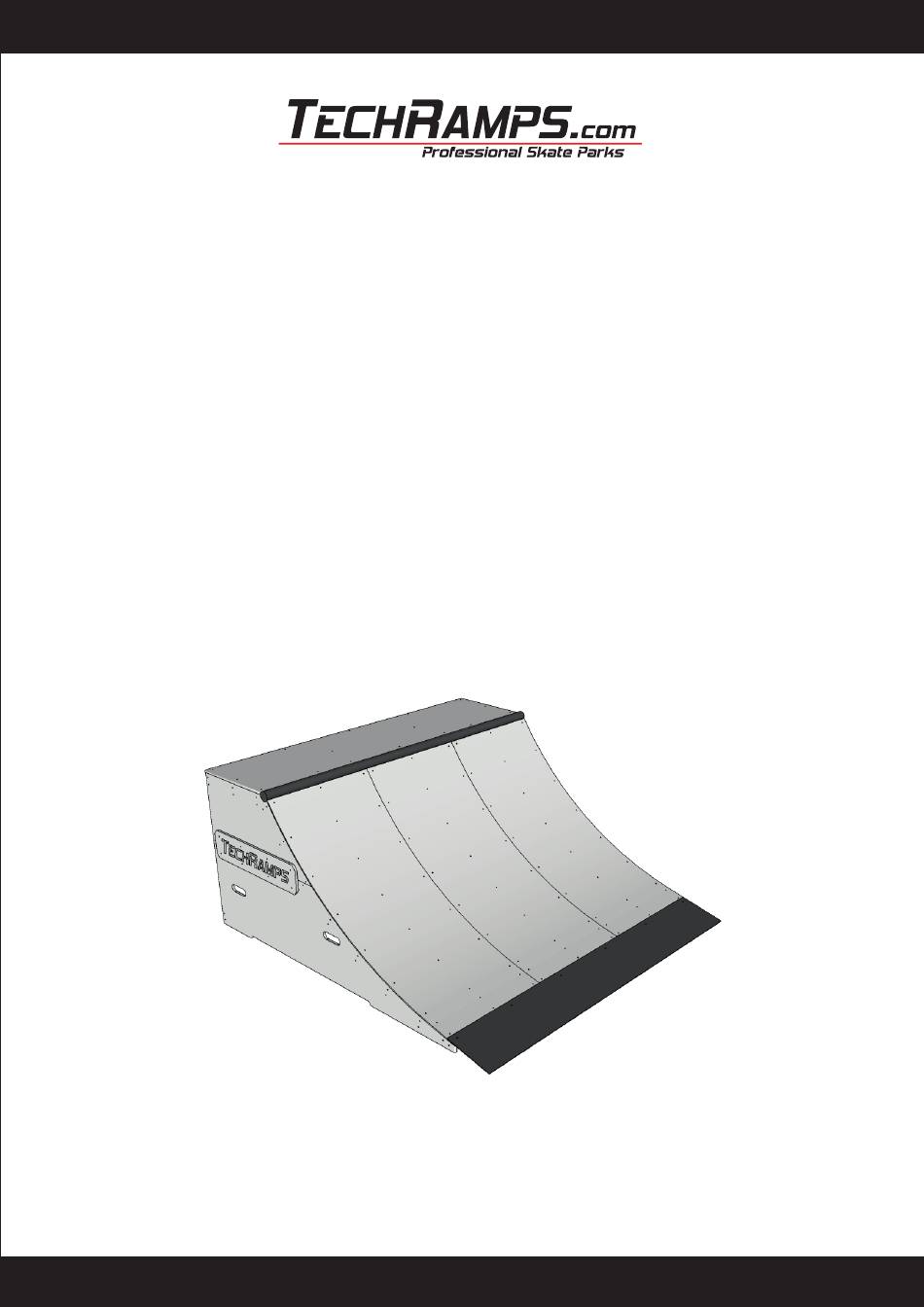

- Page 1 ASSEMBLY INSTRUCTION QUARTERPIPE w w w . t e c h r a m p s . c o m...
- Page 2 Dear customer! We are glad that you've decided to buy our product. Before you will start using the obstacle, please read this manual thoroughly. It should be carefully stored and in case of giving the obstacle to a new owner it also should be given to him/her. The manufacturer/importer shall not be liable in the case of using the obstacle in the wrong way.
- Page 3 contents of the set 1 . Bottom part of the structure 2 p c s . 7 . „ C o p p i n g ” 1 p c s . 2 . Top part of the structure 2 p c s . 8 .
- Page 4 assembly Screw the connector to side panels ( 5 x 3 0 screws ) Screw all wooden bars ( 5 x 1 0 0 screws ) Mount copping and top plate (5 x 6 0 screws) w w w . t e c h r a m p s . c o m...
- Page 5 assembly Mount rideable layer panels ( 5 x 6 0 s c r e w s ) . You will need another person who will push hardly panels to create a "bow" shape. M o u n t th e ov e r r u n me t a l sh e e t ( 5 x 3 0 screws) Read thenext page of the manual and TEST THE OBSTACLE.
- Page 6 safety and user's manual 1. The obstacle is dedicated only for rollerblades, skateboards and BMXs 2. Every user should wear a helmet and a set of protectors 3. At one time only one person can use the obstacle 4. Who should not use the obstacle: -injured people -people with motor system diseases -people with hearth diseases...
- Page 7 w w w . t e c h r a m p s . c o m TECHRAMPS UL.ORGANKI 2, 31-990 KRAKÓW...
