Date : september-2021
Quick start GR252

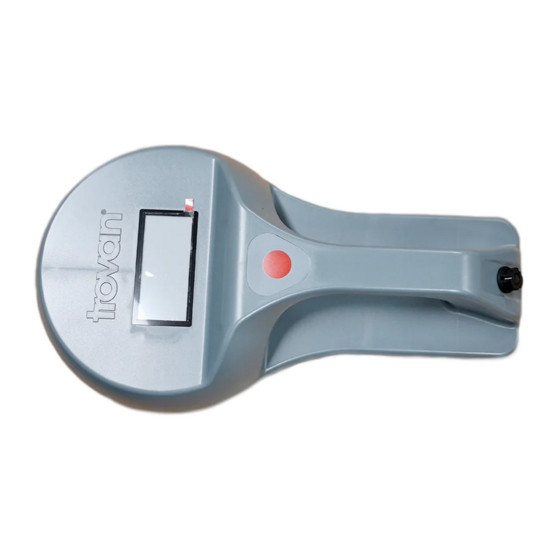

The GR252 is a robust handheld scanner with a multi coil antenna to enable the best reading
performance. The reader has a E ink display that has good readability even if used in direct sunlight.
The Li-ion battery has a capacity of 2250mA and can be charged via the external IP65 connector using
the accompanying charger. Fully charging the battery takes about 10h, a fully charged battery gives
4h of continuous reading time.
The housing of the decoder is IP65 protected.
Dimensions of the reader :
Weight:
Content of package:
-
GR252 handheld scanner, Li-Ion battery integrated
-
Battery charger with separate power lead
-
USB serial cable
Firmware V1.0.4t
Advertisement
Table of Contents
Summary of Contents for Trovan GR252
- Page 1 Firmware V1.0.4t Quick start GR252 The GR252 is a robust handheld scanner with a multi coil antenna to enable the best reading performance. The reader has a E ink display that has good readability even if used in direct sunlight.

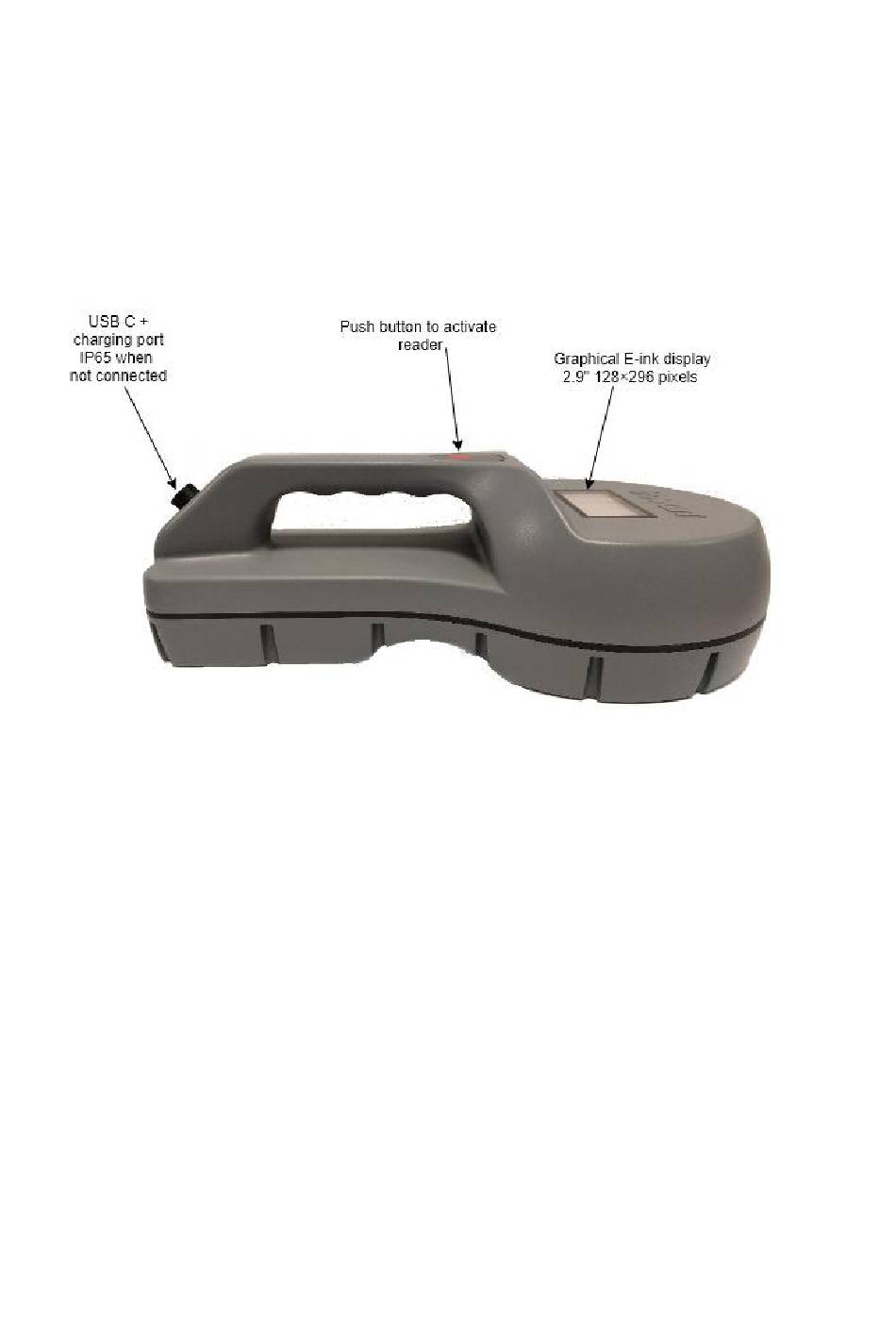

- Page 2 Date : september-2021 Firmware V1.0.4t Display: The E ink display is 2.9” (128×296 pixels) and is activated after pushing the button. Below a description of the Icons that are show in the top line of the display. scanning a tag Press the button briefly to put the reader in standby, it will optionally show the last code read (if activated via the PC companion software.
- Page 3 BLE to an external device. Connect via BLE to external device To link the GR252 via Bluetooth Low Energy (BLE) to a smartphone or tablet., double press the button in standby mode and the display will show it is connecting to the external device.
- Page 4 Date : september-2021 Firmware V1.0.4t The display will inform the user that the transmission was successful or not. Charging battery The reader is delivered with a battery charger. Simply connect the circular connector to the connector on the back of the reader to start charging. The reader has an electronic charging circuit that monitors the battery.
- Page 5 Date : september-2021 Firmware V1.0.4t Software The via the PC wizard you can change the reader settings. The Wizard is self-explaining! Some of the options in the software wizard are: Use custom names Show last code after short button press Shutdown time after reading a tag Buzzer time Tactile feedback...
