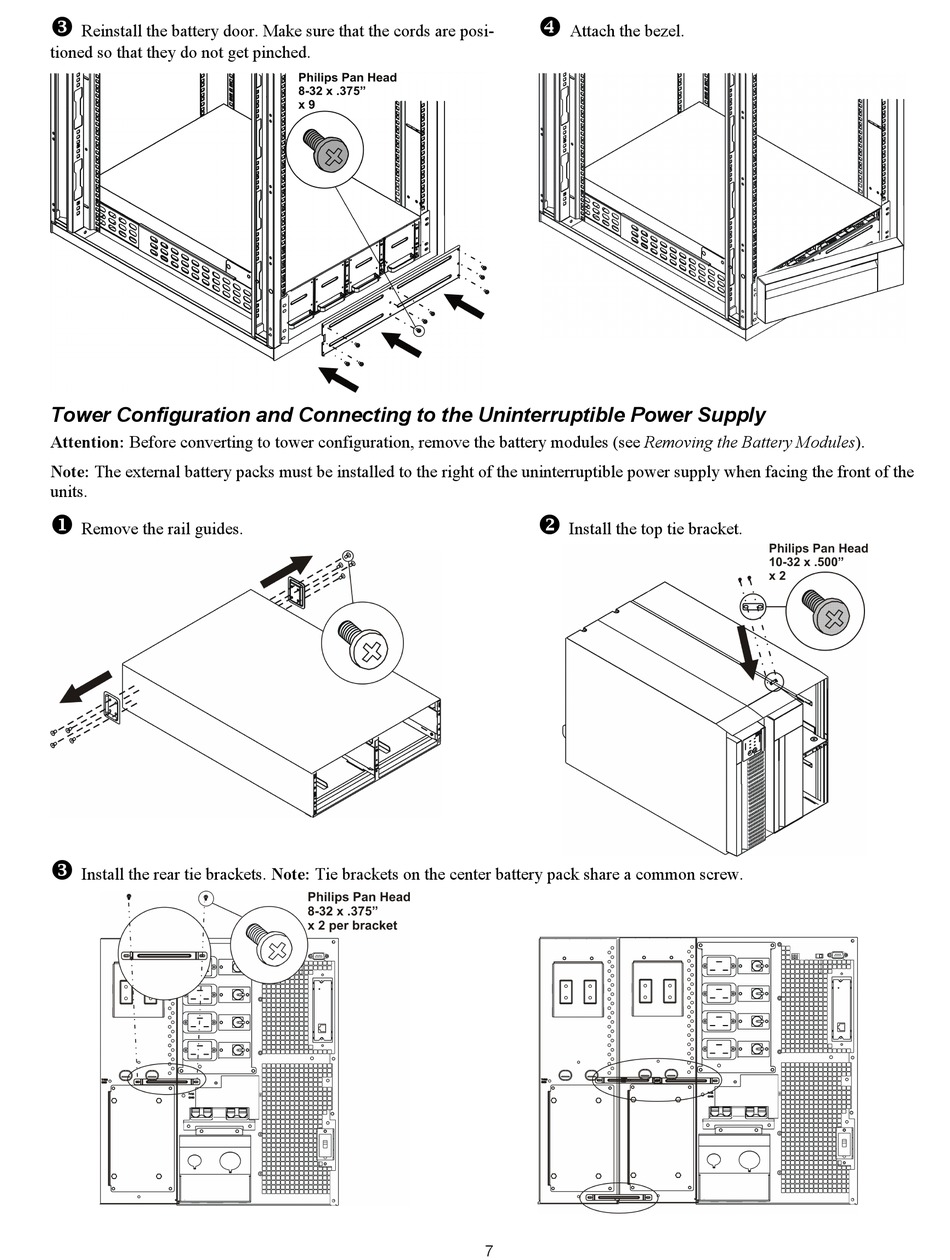

Reinstall the battery door. Make sure that the cords are posi-
tioned so that they do not get pinched.
Tower Configuration and Connecting to the Uninterruptible Power Supply
Attention: Before converting to tower configuration, remove the battery modules (see Removing the Battery Modules).
Note: The external battery packs must be installed to the right of the uninterruptible power supply when facing the front of the
units.
!
Remove the rail guides.
#
Install the rear tie brackets. Note: Tie brackets on the center battery pack share a common screw.
$
Attach the bezel.
"
Install the top tie bracket.
7
