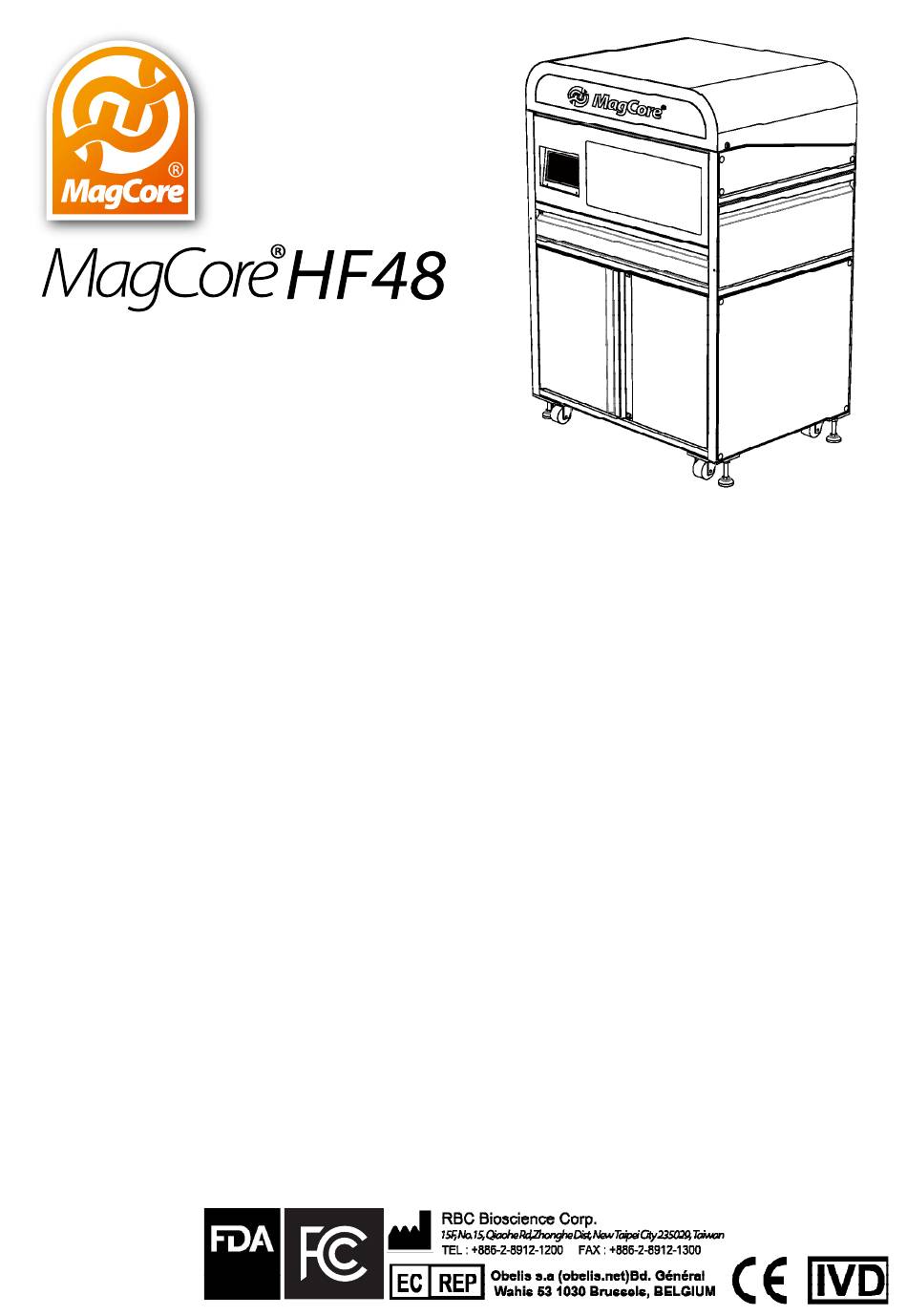

MagCore HF48 Operation Manual

Hide thumbs

Table of Contents

Quick Links

Download this manual

Operation Manual

CONTENTS

Safety Precautions . . . . . . . . . . . . . . . . . . .

Specification . . . . . . . . . . . . . . . . . . . . . . . .

━ Operation Parameters . . . . . . . . . . . . . . . . . . . 2

━ Operation Environment . . . . . . . . . . . . . . . . . . 2

━ Applications . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Accessories . . . . . . . . . . . . . . . . . . . . . . . .

System Overview . . . . . . . . . . . . . . . . . . . .

Installation . . . . . . . . . . . . . . . . . . . . . . . . .

━ Before Installation . . . . . . . . . . . . . . . . . . . . . . 5

━ Install MagCore . . . . . . . . . . . . . . . . . . . . . . . 6

━ Install Tip and Sample Tube . . . . . . . . . . . . . . . . 7

━ Install Elution Tube . . . . . . . . . . . . . . . . . . . . . . 7

━ Install Cartridge . . . . . . . . . . . . . . . . . . . . . . . . 7

Touch Panel and User Interface . . . . . . . . .

━ Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 8

━ Panel Functional Area . . . . . . . . . . . . . . . . . . . . 8

Emergency Stop and Warning . . . . . . . . . .

━ Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Load Program . . . . . . . . . . . . . . . . . . . . .

━ Save Programs . . . . . . . . . . . . . . . . . . . . . . . .12

━ Delete Programs . . . . . . . . . . . . . . . . . . . . . . .12

Update Program Files . . . . . . . . . . . . . . . . . . . . .13

Easy Maintenance . . . . . . . . . . . . . . . . . .

━ Replace O-Rings . . . . . . . . . . . . . . . . . . . . . . .14

━ Clean Piercing Needles . . . . . . . . . . . . . . . . . . .14

━ Piston Test . . . . . . . . . . . . . . . . . . . . . . . . . . .15

━ Rejection Tip . . . . . . . . . . . . . . . . . . . . . . . . .16

━ Heater Test . . . . . . . . . . . . . . . . . . . . . . . . . .16

━ UV Sterilization . . . . . . . . . . . . . . . . . . . . . . . .17

━ Replace UV Lamp . . . . . . . . . . . . . . . . . . . . . .17

━ Moving Test . . . . . . . . . . . . . . . . . . . . . . . . . .18

━ DC Motor Operate . . . . . . . . . . . . . . . . . . . . .18

Ver. 20220214

www.rbcbioscience.com

━ System Timing Setting . . . . . . . . . . . . . . . . . . . . .19

Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Status . . . . . . . . . . . . . . . . . . . . . . . .

━ Export Error Record File . . . . . . . . . . . . . . . . . . . . .20

Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

━ Replace Fuses. . . . . . . . . . . . . . . . . . . . . . . . . . .21

━ Barcode Scan . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Troubleshoots . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents

Need help?

Do you have a question about the HF48 and is the answer not in the manual?

Questions and answers

Summary of Contents for MagCore HF48

Page 1: Table Of Contents
━ Before Installation ..... . 5 ━ Install MagCore ..... . . 6 ━...
Page 2: Safety Precautions
14. Overloading – Do not overload wall outlets, extension cords, or integral Do not place metal objects inside the MagCore® System and wipe away all spilled convenience receptacles as this can result in a risk of fire or electric shock.
Page 3: Specification
MagCore® HF48 Specification Model HF48 / MCA4801 (under development) Processing Capacity Max .48 samples per batch System Feature 1. Cartridge rack, T-Rack, Tube Rack designed for easy installation 2. Auto-cartridges locking Power Supply Voltage: AC 200V-220V; Frequency: 50/60Hz; Dimension W1000 x D800 x H1600 (mm) W39.37 X D31.49X H62.99(inches)
Page 4: Accessories
Cartridge Carrier B X 1 / Cartridge Carrier A X 1 Tip Carrier B X 1 / Tip Carrier A X 1 Elution Carrier X 1 Power Cord X 1 Lubricant X 1 O-Ring X 24 MagCore ® HF48 Totle Weight 250kg / 551.25Lb www.rbcbioscience.com...
Page 5: System Overview
MagCore® HF48 System Overview Status Indicator Viewing Window Touch Screen Monitor Door of Viewing Window Feeding Door Top Cover of Part Chamber Cooling Fans Power Switch and Plug Power Switch (red) Light Switch (green) Part Chamber Maintenance Cover Piston Module...
Page 6: Installation
Installation ━ Before Installation Please find a location close to outlets and leave sufficient space for system installation and heat dissipation. System Depth 80 cm System Height 160 cm Distance from Wall (left/right) Distance from Wall (back) 20 cm System Width 40 cm 100 cm Pleaes use the leveling glides to fine-tune the elevation level.
Page 7: Install Magcore
MagCore® HF48 ━ Install MagCore Place the system in a suitable location and use the leveling glides to fine-tune the elevation. Remember to tighten the screws. Next Step Cut the fixation belts on the racks. Next Step Rotate and pull out the knobs on both sides of the top cover of part chamber using coins.
Page 8: Install Tip And Sample Tube
━ Install Tip and Sample Tube ━ Install Cartridge Insert Cartridge into Cartridge Rack.Then place the entire set of Cartridge Carrier in the slots in Operating Area A and B as Insert Tips and Sample Tubes into the slots in the Tip Carrier. Then illustrated.
Page 9: Touch Panel And User Interface
MagCore® HF48 Touch Panel and User Interface MagCore® HF48 provides 8.9-inch full-color touch screen and user-friendly interface. You can monitor the progress of extractions with the status and time displayed on the screen. ━ Main Menu Start Set up basic parameters and operation...
Page 10: Emergency Stop And Warning
Emergency Stop and Warning Please read about how to stop the system in case of emergency. Method 1 Method 2 Resume Press Stop key to stop all operations immediately The system will stop all operations Select Continue to resume to previous in case of emergency.
Page 11: Start
MagCore® HF48 ━ Start 105 Plasma DNA Extraction Kit (1.2 ml) 200 µl 150 µl Press START to Proceed After you finish inputting and press Start, a confirmation window will show up. Please press Yes to operate the system if the parameters are correct.
Page 12: Load Program
Load Program You can save frequently used programs with names you prefer for your convenience. Please select one of your saved programs. Please select Cartridge Code Press Load Program to enter the Stored Programs page. Next Step Check whether the parameters are correct and press Yes. Please select Channel Press Load Program after pressing Start to enter the Stored Programs page.
Page 13: Save Programs
MagCore® HF48 ━ Save Programs ━ Delete Programs You may save up to 8 programs with names you prefer for your You may delete your saved program as well. convenience. Please select Channel Please select Channel Please press Load Programs to enter Stored Programs page after Please press Save key to enter Stored Programs page after all entering Start page.
Page 14: Update Program Files
Easy Maintenance Easy maintenance includes the mainenance items which can be done by users. These items include sterilization, cleaning, system tests, error message report, etc. Users must perform these items regularly to ensure that the system can function normally. UV Sterilization UV Sterilization Piston Test Piston draining and leakage test...
Page 15: Replace O-Rings
MagCore® HF48 ━ Replace O-Rings ━ Clean Piercing Needles Select Replace O-Rings and press START. Select Clean Piercing Needles and press START. Next Step Next Step Follow the instructions: use a sharp blade to cut off old O-rings. Please prepare a cotton paper with 70% alcohol to clean.
Page 16: Piston Test
━ Piston Test The purpose of this step is to test if there is any leakage from the Select Piston test in the Maintenance menu. tips. Next Step The system will absorb water from Sample Tubes. Please check if the liquid level is the same across all tips. If yes, press Finish. If the liquid level is not the same throughout, please press Finish first, then replace the O-ring of the leaking tip and test again.
Page 17: Rejection Tip
MagCore® HF48 ━ Rejection Tip ━ Heater Test This function is for the system to return tips to their original heat block well 1 locations after emergency stop or operation interruption due to power outrage. Please place a cartridge into each Cartridge Rack and add 500µl of water into heat block well 1.
Page 18: Uv Sterilization
━ Replace UV Lamp ━ UV Sterilization Select UV Sterilization in the Maintenance menu. Next Step Open the top cover of the Part Chamber. Please note that due its weight, the top cover of the part chamber requires two people to lift it.
Page 19: Moving Test
MagCore® HF48 ━ Moving Test ━ DC Motor Operate Select Moving Test in Maintenance menu. Select DC Motor Operate in Maintenance menu. Next Step Next Step Operation Area B UP V axis motor running test Operation Area B DOWN M axis motor running test...
Page 20: System Timing Setting
Setup You may set timing here. ━ System Timing Setting Select the items you wish to change. Next Step 12 or 24 hour display format Year Setting Enter setting value and press Enter. Day Setting Hour Setting Month Setting Minute Setting Next Step www.rbcbioscience.com...
Page 21: System Status
MagCore® HF48 System Status The system information records UI version, PLC version, system serial number, UV lamp operating time, and machine error list. ━ Export Error Record File You may export error messages to provide engineers data to analyze and solve system problems.
Page 22: Others
Others ━ Replace Fuses ━ Barcode Scan 250V 5A You can use the barcode scanner to input your sample’s code into the test report. Barcode Scan Please select Channel Please use only the fuses Next Step specified for replacement. Select [ Barcode Scan ] function and enter [ Barcode Scan ] Mode. Using fuses with higher amps may cause danger of burning.
Page 23: Troubleshoots
3. Reagent is stored for too long. 3. Renew your reagents. Liquid level floods over tip filter 1. Wrong sample materials. 1. Please refer to MagCore® kit manual. 2. Wrong sample tubes. 2. Please use the provided sample tubes. No piercing V motor or connector is not working normally.
