Dynalink A 3135F Operating Instructions

Operating Instructions

Simultaneously displays an UItra Hi-Def source on up to four UItra HD

•

displays

Video Resolutions up to UItra HD 4Kx2K (3840x2160p)@60Hz

•

YUV 4:4:4.

HDCP2.2/1.4 Compliant

•

Dolby digital Plus, and DTS-HD Master Audio

Supports HDR

•

PACKAGE CONTENTS: 1 x HDMI Splitter, 1 x 5V/1A DC USB Adapter, 1 x User Manual

Thank you for purchasing this product. For optimum performance and safety, please read

these instructions carefully before connecting, operating or adjusting this product. Please

keep this manual for future reference. The information in this document is subject to change

without notice. Every effort has been made in the preparation of this document to ensure

accuracy of the contents, but all statements, information, and recommendations in this docu-

ment do not constitute the warranty of any kind, express or implied.

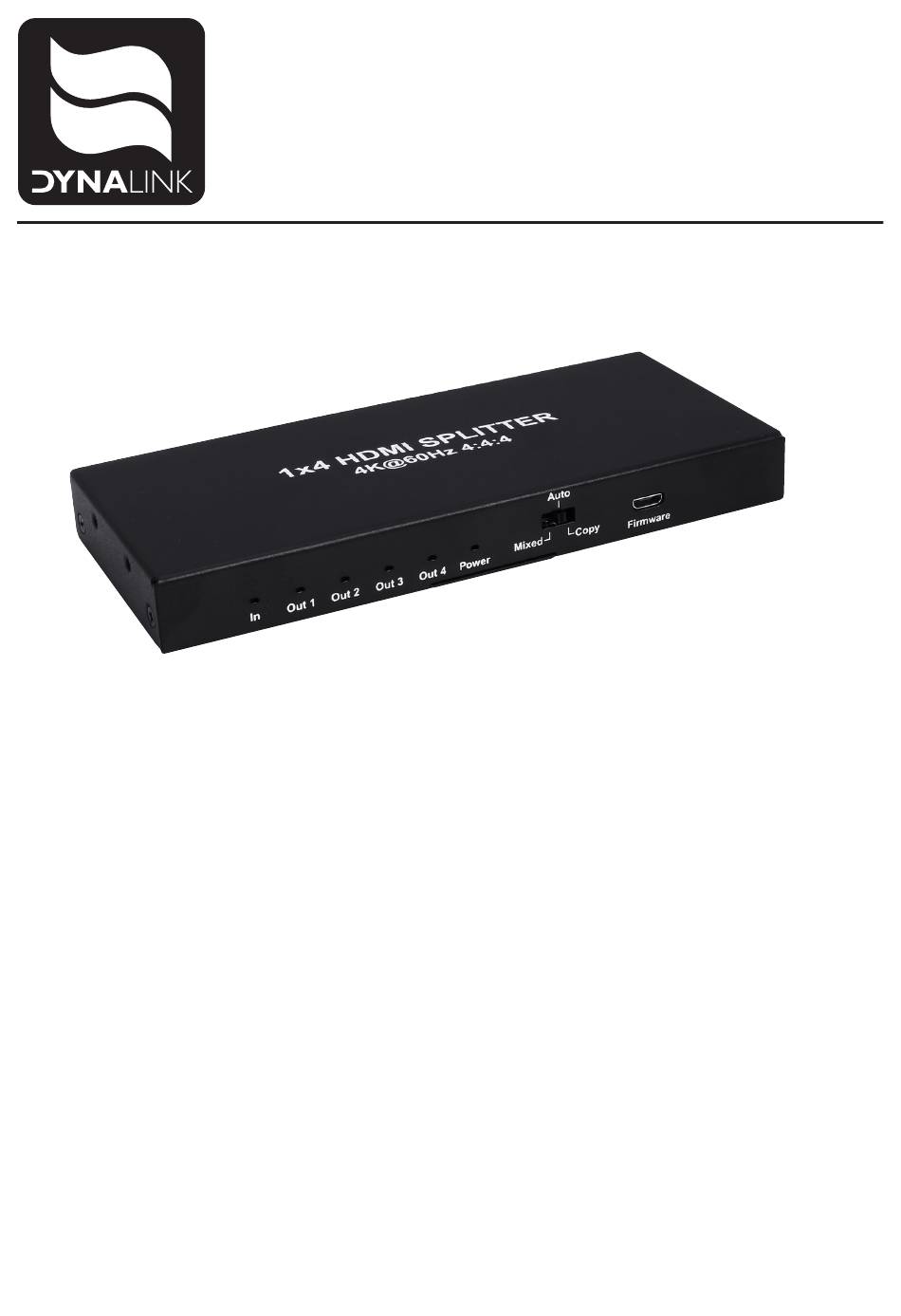

HDMI 2.0 1x4 HDMI Splitter

Supports HDCP2.2, 3D, 4Kx2K@60Hz (YUV 4:4:4), 18GBPS,

HDR, EDID

Three kinds of EDID handling abilities

•

36 bit Deep Color

•

Online firmware upgrade via Micro USB Port

•

LPCM 7.1, Dolby TrueHD,

•

Bandwidth 18Gbps

•

A 3135F

Table of Contents

Need help?

Do you have a question about the A 3135F and is the answer not in the manual?

Page 1 A 3135F HDMI 2.0 1x4 HDMI Splitter Supports HDCP2.2, 3D, 4Kx2K@60Hz (YUV 4:4:4), 18GBPS, HDR, EDID Operating Instructions Simultaneously displays an UItra Hi-Def source on up to four UItra HD • displays Video Resolutions up to UItra HD 4Kx2K (3840x2160p)@60Hz •...
Page 2 Dynalink® A 3135F HDMI Splitter OVERVIEW This is a high performance 1x HDMI input to 4x HDMI output switcher which is powered via a USB port. The system supports all 3D TV formats in addition to all HDTV formats up to 4K Ultra HD (3840 x 2160p) @60Hz video.
Page 3 Dynalink® A 3135F HDMI Splitter EDID FUNCTIONS: Copy: Output 4 is prior port a) When output 4 is connected to one display, another display which is connected to output 1/2/3 will fol- low the Resolution of output 4, which could be lower than 4K UHD.
Page 4 Dynalink® A 3135F HDMI Splitter Altronic Distributors warrants this product for one year from date of purchase from Altronics or its resellers to the consumer. If this item is part of an installation or another product, please contact the installer or supplier for your warranty.
