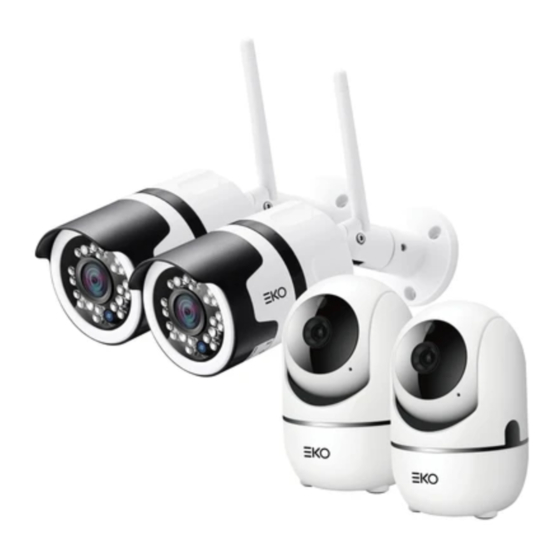

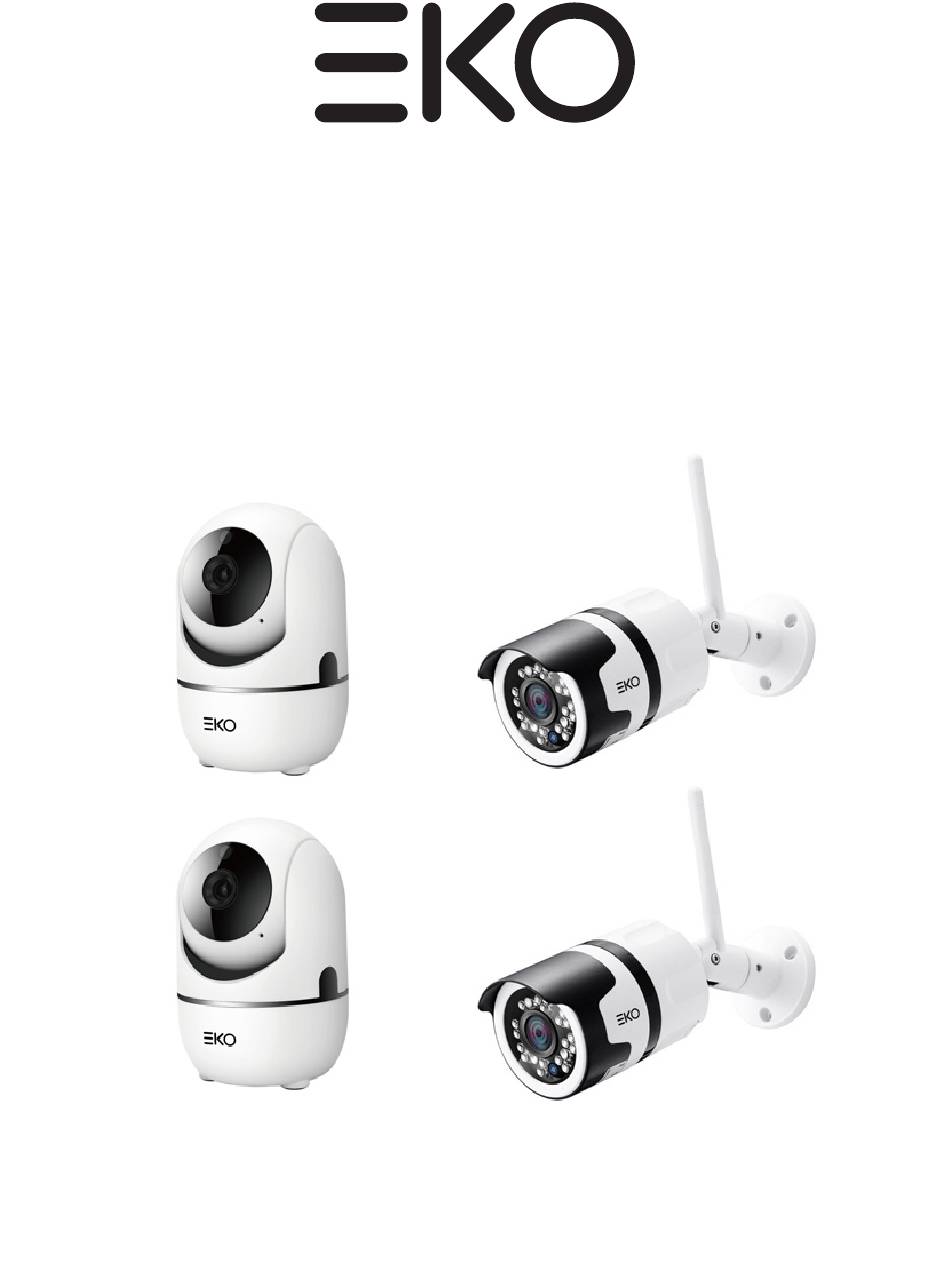

- Page 1 HOME SECURITY KIT INDOOR/OUTDOOR WI-FI SECURITY CAMERA - 4 PACK K3377IOC1080 INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS PAGE General Safety Instructions Product Overview App / Wi-Fi Control Download EKO Home app Start Setup Process Login/Create account Adding Device EKO App - Dashboard Main Menu Indoor Camera - Dashboard Outdoor Camera - Dashboard Messages / Notifications (motion detect) -
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Read this manual thoroughly before you start using this product Store this manual, the completed warranty card, your receipt and the product packaging. To reduce the risk of injury: • Avoid rain, high temperature products or direct exposure to sun. - Page 5 • Do not attempt to open up and fix or modify circuits inside the unit. • If the product is damaged, contact us at help@eko-entertainment.com.au for advice. • If the product requires repair, contact us at help@eko-entertainment.com.au; never disassemble or modify the product or attempt to service it yourself.
- Page 6 GENERAL SAFETY INSTRUCTIONS • Before installing the product, make sure to place it away from: heatsources, radiators or other products that produce heat; areas with high temperatures, high humidity or direct sunlight; excess dirt and dust; open windows and any place where water may get to the unit.
-
Page 7: Product Overview
INDOOR CAMERA OUTDOOR CAMERA WI-FI ANTENNA MUST BE INSTALLED ON CAMERA BEFORE PROCEEDING WITH ANY SETUP. The camera will not be found, detected and connected through EKO Home app without Wi-Fi Antenna being screwed and installed into back of camera. - Page 8 PRODUCT OVERVIEW (Cont.) 2 x Camera 2 x set of Mount 2 x USB 2 x Power & Screws Cable Adaptor 2 x sets of accessories 2 x Cameras 2 x Camera with 5m Micro 2 x Power adaptors Wi-Fi Antenna USB Cable...
-
Page 9: App/Wi-Fi Control
- Internet connection at your home - Wi-Fi network router set up at home. You must also have the EKO Home App installed or updated on your smartphone or mobile device. This app is available from Google Play Store or Apple App Store. -
Page 10: Download Eko Home App
APP/Wi-Fi Control (Cont.) - Page 11 APP/Wi-Fi Control (Cont.) In order to do this, make sure you have the EKO Home installed or updated on your mobile device, your Wi-Fi router is switched on and your mobile device connected to your home Wi-Fi network. On your mobile device, tap on the EKO Home app (1).
- Page 12 APP/Wi-Fi Control (Cont.) Before you log in, please press SIGN UP and register your account (3 and 4). using an email address.
-
Page 13: Login/Create Account
APP/Wi-Fi Control (Cont.) Once entered email address, tap GET VERIFICATION CODE and an email will be sent your email address with a verification code. Enter this code. Now you can enter a password for your account. Please remember this password or write it down. -
Page 14: Adding Device
APP/Wi-Fi Control (Cont.) 1. Tap the plus ( + ) or ADD DEVICE to add your device. (7). 2. Select the product which in this case is: Smart Camera (WI-FI). - Page 15 3. Now that the product is on, sound prompt is heard. On the EKO Home app “Reset the device first” page, tick the box indicated and press next.
- Page 16 APP/Wi-Fi Control (Cont.)
- Page 17 APP/Wi-Fi Control (Cont.) Now that the device is being added, progress screen will now appear as to below: (12, 13, 14).
- Page 18 K3IC1080 K3377IOC1080 K3377IOC1080 CAMERA WI-FI ANTENNA MUST BE INSTALLED ON CAMERA BEFORE PROCEEDING WITH APP SETUP. The camera will not be found, detected and connected through EKO Home app without Wi-Fi Antenna being screwed and installed into back of camera.
-
Page 19: Eko App - Dashboard
APP/Wi-Fi Control (Cont.) EKO HOME DASHBOARD VOICE CONTROL PROFILE ADD PRODUCT VIEW ALL CAMERAS WEATHER LIVE VIDEO SELECT OR ADD ROOMS CLICK TO ENTER PRODUCT CONTROLS MAIN MENU/ HOME MANAGEMENT/ NOTIFICATIONS HOME SCHEDULES/ AUTOMATIONS... -
Page 20: Main Menu
APP/Wi-Fi Control (Cont.) MAIN MENU SETTINGS EDIT PROFILE TO CONNECT AMAZON ALEXA OR GOOGLE ASSISTANT PLEASE GO TO PAGE 31 FOR INSTRUCTIONS HOME MANAGEMENT HERE YOU CAN CREATE, SHARE AND ADD OTHER USERS IN YOUR HOME TO VIEW YOUR ADDED CAMERAS. MESSAGE CENTRE NOTIFICATIONS FOR ANY MOVEMENT OR MOTION... -
Page 21: Indoor Camera - Dashboard
APP/Wi-Fi Control (Cont.) INDOOR CAMERA - DASHBOARD Settings Back HD or SD Zoom Quality Mute/Unmute Start recording, this will save to your smart Take Screenshot device storage Full Screen Press to speak through camera to Playback person you can see recorded files in the video. -
Page 22: Outdoor Camera - Dashboard
APP/Wi-Fi Control (Cont.) OUTDOOR CAMERA - DASHBOARD Settings Back HD or SD Zoom Quality Mute/Unmute Start recording, this will save to your smart Take Screenshot device storage Full Screen Press to speak through camera to Playback person you can see recorded files in the video. -
Page 23: Messages / Notifications (Motion Detect)
APP/Wi-Fi Control (Cont.) MESSAGES TAB / NOTIFICATIONS VIEW ALL Press here to view all motion detections and alarms depending on the date. MOTION CAPTURE PREVIEW NOTIFICATION MESSAGE This will display the notification message, the time it was detected. BACK SELECT DATE TYPE OF NOTIFICATION NOTIFICATION MESSAGE This will display the notification... -
Page 24: Outdoor Camera Settings
APP/Wi-Fi Control (Cont.) OUTDOOR CAMERA - SETTINGS SETTINGS Select the 3 dots on top right hand corner of screen once you enter product dashboard, indcated on page 22. Motion Detection Alarm - Turn on Motion detection notifications. Alarm Sensitivity level - Adjust the detection strength. -
Page 25: Indoor Camera Settings
APP/Wi-Fi Control (Cont.) INDOOR CAMERA - SETTINGS SETTINGS Select the 3 dots on top right hand corner of screen once you enter product dashboard, indcated on page 21. Motion Detection Alarm - Turn on Motion detection notifications. Alarm Sensitivity level - Adjust the detection strength. -
Page 26: Home Management
APP/Wi-Fi Control (Cont.) HOME MANAGEMENT Home management allows you to setup and create sharable access to family members. If you have already setup all your home cameras, and want a family member to access the cameras. Follow the below steps to create and share your home. CREATING A HOME When on the dashboard, press the... - Page 27 Select “Add Member”. When you select “Add Member”, this will provide options to share through the EKO Account “within the app” (recommended) OR with an INVITE CODE to your family member. EKO ACCOUNT Name -...
-
Page 28: Adding Other Users To Your Home
JOIN A HOME 2. Select INVITE CODE 3. Enter 4. Once code is entered, Select the arrow button to proceed. Now that you have either accepted invite within EKO HOME app or with an INVITE CODE. HOME DASHBOARD. Please go to your... - Page 29 A arrow for a drop down will appear at the top of the screen. Select it. Select the name of home you have been invited to. Example: EKO Residents Once selected, The Home Setup you wish to join will automatically load.
- Page 30 APP/Wi-Fi Control (Cont.) Now as a family member will have access to the home security camera setup you have been invited to.
-
Page 31: Add App To Google Home
WORKS WITH GOOGLE banner. 3. Search for EKO Home. 4. Press the EKO Home app and enter your EKO Home app account details and password. Then press SIGN NEXT PAGE FOR: Add the EKO HOME app to your Amazon Alexa Account. -
Page 32: Add App To Amazon Alexa Account
APP/Wi-Fi Control (Cont.) Add the EKO HOME app to your Amazon Alexa Account. You must have to already have an Amazon Alexa account set up. 3 bars 1. Home screen of Amazon Alexa app, press the in the Select SKILLS &... -
Page 33: Installing Indoor Camera (After Setup)
INSTALLIING INDOOR CAMERA 2 x holes 1. Locate area you wish to install camera and drill (17 mm distance from hole to hole). Drill hole thickness must match same thickness as the plugs provided. 2. Lightly hammer in the plugs until flat with wall, then place the mount over the holes of plugs and fasten... -
Page 34: Installing Indoor Camera (After Setup)
INSTALLING OUTDOOR CAMERA 1. Locate area you wish to install camera and mark the 3 holes of the base of the camera with a pencil. 3 x holes 2. Then drill with a drill bit size just slightly smaller than the plugs (A). When you lightly hammer in the plugs (A), they will fit securely. -
Page 35: Cleaning
2.4G Hz / 802.11 b/g/n Up to 20 Metres (walls included) Wireless Range Up to 50 Metres (open space) Compatible App EKO Home Net: 1.16 kg Weight Gross: 1.93 kg Cleaning and Maintenance Only use a soft, dry cloth for cleaning the product; do not use a damp cloth. - Page 36 SUPPORT: help@eko-entertainment.com.au DISTRIBUTED BY: Ayonz Pty Ltd...
