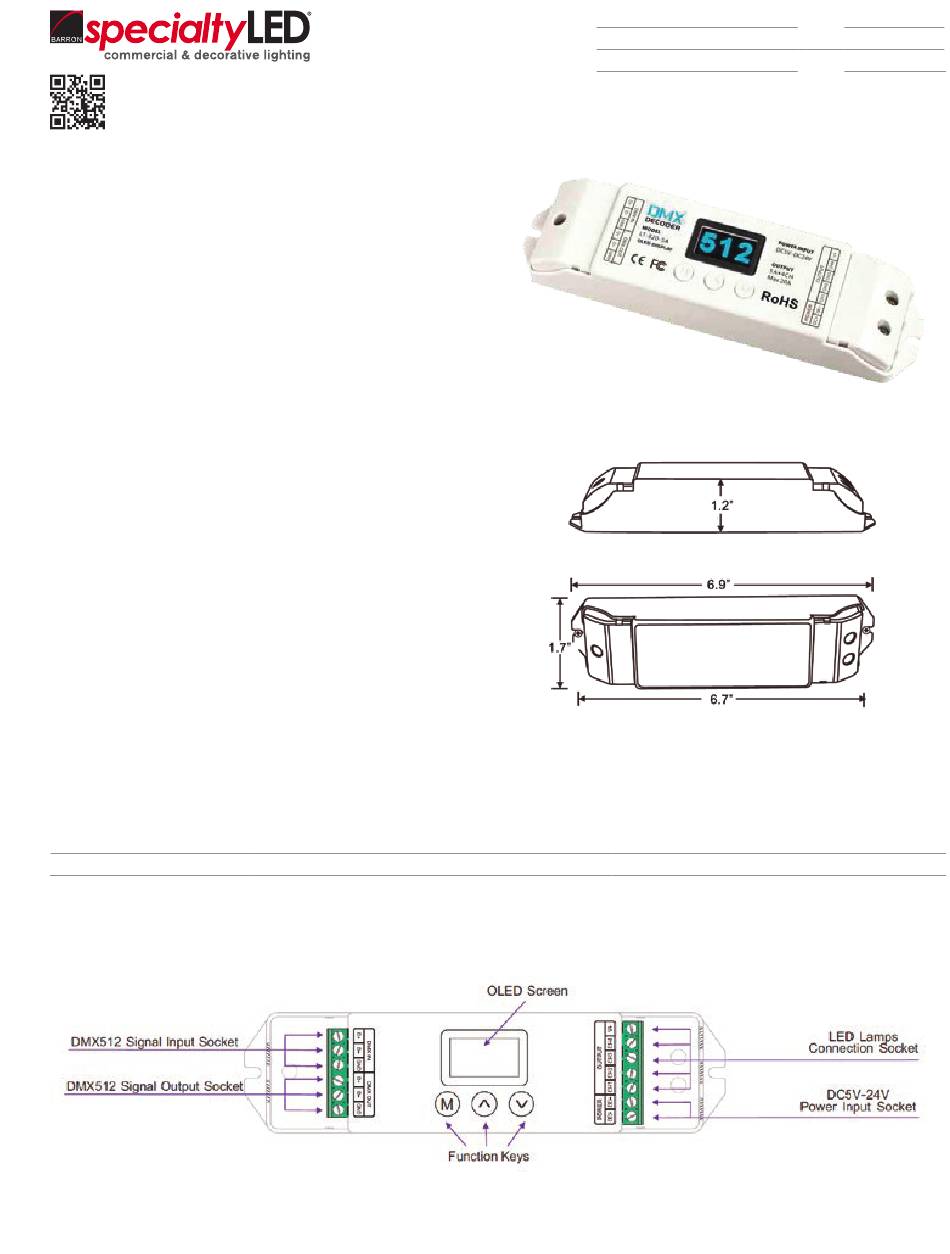

BARRON specialtyLED RFX-DMX-CV-DECODER Quick Start Manual

For the complete line of
specialtyLED ® products, visit
us online at barronltg.com or
call 800.533.3948.
DMX decoder, designed for LED dimming, can be
used with any brand DMX dimmer
FEATURES
• OLED display
• 16bit/8bit input
• 3 dimming curve optional
• Frame rate is as high as 850 FPS
• Built-in protection circuit of resistance to lightning store
and ESD static electricity.
TECHNICAL SPECIFICATION
Input Signal: DMX512
Input Voltage: 5V-24V DC
Max Load Current: 5Ax4CH Max 20A
Max Output Power: 100W/240W/480W (5V/12V/24V)
Dimming Range: 0-100%
Operating temperature: -22°F to 131°F
Dimensions: 6.9"x1.7"x1.2"
Weight: 4.2oz
ORDERING INFORMATION
Example: RFX-DMX-CV-DECODER
Series
RFX-DMX-CV-DECODER = DMX DECODER
10820052 REV-2 05/18
Model:
Accessories:
Job Name:
RFX-DMX-CV-DECODER
INDOOR 16 BIT DMC CV DECODER
