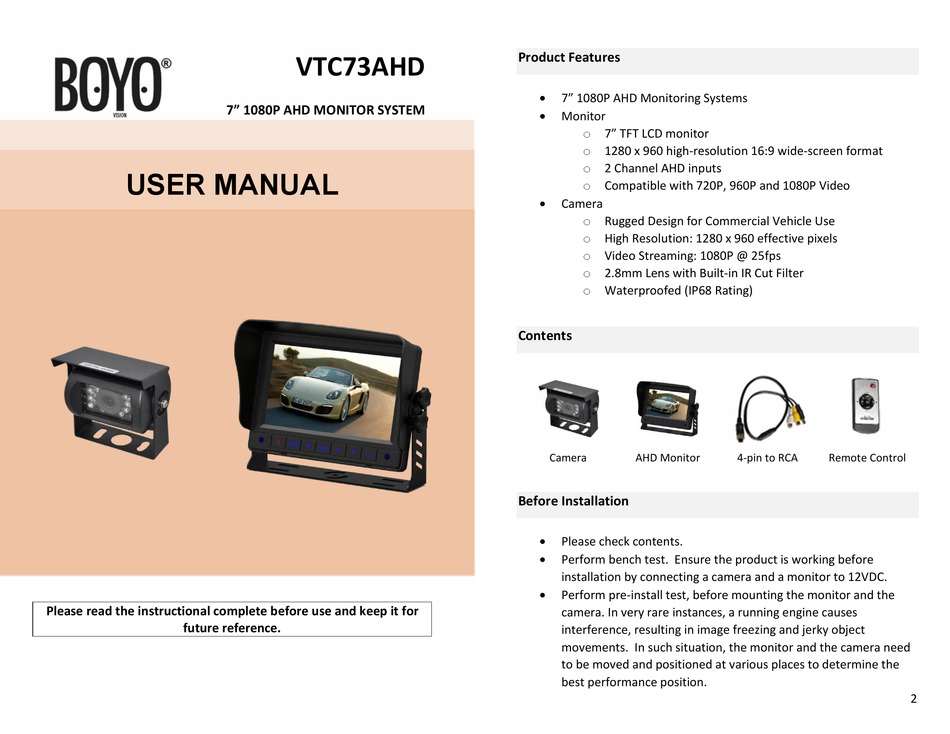

Boyo VTC73AHD User Manual

USER MANUAL
Please read the instructional complete before use and keep it for
future reference.
VTC73AHD
7" 1080P AHD MONITOR SYSTEM

Product Features

 7" 1080P AHD Monitoring Systems
 Monitor
o 7" TFT LCD monitor
o 1280 x 960 high-resolution 16:9 wide-screen format
o 2 Channel AHD inputs
o Compatible with 720P, 960P and 1080P Video

Camera
o Rugged Design for Commercial Vehicle Use
o High Resolution: 1280 x 960 effective pixels
o Video Streaming: 1080P @ 25fps
o 2.8mm Lens with Built-in IR Cut Filter
o Waterproofed (IP68 Rating)
Contents
Camera AHD Monitor

Before Installation


Please check contents.

Perform bench test. Ensure the product is working before
installation by connecting a camera and a monitor to 12VDC.
 Perform pre-install test, before mounting the monitor and the
camera. In very rare instances, a running engine causes
interference, resulting in image freezing and jerky object
movements. In such situation, the monitor and the camera need
to be moved and positioned at various places to determine the
best performance position.
4-pin to RCA Remote Control
