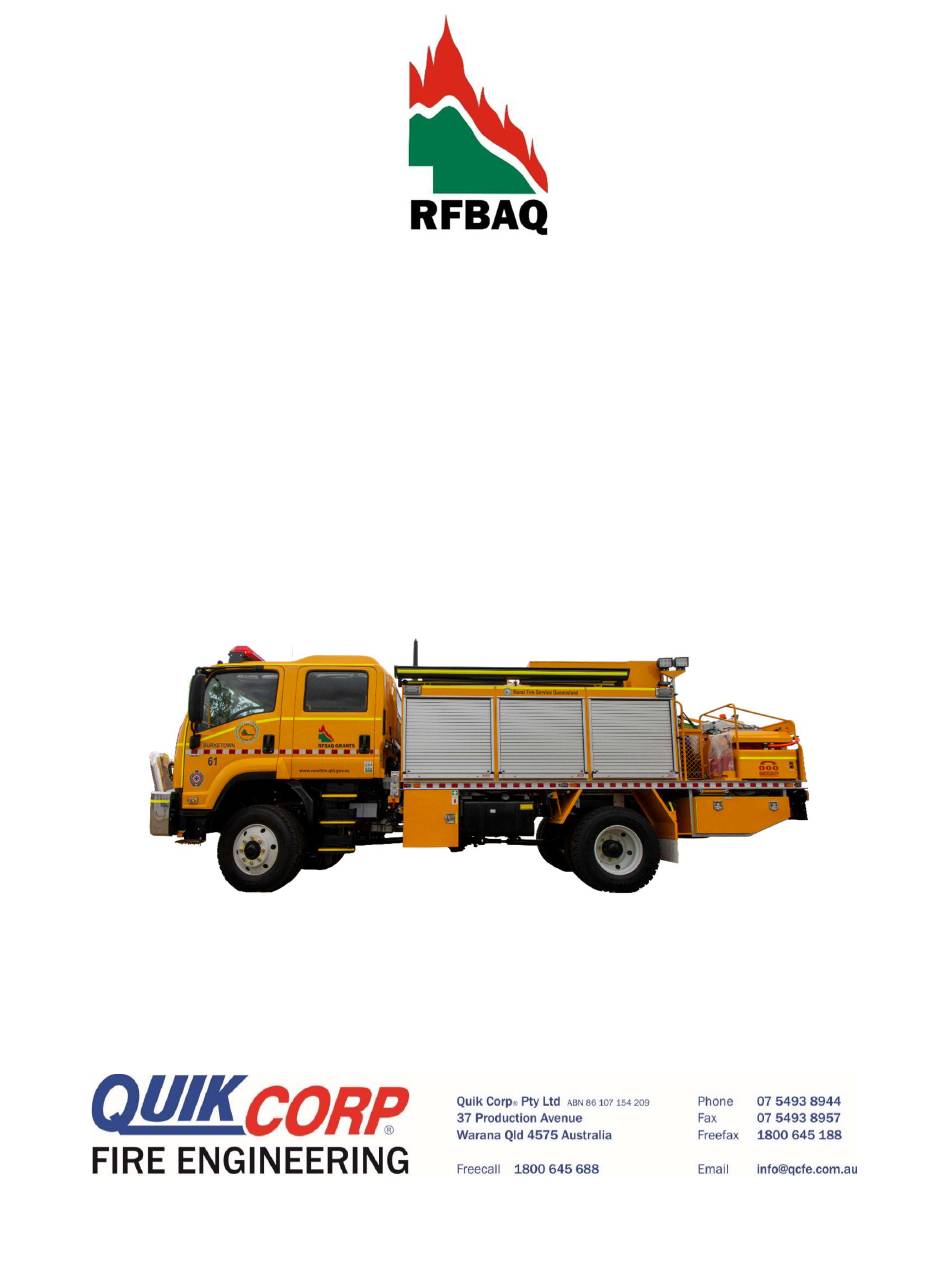

RURAL FIRE BRIGADE ASSOCIATION
QUEENSLAND
Isuzu FTS 139-260 4x4
Heavy Attack
Revision 1.0, November 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RFBAQ Isuzu FTS 139-260 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for QUIK CORP RFBAQ Isuzu FTS 139-260

  • Page 1 RURAL FIRE BRIGADE ASSOCIATION QUEENSLAND Isuzu FTS 139-260 4x4 Heavy Attack Revision 1.0, November 2020...

  • Page 2: Table Of Contents

    DUCOT – Heavy Attack 2020 1 Table of Contents TABLE OF FIGURES ....................... 6 TABLE OF TABLES ......................... 9 MANUAL AMENDMENTS ...................... 11 SERVICE BULLETINS ......................12 SYMBOLS ..........................14 TERMS AND ABBREVIATIONS .................... 15 VEHICLE INFORMATION ...................... 16 DUCOT SUMMARY ....................... 20 D –...
  • Page 3 DUCOT – Heavy Attack 2020 13.1.6 Siren Controller and PA ..................44 13.1.7 Cabin Switches ....................45 13.1.8 Radios ........................46 13.1.9 Cabin Electrical Panel ..................48 13.1.10 Portable Radio Holders ..................51 13.1.11 Torches ........................ 51 13.2 Pump Set ........................52 13.2.1 Pump Set Batteries ....................
  • Page 4 DUCOT – Heavy Attack 2020 13.8.5 Near Side Rear Locker ..................79 13.8.6 Near Side Rear Under Tray Locker ..............80 13.8.7 Off Side Front Locker ................... 81 13.8.8 Off Side Front Under Tray Locker ................. 82 13.8.9 Off Side Mid Locker ....................83 13.8.10 Off Side Rear Locker ....................
  • Page 5 DUCOT – Heavy Attack 2020 13.10.13 240V Supply ....................... 102 13.10.14 Battery Isolation ....................102 13.10.15 Circuit Protection ....................103 T – TESTING ........................106 14.1 Appliance Pre-Start Checks ..................106 14.2 Vehicle .......................... 107 14.3 Pump Set ........................108 14.4 Plumbing ........................

  • Page 6: Table Of Figures

    DUCOT – Heavy Attack 2020 2 TABLE OF FIGURES Figure 1: Near/Passenger Side View of Vehicle ................16 Figure 2: Rear View of Vehicle ...................... 17 Figure 3: Front View of Vehicle ..................... 18 Figure 4: NS View of Appliance ..................... 23 Figure 5: OS View of Appliance ....................
  • Page 7 DUCOT – Heavy Attack 2020 Figure 47: OS Cab - Door Open ....................40 Figure 48: Bull Bar ........................41 Figure 49: Cabin Centre Console (closed) ..................42 Figure 50: Cabin Centre Console (open) ..................42 Figure 51: Front of the Cabin Centre Console ................43 Figure 52: Ignition Circuit Breaker in Cab ..................
  • Page 8 DUCOT – Heavy Attack 2020 Figure 94: Off Side Front Locker ....................81 Figure 95: Off Side Front Under Tray Locker ................82 Figure 96: Off Side Mid Locker ...................... 83 Figure 97: Off Side Mid Locker – Slide and Tilt Shelf ..............84 Figure 98: Off Side Rear Locker ....................

  • Page 9: Table Of Tables

    DUCOT – Heavy Attack 2020 3 TABLE OF TABLES Table 1: Manual Amendments ...................... 11 Table 2: Service Bulletins ......................12 Table 3: Vehicle Dimensions and Specifications ................19 Table 4: NS of Appliance ......................23 Table 5: OS of Appliance ......................24 Table 6: Rear of Appliance ......................
  • Page 10 DUCOT – Heavy Attack 2020 Table 47: Off Side Rear Locker ..................... 85 Table 48: Off Side Rear Under Tray Locker .................. 86 Table 49: Suction Hose Locker ..................... 87 Table 50: Fridge Items ........................88 Table 51: Ladder Rack ........................89 Table 52: Folding Arm Awning ......................

  • Page 11: Manual Amendments

    DUCOT – Heavy Attack 2020 4 MANUAL AMENDMENTS Table 1: Manual Amendments Amendment Date of Page(s) Description of Amendments Issue Amended Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 11 of 132...

  • Page 12: Service Bulletins

    DUCOT – Heavy Attack 2020 5 SERVICE BULLETINS Table 2: Service Bulletins Date of Major Components Bulletin No. Title Issue Affected Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 12 of 132...
  • Page 13 DUCOT AND USAGE BEFORE USING THE VEHICLE. FAILURE TO FOLLOW INSTRUCTIONS, PROCEDURES, SERVICE SCHEDULES, MISUSE OR ABUSE OF ITEMS MAY RESULT IN INJURY OR DAMAGE. QUIK CORP PTY LTD, ITS SUBSIDIARIES, EMPLOYEES OR DIRECTORS SHALL NOT ACCEPT LIABILITY OR RESPONSIBILITY FOR LOSS OR DAMAGES THAT MAY OCCUR.

  • Page 14: Symbols

    DUCOT – Heavy Attack 2020 6 SYMBOLS The following symbols are used in the DUCOT to make the user aware of items and hazards. WARNING Indicates the presence of a hazard that can cause personal injury if the hazard is not avoided CAUTION Indicates the presence of a hazard that can cause damage to equipment.

  • Page 15: Terms And Abbreviations

    DUCOT – Heavy Attack 2020 7 TERMS AND ABBREVIATIONS Term/Abbreviation Description The term appliance refers to the overall system/unit. Appliance In this circumstance, it is a purpose-built RFBAQ CAFS Heavy Attack. CAFS Compressed Air Foam System High-Frequency Radio Light Emitting Diode N/S or NS Near Side Near Side Front...

  • Page 16: Vehicle Information

    DUCOT – Heavy Attack 2020 8 VEHICLE INFORMATION All dimensions are in mm. 4250 2500 1550 8300 Figure 1: Near/Passenger Side View of Vehicle Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 16 of 132...
  • Page 17 DUCOT – Heavy Attack 2020 2405 Figure 2: Rear View of Vehicle Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 17 of 132...
  • Page 18 DUCOT – Heavy Attack 2020 2400 2860 Figure 3: Front View of Vehicle Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 18 of 132...
  • Page 19 Rear 585 kPa Fire Fighting Systems Pump Waterous CLVK Pump Engine Hatz 4H50TI-OPU 24V CAFS Rotocomp EVO-6 Hose Reels Quik Corp RFR-B 24V Electric Rewind Water Tank Capacity 3000L Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 19 of 132...

  • Page 20: Ducot Summary

    CONSTRUCTION which is at the rear of the appliance.  Two Quik Corp RFR-B 24V electric rewind hose reels. One located at the rear NS (CAFS) and one at the rear OS of the vehicle. They both have 25mm Storz fittings.

  • Page 21: Description

    DUCOT – Heavy Attack 2020 10 D – DESCRIPTION The basis of the 2020 Heavy Attack Appliance is a factory-built Isuzu FTS 139-260 4x4 Crew Cab Chassis. The four-door air-conditioned safety cabin is mounted on a 4x4 (dual rear wheels) configuration chassis. The FTS 139-260 Heavy Attack Appliance body is custom-built for fire-fighting and rescue operations.

  • Page 22: Use

    DUCOT – Heavy Attack 2020 11 U – USE The main uses of the FTS 139-240 Rural Heavy Attack Appliance are:  the ability to transport a useable 3000 litres of water to an incident.  To provide transportation of six personnel and equipment to an incident on paved or unpaved roads.

  • Page 23: Construction

    DUCOT – Heavy Attack 2020 12 C – CONSTRUCTION 12.1 Body 12.1.1 Near/Passenger Side Figure 4: NS View of Appliance Item Item Name Near Side Front Locker Folding Arm Awning HF Antenna Near Side Mid Locker Tent Locker Near Side Work Lights Near Side Rear Locker Mast Light Deck Platform Area...

  • Page 24: Off/Driver Side

    DUCOT – Heavy Attack 2020 12.1.2 Off/Driver Side Figure 5: OS View of Appliance Item Item Name Ladder Rack Extension Ladder OS Work Lights Off Side Rear Locker Off Side Mid Locker 3000L Poly Water Tank Off Side Front Locker Off Side Front Compressed Air Outlet Off Side Front Under Tray Locker Low-Pressure Handline Outlet...

  • Page 25: Rear

    DUCOT – Heavy Attack 2020 12.1.3 Rear Figure 6: Rear View of Appliance Item Item Name Mast Light Tent Locker Rear Work Lights/Auxiliary Reverse Lights Vehicle Reverse Camera Low Water Beacon Extension Ladder Ladder Rack Off Side Rear Emergency Strobes Rear Control Panel Branch Holder Traffic Cone Holder...

  • Page 26: Pump Control Panel

    DUCOT – Heavy Attack 2020 12.1.4 Pump Control Panel Figure 7: Pump Control Panel Item Item Name UHF External Speaker UHF Speaker Mute Switch Primer Button VHF Speaker Mute Switch VHF External Speaker Water Level Indicator Air Compressor – Switch, Pressure Gauge and Over Temperature Warning Light Pump Set Tacho Pump Set Ignition Switch and Warning Lights...

  • Page 27: Pump Set

    DUCOT – Heavy Attack 2020 12.1.5 Pump Set Figure 8: OS Rear of Appliance Item Item Name Pump Set Batteries and Circuit Breaker Panel. Hatz Air Cleaner Assembly. Hatz Oil Filter. Hatz Fuel Tank. Hatz 4H50-TIC. Hatz Fuel Filter. Hatz Engine ECU. Air Compressor Gear Box.

  • Page 28: Plumbing Manifold

    DUCOT – Heavy Attack 2020 12.1.6 Plumbing Manifold Figure 9: Plumbing Manifold Item Item Name Backfill Valve Foam Isolation Valve OS Hose Reel Control Valve Delivery 3 – CAFS Valve Delivery 2 – Low-Pressure Valve Suction Inlet Delivery 1 – Low-Pressure Valve Hydrant Fill Valve Handline Isolation Valve Table 9: Delivery Manifold...

  • Page 29: Stowage

    DUCOT – Heavy Attack 2020 12.1.7 Stowage Figure 10: Off Side Front (OSF) Locker (closed) Figure 11: Off Side Front (OSF) Locker (open) Figure 12: Off Side Mid (OSM) Locker (closed) Figure 13: Off Side Mid (OSM) Locker (open) Figure 14: Off Side Rear (OSR) Locker (closed) Figure 15: Off Side Rear (OSR) Locker (open) Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 29 of 132...
  • Page 30 DUCOT – Heavy Attack 2020 Figure 16: Off Side Front Under Tray (OSFUT) Locker Figure 17: Off Side Front Under Tray (OSFUT) Locker (closed) (open) Figure 18: Off Side Rear Under Tray (OSRUT) Locker Figure 19: Off Side Rear Under Tray (OSRUT) Locker – –...
  • Page 31 DUCOT – Heavy Attack 2020 Figure 22: Near Side Mid (NSM) Locker (closed) Figure 23: Near Side Mid (NSM) Locker (open) Figure 24: Near Side Rear (NSR) Locker (closed) Figure 25: Near Side Rear (NSR) Locker (open) Figure 26: Near Side Front Under Tray Locker – Figure 27: Near Side Front Under Tray Locker –...
  • Page 32 DUCOT – Heavy Attack 2020 Figure 28: Near Side Rear Under Tray (NSRUT) Figure 29: Near Side Rear Under Tray (NSRUT) Locker - Closed Locker - Open Figure 30: Drip Torches Figure 31: Fuel Cans and Pourers Figure 32: Tent Locker (closed) Figure 33: Tent Locker (open) Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 32 of 132...
  • Page 33 DUCOT – Heavy Attack 2020 Figure 34: Rakehoe Storage Figure 35: Fire Beater Storage Figure 36: Traffic Cone Holder Figure 37: Standpipe Holder Figure 38: Fire Extinguisher Figure 39: Ladder Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 33 of 132...

  • Page 34: Cab

    DUCOT – Heavy Attack 2020 12.2 Cab 12.2.1 Front External Figure 40: Front of Appliance Item Item Name Emergency Light Bar Driving Light Bar Emergency Strobe Light (Red) Siren Speaker Front Anchor Point Bull Bar Emergency Strobe Light (Blue) Table 10: Cab Front External Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 34 of 132...

  • Page 35: Off / Driver Side - External

    DUCOT – Heavy Attack 2020 12.2.2 Off / Driver Side – External Figure 41: Cabin OS View Item Item Name Fire Curtains Front Cabin Grab Handles Front Step Light Front Cabin Steps Rear Cabin Steps Rear Step Lights Rear Cabin Grab Handles Table 11: OS Cab - External Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 35 of 132...

  • Page 36: Near / Passenger Side - External

    DUCOT – Heavy Attack 2020 12.2.3 Near / Passenger Side - External Figure 42: Cabin NS View Item Item Name Fire Curtains Front Grab Handle Front Step Light Front Cabin Access Steps Rear Cabin Access Steps Rear Step Lights Rear Grab Handles Table 12: NS Cab - External Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 36 of 132...

  • Page 37: Centre Of Cab - Internal

    DUCOT – Heavy Attack 2020 12.2.4 Centre of Cab - Internal Figure 43: Centre of Cab – Internal Item Item Name Centre Console Optional VHF Radio Hand Piece Place Holder Siren Controller / PA Hand Piece UHF Radio Hand Piece HF Radio Hand Piece Ignition Circuit Breaker Table 13: Centre of Cab - Internal...

  • Page 38: Cab Centre Console

    DUCOT – Heavy Attack 2020 12.2.5 Cab Centre Console Figure 44: Centre Console Display Panel Item Item Name Digital Clock Water Level Display Buzzer Mute Switch Door Open Warning Light Low Fuel Warning Light Stow Step Warning Light Pump Charging System Warning Light Mast Up Warning Light Pump Oil Pressure Warning Light 240 Volt Connected Warning Light...

  • Page 39: Cab Roof Internal

    DUCOT – Heavy Attack 2020 12.2.6 Cab Roof Internal Figure 45: Cab Roof Internal Item Item Name UHF Speaker HF Speaker VHF Speaker Front Fire Curtain Table 15: Cab Roof Internal 12.2.7 Cab Back Internal Figure 46: Rear Cabin Wall Behind Seats Item Item Name Rear Fire Curtain...

  • Page 40: Operation

    DUCOT – Heavy Attack 2020 13 O – OPERATION 13.1 Cabin 13.1.1 Entering and Exiting The appliance cabin is fitted with handrails/grab rails to provide 3 points of contact when entering or to exit the vehicle. Only use the designated grab points to get in and out of the cabin. Grab Rails Steps Figure 47: OS Cab - Door Open...

  • Page 41: Bull Bar

    DUCOT – Heavy Attack 2020 13.1.2 Bull Bar For servicing purposes, the vehicle cabin tilts to provide access to the engine bay. The Bull Bar has a limit switch that prevents the OEM Power Cabin Tilt from operating. Lower the Bull Bar to activate the limit switch and enable the OEM Power Cabin Tilt.

  • Page 42: Cabin Items And Accessories

    DUCOT – Heavy Attack 2020 13.1.3 Cabin Items and Accessories The cabin has the following items and accessories:  Centre Console  Rear Electrical Panel  Window Fire Curtains  UHF and VHF Radio Handpieces  UHF and VHF Radio Speakers ...
  • Page 43 DUCOT – Heavy Attack 2020 Warning Description of Warning. Light Indicates the fuel level in the tank has dropped to a ¼ of a tank, or approximately Low Fuel 50L of fuel remaining. This light will illuminate when any of the following are open or have not been closed properly.

  • Page 44: Ignition Circuit Breaker

    DUCOT – Heavy Attack 2020 13.1.5 Ignition Circuit Breaker There is a circuit breaker for the ignition signal located to the left of the steering wheel. This circuit breaker protects the vehicle ignition wiring in the event the additional Fire Electrical Systems develop a short circuit or otherwise draw excess current from the Isuzu vehicle ignition wiring circuit.

  • Page 45: Cabin Switches

    DUCOT – Heavy Attack 2020 The Siren Controller functions; Switch/Button Description of Function “Pump and Roll Mode” This activates the light bar rotators on the cabin roof and the rear Button 1: strobe LEDs. If the parking brake is applied, the vehicle hazard lights will also activate. “Respond Mode”...

  • Page 46: Radios

    DUCOT – Heavy Attack 2020 Figure 54: Dash Switch Locations 13.1.8 Radios The appliance has transceivers for a UHF and an HF radio under the rear seat. The UHF and HF radios have handsets on the dash that control the transceivers; the handsets have a built-in microphone with a push-to-talk button, a display, and buttons to control channels and volume.
  • Page 47 DUCOT – Heavy Attack 2020 Figure 55: Centre of Cab Item Item Name Remote HF Radio Hand Piece Remote UHF Radio Hand Piece Table 22: Radio Controls Figure 56: External Radio and Speaker Controls Item Item Name External UHF Speaker External UHF Speaker Mute Switch External UHF Radio Hand Piece (Optional) External VHF Speaker Mute Switch...

  • Page 48: Cabin Electrical Panel

    DUCOT – Heavy Attack 2020 13.1.9 Cabin Electrical Panel The Cabin Electrical Panel is under the rear seat. It houses circuit breakers, relays, the siren controller and radio equipment. Figure 57: Cabin Rear Electrical Panel – Seat Removed To access the rear electrical panels, lift the seat base. Figure 58: OS Cabin Rear Electrical Panel Item Item Name...
  • Page 49 DUCOT – Heavy Attack 2020 Figure 59: Relay and Circuit Breaker Layout Unbolting the top section provides access to the voltage reducers. Figure 60: Voltage Reducers Under Cabin Rear Electrical Panel Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 49 of 132...
  • Page 50 DUCOT – Heavy Attack 2020 To access the rear electrical panels, lift the seat base. Figure 61: OS Cabin Electrical Panel Item Item Name Simoco UHF Radio Provision for Simoco VHF Radio Codan HF Radio Table 25: Cabin Rear Electrical Panel Radios CAUTION Ensure that the battery isolator is turned off if the vehicle is being parked for any length of time as the Radio Systems draw power constantly and will drain the battery over time...

  • Page 51: Portable Radio Holders

    DUCOT – Heavy Attack 2020 13.1.10 Portable Radio Holders There is a provision to store six portable radios in the cabin. There are four portable radio holders on the panel between the front and rear seats below the helmet holders. These are for the rear seat occupants.

  • Page 52: Pump Set

    DUCOT – Heavy Attack 2020 13.2 Pump Set The pump set is on the OS rear of the subframe. Access to the pump set is via the Platform Deck area on the near side. Figure 65: Pump Set Item Item Name Hatz 4H50-TIC Roto Comp Air Compressor Pump Circuit Breaker Panel...

  • Page 53: Primer

    DUCOT – Heavy Attack 2020 13.2.2 Primer There is a Waterous electric primer below the deck, between the chassis rails. The primer switch is on the Pump Control Panel. Steps for priming the pump and plumbing system are as follows: 1.
  • Page 54 DUCOT – Heavy Attack 2020 Item Item Name Function Pump Inlet This switch selects the water source for the pump set. Ladder Rack This switch controls the ladder rack actuator. Delivery 1 Pressure This gauge displays the operating pressure of Delivery 1. Gauge Primer Button Momentary button to operate the electric primer.

  • Page 55: Pump Control Panel Internal

    DUCOT – Heavy Attack 2020 13.2.4 Pump Control Panel Internal Inside the Pump Control Panel, there are relays, circuit breakers, voltage reducers and a low fuel module. Figure 67: Pump Control Panel Access Item Item Name Pump Control Panel Electrical Panel Panel Bolts Table 28: Pump Control Panel Access To gain access to the Pump Control Panel electrical panel:...
  • Page 56 DUCOT – Heavy Attack 2020 Figure 68: Inside the Pump Control Panel Item Item Name Function Fuse 1 Hose Reel CAFS Delivery Switch Fuse 2 64 QRT CAFS Delivery Switch Fuse 3 Mixer Displays Fuse 4 Hose Reel Wet Dry Valve Fuse 5 Valve Linear Actuator Position Feedback Fuse 6...
  • Page 57 DUCOT – Heavy Attack 2020 Item Item Name Function Low Fuel Monitors the vehicle fuel level. Activates the low fuel alarm when the fuel level Module has dropped below ¼ (50L) of the tank volume. Pump Ignition 1 Activates Reducer 1, Reducer 2 and supplies power for the Auxiliary Relay Reverse.

  • Page 58: Hatz 4H50Ti-Opu Diesel Motor

    DUCOT – Heavy Attack 2020 13.2.5 Hatz 4H50TI-OPU Diesel Motor The engine is a water-cooled, four-cylinder, fuel-injected diesel that delivers a maximum output of 73.8hp (55kw) at 3000rpm. The Hatz 35L fuel tank connects to the vehicle diesel fuel system. The fuel supply to the Hatz motor can be isolated using the Pump Set Diversion Valve beside the vehicle fuel tank on the near side of the vehicle.

  • Page 59: Starting The Engine

    DUCOT – Heavy Attack 2020 Figure 70: Pump Set Fuel Diversion Valve 13.2.6 Starting the Engine The starting procedure for the engine is as follows: 1. Conduct daily maintenance checks on engine, refer to the Hatz Engine OEM manual. 2. Ensure the Fuel Diversion Valve is On. 3.

  • Page 60: Plumbing

    DUCOT – Heavy Attack 2020 13.3 Plumbing Figure 71: NS Rear of Appliance Figure 72: Rear Plumbing Item Item Name Coupling / Fitting Sight Tube 64mm QRT Tank Fill Pipe Ø75mm NS Hose Reel 25mm Storz OS Hose Reel 25mm Storz Delivery Manifold Delivery 1 64mm Male QRT...

  • Page 61: Water Source

    DUCOT – Heavy Attack 2020 13.3.1 Water Source The Pump Inlet pneumatic switch is on the pump control panel beside the Ladder Rack pneumatic switch. The Pump Inlet Switch selects between the onboard water tank (Tank to Pump) or external supply (Inlet Suction).

  • Page 62: Hydrant Fill

    DUCOT – Heavy Attack 2020 The water from the external source can fill the tank and or supply the delivery outlets.  To fill the onboard tank, open the Backfill Valve and monitor the tank water level.  To discharge from one of the ports on the manifold, connect a Lay-flat hose with a 64mm QRT to Delivery 1 or Delivery 2.

  • Page 63: Water Delivery

    DUCOT – Heavy Attack 2020 When filling from a hydrant, use the lay-flat hoses stored in the OSM Locker and the Standpipe in the OSR Locker. Filling the tank from a hydrant: 1. Position the appliance in range of the hydrant. 2.
  • Page 64 DUCOT – Heavy Attack 2020 To discharge water from the OS Hose Reel: 1. Select Water Source, i.e. Tank or Inlet Suction (refer to section 13.3.1 Page 61). 2. Start the pump set as per instructions in section 13.2.6 (Page 59). 3.

  • Page 65: Hose Reels

    DUCOT – Heavy Attack 2020 To discharge water from the Handlines: 1. Retrieve the required Handline/s from the Slide and Tilt Shelf in the OSM Locker. 2. Connect the Handline to the 25mm Storz outlet at the NS Mid or OS Front of the tray. 3.

  • Page 66: Electrical Rewinding The Hose Reel

    DUCOT – Heavy Attack 2020 Figure 76: Hose Reel Brake – Lifting the Lever. Figure 77: Hose Reel Brake 13.3.7 Electrical Rewinding the Hose Reel: 1. Ensure the vehicle ignition is on. 2. Ensure the hose branch is off, and the hose reel brake is released. 3.

  • Page 67: Manually Rewinding The Hose Reel

    DUCOT – Heavy Attack 2020 13.3.8 Manually Rewinding the Hose Reel In the event of power or equipment failure, rewind the hose reel manually, using the supplied reel handle and by following these steps. 1. Ensure the hose reel brake is off. 2.

  • Page 68: Foam

    DUCOT – Heavy Attack 2020 13.4 Foam The appliance has an Aquafoam™ foam metering and delivery system. Any outlets connected to the Delivery Manifold can discharge foam. The Aquafoam™ draws foam from the drums in the OSRUT Locker or from an external source connected to the Foam Induction Pick Up Point Storz fitting beside the OSRUT Locker.

  • Page 69: Air Compressor

    DUCOT – Heavy Attack 2020 13.5 Air Compressor The Heavy Attack appliance has a Rotocomp Air Compressor that is driven by the Hatz diesel motor. It provides compressed air to run the CAFS and the four air outlets around the body of the appliance.

  • Page 70: Compressed Air Foam System (Cafs)

    DUCOT – Heavy Attack 2020 13.6 Compressed Air Foam System (CAFS) The CAFS unit uses a liquid solution that is mixed with compressed air and water to deliver a fire suppressant foam that can coat and cling to most surfaces. Use the Hose Reel and Delivery 3 Wet / Dry switches and displays to adjust the consistency of the foam to suit the task.
  • Page 71 DUCOT – Heavy Attack 2020 Figure 84: CAFS Controls Item Item Name Air Compressor Pressure Gauge CAFS Compressor Over Temperature Light CAFS Compressor Switch Delivery 3 – CAFS Pressure Gauge 64mm QRT Delivery 3 - CAFS Mixture Display 64mm QRT Delivery 3 – Air Supply Switch 64mm QRT Delivery 3 –...

  • Page 72: Water Tank

    DUCOT – Heavy Attack 2020 13.7 Water Tank The onboard water tank is a custom-made HDPE Polymer Tank with a useable capacity of 3000 litres. The tank is fitted with multiple lateral baffles to minimise the effect of water surge during transit.

  • Page 73: Water Level Management

    DUCOT – Heavy Attack 2020 13.7.1 Water Level Management The sight tube on the rear of the tank and the electronic Water Level Indicator both display the water level in the onboard tank. A low water warning will alert the operator when the water tank reaches 25% of its capacity.

  • Page 74: Filling The Tank

    DUCOT – Heavy Attack 2020 13.7.2 Filling the Tank Filling the tank can be achieved via drafting through the pump set (refer to 13.3.3) or from a fire hydrant (refer to 13.3.4 Page 62). 13.7.3 Draining the Tank Reduce the tank level by using the pump set (refer to 13.3.5 Page 63). When the tank level is low, then remove plug in the tank sump to further drain remaining water from the tank.

  • Page 75: Lockers

    DUCOT – Heavy Attack 2020 13.8 Lockers The appliance has lockers above and below the deck. The above deck lockers; NSF, NSM, NSR, OSF, OSM, OSR and the Tent Locker. The below deck lockers; NSFUT, NSRUT, OSFUT and the OSRUT. Some lockers may be referred to by the specific role that it fills; i.e. the OSFUT Locker can also be called the Chainsaw Locker.

  • Page 76: Near Side Front Locker

    DUCOT – Heavy Attack 2020 13.8.2 Near Side Front Locker The NSF Locker has two Slide and Tilt Shelves and stowage space on the floor. It houses some Road Crash Rescue equipment and Air Lines. Figure 89: Near Side Front Locker Item Item Name Slide and Tilt Shelves...

  • Page 77: Near Side Front Under Tray Locker

    DUCOT – Heavy Attack 2020 13.8.3 Near Side Front Under Tray Locker The NSFUT Locker has a First Aid Kit, Fire Extinguisher, and a defibrillator. Figure 90: Near Side Front Under Tray Locker Item Item Name First Aid Kit / Defibrillator Fire Extinguisher Table 39: Near Side Front Under Tray Locker Rural Fire Brigades Association Queensland...

  • Page 78: Near Side Mid Locker

    DUCOT – Heavy Attack 2020 13.8.4 Near Side Mid Locker In the NSM Locker is a Waeco CFX35W fridge on a slide and drop mechanism to provide easier access. There is a 24V DC accessory socket to supply power to the fridge. Figure 91: Near Side Mid Locker Item Item Name...

  • Page 79: Near Side Rear Locker

    DUCOT – Heavy Attack 2020 13.8.5 Near Side Rear Locker The NSR Locker incorporates the Suction Hose Locker, 240V Battery Charger, Fridge Power Supply, 6 x 240V AC power outlets, 4 x 24V DC accessory sockets and a Slide and Tilt Shelf for the Road Crash Rescue equipment.

  • Page 80: Near Side Rear Under Tray Locker

    DUCOT – Heavy Attack 2020 13.8.6 Near Side Rear Under Tray Locker The NSRUT Locker has Timber Cribbage, Front Recovery Point and access to the spare wheel winch. Figure 93: Near Side Rear Under Tray Locker Item Item Name Access to Spare Wheel Winch Front Recovery Point Timber Cribbage Table 42: Near Side Rear Under Tray Locker...

  • Page 81: Off Side Front Locker

    DUCOT – Heavy Attack 2020 13.8.7 Off Side Front Locker The OSF Locker is for stowing crew equipment, wheel chocks and a petrol generator and extension lead. Figure 94: Off Side Front Locker Item Item Name Wheel Chocks Crew Equipment Petrol Generator Extension Lead Table 43: Off Side Front Locker...

  • Page 82: Off Side Front Under Tray Locker

    DUCOT – Heavy Attack 2020 13.8.8 Off Side Front Under Tray Locker The OSFUT Locker is also known as the Chainsaw Locker. It has provision for storing 1 x chainsaw, 2 x 10-litre fuel cans and 2 x fuel pourers. Figure 95: Off Side Front Under Tray Locker Item Label Item Name...

  • Page 83: Off Side Mid Locker

    DUCOT – Heavy Attack 2020 13.8.9 Off Side Mid Locker The OSM Locker has a Slide and Tilt Shelf to store a 7m Handline and a 3m Handline. It also has a custom made Lay-flat Hose Holder, Foam Branch Holder, 2 x QCFE Nozzle Holders, Storz Spanner Holder, QRT Spanner Holder and storage for various plumbing adaptors.
  • Page 84 DUCOT – Heavy Attack 2020 Figure 97: Off Side Mid Locker – Slide and Tilt Shelf Item Item Name Branch Storage 2 x Handlines Table 46: Off Side Mid Locker Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 84 of 132...

  • Page 85: Off Side Rear Locker

    DUCOT – Heavy Attack 2020 13.8.10 Off Side Rear Locker The OSR Locker has a large slide that can be extended outwards from the locker. The slide houses Fire Beaters, Rakehoes, a Fibreglass Spine Board, a Glass Management Kit, a Standpipe, a Plug Bar and a Stabifast Kit.

  • Page 86: Off Side Rear Under Tray Locker

    DUCOT – Heavy Attack 2020 13.8.11 Off Side Rear Under Tray Locker The OSRUT Locker is also known as the Foam Locker. This locker has a shelf slide for storing 3 x 20L Foam Drums. The Foam Drums can be used from the stored position by connecting the Foam Line to one of the Foam Drums.

  • Page 87: Ancillary Equipment

    DUCOT – Heavy Attack 2020 13.9 Ancillary Equipment The appliance has pre-determined equipment installed to accomplish its intended purpose. The following precautions apply to the stowage and handling of each item. CAUTION Each item must be stowed correctly to prevent the items from moving while the appliance is in transit or operation.

  • Page 88: Fridge

    DUCOT – Heavy Attack 2020 13.9.2 Fridge The appliance has a Waeco CFX35W Fridge secured to an MSA Drop Slide Side Mount assembly in the NSM locker. The MSA Drop Slide enables the fridge to slide out of the locker and drop-down for easier access.

  • Page 89: Ladder

    DUCOT – Heavy Attack 2020 13.9.3 Ladder The appliance has a ladder rack to store a Bailey 6m Green Fibreglass Extension Ladder. The ladder is secured using a pneumatic actuator and a spring bolt. The actuator works on air pressure from the vehicle’s accessory air tank. To ensure there is enough air pressure to operate the system, the vehicle engine should be running.

  • Page 90: Awning

    DUCOT – Heavy Attack 2020 13.9.4 Awning The appliance is fitted with a wind-out awning to provide shade from the sun or shelter from the rain. To operate the awning: 1. Retrieve the Awning Winder Handle from its stored position in the NSR Locker. 2.

  • Page 91: Fuel Cans

    DUCOT – Heavy Attack 2020 13.9.5 Fuel Cans There are two 10 litre Fuel Cans in the OSFUT Locker. One for Drip Torch Fuel and one for unleaded fuel. To access the Fuel Cans, open the OSFUT Locker, release the retaining strap and lift the Fuel Can out.

  • Page 92: Traffic Cones

    DUCOT – Heavy Attack 2020 13.9.7 Traffic Cones Ten Traffic Cones are housed on a purpose-built holder, under the tray on the off side rear of the appliance. Figure 106: Traffic Cone Holder Item Item Name Traffic Cones Traffic Cone Retaining Strap Buckle Table 54: Traffic Cone Holder To remove the Traffic Cones:...

  • Page 93: Deck Platform Access Ladder

    DUCOT – Heavy Attack 2020 13.9.8 Deck Platform Access Ladder The Deck Platform can be accessed using the Slide Out Step Ladder on the near side rear of the appliance. The Deck Platform provides access to the pump set and equipment stored on the Deck Platform.

  • Page 94: Standpipe

    DUCOT – Heavy Attack 2020 13.9.9 Standpipe There is one dual head Standpipe fitted on the slide in the OSR Locker. Also stored here is the Hydrant Plugging Bar. Figure 108: Standpipe Item Item Name Standpipe Standpipe PAC Brackets Plugging Bar Table 56: Standpipe To remove the Standpipe from storage, follow these steps: 1.

  • Page 95: Lay-Flat Hoses

    DUCOT – Heavy Attack 2020 13.9.10 Lay-Flat Hoses The lay-flat hoses have a dedicated holder in the OSM Locker. There is a provision to stow the following lay-flat hoses. DESCRIPTION LENGTH 64mm QRT Duraline Lay-Flat 38mm QRT Duraline Lay-Flat 64mm QRT Duraline Lay-Flat Table 57: Lay-Flat Stowage Figure 109: OSM Locker (open) Item...

  • Page 96: Fire Extinguisher

    DUCOT – Heavy Attack 2020 13.9.11 Fire Extinguisher There is one 4.5kg DCP Fire Extinguisher stored in the NSFUT Locker. Figure 110: Fire Extinguisher Item Item Name Fire Extinguisher Retaining Clamp Lever Retaining Clamp Clip Retaining Clamp Hook Table 59: Fire Extinguisher To remove the Fire Extinguisher from storage, follow the steps below: 1.

  • Page 97: Chainsaw Locker

    DUCOT – Heavy Attack 2020 13.9.12 Chainsaw Locker The chainsaw is in the Off Side Front Under Tray Locker, also known as the Chainsaw Locker. The locker stores the Chainsaw, Chainsaw Fuel Can, Drip Torch Fuel Can, and the Fuel Can Pourers.

  • Page 98: Rear Recovery Bar

    DUCOT – Heavy Attack 2020 13.9.14 Rear Recovery Bar The appliance has a custom-designed rear recovery bar. The Rear Recovery Bar has ratings for two types of loading situations, single point pull and straight pull. The ratings for these are: ...

  • Page 99: Electrical

    DUCOT – Heavy Attack 2020 13.10 Electrical The appliance has been fitted with customised electrical systems to provide the functionality required to fulfil the roles of a fire and rescue appliance. These include:  Emergency Lights and Siren  Lighting ...

  • Page 100: Under Deck Lights

    DUCOT – Heavy Attack 2020 13.10.5 Under Deck Lights The Under Deck Lights are fitted along both sides and around the rear of the appliance. These lights illuminate the ground immediately around the appliance. The Under Deck Lights Switch is in the vehicle cabin, on the dash to the right of the steering wheel.

  • Page 101: Nsr Locker Accessory Sockets

    DUCOT – Heavy Attack 2020 13.10.11 NSR Locker Accessory Sockets. There are four, 24 Volt accessory sockets in the NSR Locker to operate the 24V DC chargers for the Road Crash Rescue equipment. The accessory sockets have a maximum combined output of 10 amps.

  • Page 102: Supply

    DUCOT – Heavy Attack 2020 13.10.13 240V Supply The 240V inlet provides 240V AC Mains to the NSR Locker. There are six power points in the NSR Locker. One for the Fridge Power Supply, to keep the fridge in a state of readiness when the vehicle is parked up.

  • Page 103: Circuit Protection

    DUCOT – Heavy Attack 2020 13.10.15 Circuit Protection The appliance has 4 locations for circuit protection. The Main Circuit Breaker Panel, the Pump Set Circuit Breaker Panel, the Pump Control Panel and the Rear Cabin Electrical Panel. The Main Circuit Breaker Panel is on the near side of the appliance above the vehicle batteries. It houses the circuit breakers for the Radio Memory, Cabin, Pump, Primer, Battery Charger and the NS and OS Hose Reels.
  • Page 104 DUCOT – Heavy Attack 2020 Figure 119: Pump Panel Circuit Breakers Item Item Name Pump Panel Circuit Breakers Pump Panel Internal Circuit Breakers Table 62: Pump Panel Circuit Breakers The Cabin Rear Seat Electrical Panel is on the near side of the appliance under the rear seat. There are circuit breakers here for the following: ...
  • Page 105 DUCOT – Heavy Attack 2020 Figure 120: NS Cabin Rear Electrical Panel Figure 121: Relay and Circuit Breaker Layout Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 105 of 132...

  • Page 106: Testing

    DUCOT – Heavy Attack 2020 14 T – TESTING The following section provides details on the necessary testing and maintenance procedures for the appliance. OPERATION OPERATION LABEL Check Drain Inspect Monitor during appliance break-in Table 63: Inspection and Maintenance Key 14.1 Appliance Pre-Start Checks PRE-START CHECKS FUNCTION...

  • Page 107: Vehicle

    DUCOT – Heavy Attack 2020 14.2 Vehicle This section details the vehicle maintenance and inspection procedures. Item Daily Weekly Notes ENGINE Engine Oil Fuel Tank Level Batteries Coolant System Level Engine Compartment Drive Belts EXHAUST If the DPD Warning Light flashes, the driver DPD (Diesel Particle must perform a manual regeneration within 60- Diffuser)

  • Page 108: Pump Set

    DUCOT – Heavy Attack 2020 14.3 Pump Set The individual components of the pump should undergo maintenance as per OEM instructions. Below is a summary of these maintenance tasks: HATZ 4H50 ENGINE Item Daily Weekly Notes Engine Oil Fuel Tank Level Fuel Line Check the fuel line for damage or leaks Air Filter...

  • Page 109: Electrical

    DUCOT – Heavy Attack 2020 14.7 Electrical ELECTRICAL Item Daily Weekly Notes Cabin Step Lights Locker Lights Driving Lights Warning Lights Warning Buzzers Emergency Lights Front, Rear, Side Strobes & Light Bar Siren/PA Work Lights Under Tray Lights ADR Clearance Lights Sides and Rear Radios External Speakers...
  • Page 110 DUCOT – Heavy Attack 2020 Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 110 of 132...

  • Page 111: Appendix A - Electrical Diagrams

    DUCOT – Heavy Attack 2020 15 APPENDIX A – ELECTRICAL DIAGRAMS Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 111 of 132...
  • Page 112 DUCOT – Heavy Attack 2020 Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 112 of 132...

  • Page 113: Appendix B - Plumbing Diagram

    DUCOT – Heavy Attack 2020 16 APPENDIX B – PLUMBING DIAGRAM Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 113 of 132...
  • Page 114 DUCOT – Heavy Attack 2020 Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 114 of 132...

  • Page 115: Appendix C - Plumbing Maintenance

    DUCOT – Heavy Attack 2020 17 APPENDIX C – PLUMBING MAINTENANCE 17.1 Primer Wye Strainer The electric primer has a Wye Strainer fitted in the water supply line to prevent debris entering the primer. Access to the Wye Strainer is from the near side Platform Deck. This filter should be checked and cleaned regularly.

  • Page 116: Appendix D - Rear Recovery Point Certification

    DUCOT – Heavy Attack 2020 18 APPENDIX D – REAR RECOVERY POINT CERTIFICATION Rural Fire Brigades Association Queensland Revision 1.0, 11/2020 Page 116 of 132...

  • Page 117: Appendix E - Spare Parts

    DUCOT – Heavy Attack 2020 19 APPENDIX E – SPARE PARTS A list of all spare parts for the appliance is listed below: QC part # OEM number Description 4758450 Spring Body Mount 5/8” ZP 3340190 LP1B Lamp License Plate LED inc plate mount 3099335 SST15 Fitting S/S Tee 1/2"...
  • Page 118 DUCOT – Heavy Attack 2020 3465502 150-366AP Nozzle Protek 366 (1 1/2") 3087000 SZM40 Fitting Storz 38x38 BSP Male Adaptor 1442490 QUIK40664 Gun Holder (RFR for T400) no PC 3610600 PW 056 PVC Plastic Pinchweld SR black8x14 3307800 20026290 Hose 3/4" Gorilla Good Year 500PSI 3081100 SZH20BARB Fitting Storz 25 x 20 Tail Single Barb...
  • Page 119 DUCOT – Heavy Attack 2020 4742802 BWD3076L-14-R Slide Lock In/Out 350mm RH (BWD 14") 5456880 3WBVL12 Valve Ball Brass 3 Way 1/2" Lport Bttm Entry 2903000 RHN2015 Fitting Red Nipple 3/4" x 1/2"BSP Brass 3085000 SZF20 Fitting Storz 25x20 BSP Female Adaptor 3096000 SZC25 Fitting Storz 25mm Blanking Cap...
  • Page 120 DUCOT – Heavy Attack 2020 2765746 SN15300 Fitting All Thread Brass 1/2" x 300mm 2906960 BN15 Fitting Backnut 1/2" Brass 3001050 BFP10-0808 Fitting Female Tailpiece 1/2"BSP x 1/2"Tail Brass 3048300 HS15 Fitting Hex Socket 1/2"BSP Brass 3002500 BFP6-0808 Fitting Male Elbow 1/2"BSP x 1/2"Tail 90o Brass 1002100 9301 Actuator Selector N-22-SW...
  • Page 121 DUCOT – Heavy Attack 2020 5910080 72449 Worklamp LED Square Flood 9-64V 1200Lumens 7072800 P3163SCH10 Pipe S/S 316 SCH 10 3" 7072700 P31665NBS10 Pipe S/S 316 Sch 10 2 1/2" 3097165 SWEF1031650 Fitting S/S Elbow Buttweld 45degree 2" sch 10 7072600 P3162SCH10 Pipe S/S 316 Sch 10 2"...
  • Page 122 DUCOT – Heavy Attack 2020 2905000 HN15 Fitting Nipple 1/2"BSP Brass 5451000 VBB15 Valve Ball Brass 2 Way 1/2" F/F 3004700 BFP3-1208 Fitting Male Tailpiece 1/2"BSP x 3/4"Tail Brass 3009000 BMLEM3832 Fitting Male Lump End 1 1/2"BSP x 1 1/4"Tail Brass 3098912 SSRB4015 Fitting S/S Reducing Bush 1 1/2"...
  • Page 123 DUCOT – Heavy Attack 2020 2669901 IN03 Cooler Oil 430x340x50mm 2698302 EFX4771 Fan Universal 336mm Puller 24V 1771cfm 2995515 D-08-08 Fitting Hydraulic 1/2" Nipple Zinc 4736120 TS04 Sign AL-Do not overtake turning Vehicle (RH) 3340010 94840 Lamp Combination 9-33v LED 4736110 TS03 Sign AL-Do not overtake turning Vehicle (LH)
  • Page 124 DUCOT – Heavy Attack 2020 2786120 BTO25 Fitting Tank Outlet 1" Brass 3196010 CVT25 Hose Clear 25mm ID CVT 3160007 168.1604.19 Float Ball Sight Gauge 15.5mmOD (Braglia) 5435120 T25MF Valve Ball T-Handle 1" M/F 2940400 FE25 Fitting Brass 1" F/F 90o 3008000 BFP31616 Fitting Male Tailpiece 1"BSP x 1"Tail Brass...
  • Page 125 DUCOT – Heavy Attack 2020 1918587 1918587 Screw Air Bleed MP Type 8 2941379 HP10 Fitting Brass Plug 3/8"BSP Hex Head 3098680 SSN50 Fitting S/S Nipple Hex 2" 5459520 VBCE50 Valve Spring Check Brass 2" 5459200 SPRVHD20 Valve Spring Check Brass 3/4" 5453000 VBB25 Valve Ball Brass 2-Way 1"...
  • Page 126 DUCOT – Heavy Attack 2020 1924459 1924459 Housing Bearing Pulley EVO6 Compressor 1905096 1905096 (1) Multipump Short Belt Tensioner Assembly 1850171 1905094 Multipump Boss Belt Tensioner 1110050 NTN-12x32x10 Bearing (NTN) Idler Belt 6201 1925425 1925425 BELT TENSIONER - BEARING SPACER 3462028 1904011 (1) Multi Pump Pulley Idler...
  • Page 127 DUCOT – Heavy Attack 2020 3098743 SSN1508 Fitting S/S Reducing Nipple 1/2 x 1/4" 3040130 390511050 Fitting Air Quick Conn Holmatro Body x 1/4" BSPF 3077790 CA96462 Fitting Quick Release Body Dust Cap (24mmID) 5505250 SSBV2P20 Valve Ball S/S 2pce 3/4" 3085500 SZM20 Fitting Storz 25x20 BSP Male Adaptor...
  • Page 128 DUCOT – Heavy Attack 2020 5533485 P5027 Voltage Reducer 24v-12v 10A 4896051 R2-1 Switch Rocker R series Actuator Blank 4896065 R404-24R Switch Rocker R Series Actuator 24v Red 5153800 Streamlight Torch Torch Streamlight Poly Stinger 76162 LED 12V 3341505 M1-81 Latch Flush Pull to Open 4742889 81026BL...
  • Page 129 DUCOT – Heavy Attack 2020 5626010 WS41Y Wheel Nut Indicator 41mm yellow 3465510 VG-710/S Ally Fire Technology 1 inch branch variable flow pistol grip First aid kit in soft bag Alpha brand (for treating burns, 3321001 FIRSTAID immobilisation and snake bites) 3311200 98-PB600 610 mm hydrant bar galvanised...

  • Page 130: Appendix F - Warranty Policy

    DUCOT – Heavy Attack 2020 20 APPENDIX F – WARRANTY POLICY This document sets out the warranties that are given by Quik Corp Pty Ltd (ABN 18 081 235 556) in relation to the Product purchased from or manufactured by Quik Corp.
  • Page 131 (including travelling time) of the service technician must be paid for by the Customer. 6.3. Any service outside the scope of this warranty will be charged for at Quik Corp’s rates and terms then in effect. Rural Fire Brigades Association Queensland...

  • Page 132: Component Warranties

    Product. 7.5. The judgement of Quik Corp in all cases of claims under this warranty shall be final and conclusive and the Customer agrees to accept its decisions on all questions as to defect, repair and to the exchange of any part or parts.

Table of Contents
