PedalPCB Transcendence Boost Controls And Features page 2

LOCATION VALUE
R1 2M2
R2 680R
R3 680R
R4 2M2
R5 3K3
R6 51R
R7 51R
R8 120K
R100 4K7
C1 1u
C2 33p
C3 47u
C4 100n
C15 10u
C100 220u
C101 10u
C102 10u
C103 10u
C104 10u
C105 10u
C106 100n
D100 1N5817
D101 1N5817
D102 1N5817
D103 1N5817
D104 1N5817
IC1 OPA2134
IC100 TC1044SCPA
BOOST A50K
Transcendence Boost
Transcendence Boost

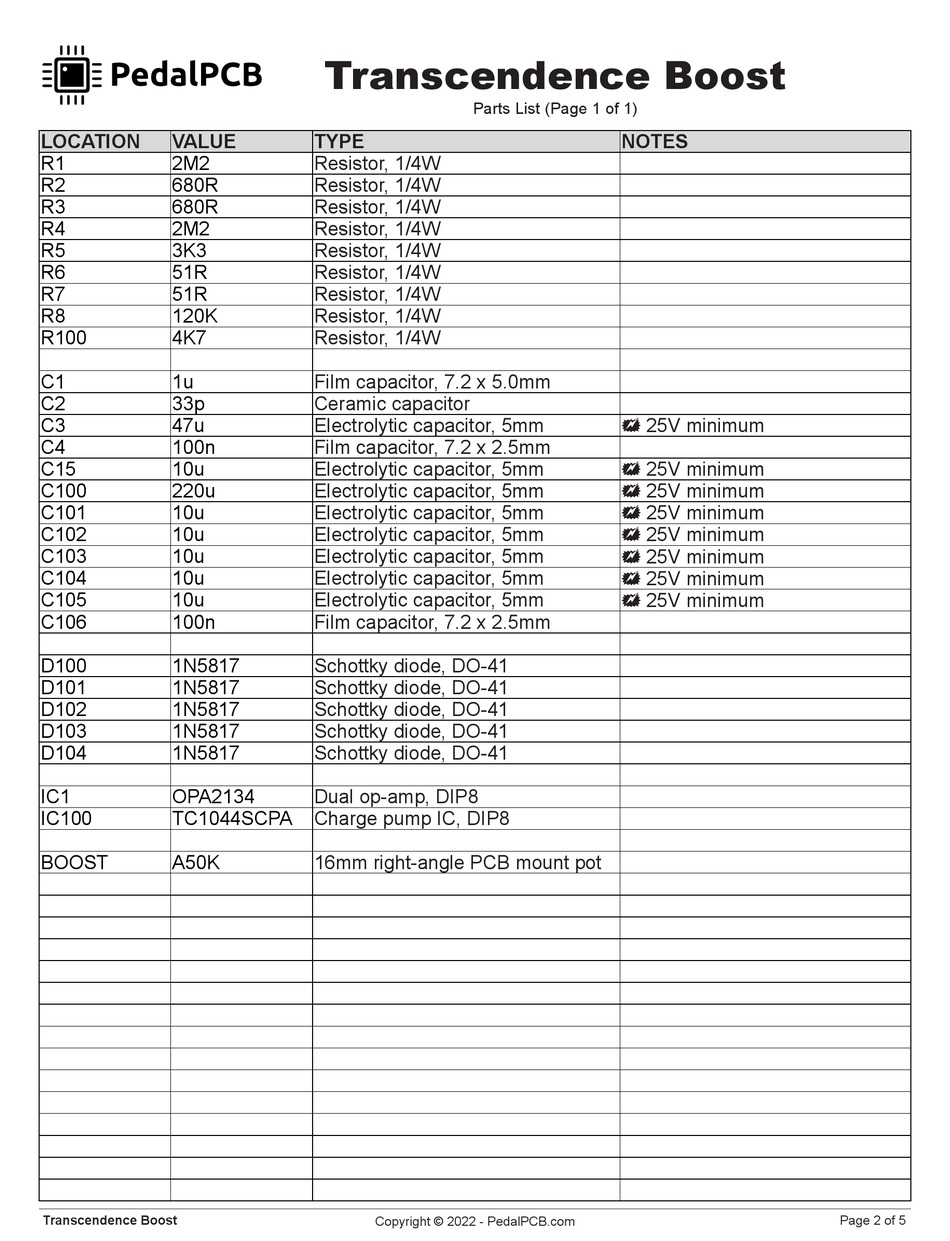

Parts List (Page 1 of 1)
TYPE
Resistor, 1/4W
Resistor, 1/4W
Resistor, 1/4W
Resistor, 1/4W
Resistor, 1/4W
Resistor, 1/4W
Resistor, 1/4W
Resistor, 1/4W
Resistor, 1/4W
Film capacitor, 7.2 x 5.0mm
Ceramic capacitor
Electrolytic capacitor, 5mm
Film capacitor, 7.2 x 2.5mm
Electrolytic capacitor, 5mm
Electrolytic capacitor, 5mm
Electrolytic capacitor, 5mm
Electrolytic capacitor, 5mm
Electrolytic capacitor, 5mm
Electrolytic capacitor, 5mm
Electrolytic capacitor, 5mm
Film capacitor, 7.2 x 2.5mm
Schottky diode, DO-41
Schottky diode, DO-41
Schottky diode, DO-41
Schottky diode, DO-41
Schottky diode, DO-41
Dual op-amp, DIP8
Charge pump IC, DIP8
16mm right-angle PCB mount pot
Copyright © 2022 - PedalPCB.com
NOTES
� 25V minimum
� 25V minimum
� 25V minimum
� 25V minimum
� 25V minimum
� 25V minimum
� 25V minimum
� 25V minimum
Page 2 of 5
