Summary of Contents for CPA BLUEFIRE Series
- Page 1 USER MANUAL HEAT PUMPS USER MANUAL C.P.A. BLUEFIRE SERIES Ver.06 – 2018-05-28...
-
Page 2: Table Of Contents
Programming parameter list Time settings Programmed start / stop by clock Keyboard lock Memory backup after power is resumed Maintenance Alarm codes PCB connections diagram Connection diagrams error codes how to get assistance Raccomendations for the correct installation www.cpa-piscine.it Ver.06 – 2018-05-28... -
Page 3: Description

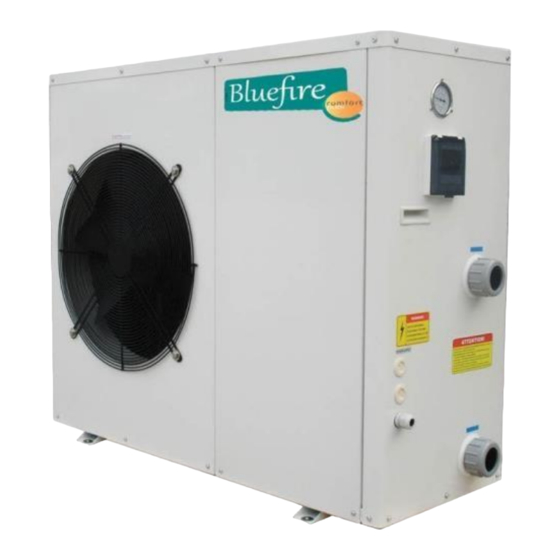

3 di 20 DESCRIPTION The BLUE FIRE heat pump, a 2013 novelty marketed by CPA Piscine, has a technology based on the use of an electronic expansion valve that adjusts the gas flow with extreme precision, allowing constant heating to be maintained in the refrigeration system. In addition, the new heat pump is characterized in its operation by defrosting by inversion of the cycle which thus allows it to operate even with a very low external air temperature (up to 0 °), more quickly and more effectively than other systems. - Page 4 Furthermore, it is advisable to use a rigid pipe on the vertical part up to the machine and fix it solidly to the wall through fixing collars. www.cpa-piscine.it Ver.06 – 2018-05-28...
- Page 5 The heat pump is equipped on one of its sides with two union joints for the entry and exit of the pool water. The water inlet and outlet pipes are to be glued on these joints. Allow to dry thoroughly before starting the water circulation circuit www.cpa-piscine.it Ver.06 – 2018-05-28...
-
Page 6: Electrical Connection
▪ The active conductors of the power supply line of the machine must be protected by a magneto-thermal switch or by fuses of the rating recommended in the following table. ▪ Ensure proper placement of the machine. www.cpa-piscine.it Ver.06 – 2018-05-28... - Page 7 Rotative Rotative Scroll Scroll Scroll Acoustic power [dBA] at 1 m Compressor type Hydraulic connection [mm] 45 a 63 60 a 80 60 a 80 70 a 95 100 a 120 160 a 200 Weight kg] www.cpa-piscine.it Ver.06 – 2018-05-28...
-
Page 8: Dimensions
2 The following indications are recommendations for a correct sizing of the power supply line, however it is up to the installer, professional enabled, the verification and correct sizing of the line in compliance with the legislation in force in the country of installation • www.cpa-piscine.it Ver.06 – 2018-05-28... -
Page 9: Operative Guide
Button for setting the time interval for turning the heat pump on or off. Together with the scroll up and scroll down buttons, it allows you to set these time intervals. www.cpa-piscine.it Ver.06 – 2018-05-28... -
Page 10: Work State Control
The digital controller will emit a beep, so it will be possible to change the parameter value again using the scroll keys. Press “SET” in order to memorize the set value and pass to the next parameter. www.cpa-piscine.it Ver.06 – 2018-05-28... - Page 11 Return delta temperature setting Adjustment can only be 1-5°C 2°C (temperature delta) carried out by a qualified technician Offset temperature of the water at Adjustment can only be 1-10°C 0°C the outlet carried out by a qualified technician www.cpa-piscine.it Ver.06 – 2018-05-28...
- Page 12 BLUEFIRE HEAT PUMPS MANUAL pag. 12 di 20 www.cpa-piscine.it Ver.06 – 2018-05-28...
- Page 13 If no button is pressed within 5 seconds, the system confirms the current timing setting and automatically returns to the initial default state. To reset the programming, press and hold the button until the hour will flash, then press set to exclude the timer and return to the initial screen. www.cpa-piscine.it Ver.06 – 2018-05-28...
-
Page 14: Keyboard Lock
It is necessary to completely drain the water from the pump if the unit stops for a long time. After a period of standstill, before starting the unit again, completely fill the hydraulic circuit of the by-pass and the pump. www.cpa-piscine.it Ver.06 – 2018-05-28... -
Page 15: Alarm Codes
Exhaust temperature Protezione scarico compressore Check the flow of the air compressor EE06 d’aria of water too high Sbrinamento Defrost code Keyboard connections e Check connections Errore di comunicazione EE08 of the PCB faulty keyboard www.cpa-piscine.it Ver.06 – 2018-05-28... -
Page 16: Pcb Connections Diagram
FROST GND System protection SYS GND 12V External ambient temperature ROOMT Fan circuit 2 temperature (not used) PIPE2 Fan circuit 1 temperature (not used for split version) PIPE1 Leaving water temperature OUTWT Inlet water temperature INTWT www.cpa-piscine.it Ver.06 – 2018-05-28... -
Page 17: Connection Diagrams
BLUEFIRE HEAT PUMPS MANUAL pag. 17 di 20 CONNECTION DIAGRAMS Version SBR-3.8H-B - SBR – 5.3 H-B - SBR – 9.5 H-B Version SBR-11.3H-B www.cpa-piscine.it Ver.06 – 2018-05-28... - Page 18 BLUEFIRE HEAT PUMPS MANUAL pag. 18 di 20 Version SBR-14.OH-B Version SBR-17.OH-B www.cpa-piscine.it Ver.06 – 2018-05-28...
- Page 19 BLUEFIRE HEAT PUMPS MANUAL pag. 19 di 20 Version SBR 17.0H-B-S - SBR 21.0H-B-S - SBR 26.0H-B-S Version 45.AH-S NOTA: Crankshaft Heater, seppur raffigurati, non sono attualmente disponibili www.cpa-piscine.it Ver.06 – 2018-05-28...
-
Page 20: Error Codes
3 times in 30 minutes, the system cannot return to normal operation unless the power is cut off and the problem is solved when the pump is re-connected to the mains. During the defrost period, the high / low pressure protection system is not active www.cpa-piscine.it Ver.06 – 2018-05-28... - Page 21 The C.P.A. s.r.l. assumes no responsibility for any problems deriving from erroneous interpretation of the text. ▪ The C.P.A. s.r.l. furthermore, it declines all responsibility for possible inaccuracies contained in this manual, if due to p rinting or transcription errors. www.cpa-piscine.it Ver.06 – 2018-05-28...
